Figure 2
From: Whole mitochondrial genomes reveal the relatedness of the browsing ant incursions in Australia

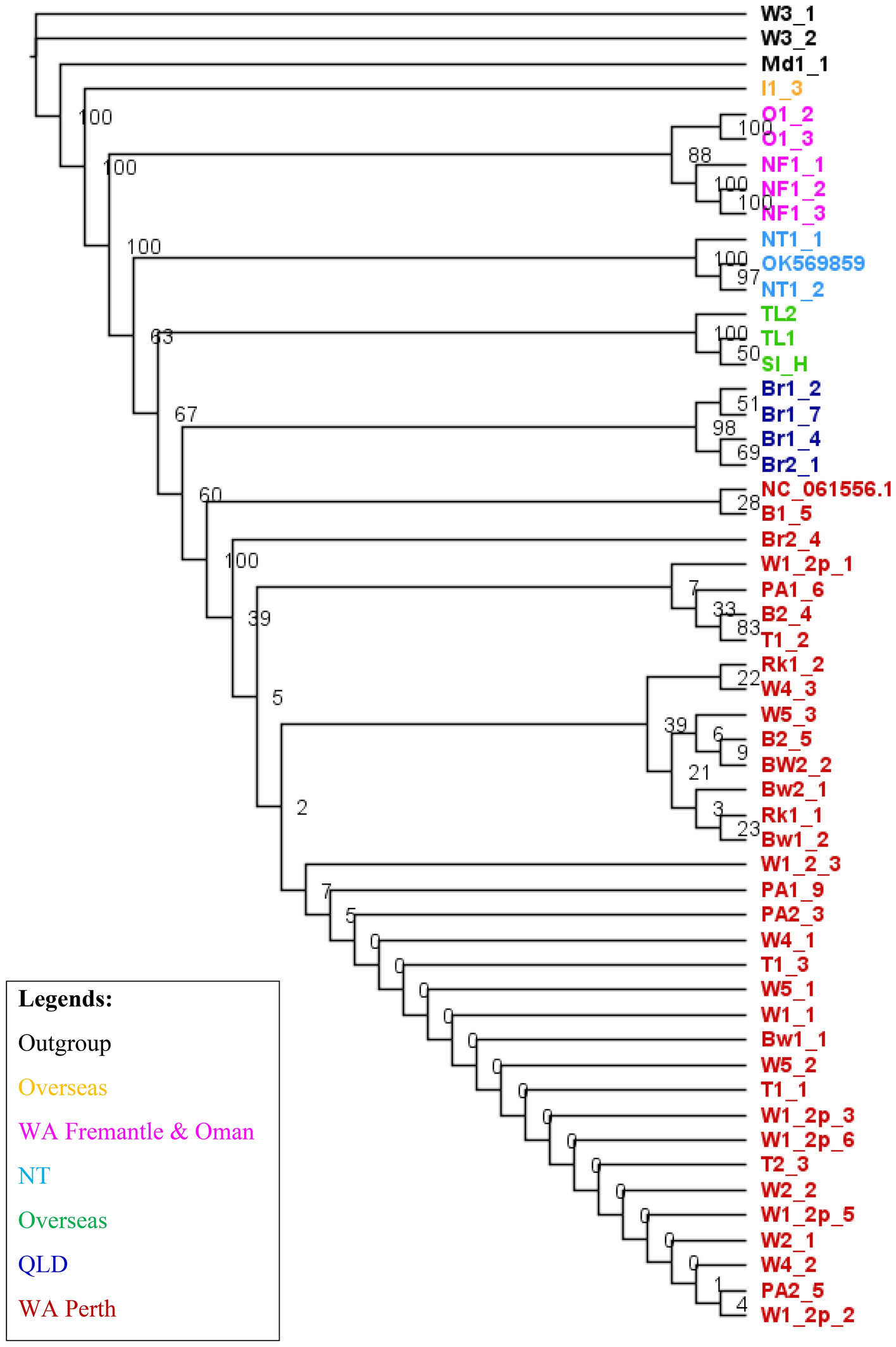

The maximum-likelihood (ML) phylogenetic tree of the browsing ants inferred from mitochondrial genome sequence data. The tree was built using the RAxML v858 (Randomized Axelerated Maximum Likelihood) program that implemented the ‘GTRGAMMA’ model, and visualised using the FigTree64 software. The numbers on the nodes represent the percentages of 1000 bootstrap values. The taxa are coloured to indicate potentially separate incursions. Red: Perth, WA; Pink: Fremantle, WA, and Oman; Dark blue: QLD; Light blue: NT; Light green: Timor Leste and Hawaii; Yellow: Iran; Black: outgroup (L. incisa). Taxa NC_061556.1 and OK569859 are retrieved from Tay et al. 202255.
