Figure 11

From: Carvacrol attenuated lipopolysaccharide-induced intestinal injury by down-regulating TLRs gene expression and regulating the gut microbiota in rabbit

Figure 11

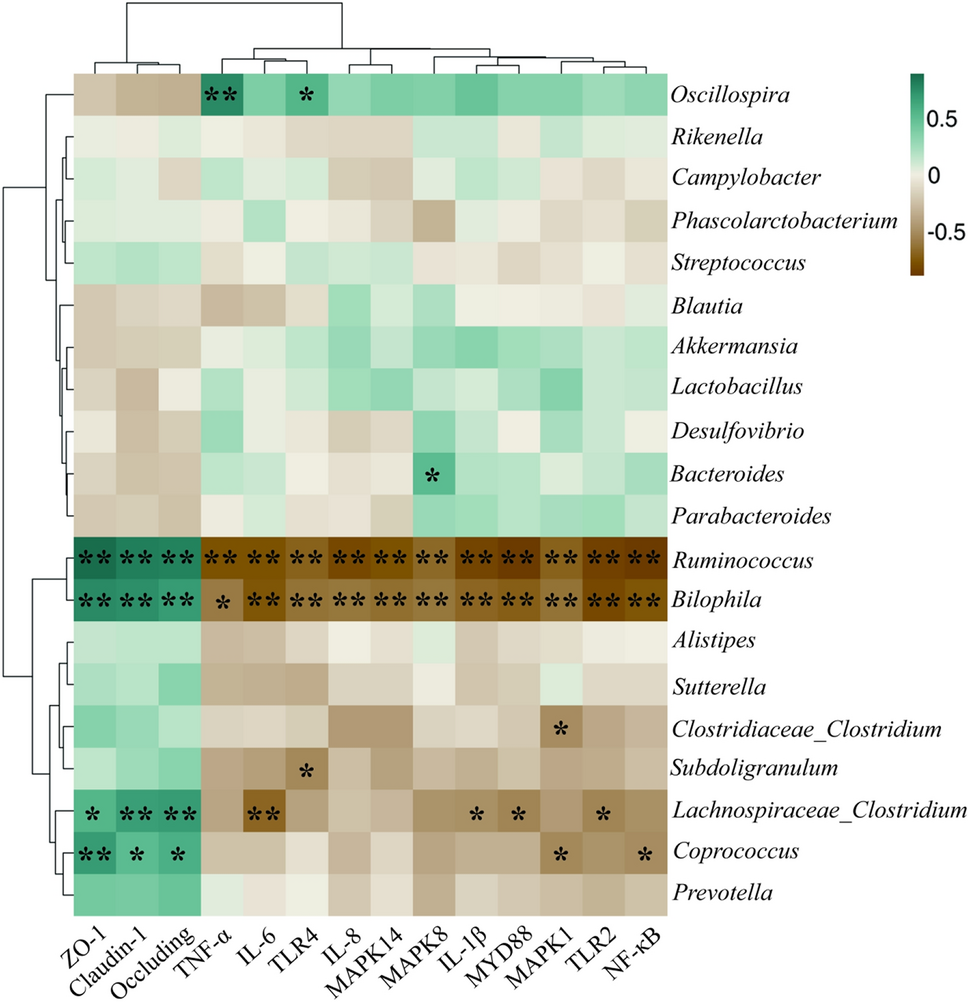

Heatmap of Spearman’s correlation between the gut microbiota and anti-inflammatory and TJ function. The intensity of the colors represented the degree of association (green, positive correlation; brown, negative correlation). Significant correlations were marked by *P < 0.05, **P < 0.01.
