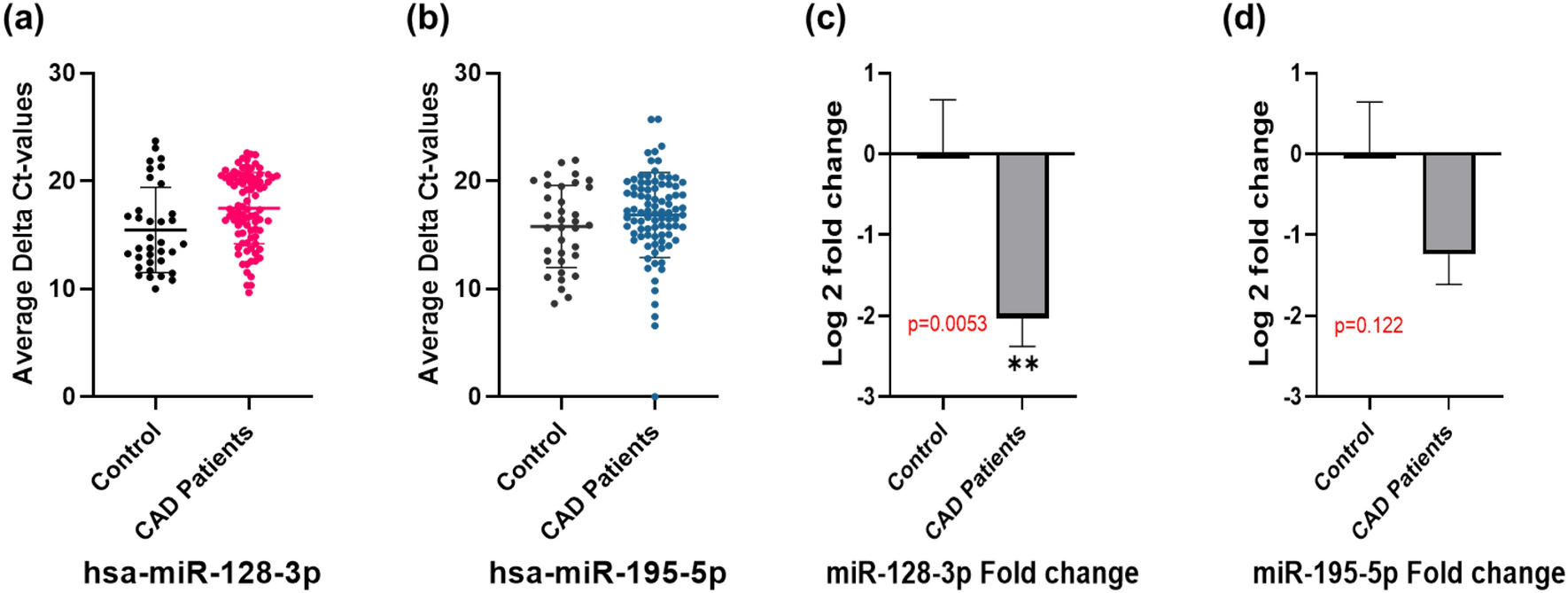

Figure 2
From: Role of miR-128-3p and miR-195-5p as biomarkers of coronary artery disease in Indians: a pilot study
Differential Expression pattern of miR-128-3p & miR-195-5p: (a) Expression levels of miR-128-3p in CAD patients (n = 89) in comparison to control subjects (n = 35) in terms of average delta Ct values. (b) Expression levels of miR-195-5p in CAD patients (n = 89) vs. control subjects (n = 35) in terms of average delta Ct values. Results were measured as Mean ± SD. (c) Relative Fold change of miR-128-3p in CAD patients as opposed to control subjects. It was significantly decreased with a p value of 0.0053. Results are (Mean ± SEM) (d) Relative fold change of miR-195-5p in CAD patients when compared to control subjects. miR-195-5p levels did not show any significant changes (p value = 0.122) Results are (Mean ± SEM).
