Abstract
Using the established synthetic methods, aroyl-S,N-ketene acetals and subsequent bi- and multichromophores can be readily synthesized. Aside from pronounced AIE (aggregation induced emission) properties, these selected examples possess distinct complexometric behavior for various metals purely based on the underlying structural motifs. This affects the fluorescence properties of the materials which can be readily exploited for metal ion detection and for the formation of different metal-aroyl-S,N-ketene acetal complexes that were confirmed by Job plot analysis. In particular, gold(I), iron(III), and ruthenium (III) ions reveal complexation enhanced or quenched emission. For most dyes, weakly coodinating complexes were observed, only in case of a phenanthroline aroyl-S,N-ketene acetal multichromophore, measurements indicate the formation of a strongly coordinating complex. For this multichromophore, the complexation results in a loss of fluorescence intensity whereas for dimethylamino-aroyl-S,N-ketene acetals and bipyridine bichromophores, the observed quantum yield is nearly tripled upon complexation. Even if no stable complexes are formed, changes in absorption and emission properties allow for a simple ion detection.
Similar content being viewed by others
Introduction
Small traces of metal ions are ubiquitous. They can be found in nearly everything, i.e. in potable water, in nutriments, and in solvents for chemical reactions1,2. And while specific metals are essential for our survival and our health3,4, others pose a great danger due to high toxicity5,6,7. Yet, even essential metal ions can be as well toxic at elevated concentration3,8,9,10. Therefore, the precise detection of metal ions in analytics11 as well as in therapy and diagnostics12 is of utmost importance. The requirements are quite rigorous with respect to detection limit and selectivity13,14. Electrochemistry and engineering provided various devices to ensure high quality metal ion sensing15,16,17,18,19. Another discipline, which garnered lots of attention regarding metal ion sensing, is dye chemistry in which the presence of metal ions leads to a change of photophysical properties, thus, resulting in a preferential optical readout14,20,21,22,23,24,25,26,27. While the range of suitable dyes for metal ion sensing is broad, a common ground for the overwhelming majority are ligands with heteroatoms, as they often act as sites of coordination28,29,30,31,32,33. The modes of action for these metal ion sensors are as manifolded as their structural motifs and span from metal organic frameworks34,35,36 to classic fluorescent probes37,38,39,40 up to doped materials20,41 and carbon42,43,44 and quantum dots45,46. Due to the phenomenal impact of aggregation induced emission (AIE), AIEgens have also been implemented as promising metal sensors due to their remarkable fluorescence light up under specific circumstances47,48,49,50,51,52.
Since 2020, aroyl-S,N-ketene acetals quite successfully entered the stage of novel and exciting AIEgens due to their high versatility and their unusual AIE properties based on the presence of benzyl moieties53,54. By various expansions, the bouquet of photophysical properties for this class of compounds has been vastly expanded by exploiting the full potential of synthetic organic chemistry53,55,56,57,58,59. Aside from AIE, solid-state and dual emission, solvatochromism, and halochromism properties were unveiled for this class of compound53,60. One fact that has been overlooked for aroyl-S,N-ketene acetal based AIEgens so far, is the dyes’ behavior in the presence of metal ions. Due to various heteroatoms embedded into the molecular structure, the assumption of complexing behavior seemed feasible. Benzothiazole derivatives are applied in N-heterocyclic carbene ligands (NHCs), especially N-allyl-substituted derivatives have been successfully used in these respects61,62,63. Furthermore, a 2,5-bis[3-benzyl-2-methylbenzothiazole] croconaine derivative could be used as a highly sensitive and selective sensor for the detection of iron(III) ions with the naked eye64. Due to an identical distance between carbonyl oxygen and sulfur atom of the benzothiazole of the 2,5-bis[3-benzyl-2-methylbenzothiazole] croconaine derivative in comparison to the structural motif of the aroyl-S,N-ketene acetals, these complexing properties inspired to perform comparable complexometric studies for the aroyl-S,N-ketene acetal class of compounds. Due to the emission properties of the dimethylamino-substituted aroyl-S,N-ketene acetals and their derivates, we chose to make them the centerpiece of the present complexometric investigations.
Results and discussion
Synthesis
First generation dimethylamino aroyl-S,N-ketene acetals 3a54 and 3b54 can be easily obtained via an addition–elimination sequence, starting from the respective acid chloride and a benzothiazolium salt 2 using diisopropylethylamine as a base in very good yields (Fig. 1A)54.

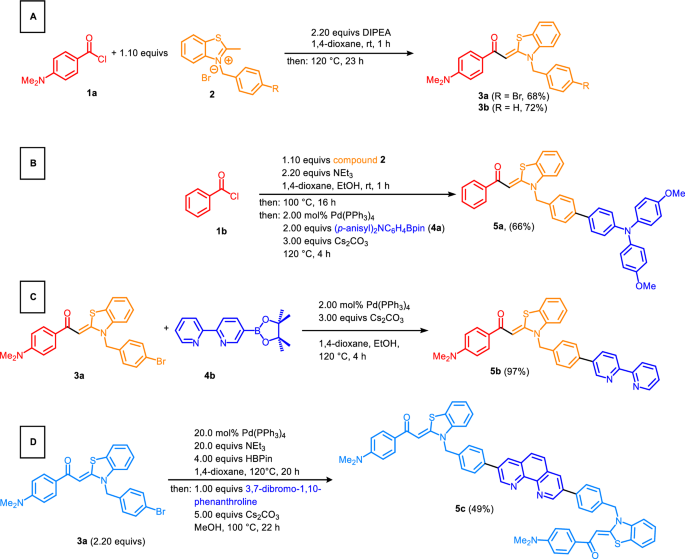

Addition–elimination reaction for the generation of dimethylamino substituted aroyl-S,N-ketene acetals 3a and b (A), Consecutive three-component condensation-Suzuki coupling synthesis of aroyl-S,N-ketene acetal bichromophore 5a (B), Suzuki coupling synthesis of dimethylamino aroyl-S,N-ketene acetal bipyridine bichromophore 5b (C), MBSC synthesis of 1,10-phenanthroline bridged trichromophore 5c (D).
Another fluorescent aroyl-S,N-ketene acetal based material, which might be suitable for complexometric studies, are triphenylamine aroyl-S,N-ketene acetals that are accessible via a one-pot procedure, where the addition–elimination procedure is followed en route by a Suzuki coupling with triarylamine boronate 4a65 to give the respective bichromophore 5a57 in a yield of 66% (Fig. 1B)57. Similarly, a single step Suzuki reaction of dimethylamino aroyl-S,N-ketene acetal 3a and bipyridine boronic acid ester 4b leads to the formation of the respective bipyridine bichromophore 5b in excellent yield (Fig. 1C).
By using an excess of dimethylamino aroyl-S,N-ketene acetal 3a implemented in a Masuda borylation-Suzuki coupling (MBSC)66 sequence with dibrominated 1,10-phenanthroline as a coupling partner, it is possible to generate the 1,10-phenanthroline bridged dimethylamino aroyl-S,N-ketene acetal multichromophore 5c in moderate yield (Fig. 1D)56.
Photophysical properties
The photophysical properties of the investigated series of dyes in ethanol are mostly determined by the aroyl-S,N-ketene acetal moiety. As most of the dyes comprise of dimethylamino aroyl-S,N-ketene acetals, for compounds 3a, 3b, and 5b show nearly identical absorption properties with absorption maxima of 404 nm, only bichromophore 5a and multichromophore 5c deviate from this behavior due to the secondary chromophores of triphenylamine and 1,10-phenanthroline, resulting in absorption maxima of 373 nm. Regarding the luminescence in ethanol, the emission properties are determined by the dimethylamino aroyl-S,N-ketene acetal units due to their intense emission at 455 nm and fluorescence quantum yields Φf of around 0.20. Only bichromophore 5a fluoresces at 447 nm as the unsubstituted aroyl-S,N-ketene acetal 3c does not fluoresce in solution54. Therefore, the properties are determined by the secondary triphenylamine chromophore (Fig. 2A). The solid-state emission exhibits a greater range, which is determined by both the aroyl-S,N-ketene acetal and the secondary chromophore. The most blue shifted derivative is the triphenylamine bichromophore 5a with a solid-state emission maximum of 500 nm, whereas the most bathochromically shifted emission maxima occur for both the dimethylamino bipyridine bichromophore 5b and the brominated dimethylamino aroyl-S,N-ketene acetal 3a with λmax,em = 604 nm (Fig. 2B) (for full details of photophysical properties, see SI chpt.6).

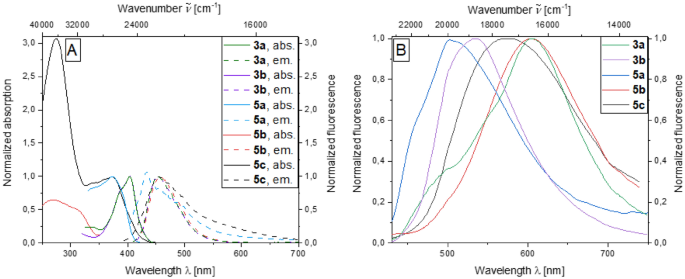

Normalized absorption and emission spectra in ethanol (T = 298 K, c(abs) = 10−5 m, c(em) = 10−7 m, λexc = λmax,abs) (A) and normalized solid-state emission spectra and solid-state fluorescence colors (B) of aroyl-S,N-ketene acetals 3 and 5 (λexc = 365 nm; λexc = λmax(abs)).
As aggregation induced emission is normally a prime feature for aroyl-S,N-ketene acetals, we could only observe partial aggregation caused quenching effect in conjunction with a bathochromic shift of the emission maximum, which can be unequivocally attributed to the dimethylamino substituted aroyl-S,N-ketene acetal core (for details, see SI, chpt. 7).
Complexometric studies
The standard method for determining complex stoichiometry is to use the method of continuous variation that is shown in the Job plot67,68. This assumes a constant total volume and concentration of all components involved in the equilibrium. The continuous variation of the ratios of metal salt and ligand concentration allows the complex stoichiometry to be determined via the change in the physical quantity under consideration. For the required Job plot, the variable photophysical quantity must be plotted against the mole fraction. It should also be noted that free binding sites in the complex can be occupied by solvent molecules if coordinating solvents are present67,68.
A series of qualitative tests were carried out for the dimethylamino-substituted compound 3b by adding small amounts of various metal salts to a solution of the dye in ethanol and observing with the naked eye the influence this has on the absorption and emission properties of the dissolved chromophore. As expected, gold(I), iron(III), and ruthenium(III) salts were identified as potential candidates for complexometric studies. We screened for a variety of the most common metal salts of both transition metals and metals like sodium, potassium, magnesium, calcium, aluminum, silver, gold, iron, tin, nickel, platin, zinc and scandium ions in order to cover up the widest range possible of metals that are most commonly used and can be called ubiquitous.
First, the complexation properties of the aroyl-S,N-ketene acetal 3b with gold(I) iodide are investigated (Fig. 3). This initially revealed an interesting effect when looking at the emission properties during complexation: there is a continuous increase in the emission intensity and an associated increase from Φf = 0.20 in the absence of a metal salt to Φf = 0.55 in presence of AuI (2.43 equivs) (Fig. 3B). A further increase of the amount of metal salt causes a slight decrease in the emission intensity.

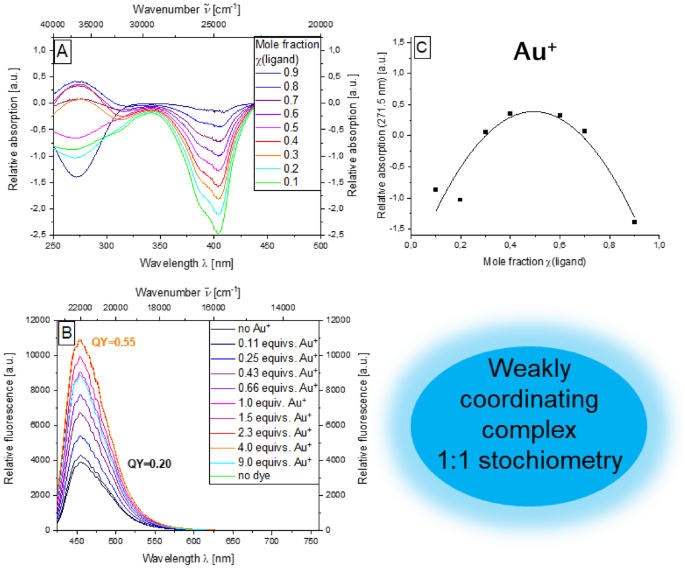

Absorption difference spectra of compound 3b at different mole fractions of the ligand dye in the presence of AuI (recorded in ethanol; c(3b) = 10−5 m, c(metal salt) = 10−5 m, T = 298 K) (A), emission spectra of compound 3b with increasing amount AuI (c(3b) = 10−7 m, c(metal salt) = 10−7 m, T = 298 K, λexc = 404 nm) (B), Job plot of the mole fraction of the ligand against the relative absorption at 271.5 nm (C).
The formation of difference spectra before and after addition of the metal salt reveals the most pronounced change for the absorption maximum at a wavelength of 271.5 nm (Fig. 3A). The corresponding absorbance values of the difference spectra at this maximum are plotted against the corresponding mole fraction χ of the ligand gives the respective Job plot that is fitted by a quadratic correlation with f(χ) = − 10.308 − χ2 + 10.190 − χ − 2.129 and an excellent correlation factor (R2 = 0.96). The paraboloid course of the function and the maximum of the negative parabola is localized at a mole fraction of χ = 0.5 indicates a weakly coordinating complex of aroyl-S,N-ketene acetal 3b and Au+ ion. (Fig. 3C).

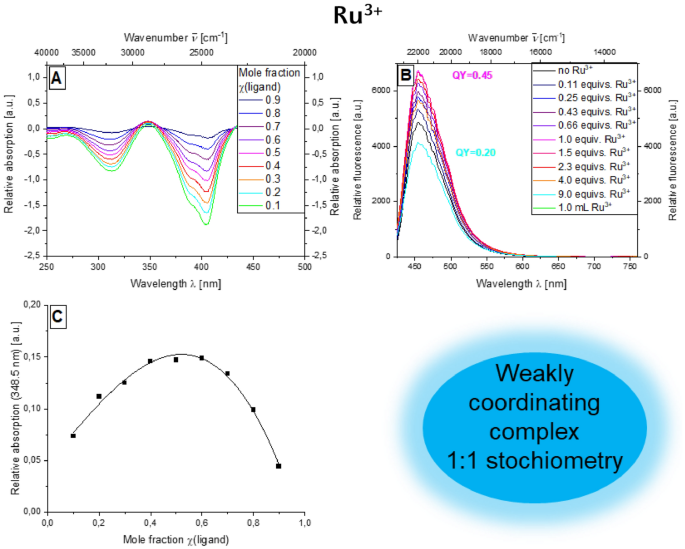

A similar behavior could be observed for both iron and ruthenium salts. Since the Fe3+-complexing properties of a benzothiazole croconaine derivative64 served as the motivation for investigating the complexing properties of aroyl-S,N-ketene acetals, aroyl-S,N-ketene acetals are intriguing to be also checked for complexation with Fe3+ ions. Iron(III) chloride is used as the metal salt for this purpose, and complexing properties of the aroyl-S,N-ketene acetals are indeed revealed. Once again, there is a clear increase in fluorescence intensity due to complexation Fe3+ ions to Φf = 0.59 (see SI, Fig. S9B) and for Ru3+ ions to 0.57 (see SI, Fig. S10B). Both, iron (f(χ) = − 12.646 − χ2 + 10.991 − χ − 1.152) and ruthenium (f(χ) = − 0.499 − χ2 + 0.597 − χ − 1.521) show good correlations with their respective fits of 0.93 and 0.86. For Fe3+-ions, a weakly coordinating 1:1 complex can be observed (see SI Fig. S9) while for Ru3+-ions, a weak complex with a 1:2 stoichiometry seems to be rational (see SI Fig. S10).
Several possible explanations for the observed fluorescence enhancements upon ligation can be given. The enhancement may result from ion-induced changes in the geometry or flexibility of the ligand. Other possibilities include chelation-induced changes of the relative energetic positions of different states, which shut off deactivation pathways as well as surpassing radiationless deactivation pathways via torsional motions which may be a viable explanation for aroyl-S,N-ketene acetals. The determination of the mechanism behind these fluorescence enhancements have been studied for more than 20 years and are still basis of currently ongoing investigations69,70,71.
Theoretically, various complexation modes of the dimethylamino-aroyl-S,N-ketene acetal 3b are conceivable. Coordination can either take place via the lone pairs of the dimethylamino group, the carbonyl oxygen, the sulfur atom of the benzothiazole or simultaneously via the carbonyl oxygen and the sulfur atom, i.e. by chelation. Previous studies suggested coordination via carbonyl oxygen and benzothiazole sulfur for 1:1 stoichiometry of comparable ligand systems64. In the case of the ruthenium complex, it can therefore be assumed that the ruthenium can be coordinated via carbonyl oxygen and benzothiazole sulfur as well as via the dimethylamino unit72,73,74.
For bichromophore system 5a, a pronounced effect of fluorescence quenching can be observed with the addition of iron(III) chloride; a weak effect can also be observed with regard to absorption spectroscopy.
In contrast to the complexometric studies of 3b (Fig. 4A), a decrease in fluorescence intensity of the bichromophore 5a can be observed with increasing mole fraction until the emission is finally extinguished (Fig. 4B). One possibility for the fluorescence quenching are competing electron transfer processes: the ligand is excited and Fe(III) is thus reduced to Fe(II) by the excited ligand. Another possible explanation addresses the effect of the comparable quenching behavior during protonation which we reported earlier for triphenylamine bichromophores57. The fluorescence can be attributed to the emissive triphenylamine secondary chromophore. However, an energy transfer to the aroyl-S,N-ketene acetal system can be assumed57. The systemic change in the molecule takes place at the aroyl-S,N-ketene acetal motif, which is responsible for the fluorescence quenching, and not at the triphenylamine, which is affected neither by complexation nor protonation.

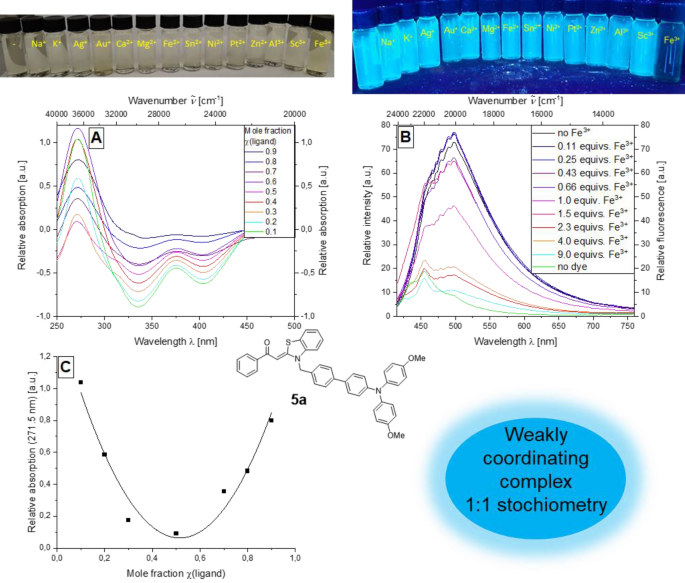

Top: apparent perception of the properties of 5a when different metal salts are added in daylight (left) and under UV light (right); middle: absorption difference spectra of compound 5a at different mole fractions of the ligand dye in the presence of FeCl3 (recorded in ethanol; c(5a) = 10−5m, c(FeCl3) = 10−5 m, T = 298 K) (A), Emission spectra of compound 5a with increasing amount of FeCl3 (c(5a) = 10−7 m, c(FeCl3) = 10−7 m, T = 298 K, λexc = 373 nm) (B); bottom: Job plot of the mole fraction of the ligand against the relative absorption at 271.5 nm (C).
The most obvious assumption of the complexation site is the sulfur and oxygen atoms of the aroyl unit and the benzothiazole unit.
The determination of the difference spectra showed that the most pronounced effect could be observed for the absorption maximum at 271.5 nm. Therefore, this maximum was selected for the creation of the corresponding Job plot.
Plotting the mole fraction of the ligand against the relative absorbance at 271.5 nm results in a paraboloid curve, which indicates a weakly coordinating complex. The position of the maximum at χ = 0.5 indicates a 1:1 stoichiometry of the fluorescence quenching complex (Fig. 4C).
As for compound 3b, it was also possible to proceed for the combination of ruthenium(III) chloride and bichromophore 5b. With regard to the emission intensity, the intensity can also be increased by adding the dissolved metal salt. At the same time, the fluorescence quantum yield can be more than doubled from Φf = 0.20 to 0.45 (Fig. 5B). In the case of ruthenium(III) chloride, the difference spectra reveal that the absorption maximum at 348.5 nm is most suitable for investigation using Job plot analysis (Fig. 5A). The Job plot of the mole fraction of the ligand χ against the relative absorbance at 348.5 nm provides a parabola that is highly correlated with the individual measurement points, so that a weakly coordinating complex can also be detected in this case. The maximum of this parabola was at χ = 0.5, meaning that a 1:1 stoichiometry of the ruthenium dye complex can be assumed (Fig. 5C).
Absorption difference spectra of compound 5b at different mole fractions of the ligand dye in the presence of RuCl3 (recorded in ethanol; c(5b) = 10−5 m, c(RuCl3) = 10−5 m, T = 298 K) (A), emission spectra of compound 5b with increasing amount of RuCl3 (c(5b) = 10−7 m, c(RuCl3) = 10−7 m, T = 298 K, λexc = 404 nm) (B), Job plot of the mole fraction of the ligand against the relative absorption at 348.5 nm (C).
Although no complex formation can be observed for other metal ions, the presence of various metal ions nevertheless has an obvious influence on the absorption and emission properties of bichromophore 5b dissolved in ethanol during qualitative tests. For this purpose, low concentrations of both the bichromophore 5b and the respective metal salt of c = 10−5 m for absorption and c = 10−7 m for emission are used. While an absorption maximum at 315 nm can be observed in the absence of a metal salt, this maximum disappears in the presence of metal ions. For the presence of gold ions, the maximum mentioned appears at 271.5 nm. The addition of ruthenium(III) chloride causes a bathochromic shift of the long wavelength absorption maximum. Furthermore, the addition of iron(II) sulfate, iron(III) chloride and aluminum(III) chloride results in a longer wavelength absorption maximum which can be ascribed to the long wavelength metal to ligand charge transfer bands. This absorption maximum occurs for Fe2+ ions at 495 nm, for trivalent iron ions this maximum occurs with increased intensity bathochromically shifted to 505 nm.
This effect can be observed even more strongly in the presence of Al3+ ions, where the maximum occurs at 513 nm (Fig. 6A). With regard to the emission, an effect due to the presence of metal ions can also be demonstrated. Without the addition of metal salts, the emission maximum occurs at 447 nm. In presence of Pt2+ ions and Ag+ ions, a bathochromic shift of the emission maximum to 497 and 502 nm, respectively, can be observed. The most significant effect occurred in the presence of Al3+ ions. The respective emission maximum can be detected here at 520 nm (Fig. 6B).

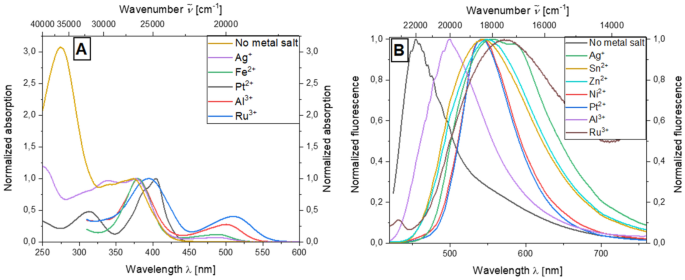

Absorption spectra on addition of various metal salts in ethanol (c(5b) = 10−5 m, c(M+) = 10–5 m, T = 298 K) (A) and emission spectra of compound 5b on addition of various metal salts in ethanol (c(5b) = 10−7 m, c(M+) = 10−7 m, T = 298 K, λexc = 404 nm).
In comparison to the other systems 3b, 5a, and 5b investigated, a strongly altered emission behavior of the bis(dimethylamino-aroyl-S,N-keteneacetal)-1,10-phenanthroline system 5c can be observed. So far, the presence of the metal salts has led to a significant increase in the fluorescence quantum yield Φf. In the case of the presence of the phenanthroline linker, the pronounced fluorescence quantum yield of the dimethylamino-aroyl-S,N-ketene acetals is already significantly reduced to 0.04. In addition, the fluorescence quantum yield Φf decreases significantly with increasing mole fraction of the gold(I) iodide, with the greatest drop in emissivity already occurring upon addition of 0.11 equivs of gold(I) iodide. The further decrease in the fluorescence quantum yield Φf with increasing mole fraction is almost linear (see SI, Fig. S15B).
The formation of the corresponding difference spectra reveals the greatest change for an absorption wavelength of 449 nm, so that these respective absorption values of the difference spectra at different mole fractions of the ligand could be used for the analysis using a Job plot (Fig. 7, top A). It is possible to fit the course of the complexation behavior by a quadratic function, so that formation of a weakly coordinating complex can be assumed. The maximum of the parabola is localized at a mole fraction of χ = 0.65, so that a complex consisting of two Au+ ions and a molecule of the 1,10-phenanthroline system 5c is formed (see SI, Fig. S15C).
Absorption difference spectra of compound 5c at different mole fractions of the ligand dye in the presence of FeSO4 (top) and FeCl3 (bottom) (recorded in ethanol; c(5c) = 10−5 m, c(metal salt) = 10−5 m, T = 298 K) (A), emission spectra of compound 5c with increasing amount FeSO4 (top) and FeCl3 (bottom) (c(5c) = 10−7 m, c(metal salt) = 10−7 m, T = 298 K, λexc = 404 nm) (B), Job plot of the mole fraction of the ligand against the relative absorption at 271.5 nm (FeSO4, top) and (FeCl3, bottom) (C).
In contrast to previously investigated systems, complexation of Fe2+ ions is observed in the case of derivative 5c, such as complexation must be attributable to the 1,10-phenanthroline linker. It can be seen that quenching of the emission in the presence of the metal salt is a material property of derivative 5c, since the initial fluorescence quantum yield Φf of 0.04 decreases significantly when the metal salt loading is increased (Fig. 7, top B).The difference spectra of compound 5c reveal that the absorbance maximum at 400 nm is ideal for examination by Job plot analysis (Fig. 7, top right A). The plot of the absorbance at 400 nm against the mole fraction χ of the ligand again shows an almost parabolic curve and thus indicating a weakly coordinating complex. The position of the maximum at 0.6 suggests the formation of an iron-dye complex in a 1:2 stoichiometry (Fig. 7, top C).
Finally, the complexation behavior of the multichromophore 5c with respect to iron(III) chloride (Fig. 7, bottom A) will be discussed. The quenching of the emission reaches its maximum with this metal salt and chromophore combination. After addition of 0.11 equivs of iron(III) chloride, almost complete quenching of the emission intensity is observed. The fluorescence quantum yield Φf decreases from 0.04 without any metal salt present to well below 0.01 upon the addition of the respective metal salt (Fig. 7, bottom B). With regard to the difference spectra obtained, the local maximum can be identified as suitable for Job plot analysis (Fig. 7, bottom A).The job plot of the mole fraction of the ligand χ against the relative absorbance at 362.5 nm yields a 7th degree function that is highly correlated with the individual measurement points and consists of two almost linear subsections, so that a strongly coordinating complex can be assumed in this case. At the same time, the position of the maximum of the 7th degree function at χ = 0.2 indicates the formation of a complex with a 5:1 stoichiometry consisting of five ligands and one Fe3+ ion67,68. This behavior can be interpreted that Fe3+ ions coordinate to both 1,10-phenanthroline and the dimethylamino aroyl-S,N-ketene acetals (Fig. 7, bottom C).
Even if no stable and observable metal dye complexes are formed, the presence of metal ions still have a considerable effect on both absorption and emission properties of dye 5c. To quantify the influence of the presence of the metal ions, low concentrations of c = 10−5 m of both the metal salt used and the bridged system 5c were used for emission and concentrations of c = 10−7 m were used. The intense absorption maximum at 274 nm disappears almost completely in the presence of various metal salts. For some metal salts, the absorption at 320 nm is only plotted, as interfering absorption effects of the metal salt solutions occur at higher energies. For platinum(II) salts and silver(I) iodide, the formation of an additional, energetically higher absorption maximum can be detected at 318 and 341 nm, respectively. The absorption maximum which can be ascribed to the aroyl-S,N-ketene acetal unit occurring at 373 nm in the absence of the metal salts occurs almost unchanged in the presence of Ag+, Fe2+ and Al3+ ions (Fig. 8A).
Absorption spectra on addition of various metal salts in ethanol (c(5c) = 10−5 m, c(M+) = 10−5 m, T = 298 K) (A) and emission spectra of compound 5c on addition of various metal salts in ethanol (c(5c) = 10−7 m, c(M+) = 10−7 m, T = 298 K, λexc = 404 nm).
A similarly distinct behavior can also be detected for the emission of system 5c in the presence of various metal salts. In the absence of additives, the emission maximum in ethanol occurs at 455 nm. The emission is bathochromically shifted to 498 nm in the presence of Al3+ ions, resulting in a greenish fluorescence. For the presence of Ni2+ and Pt2+ ions, the emission maximum in solution can be observed at 531 nm, whereas the emission intensity is clearly different and by a factor of 10 lower for the presence of Ni2+ ions. Comparably, the emission maxima occur with the addition of Sn2+ and Zn2+ ions at 542 and 546 nm, respectively, with significantly broadened emission bands. The solution of chromophore 5c luminesces most intensely in the presence of silver(I) ions. Two emission maxima can be observed here, at 549 and 602 nm. The presence of Ru3+ ions results in the most pronounced bathochromic shift of the emission maximum. The solution of the dye luminesces orange in ethanol with an emission maximum of 592 nm (Fig. 8B).
The discrepancy between the emission behavior of the derivatives 3a and 5b and the derivative 5c and their spectroscopically detected metal complexes suggests that two fundamentally divergent binding modes of the metal complexes are operative. It can be concluded that for chromophores 3a and 5b a constructive influence of the metal ions is in effect as emission quenching by energy or electron transfer does not occur in these cases. The most likely sites of coordination are in this case either the dimethylamino functionality or the potentially chelating oxygen-sulfur unit of aroyl and benzothiazole. For dimethylamino aroyl-S,N-ketene acetals, it is reasonable to assume that complexation also occurs via the amino nitrogen. But, as with all anilines, both the Brønsted and Lewis basicity is reduced by the aromatic compound, and even more so by the p-conjugation to the carbonyl group. Therefore, the carbonyl group even becomes more electron-rich as a result. Ergo, chelation, also for thermodynamic reasons, enthalpic and entropic, should actually be the most likely modus operandi for these systems. This means that the presence of the metal salt can have a fluorogenic effect as seen by the increase in the fluorescence quantum yield Φf (Fig. 9, top)23,75,76,77. A possible explanation for this behavior lies in the metal ion-induced changes in the geometry and flexibility of the ligand as well as reducing the accessibility of deactivation pathways of certain functional groups. Especially in case of flexible ligands like bipyridine or equally flexible aroyl-S,N-ketene acetal, the chelation process suppresses radiationless deactivation via torsional motions40.

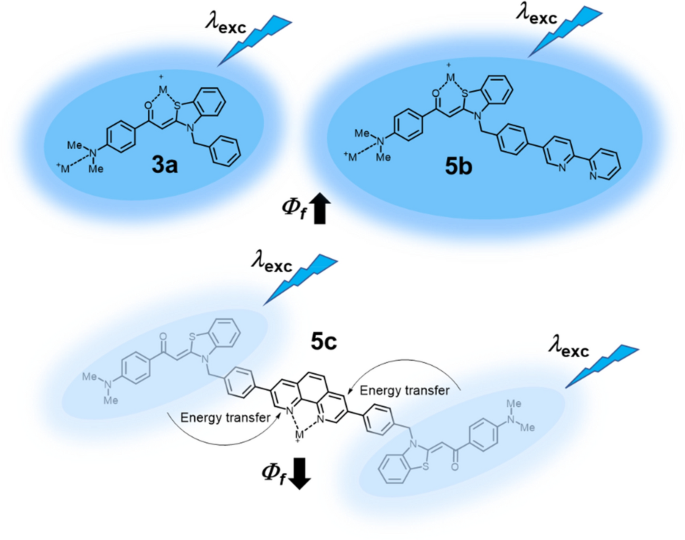

Potential explanatory approach to rationalize the emission enhancement of 3a and 5a and the quenching of the emission of 5c in the presence of metal ions.
The quenching of the emission in the presence of transition metal ions, as observed for 5c, clearly indicates that energy or electron transfer processes, as described in the literature78,79, lead to emission quenching. Decisive for such processes the corresponding metal must coordinate to the central 1,10-phenanthroline, which has been shown to act as a quencher80,81. Therefore, it can be assumed that a quenching energy transfer (EnT) process from the emissive dimethylamino aroyl-S,N-ketene acetals to the dark, non-emissive phenanthroline-metal complex can occur (Fig. 9, bottom)76,77.
Conclusion
In summary, bi-, multi- and single aroyl-S,N-ketene acetals were readily synthesized in mostly very good to excellent yields. Aside from typical AIE properties, these dyes exhibit pronounced complexometric behavior. Ruthenium, iron and gold cations form complexes with the investigated dyes as seen by photospectrometry. For most of the compounds, the dimethylamino substituent or the carbonyl oxygen and the sulfur of the benzothiazole are most likely sites of complexation resulting in a significant increase of quantum yield. In case of dimethylamino aroyl-S,N-ketene acetals and Au+-ions, the fluorescence quantum yield is nearly tripled upon complexation. Similar trends were also observed for iron and ruthenium ions and in case of dimethylamino aroyl-S,N-ketene acetal bipyridine bichromophores. In contrast, for the 1,10-phenanthroline bridged trichromophore, the quantum yield drops presumably due to a dark state of the complexed 1,10-phenanthroline unit. For most metal ion-dye combinations, only weakly coordinating complexes could be observed by spectroscopy, only for a phenanthroline aroyl-S,N-ketene acetal multichromophore in combination with Fe3+-ions, the formation of a strongly coordinating complex could be observed. In addition, even if no stable complexes are formed, the change of the emission color in the presence of different metal ions can be exploited for metal ion sensing. Future works are directed to address metal complexation for ion sensing and fishing, as well as to form more stable complexes.
Methods
The used chemicals which have not been synthesized were purchased at Acros Organics BVBA, Alfa Aeser GmbH & Co KG, Fluorochem Ltd., J&K Scientific Ltd., Merck KGaA, Macherey–Nagel GmbH & Co. KG, Sigma-Aldrich Chemie GmbH and VWR and have been used without further purification. The melting points have been measured with Melting Point B-540 of the company Büchi according to the protocol by Kofler82. All NMR and mass spectrometry experiments have been performed by the Heinrich Heine University Center of Molecular Structure Analytics (HHUCeMSA). 1H, 13C and DEPT 135-spectra have been measured at 298 K on an Avance III—300 and an Avance III—600 of the company Bruker. EI mass spectra have been measured with Triple Quadrupol spectrometer TSQ 7000 of the company Finnigan MAT. MALDI spectra have been measured with a MALDI/TOF UltrafleXtreme of the company Bruker Daltronik. IR spectra were recorded with neat compounds under attenuated total reflection (ATR) with IRAffinity-1 of the company Shimadzu. The elementary analyses have been measured with Perkin Elmer Series II Analyser 2400 or Vario Micro Cube of the company Analysensysteme GmbH. UV/Vis spectra of the dye solutions were measured with a Lambda 19 spectrometer from Perkin Elmer. The emission spectra of the dye solutions and the solid compounds were recorded with a Hitachi F-7000 spectrofluorometer using the emission correction curve provided by the instrument manufacturer. Emission spectra were not corrected for the wavelength-dependent spectral responsivity of the fluorometer. All solution spectra were recorded with dyes dissolved in spectroscopic grade solvents at 298 K using 1 cm-quatz cuvettes from Hellma GmbH. The molar extinction coefficients of dye solutions of known dye concentration were determined by five-point regression line.
For aggregation studies, samples of the aroyl-S,N-ketene acetals were dissolved in various mixtures of organic solvents and water with water contents ranging from 0 to 99%, with ethanol/water mixtures giving the clearest results, which are discussed in detail below. Furthermore, solvent mixtures of cyclohexane and dichloromethane were also tested, but no aggregate formation was observed. A stock solution of the respective chromophore was prepared in ethanol. A defined amount of this stock solution was taken, and the corresponding amount of ethanol was first placed in a 10 mL volumetric flask before the corresponding amount of water was added. To exclude aging and coagulation processes of the formed aggregates as far as possible, all solutions were first treated in an ultrasonic bath for 5 min before the emission and absorption spectra were recorded starting with the solutions of the highest water content. Selected aggregate solutions were stored for investigation of aggregate stability over time for subsequent measurements at defined time points. For the photographs of the aggregate solutions, the corresponding measurement solutions were used directly.
Data availability
All data generated or analyzed during this study are included in this published article and its supplementary information files. Experimental details of all synthesized derivatives and the respective spectroscopic and analytic data, spectra (1H and 13C NMR spectra, absorption and emission spectra, titration experiments) and photographs, see the accompanying Supporting Information. The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
References
Dalmieda, J. & Kruse, P. Metal cation detection in drinking water. Sensors 19, 5134. https://doi.org/10.3390/s19235134 (2019).
Gupta, V., Ali, I. & Aboul-Enein, H. Y. Metal ions speciation in the environment: Distribution, toxicities and analyses. Dev. Environ. Sci. 5, 33–56. https://doi.org/10.1016/S1474-8177(07)05003-6 (2007).
Zoroddu, M. A. et al. The essential metals for humans: A brief overview. J. Inorg. Biochem. 195, 120–129. https://doi.org/10.1016/j.jinorgbio.2019.03.013 (2019).
Fraga, C. G. Relevance, essentiality and toxicity of trace elements in human health. Mol. Asp. Med. 26, 235–244. https://doi.org/10.1016/j.mam.2005.07.013 (2005).
Mudgal, V., Madaan, N., Mudgal, A., Singh, R. & Mishra, S. Effect of toxic metals on human health. Open Nutraceuticals https://doi.org/10.2174/18763960010030100094 (2010).
Kozlowski, H., Kolkowska, P., Watly, J., Krzywoszynska, K. & Potocki, S. General aspects of metal toxicity. Curr. Med. Chem. 21, 3721–3740. https://doi.org/10.2174/0929867321666140716093838 (2014).
Crisponi, G. & Nurchi, V. M. Metal ion toxicity. Encyclopedia of Inorganic and Bioinorganic Chemistry, 1–14. https://doi.org/10.1002/9781119951438.eibc0126.pub2 (2011).
Stohs, S. J. & Bagchi, D. Oxidative mechanisms in the toxicity metal ions. Free Radic. Biol. Med. 18, 321–336. https://doi.org/10.1016/0891-5849(94)00159-H (1995).
Peana, M. et al. Metal toxicity and speciation: A review. Curr. Med. Chem. 28, 7190–7208. https://doi.org/10.2174/0929867328666210324161205 (2021).
Moulis, J.-M. Cellular mechanisms of cadmium toxicity related to the homeostasis of essential metals. Biometals 23, 877–896. https://doi.org/10.1007/s10534-010-9336-y (2010).
Malik, L. A., Bashir, A., Qureashi, A. & Pandith, A. H. Detection and removal of heavy metal ions: a review. Environ. Chem. Lett. 17, 1495–1521. https://doi.org/10.1007/s10311-019-00891-z (2019).
Zheng, X., Cheng, W., Ji, C., Zhang, J. & Yin, M. Detection of metal ions in biological systems: A review. Rev. Anal. Chem. 39, 231–246. https://doi.org/10.1515/revac-2020-0118 (2020).
Dutta, M. & Das, D. Recent developments in fluorescent sensors for trace-level determination of toxic-metal ions. Trends Anal. Chem. 32, 113–132. https://doi.org/10.1016/j.trac.2011.08.010 (2012).
Oehme, I. & Wolfbeis, O. S. Optical sensors for determination of heavy metal ions. Microchim. Acta 126, 177–192. https://doi.org/10.1007/bf01242319 (1997).
Bansod, B., Kumar, T., Thakur, R., Rana, S. & Singh, I. A review on various electrochemical techniques for heavy metal ions detection with different sensing platforms. Biosens. Bioelectron. 94, 443–455. https://doi.org/10.1016/j.bios.2017.03.031 (2017).
Nigam, A., Sharma, N., Tripathy, S. & Kumar, M. Development of semiconductor based heavy metal ion sensors for water analysis: A review. Sens. Actuators A: Phys. 330, 112879. https://doi.org/10.1016/j.sna.2021.112879 (2021).
Dai, X., Wu, S. & Li, S. Progress on electrochemical sensors for the determination of heavy metal ions from contaminated water. J. Chin. Adv. Mater. Soc. 6, 91–111. https://doi.org/10.1080/22243682.2018.1425904 (2018).
Hu, T., Lai, Q., Fan, W., Zhang, Y. & Liu, Z. Advances in portable heavy metal ion sensors. Sensors 23, 4125. https://doi.org/10.3390/s23084125 (2023).
Yu, L. et al. Nanomaterials-based ion-imprinted electrochemical sensors for heavy metal ions detection: A review. Biosensors 12, 1096. https://doi.org/10.3390/bios12121096 (2022).
Sharma, M. D., Rayalu, S. S., Kolev, S. D. & Krupadam, R. J. Graphene/fluorescein dye-based sensor for detecting As (III) in drinking water. Sci. Rep. 11, 17321. https://doi.org/10.1038/s41598-021-96968-3 (2021).
Rout, B. A miniaturized therapeutic chromophore for multiple metal pollutant sensing, pathological metal diagnosis and logical computing. Sci. Rep. 6, 27115. https://doi.org/10.1038/srep27115 (2016).
Ghosh, P. & Roy, P. Structure–metal ion selectivity of rhodamine-based chemosensors. Chem. Commun. 59, 5174–5200. https://doi.org/10.1039/d3cc00651d (2023).
Sareen, D., Kaur, P. & Singh, K. Strategies in detection of metal ions using dyes. Coord. Chem. Rev. 265, 125–154. https://doi.org/10.1016/j.ccr.2014.01.015 (2014).
Carter, K. P., Young, A. M. & Palmer, A. E. Fluorescent sensors for measuring metal ions in living systems. Chem. Rev. 114, 4564–4601. https://doi.org/10.1021/cr400546e (2014).
Kaur, B., Kaur, N. & Kumar, S. Colorimetric metal ion sensors—A comprehensive review of the years 2011–2016. Coord. Chem. Rev. 358, 13–69. https://doi.org/10.1016/j.ccr.2017.12.002 (2018).
De Acha, N., Elosúa, C., Corres, J. M. & Arregui, F. J. Fluorescent sensors for the detection of heavy metal ions in aqueous media. Sensors 19, 599. https://doi.org/10.3390/s19030599 (2019).
Kaur, N. & Kumar, S. Colorimetric metal ion sensors. Tetrahedron 67, 9233–9264. https://doi.org/10.1016/j.tet.2011.09.003 (2011).
Gul, Z., Khan, S. & Khan, E. Organic molecules containing N, S and O heteroatoms as sensors for the detection of Hg (II) ion; coordination and efficiency toward detection. Crit. Rev. Anal. Chem. https://doi.org/10.1080/10408347.2022.2121600 (2022).
Ríos, M.-C., Bravo, N.-F., Sánchez, C.-C. & Portilla, J. Chemosensors based on N-heterocyclic dyes: Advances in sensing highly toxic ions such as CN− and Hg 2+. RSC Adv. 11, 34206–34234. https://doi.org/10.1039/d1ra06567j (2021).
Antina, E. V., Bumagina, N. A., V’yugin, A. I. & Solomonov, A. V. Fluorescent indicators of metal ions based on dipyrro methene platform. Dyes Pigment. 136, 368–381. https://doi.org/10.1016/j.dyepig.2016.08.070 (2017).
Iftikhar, R. et al. Small organic molecules as fluorescent sensors for the detection of highly toxic heavy metal cations in portable water. J. Environ. Chem. Eng. 11, 109030. https://doi.org/10.1016/j.jece.2022.109030 (2023).
Hancock, R. D. The pyridyl group in ligand design for selective metal ion complexation and sensing. Chem. Soc. Rev. 42, 1500–1524. https://doi.org/10.1039/c2cs35224a (2013).
Ashraf, A. et al. Naphthyridine derived colorimetric and fluorescent turn off sensors for Ni2+ in aqueous media. Sci. Rep. 11, 19242. https://doi.org/10.1038/s41598-021-98400-2 (2021).
Razavi, S. A. A. & Morsali, A. Metal ion detection using luminescent-MOFs: Principles, strategies and roadmap. Coord. Chem. Rev. 415, 213299. https://doi.org/10.1016/j.ccr.2020.213299 (2020).
Yan, D., Tang, Y., Lin, H. & Wang, D. Tunable two-color luminescence and host–guest energy transfer of fluorescent chromophores encapsulated in metal-organic frameworks. Sci. Rep. 4, 4337. https://doi.org/10.1038/srep04337 (2014).
Shamim, M. A., Zia, H., Zeeshan, M., Khan, M. Y. & Shahid, M. Metal organic frameworks (MOFs) as a cutting-edge tool for the selective detection and rapid removal of heavy metal ions from water: Recent progress. J. Environ. Chem. Eng. 10, 106991. https://doi.org/10.1016/j.jece.2021.106991 (2022).
Săcărescu, L., Chibac-Scutaru, A.-L., Roman, G., Săcărescu, G. & Simionescu, M. Selective detection of metal ions, sulfites and glutathione with fluorescent pyrazolines: A review. Environ. Chem. Lett. 21, 561–596. https://doi.org/10.1007/s10311-022-01508-8 (2023).
Qiao, M., Ding, L. & Lv, F. Surfactant assemblies encapsulating fluorescent probes as selective and discriminative sensors for metal ions. Coord. Chem. Rev. 432, 213696. https://doi.org/10.1016/j.ccr.2020.213696 (2021).
She, M. et al. Design strategy and recent progress of fluorescent probe for noble metal ions (Ag, Au, Pd, and Pt). Coord. Chem. Rev. 432, 213712. https://doi.org/10.1016/j.ccr.2020.213712 (2021).
Rurack, K. Flipping the light switch ‘ON’–the design of sensor molecules that show cation-induced fluorescence enhancement with heavy and transition metal ions. Spectrochim. Acta A 57, 2161–2195. https://doi.org/10.1016/s1386-1425(01)00492-9 (2001).
Kaushal, S., Kaur, M., Kaur, N., Kumari, V. & Singh, P. P. Heteroatom-doped graphene as sensing materials: A mini review. RSC Adv. 10, 28608–28629. https://doi.org/10.1039/d0ra04432f (2020).
Bogireddy, N. K. R., Rios, S. E. S. & Agarwal, V. Simple one step synthesis of dual-emissive heteroatom doped carbon dots for acetone sensing in commercial products and Cr (VI) reduction. Chem. Eng. J. 414, 128830. https://doi.org/10.1016/j.cej.2021.128830 (2021).
Yoo, D., Park, Y., Cheon, B. & Park, M.-H. Carbon dots as an effective fluorescent sensing platform for metal ion detection. Nanoscale Res. Lett. 14, 1–13. https://doi.org/10.1186/s11671-019-3088-6 (2019).
Li, P. & Li, S. F. Recent advances in fluorescence probes based on carbon dots for sensing and speciation of heavy metals. Nanophotonics 10, 877–908. https://doi.org/10.1515/nanoph-2020-0507 (2020).
Biranje, A., Azmi, N., Tiwari, A. & Chaskar, A. Quantum dots based fluorescent probe for the selective detection of heavy metal ions. J. Fluoresc. 31, 1241–1250. https://doi.org/10.1007/s10895-021-02755-8 (2021).
Devi, P., Rajput, P., Thakur, A., Kim, K.-H. & Kumar, P. Recent advances in carbon quantum dot-based sensing of heavy metals in water. Trends Anal. Chem. 114, 171–195. https://doi.org/10.1016/j.trac.2019.03.003 (2019).
Alam, P. et al. AIE-based luminescence probes for metal ion detection. Coord. Chem. Rev. 429, 213693. https://doi.org/10.1016/j.ccr.2020.213693 (2021).
Ye, F.-Y., Hu, M. & Zheng, Y.-S. Advances and challenges of metal ions sensors based on AIE effect. Coord. Chem. Rev. 493, 215328. https://doi.org/10.1016/j.ccr.2023.215328 (2023).
Wan, H. et al. AIE-based fluorescent sensors for low concentration toxic ion detection in water. J. Hazard. Mat. 403, 123656. https://doi.org/10.1016/j.jhazmat.2020.123656 (2021).
Li, Y., Zhong, H., Huang, Y. & Zhao, R. Recent advances in AIEgens for metal ion biosensing and bioimaging. Molecules 24, 4593. https://doi.org/10.3390/molecules24244593 (2019).
Chua, M. H., Zhou, H., Zhu, Q., Tang, B. Z. & Xu, J. W. Recent advances in cation sensing using aggregation-induced emission. Mater. Chem. Front. 5, 659–708. https://doi.org/10.1039/d0qm00607f (2021).
La, D. D., Bhosale, S. V., Jones, L. A. & Bhosale, S. V. Tetraphenylethylene-based AIE-active probes for sensing applications. ACS Appl. Mater. Interfaces 10, 12189–12216. https://doi.org/10.1021/acsami.7b12320 (2017).
Biesen, L. & Müller, T. J. J. Aroyl-S, N-ketene acetals: Luminous renaissance of a class of heterocyclic compounds. Chem. Eur. J. https://doi.org/10.1002/chem.202302067 (2023).
Biesen, L., Nirmalananthan-Budau, N., Hoffmann, K., Resch-Genger, U. & Müller, T. J. J. Solid-state emissive aroyl-S, N-ketene acetals with tunable aggregation-induced emission characteristics. Angew. Chem. Int. Ed. 59, 10037–10041. https://doi.org/10.1002/anie.201916396 (2020).
Biesen, L., Hartmann, Y. & Müller, T. J. J. Alkynylated and triazole-linked aroyl-S, N-ketene acetals—One-pot synthesis of solid-state emissive dyes with aggregation-induced enhanced emission characteristics. Sci. Rep. 13, 14399. https://doi.org/10.1038/s41598-023-41146-w (2023).
Biesen, L., Krenzer, J., Nirmalananthan-Budau, N., Resch-Genger, U. & Müller, T. J. J. Asymmetrically bridged aroyl-S, N-ketene acetal-based multichromophores with aggregation-induced tunable emission. Chem. Sci. 13, 5374–5381. https://doi.org/10.1039/d2sc00415a (2022).
Biesen, L. et al. Communication of bichromophore emission upon aggregation–aroyl-S, N-ketene acetals as multifunctional sensor merocyanines. Chem. Eur. J. 27, 13426–13434. https://doi.org/10.1002/chem.202102052 (2021).
Biesen, L., Hartmann, Y. & Müller, T. J. J. Diaroyl-S, N-ketene acetals—Red-shifted solid-state and ag-gregation-induced emitters via one-pot synthesis. Chem. Eur. J. https://doi.org/10.1002/chem.202301908 (2023).
Biesen, L. & Müller, T. J. J. Solid-state emissive biphenylene bridged bisaroyl-S, N-ketene acetals as distinct aggregation-induced enhanced emitters and fluorometric probes. Aggregate 2, e105. https://doi.org/10.1002/agt2.105 (2021).
Biesen, L. & Müller, T. J. J. Single molecule aggregation-induced dual and white-light emissive etherified aroyl-S, N-ketene acetals via one-pot synthesis. RSC Adv. 13, 16867–16871. https://doi.org/10.1039/d3ra02935b (2023).
Wang, T., Xie, H., Liu, L. & Zhao, W.-X. N-heterocyclic carbene-palladium (II) complexes with benzoxazole or benzothiazole ligands: Synthesis, characterization, and application to Suzuki-Miyaura cross-coupling reaction. J. Organomet. Chem. 804, 73–79. https://doi.org/10.1016/j.jorganchem.2015.12.039 (2016).
Wang, Z. et al. Cyclopentadienyl molybdenum (II) N, C-chelating benzothiazole-carbene complexes: synthesis, structure, and application in cyclooctene epoxidation catalysis. Organometallics 33, 2457–2466. https://doi.org/10.1021/om401128z (2014).
Li, Q. et al. Luminescent copper (I) complexes bearing benzothiazole-imidazolylidene ligand with various substituents: Synthesis, photophysical properties and computational studies. Polyhedron 218, 115785. https://doi.org/10.1016/j.poly.2022.115785 (2022).
Ye, S., Liang, Q., Li, Z., Xu, S. & Yao, C. A highly sensitive and selective naked-eye probe for detection of Fe3+ based on a 2, 5-bis [3-benzyl-2-methylbenzothiazole]-croconaine. Tetrahedron 73, 1350–1357. https://doi.org/10.1016/j.tet.2017.01.049 (2017).
Yang, Z. et al. Triphenylethylene carbazole derivatives as a new class of AIE materials with strong blue light emission and high glass transition temperature. J. Mater. Chem. 19, 5541–5546. https://doi.org/10.1039/B902802A (2009).
Kruppa, M. & Müller, T. J. J. Masuda Borylation–Suzuki coupling (MBSC) sequence: A one-pot process to access complex (hetero) biaryls. Catalysts 13, 350. https://doi.org/10.3390/catal13020350 (2023).
Renny, J. S., Tomasevich, L. L., Tallmadge, E. H. & Collum, D. B. Method of continuous variations: Applications of job plots to the study of molecular associations in organometallic chemistry. Angew. Chem. Int. Ed. 52, 11998–12013. https://doi.org/10.1002/anie.201304157 (2013).
Huang, C. Y. Methods in Enzymology Vol. 87, 509–525 (Elsevier, Amsterdam, 1982). https://doi.org/10.1016/s0076-6879(82)87029-8.
Rurack, K. Flipping the light switch ‘On’—The design of sensor molecules that show cation-induced fluorescence enhancement with heavy and transition metal ions. Spectrochim. Acta A Mol. Biomol. Spectrosc. 57, 2161–2195. https://doi.org/10.1016/S1386-1425(01)00492-9 (2001).
Ramachandram, B. & Samanta, A. Transition metal ion induced fluorescence enhancement of 4-(N, N-dimethylethylenediamino)-7-nitrobenz-2-oxa-1,3-diazole. J. Phys. Chem. A 52, 10579–10587. https://doi.org/10.1021/jp983106d (1998).
Li, S., He, J. & Xu, Q.-H. Aggregation of metal-nanoparticle-induced fluorescence enhancement and its application in sensing. ACS Omega 5, 41–48. https://doi.org/10.1021/acsomega.9b03560 (2020).
Charlier, P., Jerome, R. & Teyssie, P. Solution behavior of α, ι-(dimethylamino) polyisoprene coordinated to transition metal salts. Macromolecules 23, 1831–1837. https://doi.org/10.1021/ma00208a046 (1990).
Yamasaki, T. et al. First transition metal complex of 1, 8-bis (dimethylamino) naphthalene (proton sponge). Chem. Lett. 33, 928–929. https://doi.org/10.1246/cl.2004.928 (2004).
Grove, D., Van Koten, G., Ubbels, H., Zoet, R. & Spek, A. Organonickel (II) complexes of the tridentate monoanionic ligand o, o'-bis [(dimethylamino) methylphenyl (NCN). Syntheses and the x-ray crystal structure of the stable nickel (II) formate [Ni (NCN) O2CH]. Organometallics 3, 1003–1009. https://doi.org/10.1021/om00085a007 (1984).
Liu, Z., He, W. & Guo, Z. Metal coordination in photoluminescent sensing. Chem. Soc. Rev. 42, 1568–1600. https://doi.org/10.1039/c2cs35363f (2013).
Sammes, P. G. & Yahioglu, G. 1, 10-Phenanthroline: A versatile ligand. Chem. Soc. Rev. 23, 327–334. https://doi.org/10.1039/cs9942300327 (1994).
Bencini, A. & Lippolis, V. 1, 10-Phenanthroline: A versatile building block for the construction of ligands for various purposes. Coord. Chem. Rev. 254, 2096–2180. https://doi.org/10.1016/j.ccr.2010.04.008 (2010).
Fabbrizzi, L., Licchelli, M., Pallavicini, P., Sacchi, D. & Taglietti, A. Sensing of transition metals through fluorescence quenching or enhancement. A review. Analyst 121, 1763–1768. https://doi.org/10.1039/AN9962101763 (1996).
Varnes, A. W., Dodson, R. B. & Wehry, E. E. Wehry, Interactions of transition-metal ions with photoexcited states of flavines. Fluorescence quenching studies. J. Am. Chem. Soc. 94, 946–950. https://doi.org/10.1021/ja00758a037 (1972).
Accorsi, G., Listorti, A., Yoosaf, K. & Armaroli, N. 1,10-Phenanthrolines: Versatile building blocks for luminescent molecules, materials and metal complexes. Chem. Soc. Rev. 38, 1690–1700. https://doi.org/10.1039/B806408N (2009).
Alreja, P. & Kaur, N. Recent advances in 1,10-phenanthroline ligands for chemosensing of cations and anions, Recent advances in 1,10-phenanthroline ligands for chemosensing of cations and anions. RSC Adv. 6, 23169–23217. https://doi.org/10.1039/C6RA00150E (2016).
Kuhnert-Brandstatter, Identifizierung organischer Substanzen nach L. Kofler. M. Sci. Pharm. 34, 147–166 (1966).
