Figure 1

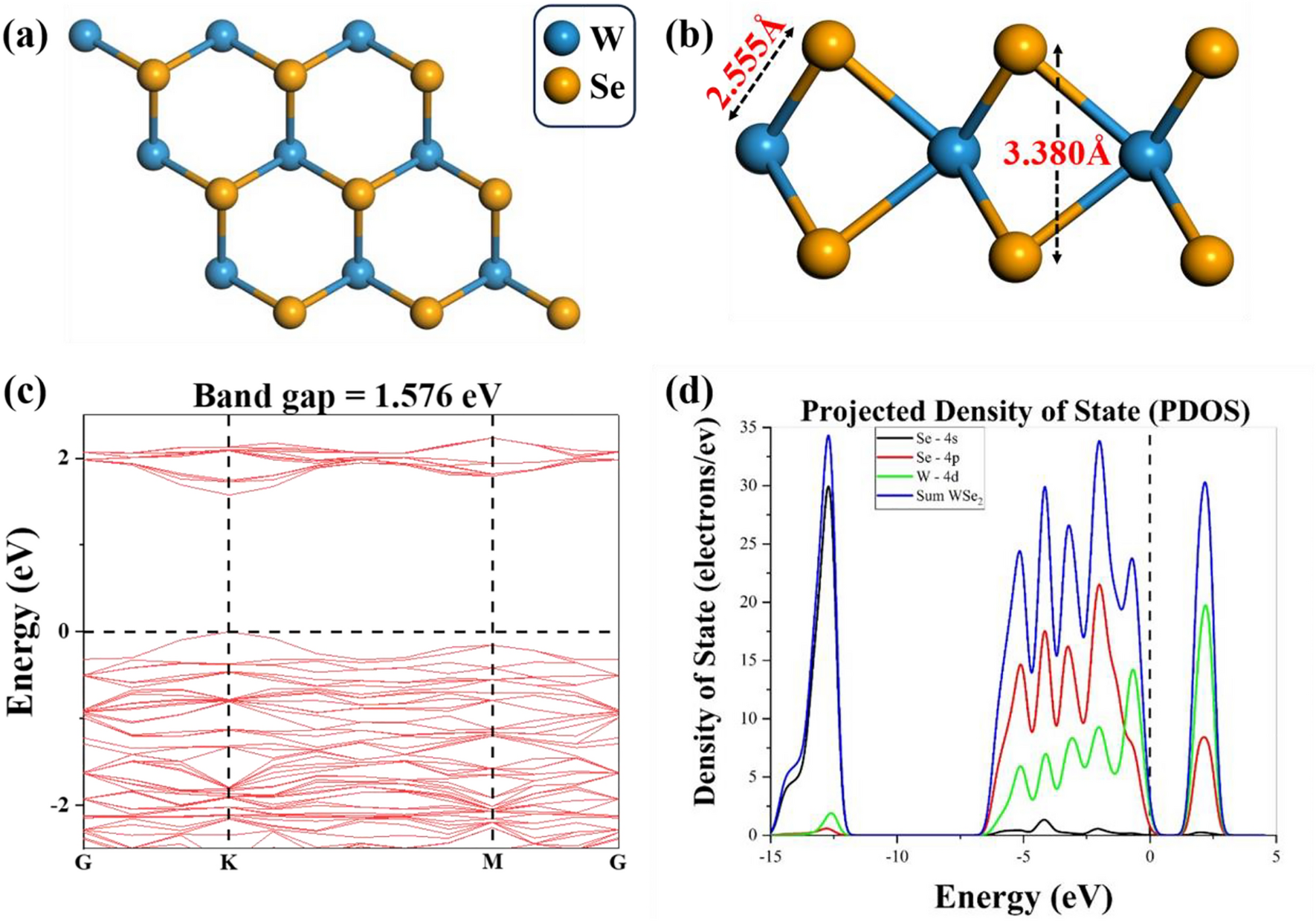

(a) Top surface, and (b) side profile, of the 3 × 3 WSe₂ monolayer. (c) The electronic band, and (d) the projected density of states (PDOS) structure of the system is presented, herein the horizontal and vertical dashed line signifies the Fermi level in the band structure and PDOS, respectively.
