Introduction

The increased residents and transportation in the world is experiencing a need for huge amounts of energy and the repercussions of global warming. Meanwhile, the use of petroleum-based fuels is also increasing on a daily basis. Globally, energy output has significantly increased recently in order to equate the demand for conventional fuels1. The carbon neutrality of biofuel possesses huge potential for reducing carbon emissions and existing fossil fuel dependence. Emissions of carbon can be effectively decreased by using alternative fuels. Burning fossil fuels is closely linked to a number of serious health issues. Burning fossil fuels for energy causes pollution in the air and water, which has an adverse effect on the surroundings. Sustainable energy is energy that can satisfy current energy demands without endangering future energy supplies and resources2. Wind, solar, bioenergy, and hydroelectric are the four most important sustainable energy sources. Renewable organic material derived from plants and animals is called biomass. Biomass is an important fuel for cooking and heating. It can be burned directly to provide heat or converted to liquid and gaseous fuels via various bio- and thermochemical conversion processes3. Various low- and medium-cost agricultural and biological wastes can be transformed into biofuels. In comparison to biological techniques, thermochemical technologies offer much faster reaction times and greater feedstock flexibility. The three primary process techniques that can be employed to transform biomass into biofuel are physiochemical, thermochemical, and biochemical. Fermentation and anaerobic digestion are considered biochemical conversion processes. Pyrolysis, gasification, and combustion are considered thermochemical conversion processes. Compared to biochemical conversion processes, thermochemical conversion of biomass into biofuel is the most favorable method to provide energy for the future4. In biomass thermal conversion processes, biomass is broken down by applying heat, usually above 300 °C, in order to convert it into different types of energy, such as power, heat, or biofuels. The physical characteristics of the resulting biofuel depend on the presence of numerous components. A recent study represented that, out of the 181.5 billion tonnes of lignocellulosic wastes, only 4.5% is utilized each year5. Biofuel has primarily been produced using non-edible, oil-rich seeds and agro-forestry biomass wastes. However, any kind of biomass can be turned into biofuel through thermal cracking or pyrolysis.

In India, almost 22% of the land is covered with natural forest. Madhuca longifolia, a tree native to India, has remarkable potential. The tree is primarily cultivated on the Indo-Pakistan subcontinent. It belongs to the Sapotaceae family and is considered an Indian forest plant. The tree is abundant in Indian forests. Since ancient times, tribal peoples in India have cultivated this tree for various applications, including food, fuel, and fertilizer. The various parts and their numerous applications of the tree are also summarized in the literature6. Previously, many parts of the Madhuca longifolia tree have been utilized for producing biofuel. Mishra and Mohanty7 concentrated on the catalytic pyrolysis of seeds obtained from Madhuca longifolia. The authors conducted pyrolysis experiments with and without catalysts in a batch-tyre reactor and produced 51.2 wt% of pyrolysis oil. In this study, the utilization of catalysts reduced the yield of oil. Raj et al.8 used Madhuca longifolia wood and low-grade coal to produce producer gas using the co-gasification process and utilized it as a fuel for IC engines. The study found that the co-gasification system provides a viable solution for alternate power generation and may prove beneficial for small-scale enterprises. Shanmuga Priya and Rajalakshmi9 used pyrolysis and hydrothermal methods to produce functional carbon material from Madhuca longifolia leaves. In order to improve their internal properties, the produced carbon materials were further activated. Several analytical methods, including Fourier transform infrared spectroscopy (FT-IR) and scanning electron microscopy, were used to analyze the produced carbon materials and found that they can be used as environmentally friendly, low-cost electrode materials for supercapacitors.

Pyrolysis is a useful method for turning low-value biomass and biobased wastes into biofuel. It is a highly effective technique for turning biomass into a liquid intermediary that can be further processed into hydrocarbon biofuels. Pyrolysis is the key technology of biobased power generation in which solid biomass is converted into liquid, solid, and gaseous compounds. Pyrolysis oil is the combination of water and different organic molecules10. The pyrolyzed oils are used in multiple ways as low-grade fuels for furnaces and have a lot of possible ways to separate chemicals via cracking, hydrogenation and aqueous phase processing. It is also more important to select a proper biomass feedstock that will enable the requisite heat transfer rates to produce more pyrolysis oil yields. The selection of feedstock plays a significant role in achieving a better yield. Typically, land biomass wastes such as wood, wood bark, plant residue and shells are commonly used feedstocks. In some cases, microalgae also served as a beneficial feedstock. Other than the feedstocks characteristics, numerous factors, including reactor type, feedstock size and process time of the feedstock and volatile matters, also impact the yield of the biofuel11. The most popular reactors for slow pyrolysis are drums, rotatory kilns and screw types. On the other side, fluidized beds, ablative reactor, vortex reactor and rotating disk reactors are suitable for fast pyrolysis. Biomass is a sustainable alternative source of renewable energy. Cellulose, hemicellulose and lignin are the basic natural polymeric materials present in biomass and extractives and minerals are the other two components present within the lignocellulosic material which distributes in different ratios12. Previously, many authors have conducted pyrolysis reactions using different biomass residues in different reactors and their product yield under optimum conditions are displayed in Table 1.

Table 1 Pyrolysis of different biomass residues and product yields.
Full size table

The 3Rs—reduce, reuse, and recycle—contribute to long-term environmental development. Because forestry wastes are abundant in biomaterials, if employed, they might become the backbone of sustainable development, producing a variety of opportunities for future generations30. Carrasco et al.31 carried out a pyrolysis test using Maine forest residues. The authors produced 61, 24 and 15 wt% of oil, char and gas. The total yield was predicted roughly up to 16% by mass and 40% by energy. Amutio et al.32 studied the feasibility of valorization of different forest residues, specifically bushes in a conical reactor. The reactor was set to 500 °C and the material utilized in this research yielded 80 wt% of oil with a maximum of 23 wt% char and 5 wt% gas fractions. The characterization study of the pyrolysis oil showed 35 wt% of water molecules in the oil, with a majority of phenols, ketones, acids, and furans. Several precise characterization approaches were used to find the information about biofuels. For characterization, the majority of previous pyrolysis studies dealt with FT-IR, Gas chromatography Mass Spectroscopy (GC–MS) or a combination of these. The spectroscopic techniques provide extremely significant details about its functional groups and can aid in the documentation of yields. Identifying the physiochemical nature of the pyrolysis biofuel is also important to understand the industrial applications of the products. Charon et al.33 developed various analytical techniques to analyze six bio-oils obtained from hardwood, softwood and wheat grass. The result showed that the wood based pyrolysis oils were single-phase liquids, whereas the wheat grass pyrolysis oil was heterogeneous. The chromatography analysis of pyrolysis oil showed more than 100 elements. Schellekens et al.34 utilized GC/MS to explore molecular characteristics of biofuels obtained from different agricultural residues. They discovered that, regardless of pyrolysis feedstocks, the process temperature is an important factor that determines yield compositions. They also showed that the higher molecular weight products of all chemicals in char decreased as the reaction temperature increased.

The current study provides light on the characterization of the biofuels derived from Madhuca longifolia residues collected from mature trees. Pyrolysis of the collected residues was executed in a fixed bed reactor by changing the temperature from 350 to 600 °C, since this operating temperature yielded the maximum pyrolysis oil. The pyrolysis oil obtained under the maximum yield conditions was evaluated using various analytical methods and its physicochemical parameters were also assessed based on ASTM standards. Apart from pyrolysis oil, the char and pyrolysis gas were also examined to find their components. The key aim of the study was to define the subfractions acquired from the pyrolysis of Madhuca longifolia residues analytically and to determine their potential for commercial applications, since most of the previous studies concentrated on the utilization of wood, bark, seeds, seed cake, and leaves of Madhuca longifolia, no studies were identified on the utilization of residues for the production of biofuel via pyrolysis process. This study utilized various analytical techniques, including FT-IR, GC–MS, and gas chromatography, to characterize the produced biofuels. Furthermore, the pyrolysis oil was examined in its natural form to identify its basic components.

Materials and methods

Madhuca longifolia residues

Madhuca longifolia residues were collected from the west part of Tamil Nadu, India. The residues are a mixture of wood, wood bark, leaves and roots obtained from a single mature tree. The feedstocks were separated manually from other types of wood materials and washed with fresh water. Before starting the pyrolysis experiment, the moisture present in the samples was reduced by natural and vacuum drying. The collected residues were first ground in a ball mill (Laxmi Engineers, Rajasthan, India), and then sieved using a sieve shaker (Jayant Test Sieves, Sunshine Instruments, Coimbatore, India) to have an average diameter of less than 1.0 mm. The screened particles were dried naturally in an open sun for 2 weeks. Again, the naturally dried particles were kept in a furnace for 24 h, maintained at a temperature of 100 °C. For experimentation, the dried samples were stored in a tight container.

Pyrolysis reactor and procedure

The pyrolysis tests on Madhuca longifolia residues were conducted in a fixed-bed reactor. The reactor is made up of a cylindrical heater. It has 50 mm internal diameter and 100 mm height. For each experiment, 60 g of feedstock are kept inside the reactor. The reactor was heated by an external 2 kW cylindrical heater equipped with an ammeter and voltmeter setup. Pyrolysis experiments were conducted at temperatures ranging from 350 to 600 °C. For this, the heating rate was set to 20 °C/min. In order to measure the gas phase temperature of the reactor, two K-type thermocouples were provided inside the reactor at two different points. The desired temperature was attained using a PID controller coupled to a furnace via an autotransformer. The setup had a top-opening system to release condensable volatiles. The volatile compounds released from the reactor are transferred into the volatile recovery unit, or condensing unit, where the condensable vapours are separated from the non-condensable gases. Volatile vapours are rapidly quenched inside the condenser, which prevents the subsequent reactions that turn condensable volatiles into permanent or non-condensable gases. In order to get maximum pyrolysis oil conversion, till the reactor reaches the atmospheric temperature, the condenser is supplied with an adequate quantity of ice water maintained at 5 °C. Inside the condenser, when the pyrolysis gas reaches 50 °C, the condensable pyrolysis oil and water usually begin to condense, whereas the phenolic compounds will begin to condense at 80 °C. It should be noted that the partial pressure of vapour compounds is also a function of composition, which is influenced by the type of feedstock and reactor operating conditions35. The condensed liquid, called pyrolysis oil, can be collected in the jar kept at the bottom of the condenser. Figure 1 illustrates the reactor system. The current experimental setup that could have an impact on the pyrolysis yields is displayed in Table 2. In order to find the repeatability, each run was conducted three times, and the average was taken for the analysis.

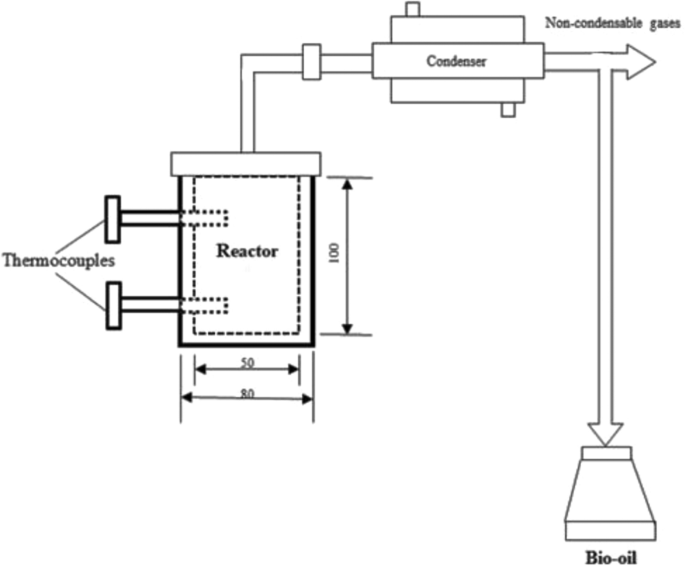

Figure 1
Figure 1
Full size image

Experimental set up.

Table 2 Experimental condition.
Full size table

Characterization of feedstock and pyrolysis products

Proximate analysis

The proximate analysis of any biofuel or feedstock describes the volatile matter content (ASTM D3175), amount of moisture (ASTM D3173), ash (ASTM D3174) and fixed carbon. The analysis in this study on biomass samples was conducted in a muffle furnace according to the above mentioned ASTM standards with good temperature control and a good weight balancing machine (± 0.1 mg sensitivity). The formula used for the proximate analysis is given below.

$$\%M= \frac{weight\,of\,sample\,before\,drying-weight\,of\,sample\,after\,drying}{weight\,of\,sample\,before\,drying} \times 100$$
(1)
$$\%VM= \frac{oven-dried\,sample\,weight-weight\,of\,sample\,remaining\,after\,burning}{oven-dried\,sample\,weight} \times 100$$
(2)
$$\%A \left(air-dried\,sample\right)=\left(\frac{{W}_{1}}{{W}_{2}\times \frac{T}{100}}\right)\times 100$$
(3)

where \({W}_{1}=weight\,of\,ash\), \({W}_{2}=initial\,weight\,of\,sample\), \(T=percent\,of\,total\,solid\).

$$\%FC=100-(\%M+\%VM+\%A)$$
(4)

Ultimate and lignocellulosic analysis

The ultimate analysis identifies the percent of carbon (C), hydrogen (H), nitrogen (N), sulfur (S), and oxygen (O) in the biomass sample and produces char according to the prescribed ASTM standards. This analysis yields the composition on ash-free basis. The analysis was carried out by using an elemental analyzer (EA 2400 Series II). The CHNS mode is based on the conventional PreglDumas technique, which involves burning samples in an atmosphere with just oxygen and collecting the combustion gases as a byproduct36. For the analysis, a small amount of samples were fully burned and reduced to the constituent gases CO2, H2O, N2, and SO2 in the presence of oxygen and combustion reagents. The presence of carbon in the sample turns CO2, while H2 to H2O, N2 to NOx, and S to SO2. After being passed over a heated, high-purity copper surface, the gases exiting the combustion chamber lose all oxygen and turn any NOx into N2. The identification of the production of CO2, H2O, N2, and SO2 gases yields the values of C, H, N, and S. The combusted gases are passed through a high-quality copper surface, which eliminates all oxygen and turns any NOx into N2. The identification of the production of CO2, H2O, N2, and SO2 gases yields the values of C, H, N, and S.

The lignocellulosic content of the biomass samples is measured using the conventional wet chemistry method. This method is considered an effective one for the determination of the lignocellulosic content of any biomass material. The analysis was performed by consuming 0.5 g of biomass. The analysis was initiated by acid chlorination treatment using NaClO2 and CH3COOH combinations. The treatment was performed at a temperature of 75 °C. After that, more NaClO2 and CH3COOH are continuously added for successive cycles of chlorination. After filtration, the resulting solution is then cleaned with acetone and normal water. Cellulose and hemicellulose were found at the end of the filtration process, and the amount of lignin in the sample was determined by a two-step sulfuric acid hydrolysis process.

Thermogravimetric analysis

Thermogravimetric analysis (TGA) and derivative thermogravimetry (DTG) has been extensively utilized to explore thermal processes and kinetics of any organic material. It measures the mass loss of the material regarding temperature and time. Analysis of TGA helps in the preparation, design, and process of the industrial pyrolysis system37. The TGA study provides extensive experimental data regarding the pyrolysis performance of biomass. The analysis was carried out using a TGA analyzer (TGA701) by heating the sample to 600 °C at a heating rate of 20 °C/min.

FT-IR analysis

FT-IR quantification techniques for volatile compounds relevant to pyrolysis have been established by many literature in recent years. FT-IR spectroscopy was used to analyze the microstructures of feedstock, pyrolysis oil and char products. For the analysis, the potassium bromide (KBr) disk approach was used to prepare the samples. The compressed alkali metal halide pellet method, also known as the KBr pellet or disk method, is a widely used technique for handling solid samples38. The KBr disk approach is a valuable method in IR spectrometry. In this method, the samples are converted into powdered form and combined with an IR transparent salt, like KBr, to lower the sample's concentration and improve the spectrum. To eliminate water molecules from the KBr, it is pulverized into 200 mesh sizes and dried at 110 °C. For the preparation of the pellet, 200 mg of powdered KBr is blended with a 1% sample, and the combined sample is then pressed into the disk. The spectra were acquired using a Bruker Tensor 27 spectrometer (Bruker, Germany) with 4 cm−1 resolution between 4000 and 400 cm−1.

GC–MS analysis

Thermo GC—trace ultra-version: 5.0, Thermo MS DSQ II supplied by Thermo Scientific Corporation was used to conduct GC–MS analysis of the oil. Quartz wool was placed at one end of a pre-weighed quartz tube, which had a 25 mm length and 0.5 mm ID and samples weighing 0.5 mg were placed for the analysis. The split injector of the GC inlet port was set to 280 °C and a split ratio of 20:1 was selected for analysis. A DB 35-MS capillary standard non-polar column of length 30 m, diameter 0.25 mm and 0.25 μm film thickness was used for the separation of pyrolysis yields. The temperature program was set to 40 °C, held for 2 min and then ramped to 280 °C at a rate of 6 °C/min. The interface temperature was set to 280 °C and the mass spectrometer's ion source to 230 °C, and the scanning was performed in the range of 50–550 m/z.

Physical characterization of pyrolysis oil

The various physical characteristics of the pyrolysis oil were found by following different ASTM protocols. To find viscosity, a Redwood viscometer (Model: SICBRV-01, Shambahavi Imp., Mumbai) was used. The density was found by weighing known volume. The Scientech supplied Cleave Land Flash Point Kit (Model SE-224) was utilized to measure the flash point..

Determination of heating value

The higher heating value of the pyrolysis products was measured on a Parr-6772 (Parr Instrument Company, Illinois, USA) apparatus according to ASTM D240 protocol. The values displayed are calculated with 0.6% accuracy and are based on the average of several experiments.

Gas chromatography

With the use of a Shimadzu gas analyzer (Model: GC-2014, Shimadzu Corporation), the produced gas obtained at 475 °C was examined to find its gas sub-fractions. The analysis was done using a splitless injection unit armed with a micropack with a carbon column of 1 mm diameter. The accuracy of the chromatogram was ± 1% (0.01 °C) the range of the thermal conductivity detector was 400 °C and the linear heating range was set to 20 °C/min up to 250 °C.

Ethics statement

All experimental and laboratory tests were performed in accordance with the relevant guidelines and regulations.

Permission to collect biomass residue

The residues used for this study were collected from plants on private lands and we obtained permission from the landowner to access the areas and collect the residues.

Results and discussion

Characterization of feedstock

Proximate and ultimate analysis

The elemental analysis of the feedstock is found as follows: C = 47.2%, H = 5.9%, N = 3.6%, S = 1.2% and O = 42.1%. C and O are available more than H and N. When biomass is pyrolyzed, the higher concentration of O content results in oxygenated products. Lower levels of S and N suggest that during pyrolysis, it releases fewer SOx and NOx. The empirical formula derived from elemental analysis is CH1.489N0.065O0.669. It is well known that a material having lower H/C and O/C ratio have higher energy content39. The proximate analysis shows lower ash and moisture levels. Initially, the moisture level was more, but it was reduced by the continuous drying process. For pyrolysis, the biomass must have a moisture content of less than 10%40. The selection of appropriate biomass material for pyrolysis is the key process. The physicochemical analysis of the present biomass reported in Table 3 shows its suitability. The selected residue has a volatile matter content of 71.26%. Typically, biomass with a higher volatile matter content yields large amounts of biogas and oil41. The yield of pyrolysis products increases directly proportional to the amount of volatile materials extracted. Almost 90% of the volatile content in the feedstock is lost during pyrolysis to produce biofuels. Biomass with a high level of volatile content is generally chosen for pyrolysis since it is more reactive and readily devolatilized. For the pyrolysis process, the amount of ash in biomass should be minimal42. The ash content of the residue is 4.50%, which is lower than coal, switchgrass, barley straw and wheat straw mentioned in the literature39. The yield of the pyrolysis products and process efficiency are directly impacted by the ash present in the feedstock. So the ash content in the feedstock is an important parameter for the pyrolysis process. Yildiz et al.43 reported that adding ash to the pyrolysis process resulted in higher amounts of non-condensable gases and water while decreasing the yields of pyrolysis oil. The cellulose, hemicellulose and lignin contents are 18.04, 45.18 and 32.78% respectively. From proximate and ultimate analysis, it can be understood that the selected feedstock is suitable for the production of biofuel. Table 3 indicates the result of proximate, ultimate analysis of Madhuca longifolia residues.

Table 3 Proximate and ultimate analysis of Madhuca longifolia residues.
Full size table

TGA and DTG analysis

For the pyrolysis process, finding thermal behavior of the feedstock is important before conducting the experimental process. The TGA and DTG analysis of the Madhuca longifolia residues are revealed in Fig. 2. The figure indicates the results of the DTG curves at a 20 °C/min heating rate. The decomposition of the sample may be affected by differences in heat transfer and kinetic rates. It can be found that heating rates primarily influence the stages of pyrolysis. Increasing heating rates alter the maximum weight loss point at different temperature ranges44. The peaks observed in DTG represent the point or temperature at which the rate of weight loss reaches its maximum. In an inert atmosphere, the solid heats up in three different regimes. In the first regime, only heating takes place, followed by pyrolysis in the second regime, and further heating in the third regime if there is char remaining. The heat applied to the biomass breaks down its constituents. It is the process of decomposing a chemical compound into smaller components through various chemical reactions. Here, the mass loss function of residues is detected in three phases. The first phase represents the evaporation of moisture, in which ⁓ 12% of mass loss occurs due to the removal of moisture at < 140 °C. Furthermore, two exothermic peaks can be seen in the analysis at 245 °C and 457 °C. Between 345 °C and 520 °C a maximum mass loss of ⁓ 75% was observed. Additionally, the DTG curve for this stage reveals a peak at 457 °C with a maximum mass loss rate of 1.22 mg/min. Mass loss during this stage are linked to the disintegration of hemicellulose, which represents active pyrolysis, and the disintegration of cellulose and lignin, which represents active and passive pyrolysis45. Notably, the sample displayed its largest weight loss at its peak temperature, indicating a high degree of thermal degradation reactivity. The results of this study are in line with those of Dwivedi et al.44. Around 450 °C, all parts of the biomass material break down extremely and lose their maximum weight. The weight loss differential decreases after 460 °C and reaches zero after 600 °C. For last stage above 600 °C, the degradation of biomass decreases and almost same after that. The residues that remained at the end of the TGA analysis represent the presence of ash. The percentage of ash, which may be computed at around 5% by weight, is the quantity of material that remains after reaching 600 °C.

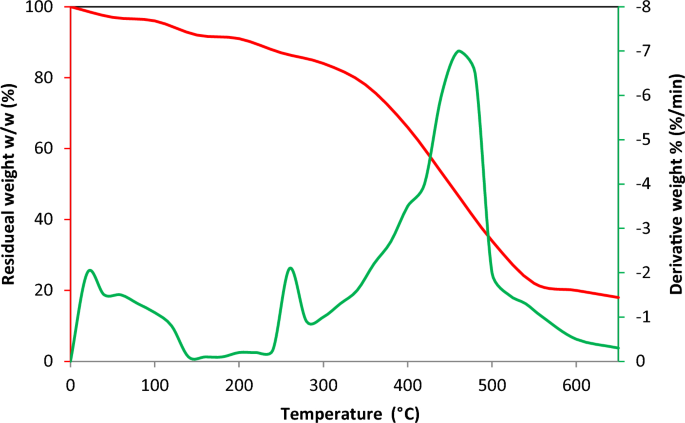

Figure 2
Figure 2
Full size image

TGA and DTG analysis of Madhuca longifolia residue.

FT-IR analysis

The peaks, which are also called absorbance bands, match with the various vibrations of the sample’s atoms when it is contacted in the infrared region of the electromagnetic spectrum. The x-axis in the spectra denotes the infrared spectrum, and the y-axis denotes the quantity of infrared light transmitted or absorbed by the sample. In the spectra, the peaks are attributable to the specific functional group. A greater concentration of the appropriate functional group or bond is indicated by a stronger absorption peak. Figure 3 illustrates FT-IR analysis of Madhuca longifolia residue. The figure shows plots between wavenumber and transmittance spectra. The existence of water, phenolic compounds, aromatic and other impurities in the feedstock was confirmed by the peak at 3605.5 cm−1 which was linked to the O–H group46. The possible existence of alkanes was suggested by the adsorption bond 2865.6 cm−1, which was linked to the C–H stretching vibration47. A C≡C deformation-attributed adsorption bond at 1402.9 cm−1 revealed the existence of alkynes48, whereas an adsorption bond at 1610.3 cm−1 associated with C=O stretching vibration indicated the existence of aldehyde, ketones, or carboxylic acids7. Alkanes were identified by the peak 1368.1 cm−1 ascribed to C–H bending and the existence of ethers, alcohols, and carboxylic acid was indicated by the adsorption band 1217.9 cm−1 attributable to C–O bending. The identification of O–H bending stretching is responsible for the existence of mono- and polycyclic aromatic compounds between 931.4 cm−1.

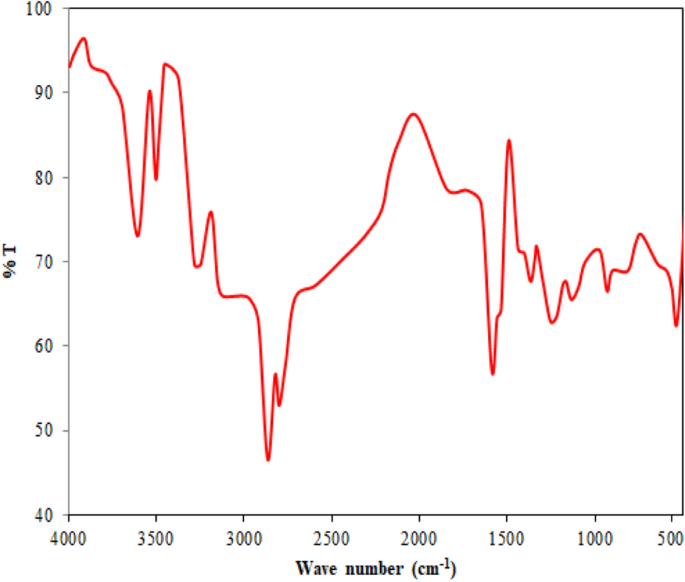

Figure 3
Figure 3
Full size image

FT-IR analysis of Madhuca longifolia residue.

Pyrolysis product yields

The impact of reactor temperature on pyrolysis yield distributions is displayed in Fig. 4. The temperature was changed in increasing pattern from 350 to 600 °C to assess the product yield at the interval of 25 °C. All the experiments were conducted by keeping particle size < 1.0 mm. According to the results, the yield of pyrolysis oil enhanced from 33.1 wt% to 41.7 wt% at 350 to 500 °C and then decreases to 37.5 wt% at 600 °C. This typical nature of the product is depends on several reactions, both primary and secondary, occur during pyrolysis, producing condensable and non-condensable gaseous products. The condensable gases were further condensed to produce pyrolysis oil. Through the production of non-condensable fragments, secondary processes aid in increasing the gas yield49. Inside the reactor, the primary reaction occurs more frequently at lower temperatures and as the reaction temperature increases, more vapour is formed which improves the formation of more condensable volatiles (oil yield). The production of pyrolysis oil, however, decreased after a particular temperature when secondary reactions became more prevalent at a higher temperature50. As the reaction temperature rises, more volatiles are formed, which decreases the yield of char. The development of char decreases steadily at elevated temperatures because of the considerable loss of volatiles or secondary breakdown of char. According to Chutia et al.51, the secondary breakdown of the primary volatiles also produces certain non-condensable vapours, which further increase the yield of gas. It was also confirmed by the results that when the changed from 350 to 600 °C, the char yield decreased from 41.6 wt% to 10.2 wt% and the gas yield increases from 25.3 wt% to 52.3 wt%. Table 4 shows the tests results of Madhuca longifolia pyrolysis in wt% and Table 5 shows mass balance of the yield.

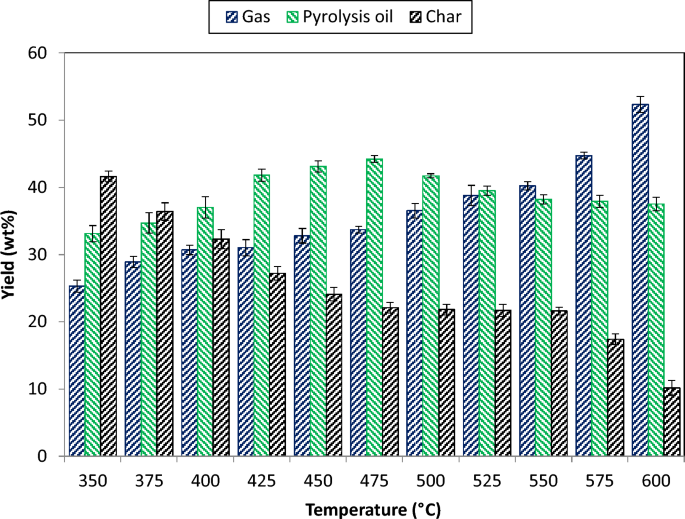

Figure 4
Figure 4
Full size image

Pyrolysis product distributions.

Table 4 Tests results of Madhuca longifolia pyrolysis in wt%
Full size table
Table 5 Mass balance.
Full size table

Characteristics of pyrolysis oil

It is important to pay attention to the quality of the pyrolysis oil produced by the pyrolysis process, which is considerably influenced by the pyrolysis temperature. The pyrolysis oil produced at a lower pyrolysis temperature (< 300 °C) generally has higher moisture content and a lower viscosity. In contrast, pyrolysis oil produced at a higher pyrolysis temperature (> 600 °C) has a higher viscosity and lower moisture content52. Furthermore, the temperature during pyrolysis can have an impact on the chemical composition of the oil. Pyrolysis oils typically contain higher concentrations of aldehydes and fatty acids at lower temperatures. On the other hand, aromatic substances like catechol and phenol are likely to increase at higher temperatures. In this study, the pyrolysis oil obtained at maximum oil yield conditions (475 °C) was taken for the physical and chemical characterization study.

Physical analysis

It was of interest to examine the physical properties of pyrolysis oil since it is very important to describe the application of the produced oil. Table 6 demonstrates the physical characteristics of the produced pyrolysis oil and other pyrolysis oils derived from various feedstocks. The table also compared the physical nature of conventional diesel. The pyrolysis oil fraction had a distinct appearance compared to conventional diesel fuel. The pyrolysis oil was dark brown and more viscous than diesel. In general, the typical pyrolysis oil has water components of about 25 wt% or more. In contrast, the water content of the derived Madhuca longifolia oil was less than 20 wt%. Viscosity is a crucial characteristic of pyrolysis oil, which represents the flow ability of any liquid. The higher viscosity of the fuel disturbs the pumping and atomization during burning. Pyrolysis oil is derived from a variety of biomasses under varying operating conditions and has a different range of viscosities. The viscosity of pyrolysis oil derived from Madhuca longifolia residues shows 4.0 cSt, which is higher than the value obtained from Mimusops elengi, sugarcane leaves, and napier grass. Despite being produced under the same operating conditions, the bio-oil derived from two different feedstocks has different viscosities. For instance, at 50 °C, the viscosity of the pyrolysis oil made from wheat straw, pine, and ensyn was shown to be 11 cSt, 46 cSt, and 50 cSt, respectively53. The variation in viscosity is determined by the structure and composition of the parent feedstocks. The density of the pyrolysis oil is found to be another important physical characteristic. The density of the typical pyrolysis oil is found in the range of 1000–1250 kg/m3. This variation is primarily caused by the type of biomass used for the pyrolysis process. The density of the Madhuca longifolia pyrolysis oil is found to be 995 kg/m3 which is less than all pyrolysis oils produced from the various feedstocks listed in Table 6. The water content in the pyrolysis oil has some adverse effects while burning. The presence of water molecules reduces the calorific value of the oil and is also responsible for corrosiveness and instability. The pyrolysis oil produced in this study has a pH value of 4.7, which is consistent with other studies. The lower pH value indicated the existence of acidic chemicals. The higher flash point of the pyrolysis oil (130 °C) indicates that it can be stored safely at room temperature.

Table 6 Physical characteristics of Madhuca longifolia and other pyrolysis oils.
Full size table

Chemical analysis

Figure 5 displays the transmission mode FT-IR spectra for pyrolysis oil between 4000 and 400 cm−1. The higher amount of alcohols and phenols is shown by the O–H stretch at 3268.5 cm−1. The existence of phenolic or O–H groups holds major percentage in pyrolysis oil57. The appearance of alkanes is shown by the C–H stretch at 2835.5 cm−1 and 2649.6 cm−1. The appearance of alkenes is exposed by the C=C stretch at 1574.7 cm−1. The existence of alcohol is shown by the C–O stretch at 942.1 cm−1 and the appearance of aromatic compounds is indicated by the C–H bend at 857.8 cm−1. The bio-oil revealed an abundance of aliphatic compounds and alcohols. The functional groups of oxygenated C–O and O–H indicate that the pyrolysis oil was significantly hydro-oxygenated, making it naturally acidic. The heating value of pyrolysis oil is reduced when oxygenated functional groups are present. The existence of acids, phenols, alcohols, and aliphatic was also present in different types of pyrolysis oil reported earlier58,59. GC–MS analysis can also be used to justify the aforementioned functional groups in pyrolysis oil57.

Figure 5
Figure 5
Full size image

FT-IR analysis of pyrolysis oil.

In GC–MS, the volatile matter present in the oil sample is separated and identified using the NIST library. For the analysis, the liquid sample is converted into a vapour which can be carried by a carrier gas (He). The sample is then transported by the gas over a long, thin glass column coated with a chemical. As the vaporized compounds are strapped into the column, they slow down when they interact with the stationary phase. Depending on their individual chemical characteristics, different compounds will take different amounts of time to reach the end of the column. After the separation process, the compounds are moved to the mass spectrometer (MS). The MS acts as a sensor that recognizes the vaporized compounds and mass information. The structural and chemical characteristics of molecules can be identified, measured, and ascertained using mass information. Generally, pyrolysis oil has over 300 different components due to their complexity60. This analysis found more than 60 chemicals in the oil, but the peak areas of more than 0.1% are presented in Table 7. The substance found in pyrolysis oil was formed by the cracking lignocellulosic content of the feedstock. Among several chemical groups found in mahua pyrolysis oil, phenolic elements, saturated fatty acids, alkanes, alkenes and branched hydrocarbons were found to be the majority in the oil. The most important substances in the oil are phenols and their derivatives. At the retention times of 11.52 and 30.58 min, phenol and 3,4-dimethylphenol were identified up to an area percentage of 4.94 and 12.25 respectively. Guaiacol occupies the area of 4.58% and Campesterol occupies the area of 3.50%. Guaiacol is a potential component or precursor to green fuels61. It is believed that guaiacol provides 85% of the world's vanillin supply. Whereas, campesterol can be used as a precursor for a variety of steroid hormones. 2-hexadecyloxyethanol occupies an area of 4.61% at a retention time of 36.70 min. It is used for various applications, including medicine62. Farnesol appears in the pyrolysis oil at a retention time of 32.76 min. Due to its antibacterial properties, farnesol has been used as an organic mite insecticide and as an antiperspirant in cosmetic items. The GC–MS results indicate that derived pyrolysis oil has many fuel-like components, which is suitable replacement for conventional fuel. Apart from that, the compounds identified in the analysis can be separated to be used as feed material for chemical industries.

Table 7 GC–MS analysis of the pyrolysis oil.
Full size table

During the thermal pyrolysis process, the components of biomass decompose at different rates and with different reaction processes since the reaction is complex and partially dependent on reactor designs and thermal processing parameters. Many studies have previously verified the interactions between the lignocellulosic content of the woody biomass63. Hemicellulose and lignin react with each other during pyrolysis to increase the formation of phenolic compounds produced from lignin and inhibit the production of hydrocarbons. Lignin has a major impact on cellulose during pyrolysis since it prevents levoglucosan polymerization, which lowers the formation of char. On the other hand, the reaction between cellulose and hemicellulose has less of an impact on the production and dispersion of pyrolysis products. The primary phase of cellulose pyrolysis is a series of disintegration and polymerization processes that take place at temperatures below 300 °C and form lower molecular components such as furan, hydroxyl acetaldehyde, glycoaldehyde, and formic acid. The main component of pyrolysis vapor is often anhydrosugars, primarily levoglucosan, which are produced by the breaking of glycosidic linkages and dehydrating processes64. Above 300 °C, levoglucosan endures relocation and hydration, which produces levoglucosenone. Further cyclization reactions resulted in the formation of stable oxygenated chemicals. The furanic compounds present in the pyrolysis oil are obtained from hemicellulose-based pyrolysis. These compounds were produced due to the dehydration of reducing sugars. The mannose and galactose present in the hemicellulose endure a dehydration reaction to form the hydroxymethyl group65. The production of phenol, cresol, guaiacol, and syringol are the primary results of lignin pyrolysis. Guaiacol has two distinct types of carbon–oxygen linkages, which are present in most of the lignin-derived compounds.

Characteristics of char

FT-IR analysis

FT-IR spectral characteristics of char are displayed in Fig. 6. The spectra were captured between 4000 and 400 cm−1. There could be an acidic or alcoholic composition causing the strong O–H bond stretching vibration at 3404.7 cm−162. The vibration at 1605.2 cm−1 is indicative of the carboxylic acid in the char66. There are alkynes, aliphatic, ketonic, esters and aromatic compounds within the char, which were recognized by the peaks appearing at 1977.6, 1359.4 and 1075.4 cm−1 respectively. According to Brodowski et al.67, the reactive functional groups present in char, likely O-containing carboxylic, are associated with the broad sensitive zones that engage with polar organic elements and mineral phases. As a result, porous char has oxygen groups that may be good for soil in order to enhance its physical characteristics.

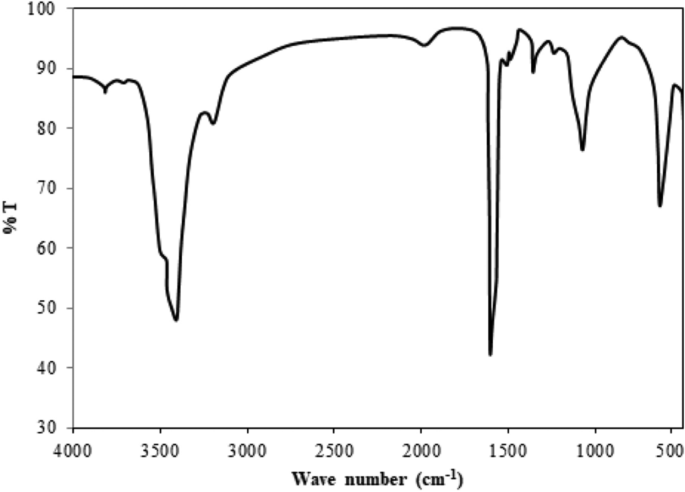

Figure 6
Figure 6
Full size image

FT-IR spectra of char.

Chemical composition

Table 8 displays the approximate composition present in char. Raw feedstock was converted into char, which led to decreased volatile and moisture contents with increased fixed carbon and ash fractions. It has been suggested that the fixed carbon in char is naturally resilient to biological degradation. Generally, pyrolysis char has higher fixed carbon and lower volatile matters. The ash present in the char is cautiously attractive if it is used in soil for agronomy and carbon sequestration. The pyrolysis char has fixed carbon content of 52.7% and volatile matter and ash of 28.85% and 16.14%, respectively. Elemental analysis demonstrates that the pyrolysis of biomass increased carbon content while decreasing hydrogen, oxygen and sulfur in char compared to feedstock material (Table 9). Pyrolysis of Madhuca longifolia residues modified the constituent carbon molecules to produce char with higher aromatic carbon and less hydrogen and oxygen68. The decrease in oxygen-containing species in char may be due to dehydration and the decarboxylation process. Sulfur content in char may have decreased as a result of organic sulfur decomposition at elevated temperatures. The H/C and O/C molar ratios were identified as 0.623 and 0.373. It helps to determine the durability of the char against degradation. For char, a half-life of over a 1000 years is anticipated when the O/C ratio is less than 0.269. The volatile matter in char is made up of molecules with greater H/C ratios, while the fixed carbon has a lower hydrogen concentration. The HHV of the char components was identified as 21.2 MJ/kg.

Table 8 Proximate analysis of char.
Full size table
Table 9 Elements of char.
Full size table

Characteristics of gas

Table 10 shows the elements of the non-condensable gas fractions. The finding shows a variety of combustible hydrocarbons. The components were identified as CH4, CO2, CO, O2 and H2 in different ratios. An average concentration of 33.1% of CO2 was found in the gas, along with 6.8% of CO. Increased CO2 production is primarily caused by the water–gas shifting process of CO and breakdown of C–O and –COOH groups69. According to Sowmya Dhanalakshmi and Madhu70, the reverse Boudouard process amongst char and produced CO2 might be the cause of the increased CO level. According to Tinwala et al.71, the identification of CO and CH4 in pyrolysis gas is the outcome of the secondary cracking of produced volatiles and the production of higher CO2 is also caused by the deprivation of cellulosic content. This increased CO2 percentage suggests that the Madhuca longifolia residues contain oxygenated elements and it is noteworthy that the concentration of CO in the pyrolysis gas rose at higher temperatures due to secondary cracking process. The observations revealed that the pyrolysis gas contains 17.3% flammable methane. Methane is formed at medium and elevated pyrolysis temperatures due to deterioration of benzyl and methoxyl groups. On the other side, the formation of hydrogen is due to the hydrolysis of aromatic components.

Table 10 Averaged gas composition of pyrolysis gas.
Full size table

Applications of pyrolysis product yields

Biomass can be a valuable resource for the pyrolysis process, providing a variety possibilities to increase its added value and produce bioproducts that are in high demand. Pyrolysis oil, or bio-oil, char, and gas are the three main products derived from the pyrolysis process. Nowadays, the usefulness of pyrolysis oils as a renewable fuel is gaining more interest. The raw pyrolysis oil can be used as a low-grade fuel for furnaces and boilers. The pyrolysis oils are generally more difficult to combine with synthetic fuels derived from petroleum. However, the substances derived from pyrolysis oils have a wide range of applications in the medical, cosmetic, and pharmaceutical industries. The oil contains phenols and their derivatives, which are frequently utilized in food preparation, transport, and colorants72. The fatty acid composition present in the oil can potentially be utilized for producing natural pesticides. Anyhow, the pyrolysis oil made from Madhuca longifolia residues eventually replaces fossil asphalt because of its considerable heating value. The calorific value of the oil indicates that it is almost 40% more than that of diesel fuel, making it suitable for forestry residues. So the produced pyrolysis oil can be used as a low-grade fuel for furnaces and boilers. The char produced in this study can be used as a substitute for traditional solid fuels. Further study is needed to convert the produced char into activated carbon. However, it can be compressed into charcoal briquettes or used to make gunpowder. The utilization of char is largely contingent upon the composition of the material to be pyrolyzed. Due to the higher surface area and porosity of the char, it is most frequently used as an adsorbent material. The pyrolysis gas can also be used as a source for producing heat for various heating processes. The produced pyrolysis gas is a mixture of intriguing molecules that includes considerable amounts of H2, CH4, and higher hydrocarbons. Moreover, post-treatment might increase the amount of these molecules, making them a valuable source of biomolecules.

Challenges and opportunities

The pyrolysis oil comprises hydrocarbons, oxygenated compounds, and nitrogenated compounds, as indicated in Table 3. Compounds containing oxygen have the potential to lower its calorific value, stability, and flow ability. The existence of nitrogenated compounds can lead to NOx emissions during combustion. So it is very essential to improve the hydrocarbon ratios in pyrolysis oil. The extraction of oxygenated compounds from pyrolysis can be done by various pyrolysis steps, including dehydration, decarbonylation, decarboxylation, and hydrodeoxygenation; however, studies on the extraction of nitrogenated compounds from pyrolysis oil are rare. According to Li et al.73, selective adsorption or hydrodenitrogenation can be used to remove nitrogenated compounds. These methods can also ensure the pyrolysis oil has a better calorific value, higher hydrocarbon content, higher stability, and a lower viscosity. Before solving the pyrolysis task, researchers need to think about the examination of pyrolysis mechanisms. To enhance current global kinetic systems, new experimental methods with molecular-level understanding are required. During pyrolysis, the feedstock is heated, and the produced volatiles are collected and quantified. But the characterization of liquid- and solid-phase intermediates was generally omitted as a result of their shorter lifespans and complexity. Therefore, the absence of experimental data related to condensed-phase intermediates may simplify the development of liquid- and solid-phase reaction mechanisms. It is also obvious that the prediction of heat profiles of feedstock inside the reactor is difficult due to the lack of experimental data. So, further study is needed to analyze the heat transfer phenomena of the lignocellulosic particle. In order to increase the production of pyrolysis oil from Madhuca longifolia residues, catalytic pyrolysis have been suggested on commercial and laboratory scales. Instead of a fixed-bed reactor, the residues can be pyrolyzed in other types of reactors, such as fluidized-bed reactors, microwave-assisted reactors, ablative reactors, etc., to improve the selective product output. Based on the research, an optimization study is also recommended.

Conclusion

Pyrolysis is a potential choice to produce alternative fuel by utilizing forestry residues. Madhuca longifolia residues contain a higher percentage of volatile matters (71.26%), lower moisture (5.98%), ash (4.50%), and sulfur (1.20%) were pyrolyzed in a batch-type fixed-bed reactor at temperatures between 350 and 600 °C. The products produced from the pyrolysis were analyzed using several analytical characterization techniques. The variations in product yields have been noted between different operating temperatures, and the maximum pyrolysis oil yield of 44.2 wt% was found at a temperature of 475 °C. The gaseous yield continuously developed, whereas the char yield reduced as the temperature exceeded 475 °C. The FT-IR analysis of the pyrolysis soil showed the presence of different functional groups such as O–H, C=O, C–H and C=C. The GC–MS analysis of the pyrolysis oil showed the existence of different major chemicals such as 3,4-dimethylphenol, 2,5-dimethylphenol, phenol, guaiacol, 2-hexadecyloxy ethanol, campesterol and butanoic acid. The physicochemical characteristics of the pyrolysis oil show that the presence of water-based molecules and its higher viscosity restrict its direct usage in furnaces and engines; however, it can be used as a low-grade fuel and can be upgraded for further usage. The potential applications of pyrolysis char as an adsorbent and biofertilizer were revealed by the qualitative examination. Gas chromatography results of the pyrolysis gas demonstrated its use as gaseous fuel by confirming the presence of combustible components.
