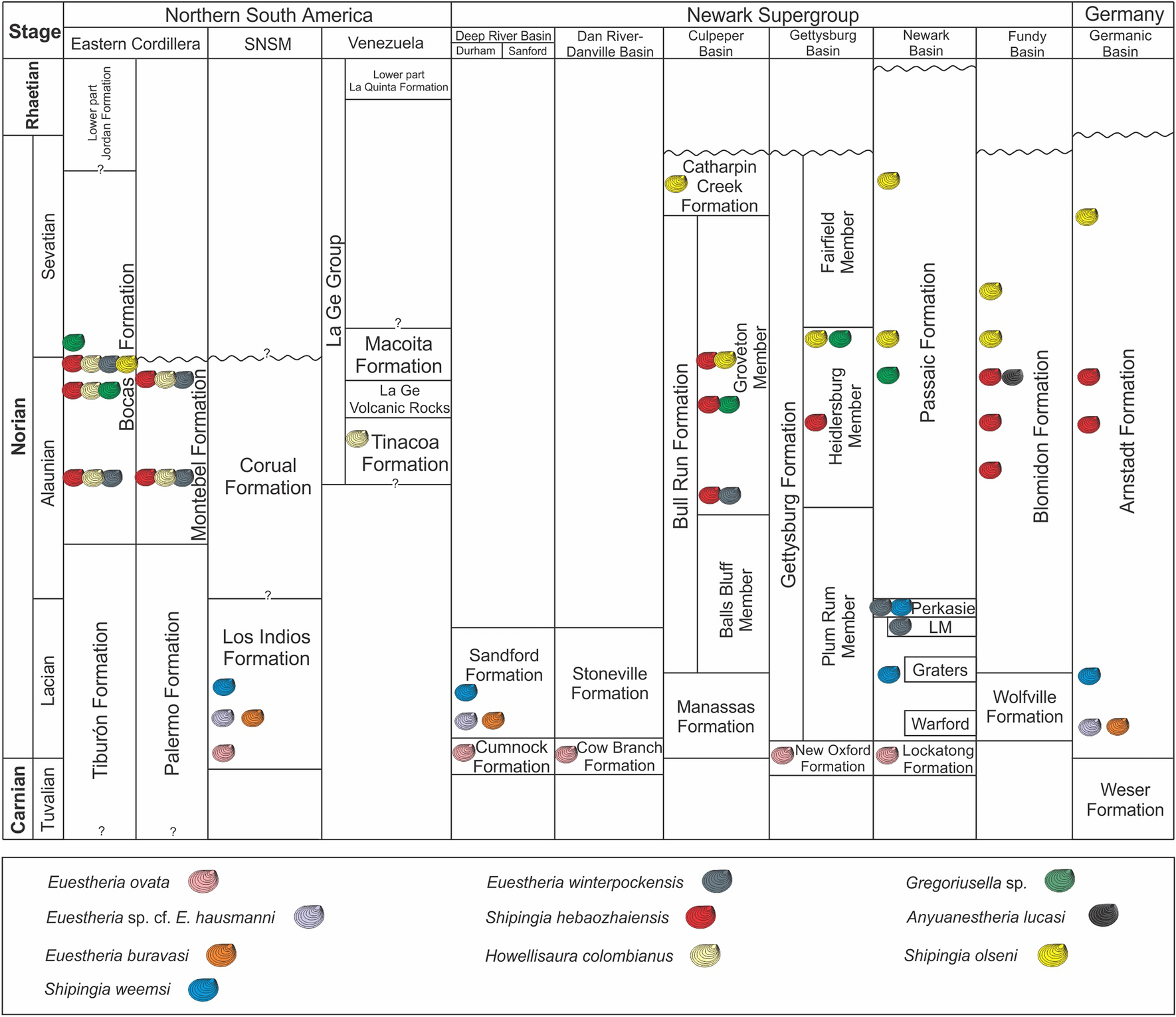

Figure 3

Correlation of stratigraphic units and common clam shrimp species of the Upper Triassic in the basins of northern South America and the rift basins of central Pangea. Species reports and unit ages are based on previous studies^{12,21,22,23,24,25,34,45}. Figure drawn with Inkscape 1.2.2 (https://inkscape.org/).
