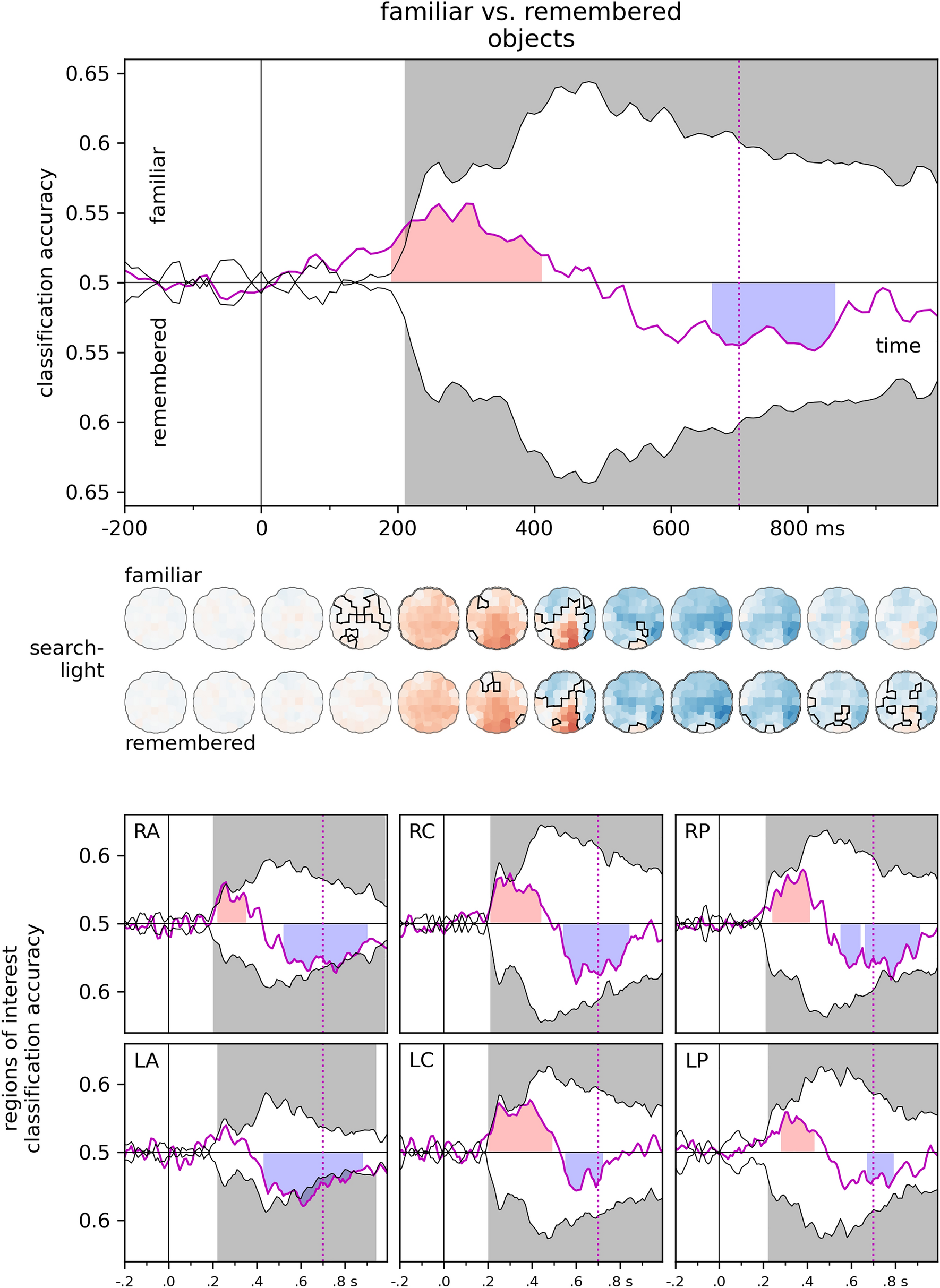

Figure 7
Familiar vs. Remembered objects. Classifiers were trained to categorize EEG data for familiar and remembered objects and were tested on EEG data for familiar faces. Regions shaded in red denote significant evidence for familiarity, regions shaded in blue denote significant evidence for recollection. Results of the leave-one-subject-out classification for familiar faces is presented in black for comparison. (Two-sided cluster permutation tests, p < 0.05). Spatio-temporal searchlight results are shown as scalp maps, with classification accuracy scores averaged in 100 ms steps. Sensors and time points forming part of the significant cluster evidencing familiarity are shown in the top row, sensors and time points forming part of the significant cluster evidencing recollection are shown in the bottom row. (Two-sided spatio-temporal cluster permutation tests, p < 0.05). RA/LA: right/left anterior, RC/LC: right/left central, RP/LP: right/left posterior.
