Figure 2

From: Investigation on the molecular mechanism of SPA interference with osteogenic differentiation of bone marrow mesenchymal stem cells

Figure 2

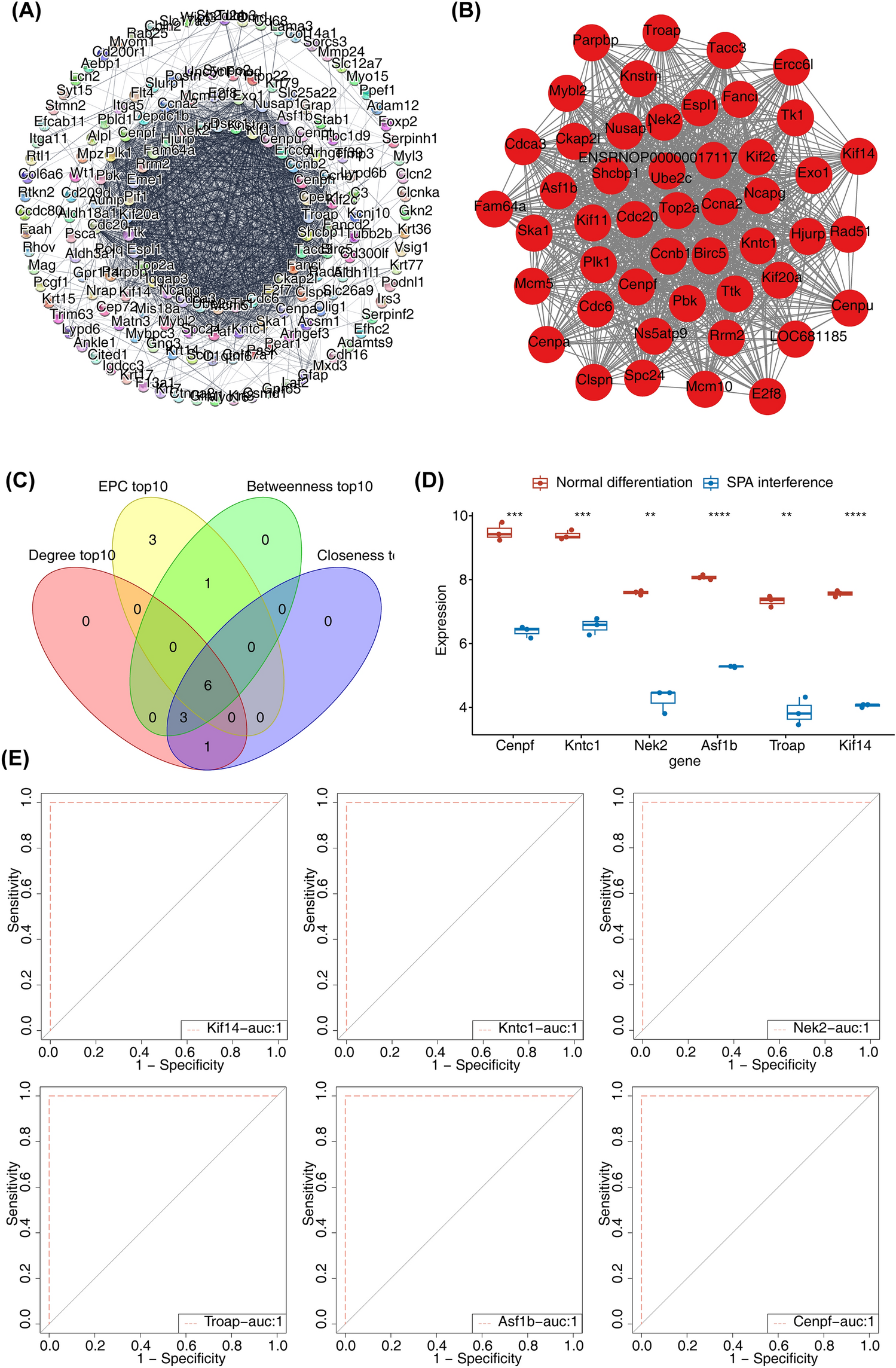

Identification of biomarkers for SPA interfered BMSC. (A) The PPI network of DEGs. (B) The interaction of the important gene cluster. (C) The Venn diagram of six biomarkers. (D) The expression of biomarkers in normal differentiated group and SPA interfered group. (E) The ROC curves of biomarkers. BMSC, bone marrow mesenchymal stem cells; PPI, protein–protein interaction; ROC, receiver operating characteristic; AUC, area under the curve. **p < 0.01; ***p < 0.001; ****p < 0.0001.
