Figure 5
From: X-ray diffraction of metastable structures from supercooled liquid hydrogen

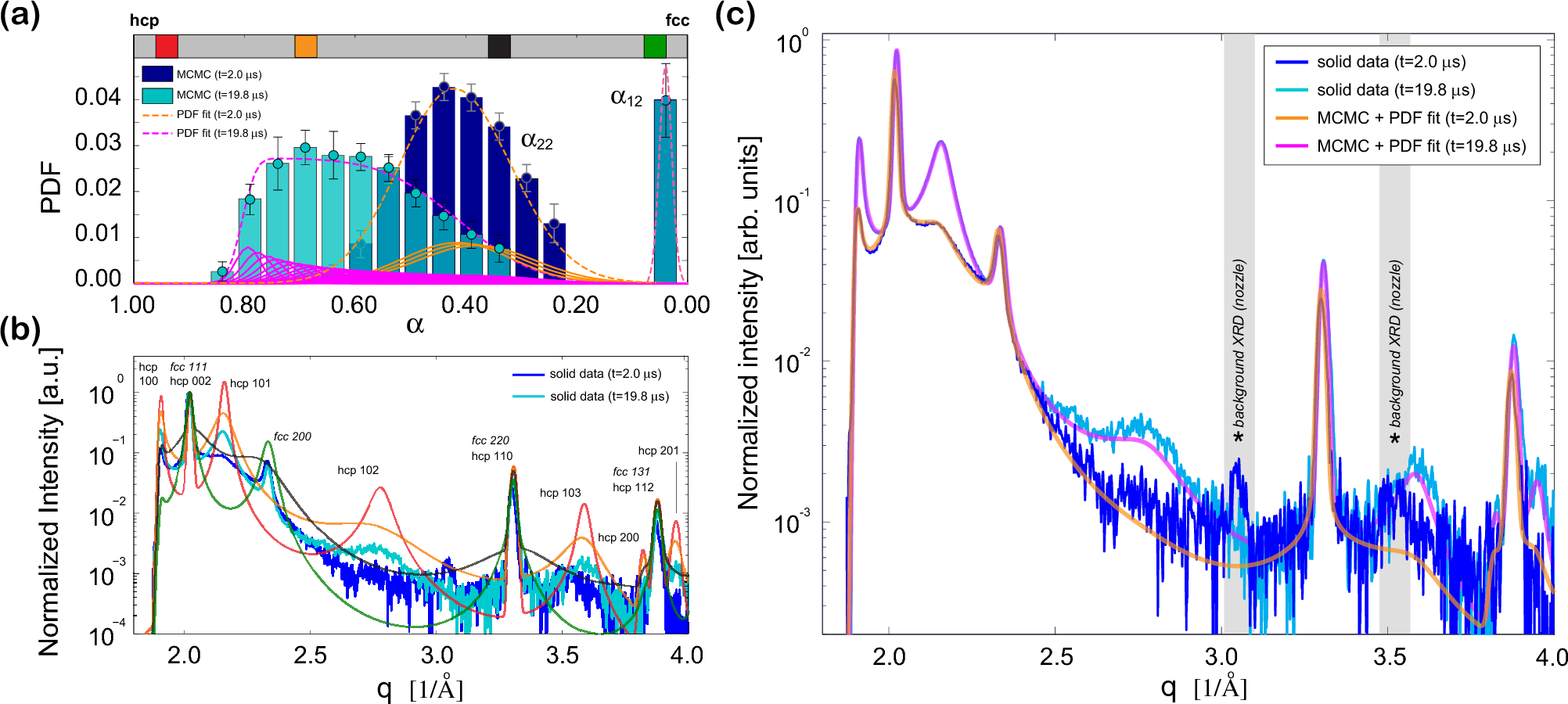

(a) MCMC distribution generated from random sampling \(\alpha \) values fit to solid diffraction data for \(t=2.8\) \(\mu \)s (dark blue) and \(t=19.8\) \(\mu \)s (light blue). Full continuous distribution (lines) of hcp growth generated with the MCMC + random walk simulation for \(t=2.0\) \(\mu \)s (orange), and \(t=19.8\) \(\mu \)s (magenta). (b) Background subtracted solid diffraction data for \(t=2.0\) \(\mu \)s (dark blue) and \(t=19.8\) \(\mu \)s (light blue) plotted together with generated diffraction profiles corresponding to finite stacking parameter probabilities with no variance. The color of each line corresponds to the specific mean stacking parameter probability represented by the squares in (a) of the same color. (c) Background subtracted solid diffraction data for \(t=2.0\) \(\mu \)s (dark blue) and \(t=19.8\) \(\mu \)s (light blue) plotted together with the PDFs shown in (a).
