From: Comprehensive characterization of protease inhibiting gene family, cis-regulatory elements, and protein interaction network in linseed and their expression upon bud fly infestation

Figure 8

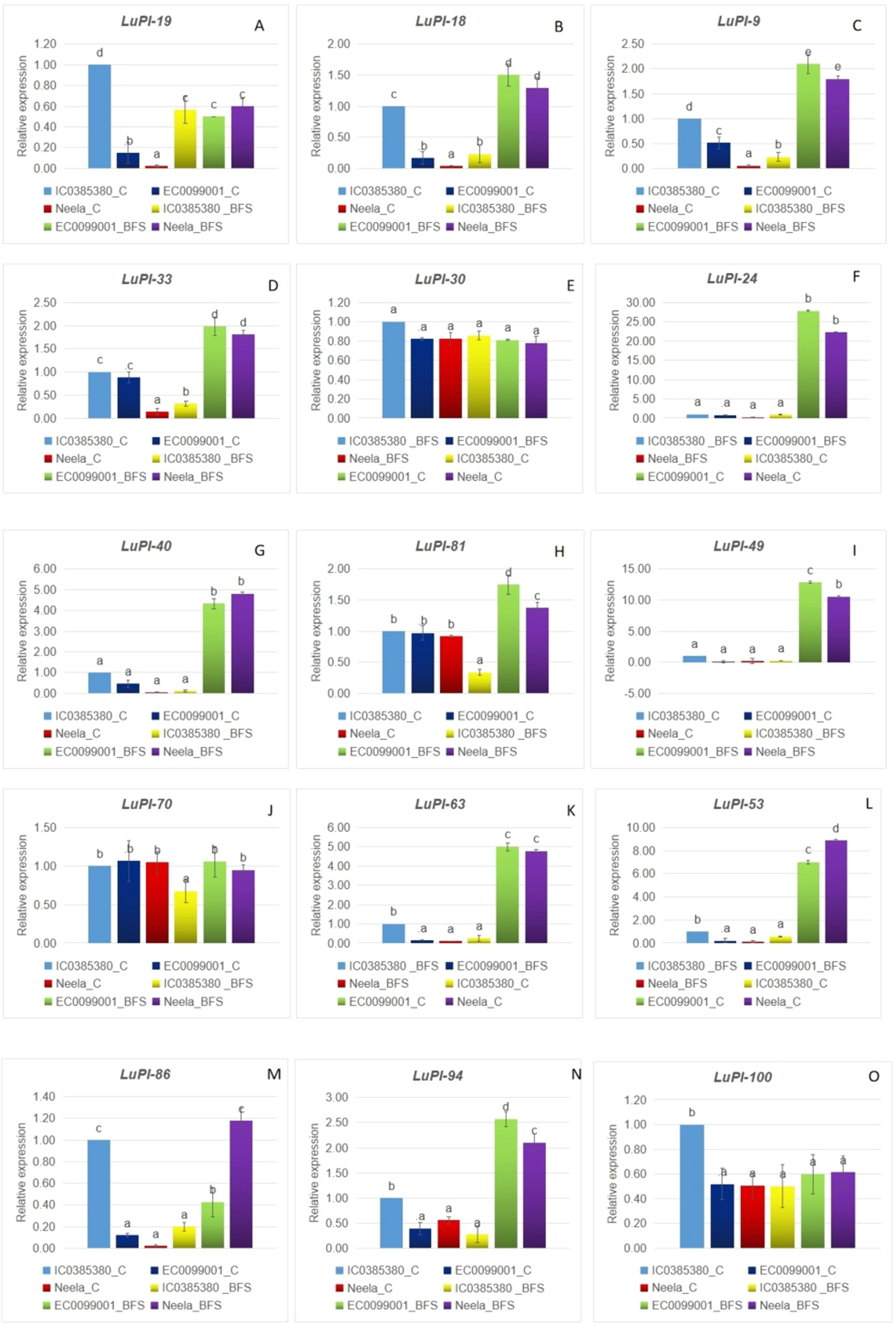

Relative gene expression analysis of selected LuPI genes (A) LuPI-19, (B) LuPI-18, (C) LuPI-9, (D) LuPI-33, (E) LuPI-30, (F) LuPI-24, (G) LuPI-40, (H) LuPI-81, (I) LuPI-49, (J) LuPI-70, (K) LuPI-63, (L) LuPI-63, (M) LuPI-53, (N) LuPI-86, (O) LuPI-93, (P) LuPI-100 under controlled and upon bud fly infestation. The expression values were presented in fold change. The different letters showed significant differences among them.
