Introduction

Linseed (Linum usitatissimum L.) is an important multipurpose industrial crop used in the textile and paint industries, nutraceuticals, pharmaceutical and healthcare sectors, etc.1,2. It is a potential crop and can be cultivated in a wider range of ecologies such as rainfed, irrigated and high-temperature regimes. Canada is the leading producer and exporter of flax (~ 23% of world production) followed by Kazakhstan and Russia3. Presently, linseed occupies an area of 32.23 lakh ha yielding 30.68 lakh tonnes with an average productivity of 952 kg/ha in the world, whereas in India, it occupies an area of 1.7 lakh ha with a production and productivity of about 1 lakh tonnes and 574 kg/ha, respectively4. Various biotic and abiotic stresses adversely affect the linseed production and productivity5,6,7,8. Among the biotic stresses, linseed bud fly (Dasyneura lini Barnes) is a major production constraint that leads to severe yield penalty of up to 90%9. Its infestation occurs during the flowering stage in the young flower buds which fail to develop into capsules10,11. Various cultural and insecticidal management practices are followed by several workers to minimize the yield losses in linseed caused by bud fly5,12,13. However, the application of insecticides increases the input cost and also leaves a residual effect in the grains. The development of resistant cultivars is one of the most effective, sustainable and widely accepted approaches to mitigate this. Most of the commercially grown linseed varieties in India are susceptible to bud fly attack14,15,16. Therefore, potential donors for resistance need to be identified for sustainable production and to cater to rising demands for food and pharma industries17. Earlier, screening of linseed germplasm for bud fly resistance was done under deliberate late sown condition to identify potential sources of resistance18,19,20. However, a systematic evaluation is still lacking. It is a polygenic trait 21, hence multi-environment phenotyping is the best approach to tag the potential donors 22,23,24,25,26. Recently, we performed multi-environment screening of large collections of 2598 germplasm accessions to develop a reference set for bud fly resistance for linseed improvement and identified four genotypes as potential donors for imparting resistance26. These accessions may be utilized as donors in the linseed breeding programme for developing cultivars with enhanced resistance to bud fly resistance. In the era of genomics, the use of omics resources can also be used as a tool for accelerating the molecular breeding programme27. Several gene families have been characterized by previous researchers as Ranson et al.28 characterized three major enzyme families such as carboxylesterases, glutathione transferases, and cytochrome P450s in the Anopheles gambiae genome responsible for metabolic resistance to insecticides. Yu et al.29 suggested the role of Cytochrome P450 monooxygenases in hormone regulation, metabolism of xenobiotics and biosynthesis or inactivation of endogenous compounds which leads to insect resistance. The significant role of protease inhibitors (PIs) in modulating biotic stress resistance has also been reported by various workers30,31,32. PIs play a crucial role in plant defense against predators and pathogens, with well-established functions in integrated pest management programs. While, some of the PIs are reported to regulate endogenous protein processes or act as storage proteins, many have been identified as potent defensive compounds against pests. In-depth studies have been conducted by previous workers to understand the roles and mechanisms of action of various PIs originating from three plant families: Leguminosae, Solanaceae, and Gramineae33,34,35,36. These inhibitors exhibit a broad spectrum activities including suppression of pathogenic nematodes and inhibition of insect digestive enzymes. Serine, cysteine, kunitz, aspartic, and metalloproteases are the main classes of proteases targeted by these inhibitors37. Transgenic crops expressing PI genes have shown resistance to a wide range of insect-pests, demonstrating the potential of these genes in integrated pest management strategies. The inhibitors within the Bowman-birk inhibitor (BBI) family, kunitz proteinase inhibitors, and cysteine proteinase inhibitors are among the well-studied PIs38. They exhibit insecticidal effects against various crop pests and offer practical advantages for engineering resistance in plants39,40. Additionally, the inhibitors from the potato inhibitor I and II families, such as Cathepsin-D inhibitors, are unique in their insecticidal properties and are induced upon wounding or insect damage41. Therefore, PIs may present promising opportunities for developing transgenic crops with enhanced resistance to insect pests and improved nutritional quality. Keeping the facts under consideration, the present study was planned to explore and characterize the PI candidates in the linseed genome and their possible role in modulating bud fly resistance.

Results

Identification of PI protein sequences in linseed genome

In the present investigation, 100 LuPI protein sequences were identified in the linseed (L. usitatissimum) genome, and downloaded from Phytozome using the Pfam IDs-pfam 00031, pfam 00280, pfam 00197, and pfam 00234 (Supplementary Table S1). These sequences were categorized based on their types and assigned the names as LuPI-01 to LuPI-100. To gain deeper insights into PI proteins, the analysis included parameters such as amino acid (aa) length, molecular weight, isoelectric point, and subcellular localization prediction for the 100 LuPI proteins. The lengths of LuPI proteins exhibited a range from 70 aa residues (LuPI-89, 90, 94) to 448 aa residues (LuPI-100), with an average length of 187 aa. Notably, a majority of the PI proteins fell within the range of 100 to 300 aa. The molecular weight spanned from 7.8 kDa (LuPI-89) to 53.92 kDa (LuPI-97), while the isoelectric point varied from 4.18 (LuPI-72) to 10.03 (LuPI-44). Sub-cellular localization predictions indicated that a significant proportion (69%) of LuPI proteins were anticipated to be in the extracellular matrix. However, some proteins were also predicted to reside in other sub-cellular compartments, including the cytoplasm (7%), nuclear membrane shared with other organelles (8%), chloroplasts (14%), plasma membrane (10%), and mitochondria (4%), respectively.

Evolutionary tree analysis and classification of protease inhibitors

To elucidate the evolutionary relationships among 100 LuPI protein sequences, along with 15 AtPIs from Arabidopsis and 57 OsPIs from rice were taken for a comprehensive analysis (Fig. 1). All the LuPIs were categorized into five distinct subfamilies such as 21 Kunitz_legume inhibitors, 13 Serpins, 47 Tryp_alpha_amyl inhibitors, 7 Cystatins, and 12 Potato inhibitors-I. All subfamilies exhibited similarities with their counterparts in Arabidopsis thaliana and Oryza sativa PI subfamilies. Phylogenetic analysis revealed a bifurcated evolutionary tree, dividing into two major groups. One group comprised Tryp_alpha_amyl inhibitors and the other group comprised four PI subfamilies, revealing a closely shared origin. Subfamilies Serpin and Cystatin clustered together in one clade, while Potato inhibitor and Kunitz_legume inhibitors were placed in different clades, although they displayed a similar origin. Dissimilarity analysis provides insights into intra- and inter-subfamily variations.

Figure 1
Figure 1
Full size image

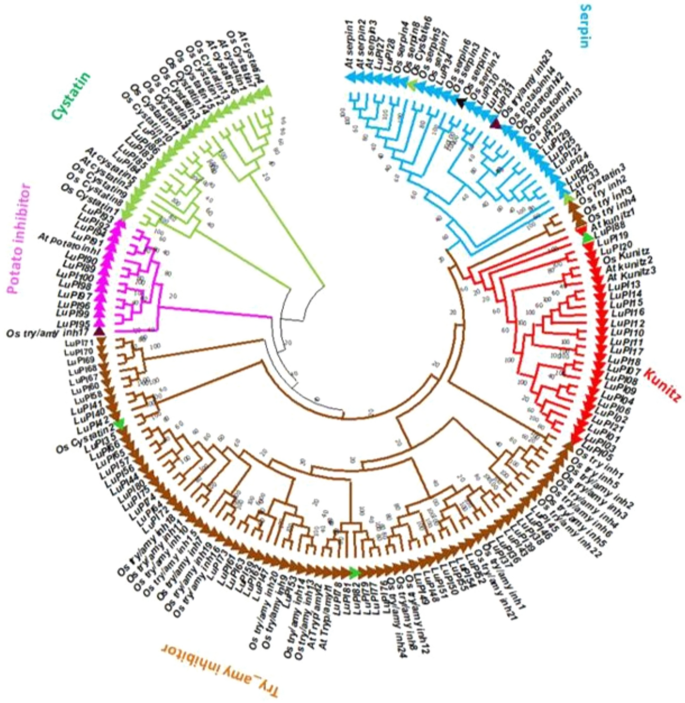

Evolutionary tree of LuPI genes of Linum usitatissimum (LuPI), Oryza sativa (OsPI) and Arabidopsis thaliana (AtPI) were used to construct the tree using MEGA 11.0 with the ML method. Subgroups Kunitz_legume inhibitors, Serpins, Tryp_alpha_amyl inhibitors, cystatins, and Potato inhibitors are indicated by red, blue, brown, green, and pink colors, respectively.

Dissimilarity within sub-populations was measured as follows: Kunitz_legume inhibitor (0.63), Serpin (6.48), Tryp_alpha_amyl (2.06), Cystatin (5.42), and Potato inhibitor (1.03). Distances between subfamily groups indicated values of 4.64 (Kunitz_legume inhibitor vs. Potato inhibitor), 14.52 (Serpin vs. Tryp_alpha_amyl), 4.97 (Tryp_alpha_amyl vs. Cystatin), and 24.62 (Cystatin vs. potato inhibitor). Further group comparisons revealed distances of 12.94 (Serpin vs. potato inhibitor), 15.47 (Tryp_alpha_amyl vs. Cystatin), and 7.43 (Tryp_alpha_amyl vs. potato inhibitor). Notably, distances between Tryp_alpha_amyl inhibitors and Potato inhibitors-I, as well as between Cystatin and Potato inhibitors-I, were determined to be 18.11 and 7.62, respectively. The relationship between Cystatin and Potato inhibitors-I exhibited a distance of 27.81. The overall diversity across the population was calculated as 8.87, with intra-population diversity as 5.75 and intra-subpopulation diversity as 3.37 (coefficient of differentiation = 0.65). Additionally, the 47 Tryp_alpha_amyl inhibitors were further classified into five types (Type 1–5). Types 1 and 2 demonstrated a mixture of Cystatins from both linseed and rice, while Type 5 Tryp_alpha_amyl members exhibited similarities with the Kunitz_legume inhibitor group.

Analysis of gene structure, conserved domain, and motifs

GSDS was utilized to illustrate the gene structure diagram of various LuPI, as depicted in (Fig. S1). Among the Kunitz_legume type of protease inhibitors, all PIs exhibited an approximately similar in size, except for LuP-I5 and LuPI-21, which have two and four exons, respectively. Among the 13 Serpin-type of PIs, only four have single exon, while rest of the PIs had more than two exons. In linseed, the 46 Tryp_alpha_amyl type of PIs consisted of 14 single-exon genes, 20 with two exons, and the remaining genes possessed multiple exons. In Cystatins, all members had single exon, except for one with two exons. Similarly, all the 12-Potato inhibitor like PIs were split into two or multiple exons. The exons of all five PI subfamily; genes exhibited strikingly similar lengths and distribution, suggesting a common ancestral origin for this subfamily. Most of the LuPI candidates had genomic DNA lengths between 3 and 5 kb with some exceptions. Notably, Kunitz_legume type PIs and CPIs share similar gene structures with a single exon, while Tryp_alpha_amyl and potato inhibitor type PIs consisted of 2–6 exons. Furthermore, it was observed that most LuPI genes within the same subfamily exhibited similar exon–intron distribution patterns.

Conserved domain and motif analyses indicated that the majority of LuPIs share a similar type of arrangement of conserved domains and motifs, as illustrated in (Figs. S2, S3). Across various subfamilies of PIs, specific domains are consistently conserved in all protein sequences. Notably, Kunitz_legume-type of PIs feature two distinct domains: Kunitz_legume and STS superfamily, both abundant in glycine (G). In the Serpin type, common domains include “Serpin” and “Serpin superfamily”. Within the 46 Tryp_alpha_amyl PIs, two highly conserved domains are the AAI_LTSS superfamily and Tryp_alpha_amyl. Additionally, LuPI-35, LuPI-39, and LuPI-41 possess an extra domain, LTP_2. CPI exhibits two conserved domains: Cystatin and CY domain, while potato inhibitor contains the major potato inhibitor superfamily domain. Some potato inhibitors also feature inhibitor_I78 superfamily and Mpv17_PMP22 superfamily domains rich in Cystine. The representative gene structure, conserve domain and motif were presented in (Fig. 2).

Figure 2
Figure 2
Full size image

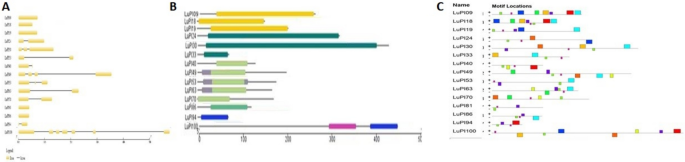

Intron-exon gene structure (A) domain (B) and motif (C) analyses of representative LuPI genes.

To analyze the conserved motifs, ten motifs (1, 2, 4, 6, 7, 8, 9, 10) were examined in linseed genome (Figs. 3, 4, 5). Kunitz_legume-type of PIs were found to contain six motifs, while LuPI-19 and LuPI-20 exhibited only two motifs. In Serpin-type of PIs, motifs 6 and 7 were common, Tryp_alpha_amyl types carried motifs 8 and 9, and potato inhibitor types had motif 10. The Glycine (Gly)-rich Motif 1, crucial for the biological activity of PIs, is highly conserved among Kunitz_legume-type family members in linseed. Motif 6, consisted of 16 amino acids [DIBGTKALALPSACG], is highly conserved across all PIs (Supplementary Table S2).

Figure 3
Figure 3
Full size image

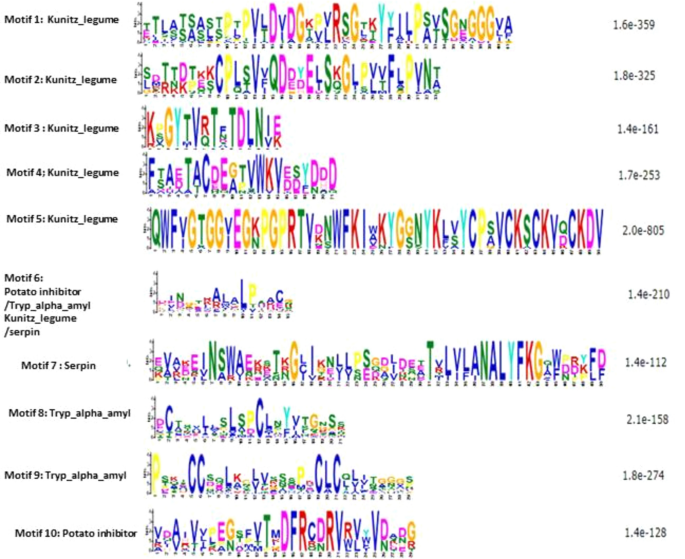

The conserved motifs sequences of LuPI identified by MEME.

Figure 4
Figure 4
Full size image

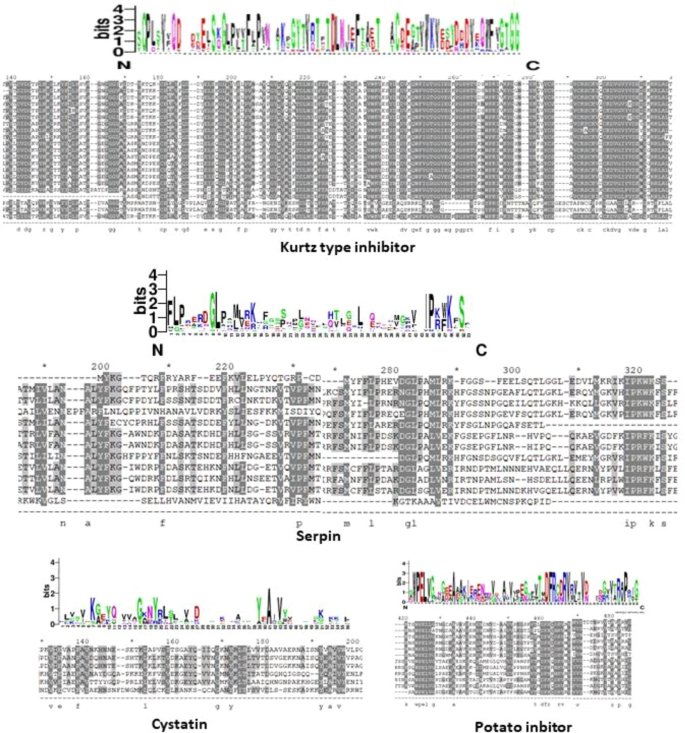

The architecture of conserved protein motifs of LuPIs. Different motifs are displayed shaded along with HMMER logo used for identification of Kurtz type inhibitors, sezrpin, cystatin, and potato inhibitors.

Figure 5
Figure 5
Full size image

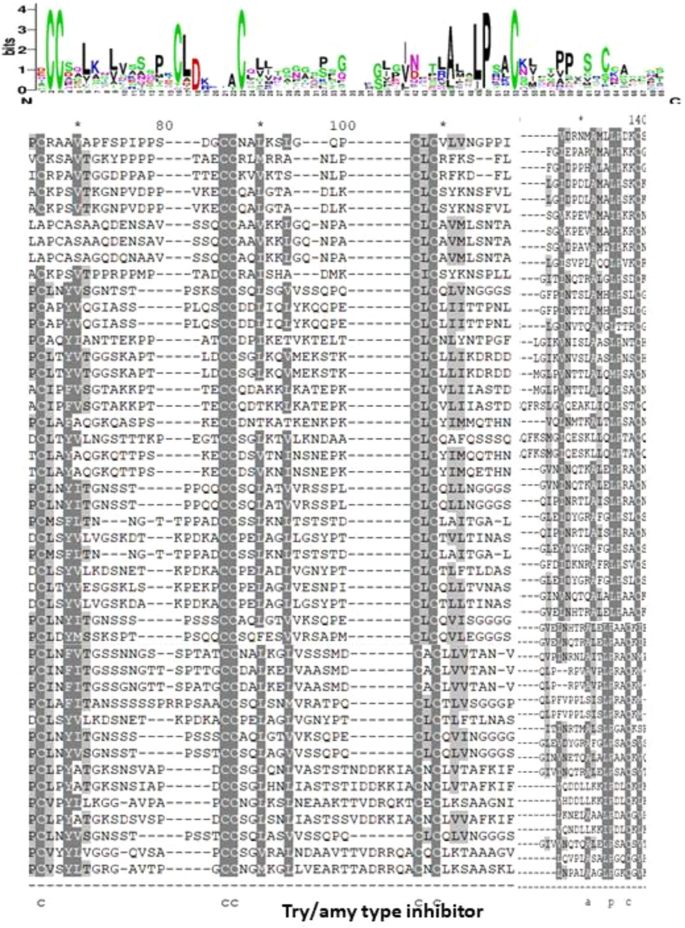

The architecture of conserved protein motifs of LuPI displayed shaded along with HMMER logo used for Try/amyl inhibitor identification.

The cis-acting elements analysis

Total four categories of cis-acting elements were identified, including light responsiveness, phytohormone responsiveness, biotic and abiotic stress responsiveness, and plant growth and development-related elements (Fig. 6). Therefore, it is speculated that the expression of LuPIs may be regulated by multiple factors. Many light-responsive elements are present in the promoters of PI genes, of which the number of G-box elements is the largest. LuPI contains a cis-acting element involved in phytohormone responsiveness classification. Further, analysis of the phytohormone responsiveness elements revealed that the number of elements related to MeJA was the largest, followed by abscisic acid. Around 66% of LuPI promoters contain > 6 sites for ABRE and ABA resposive elements. Abscisic acid-responsive elements were found in 76% of LuPI promoters and only LuPI-95 contained seven sites for Abscisic acid. Furthermore, auxin (TGA-element, AuxRR-core), gibberellin (P-box, TATC-box, and GARE motif), and salicylic acid (TCA-element) are also present in LuPI promoters but ethylene responsive elements (ERE) are not detected in any LuPI promoters. Besides, the promoters also contain several types of stress responsiveness elements (SRE), including anaerobic induction elements (ARE), anoxic specific inducibility (GC-motif), low temperature (LTR), MYB drought-inducibility binding site (MBS), defense and stress (TC-rich repeats), and wound (WUN-motif) responsive elements. Additionally, plant growth and related development-related cis-elements in charge of meristem expression (CAT-box), circadian (circadian), endosperm expression (GCN4_motif), and Zein metabolism (O2-site) regulation were found in the promoter regions of LuPIs.

Figure 6
Figure 6
Full size image

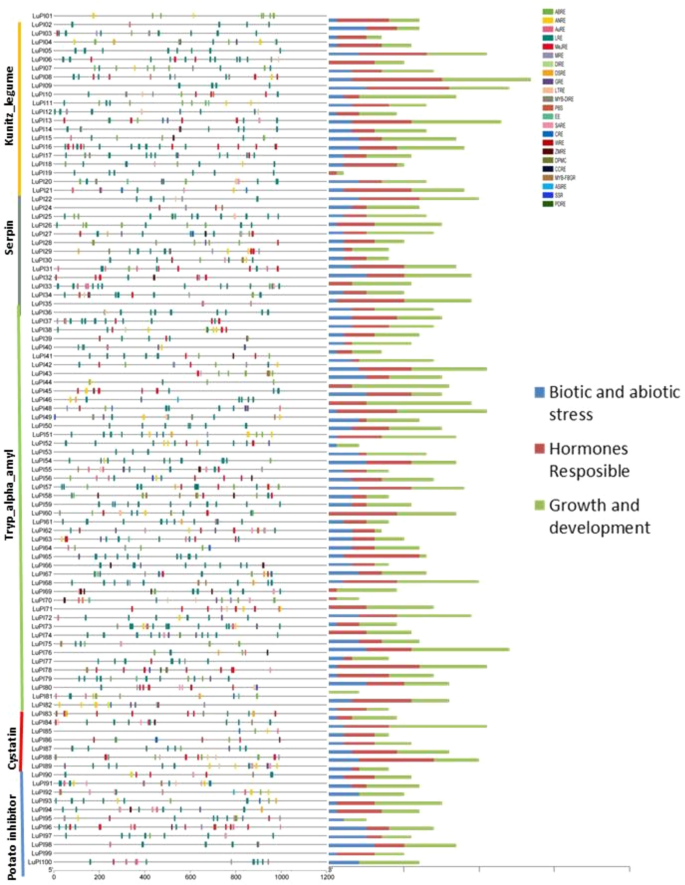

Distribution of cis-acting elements in the promoter region of LuPI genes and their functional classification.

In-silico expression and qRT-PCR analysis

To ascertain the expression levels across two distinct studies, principal component analysis (PCA) was utilized. This study employed PCA to categorize gene expression during developmental stages into two clusters (Fig. S4). PCA served to diminish the data’s dimensionality, facilitating the visualization of high-dimensional gene expression profiles in a more condensed space. Transcript abundance of 100 LuPIs was assessed across various developmental stages and organs, revealing notable expression during both seed and stem developmental phases (Fig. 7). The GEO data indicate that 43 LuPIs exhibited abundant transcript levels in the early stage of seed development, with 13 being highly expressed and the remainder showing moderate expression. In the second stage of seed development, 50 genes were highly expressed, including eight with particularly elevated expression. During the third stage, the number of genes expressed increased from 43 to 65, with 11 genes demonstrated  the expression levels more than four folds the initiation stage. Throughout seed developmental stages, LuPI-86, LuPI-87, LuPI-99, and LuPI-100 consistently showed higher expression, while LuPI-27 and LuPI-28 exhibited increased expression from stage 1 to stage 4. Conversely, LuPI-50, LuPI-51, LuPI-65, and LuPI-75 genes maintained moderate expression across all stages, while LuPI-52 expression decreased during developmental stages. LuPI-54 was only expressed in the S2 stage of seed development. 34 LuPI genes were expressed at the apical shoot apex, and 40 LuPI genes were expressed at the basal shoot apex. Notably, LuPI-84 showed high expression at the basal shoot.

Figure 7
Figure 7
Full size image

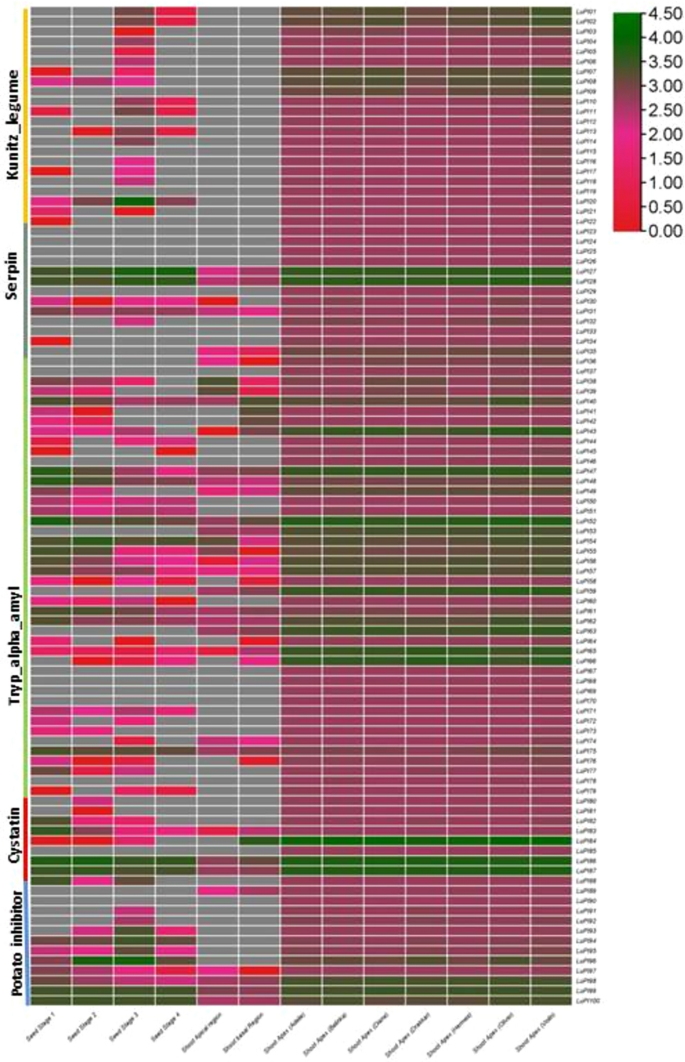

Heat map representation of LuPI genes across different tissues and developmental stages. The Illumina RNA-seq data were reanalyzed, and the FPKM values were log2 transformed and heat map was generated using TB tool software. The bar at the side represents log2 transformed values.

To investigate the potential role of LuPI genes under bud fly infestation, we examined the expression profiles of 15 LuPI genes in a susceptible (IC0385380) and highly resistant (EC0099001) genotype, along with positive resistant controls (Neela) under control and bud fly infestation in flower buds (Fig. 8). The phenotypic data of these genotypes were presented in Table S3. For the Kunitz_legume type protease inhibitor, three genes were selected for expression profiling. The results revealed that LuPI-19 exhibited down-regulation in all the genotypes upon bud fly infestation. While, LuPI-18 and LuPI-9 showed significant up-regulation in the HR genotype (EC0099001 and Neela) upon bud fly infestation. Considering the serpin-type PI, LuPI-24 demonstrated a significant 25-fold increased expression in EC0099001. In linseed, the predominant PI is the trypsin alpha amylase inhibitor, for which six genes i.e. LuPI-40, LuPI-81, LuPI-49, LuPI-53, LuPI-63, and LuPI-70 were considered for expression profiling. All six genes showed significant expression, with LuPI-49 exhibiting the most robust response in EC0099001 upon bud fly infestation. LuPI-63 and LuPI-53 also displayed significant up-regulation in HR genotype and positive control cv. Neela. For cystatin, only one gene was tagged and for the potato inhibitor, two genes were taken for expression profiling. Cystatin did not show a significant response, while potato inhibitor LuPI-94 exhibited basal expression in HR upon bud fly infestation.

Figure 8
Figure 8
Full size image

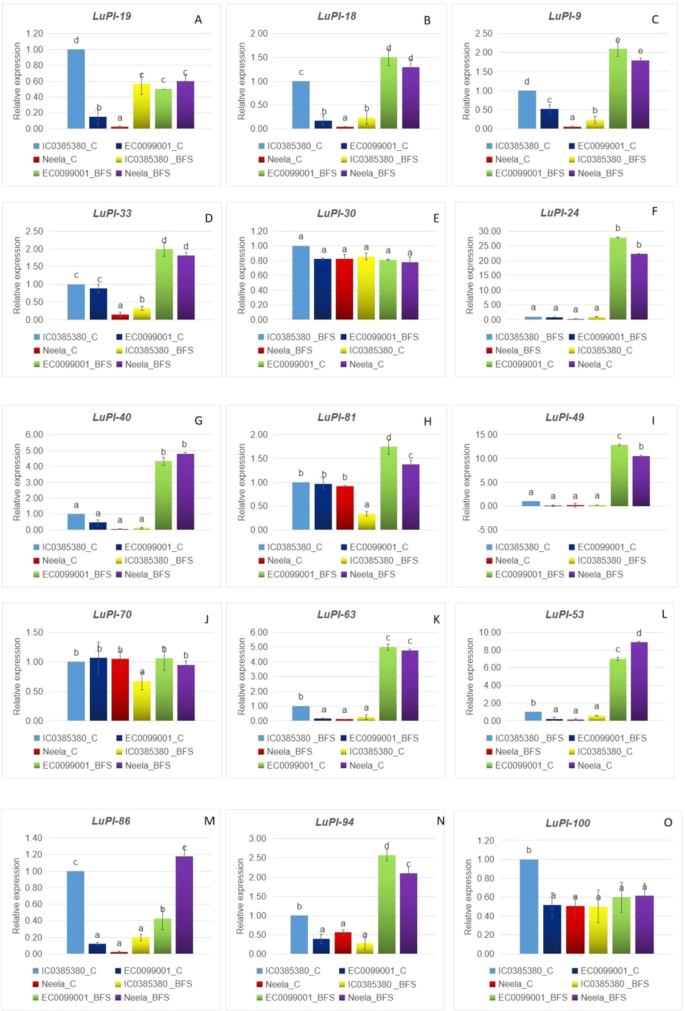

Relative gene expression analysis of selected LuPI genes (A) LuPI-19, (B) LuPI-18, (C) LuPI-9, (D) LuPI-33, (E) LuPI-30, (F) LuPI-24, (G) LuPI-40, (H) LuPI-81, (I) LuPI-49, (J) LuPI-70, (K) LuPI-63, (L) LuPI-63, (M) LuPI-53, (N) LuPI-86, (O) LuPI-93, (P) LuPI-100 under controlled and upon bud fly infestation. The expression values were presented in fold change. The different letters showed significant differences among them.

Protein-protein interaction network analysis

The protein-protein interaction network of LuPI genes through string revealed minimal exploration in the realm of protein–protein interactions (Fig. 9). When compared with the PI genes in Arabidopsis, it became evident that the Tryp_alpha_amyl inhibitor exhibited interactions exclusively with the candidates having same domain, displaying no association with other inhibitors. Distinctly, LuPI-70 and LuPI-40 demonstrated a comprehensive array of interactions, playing pivotal roles in diverse biological processes such as signal transduction and regulation of gene expression. Conversely, LuPI-49, LuPI-53, LuPI-63, and LuPI-81 exhibited a more selective pattern of interactions. For instance, LuPI-81 displayed co-expression with both LuPI-49 and LuPI-40, while LuPI-63 demonstrated interaction with LuPI-49 and LuPI-70. This nuanced exploration sheds light on the intricate web of LuPI gene interactions, unraveling their diverse roles in biological processes.

Figure 9
Figure 9
Full size image

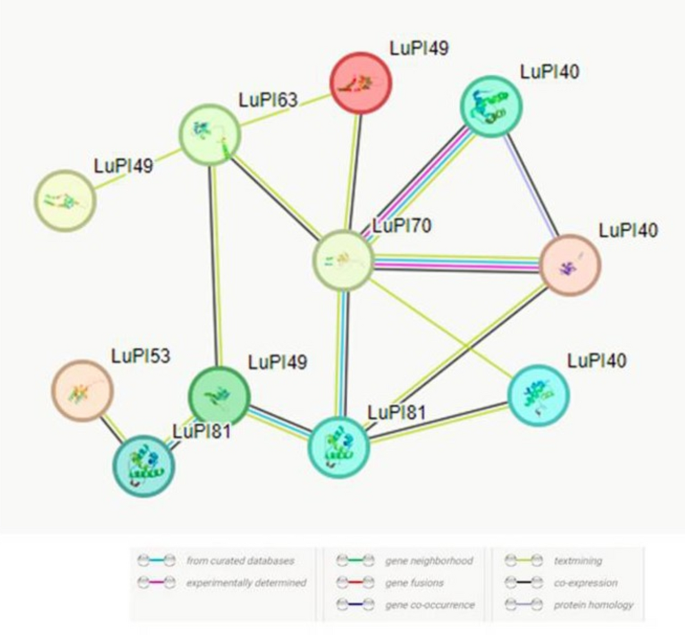

The network prediction of LuPI-49 and its protein interaction based on STRING database.

Discussion

The PI gene family is well known for their significant role in activating defense mechanisms against several insect-pests42. In this investigation, 100 LuPI genes were identified in the L. usitatissimum genome. Subcellular localization predictions indicated that a significant proportion (69%) of LuPI proteins were anticipated to be in the extracellular matrix. However, the rest were located in the cytoplasm (7%), nuclear membrane shared with other organelles (8%), chloroplasts (14%), plasma membrane (10%), and mitochondria (4%), respectively. Fan et al.34 characterized the PI gene family in tomato and predicted that 92% candidates were located as extracellular. Rehman43 characterized the Serpin gene family and noticed that most of the Serpin genes were located in chloroplast with some exceptions as they are found in the cytoplasm, endoplasmic reticulum, mitochondria, nucleus and plasma membrane. Plant PIs are a class of peptides or proteins that are known for their proteolysis activities33,44. In the present investigation, 100 LuPI proteins contain at least one inhibitor domain, which are known as simple inhibitors. Therefore, they can be easily divided into different families, Kunitz_legume family, Serpin, Tryp_alpha_amyl inhibitor, Cysteine proteinase inhibitor, and Potato inhibitor according to the domain and sequence similarity. These PI proteins confer diverse functions, suggested its multiple roles in plants. The Kunitz gene family is a complex family with various PIs and inhibits serine, cysteine, and other hydrolases. The Kunitz PIs reversibly interact with their target proteases to form stable complexes and inhibit their catalytic activity in a competitive or noncompetitive manner45. The phylogenetic tree represents the data well, as evidenced by high bootstrap branch support. This gene family is well conserved, indicating some level of functional maintenance of the gene family by natural selection. The significance of the phylogenetic relationships within the LuPI gene family offered valuable insights into the evolutionary dynamics and diversification patterns of these crucial proteins. The categorization of PI into distinct subfamilies, such as Kunitz_legume, Serpin, Tryp_alpha_amyl, Cystatin, and Potato inhibitors-I, provide a systematic framework for understanding the functional diversity in linseed. The observed similarities with AtPI and OsPIs underscore the conservation of these gene families across different plant species. The bifurcated evolutionary tree and the close origin of the Tryp_alpha_amyl group with the other four subfamilies reveal intriguing patterns of shared ancestry. The dissimilarity analysis further refines our understanding of intra and inter-subfamily variations, highlighting the diverse evolutionary trajectories among different PI groups. Notably, the identification of distinct types within the Tryp_alpha_amyl inhibitors, their relationships with Cystatins, and admixture provide an insight into our understanding of cross-species interactions and potential functional overlaps. The diversity metrics provide quantitative measures of the overall variations, offering a perspective on the genetic landscape of LuPIs. Overall, this work may serve as a foundation for future investigations into the functional roles, adaptive strategies, and evolutionary significance of LuPIs. All the LuPI genes were present in the scaffold and their chromosome location has not been assigned yet, while the PI genes in tomatoes were unevenly distributed across chromosomes34. Most of the LuPI genes (48%) contained single exons and 50% had 2–4 exons. Domains and motifs are pivotal components in protein families, playing essential roles in structure, function, and evolutionary relationships. Domains with distinct structural units with specific functions contribute to the overall functionality of a protein, and their conservation across species reflects evolutionary importance. Both domains and motifs are very important in protein classification, annotation, and identification of their crucial function.

Conserved domain and motif analyses indicated that the majority of LuPIs shared similar types and signatures. The Kunitz family plays an important role against lepidopteran and coleopteran pests in various plants, including Arabidopsis, poplar, rice, potato, and tobacco38. The Kunitz inhibitors isolated fromin A. thaliana (AtKTI4 and AtKTI5) transiently expressed in Nicotiana plants showed their bifunctional features to inhibit cysteine- and serine-proteases present in the midgut interfering in the correct hydrolysis of dietary proteins42. Serpin-type inhibitors and superfamily are also found involved in pest insect-pest resistance in Arabidopsis46,47. Clemente et al.48 described that the Serpin worked as protease enzymes that regulate the proteolytic activity. Plant serpins are also found to enhance plant innate immunity as negative regulators of stress-induced cell death under biotic and abiotic stresses43. Among the 46 Tryp_alpha_amyl types, two highly conserved domains are the AAI_LTSS superfamily and Tryp_alpha_amyl. Additionally, LuPI-35, LuPI-39, and LuPI-41 possess an extra domain, LTP_2 had role in insect tolerance. Hamza et al.35 explained that the barley protease/α-amylase inhibitors showed a high inhibition of trypsin-like activity and it has been successfully used to improve resistance toward Tuta absoluta. Zhao et al.49 described that trypsin inhibitor gene products affect the growth, development and reproduction of spotted alfalfa aphids by reducing cellular enzyme activity. The mustard trypsin inhibitor affects the fertility of Spodoptera littoralis larvae fed on transgenic tobacco lines50. Martinez et al.51 reviewed PhyCys and its diverse function in different physiological processes of the plant involved in the regulation of endogenous or heterologous proteases. Their defensive function is to consider PhyCys as proteins of particular value with big potential to be integrated as a new tool in insect management. The expression of barley cysteine proteinase inhibitor (Hv-CPI2) in tomato promote endogenous defense response and enhanced resistance against insect48. Some potato inhibitors also feature inhibitor_I78 superfamily and Mpv17_PMP22 superfamily domains rich in cysteine. Wounding and UV exposure led to an increase in the expression of these two inhibitors in tomato and potato leaves are involved in plant defense against herbivorous41. The different PIs were obtained from different crop plants, like rice, barley, soybean cowpea, sweet potato and maize and were overexpressed in several plant species conferring resistance to several species of insect pests like Nilaparvata lugens, Chilo suppressalis, Sitophilus oryzae46. Our results showed that the expression of LuPI genes is regulated by multiple factors. Further analysis of the phytohormone responsiveness elements revealed that the number of elements related to MeJA was the largest, followed by abscisic acid. Rehman et al.52 explained that ABA and MeJA-dependent signaling pathways are involved in the stimulation of the PI-II gene in Nicotiana benthamiana. Expression of the UNUSUAL SERINE PROTEASE INHIBITOR (UPI) gene is significantly induced by jasmonate, salicylic acid and abscisic acid, but is repressed by ethylene, indicating complex phytohormone regulation of UPI gene expression study in Arabidopsis53. Besides, promoters also contain several types of stress responsiveness elements, including anaerobic induction (ARE), anoxic specific inducibility (GC-motif), low temperature (LTR), MYB drought-inducibility binding site (MBS), defense and stress (TC-rich repeats), and wound (WUN-motif) responsive elements presence of these cis-elements showed protease inhibitors (PIs) in response biotic as well as to abiotic stresses34.

In-silico expression revealed that all 100 LuPIs were assessed across various developmental stages and organs, revealing notable expression during both seed and stem developmental phases. The LuPI genes were significantly induced upon bud fly infestation. In the present study, we validated the involvement of PIs in the linseed defense against bud fly infestation. In our investigation into the potential role of LuPI genes in linseed upon bud fly infestation, we scrutinized the expression profiles of LuPI genes in both highly susceptible and highly resistant genotypes. Among the fifteen LuPI genes studied, LuPI-49 categorized as a Tryp_alpha_amyl type of PI, exhibited the highest expression. The protein-protein interaction revealed multi-functionality in all genes employed in the expression study, as evidenced by GO terms such as GO:0006952 (defense response), GO:0006950 (stress response), GO:0030414 (Peptidase Inhibitor Activity), and other enzymatic and peptidase activities. Importantly, LuPI-9 and LuPI-49 demonstrated a specific response to insect stimuli (GO:0009625) (Supplementary Table S4).

Materials and methods

Identification of protease inhibitor genes from L. usitatissimum

The protein, genomic, and CDS sequences from L. usitatissimum were accessed on 05 October, 2023 from the phytozome (https://phytozome-next.jgi.doe.gov). HMMER3.0 software was used to search against the L. usitatissimum protein sequences using the Hidden Markov model. PI protein sequences using Pfam 00031, Pfam 00280, Pfam 00197 and Pfam 00234 were downloaded from the Pfam database (http://pfam.xfam.org/) with E-value ≤ 1 × 10−5 to obtain candidates, which were further submitted to conserved domain database (CDD, https://www.ncbi.nlm.nih.gov/cdd) for the confirmation of the existence of the PIs. ExPASy (https://web.expasy.org/protparam/) was used to analyze the basic physicochemical properties of PIs. Sub-cellular localization was predicted through WoLF PSORT software (https://wolfpsort.hgc.jp/). The global sequence alignment program Needle (https://www.ebi.ac.uk/Tools/psa/emboss_needle/) in the EMBOSS tool was used to perform pairwise alignment of protein sequences to determine the similarity and identity between PIs.

Phylogenetic tree analysis and classification of protease inhibitor

LuPI protein sequences were compared multiple times and aligned by ClustalW and the evolutionary tree was constructed using MEGA 11.0 by the maximum likelihood (ML) method. The parameters for constructing the evolutionary tree used bootstrap values of > 1000, the Poisson correction, and pairwise deletion.

Prediction of gene structure, domain and motifs

The gene structure of LuPIs was drawn by GSDS (http://gsds.cbi.pku.edu.cn/). The conserved motifs of PI (10 maximum number of motifs) were analyzed using MEME suite (http://meme-suite.org/tools/meme) and visualized using TBtools software. The CodonW software (version 1.4.2, http://codonw.sourceforge.net/) was used to calculate the effective number of codons (ENC), codon adaptation index (CAI), relative synonymous codon usage (RSCU), and other codon preference parameters by MEGA 11.0 software. The presence of different domains was identified in PI protein using CDD (a conserved domain database)54.

The cis-acting elements analysis

The promoter regions were used to identify the potential function of the protease inhibitor gene in L. usitatissimum. The 1200 bp upstream regions of all LuPI candidate genes were used to identify the cis-acting element using PlantCARE database55. The positions of the promoter in the chromosome were also identified by using the TBtools programme. Adobe Illustrator was adopted for the visualization of the positions.

RNA-seq data analysis and in-silico expression

To investigate the expression profiles of LuPI genes, we analyzed transcriptome data obtained from Illumina RNA-Seq reads sourced from the NCBI GEO data set. The RNA-seq data with accession numbers GSE130378, GSE80718, and GSE222066 were used for in-silico expression of candidate genes under seed development, different stages of stem and also from seven flax cultivars (Diane, Hermes, Drakkar, Belinka, Adelie, Violin, and Oliver).

Plant materials and stress treatment

The plant material for the present study comprised three linseed genotypes namely IC03850380 (susceptible to bud fly), EC0099001 (highly resistant to bud fly), and IC0523801 (resistant check Neela). These germplasm accessions were received from the National Genebank, Indian Council of Agricultural Research-National Bureau of Plant Genetic Resources (ICAR-NBPGR), New Delhi, India. The seed multiplied through single plant progeny was used for screening whole germplasm collection at NGB (2598 accessions) to identify potential sources of resistance to linseed bud fly for use in the present study26. The experiments for the present study were raised in two sets: One as control and another set was challenged with a linseed bud fly infestation under an insect-proof net house (ideal conditions) and under field conditions (hot spot). Ten random buds were selected to confirm the egg laying inside the buds. Six days after egg laying, the tiny flower buds were plucked from each genotype and frozen in liquid nitrogen. The young flower buds from each genotype under control were also harvested and frozen in liquid nitrogen.

RNA extraction and cDNA synthesis

The 100 mg of frozen flower bud samples from each genotype under control and stressed (challenged with bud fly) were homogenized using a mortal pestle using liquid nitrogen and subjected to RNA extraction. The RNA was extracted using the plant RNA extraction kit (RNeasy Mini Kit, Qiagen) as per the manufacturer’s instructions. DNA contaminants were removed using DNase-I treatment. Further, 1 µg of pure RNA was reverse-transcribed by using the Revert Aid First Strand cDNA Synthesis Kit (Thermo Fisher Scientific). Quantification of cDNA was done on a micro-volume spectrophotometer (QIAExpert, Qiagen) and normalized by 100 ng/ µL for gene expression profiling of selected candidates through qRT-PCR analysis.

Quantitative real-time PCR analysis

Fifteen gene-specific primers were designed for expression analysis (Supplementary Table S5). The PCR reactions comprised of 10 µL 2X SYBR green q-PCR master mix (Thermo Fisher Scientific), 1 µL of 10 pmol each of forward and reverse primers (Eurofins, India), 6 µL nuclease-free water, and 2 µL of cDNA. The standard cycling approach was adopted with 10 min. initial denaturation at 96 °C, 40 cycles of 30 s. denaturation at 96 °C, 60 s. annealing and extension at 60 °C. The Actin gene was used as a reference gene for internal control. qRT-PCR analysis was carried out using a rotor gene Q-6000 real-time PCR machine (Qiagen). Three biological replicates were taken and two technical replicates were used for expression analysis. The relative expression levels of the genes were calculated following the delta-delta CT method56.

Protein-protein interaction

Interacting networks of LuPI proteins were integrated into the STRING (https://www.string-db.org/ (accessed on 5 October, 2023) software, followed by an export of the co-expression network data from STRING through KEGG57, which was further calculated using Microsoft Excel 2019.

Ethical approval

The plant collection and use were in accordance with all the relevant guidelines. The seeds of germplasm accessions used in the present study were deposited in National Genebank (NGB), Indian Council of Agricultural Research-National Bureau of Plant Genetic Resources (ICAR-NBPGR), New Delhi, India.

Sharing of germplasm

Linseed is not part of Annexure I crops of the International treaty on plant genetic resources for food and agriculture (ITPGFRA) and therefore not part of the multi-lateral system (MLS) of access and benefit sharing. Eligible users from within India can request and receive the material as per the terms and conditions and rates (http://www.nbpgr.ernet.in/Portals/6/services/Fee_Stru_2023.pdf) following the material transfer agreement (http://www.nbpgr.ernet.in/Downloadfile.aspx?EntryId=7379). Collaborative projects can be the best way to use the linseed core collection following the material transfer agreement for International Bilateral Exchange under Collaborative Research Programmes (http://www.nbpgr.ernet.in/Downloadfile.aspx?EntryId=7380).

Conclusions

The present investigation systematically identified and characterized the 100 LuPI genes in the linseed genome elucidating their diverse subcellular localizations. Phylogenetic analysis revealed the conservation and evolutionary dynamics of the PI gene family, offering a framework for assessing functional diversity through subfamily categorization. The gene structure unveiled varied exon–intron organizations, while analysis of cis-acting elements in promoter regions indicated potential regulation by factors such as phytohormones and stress responsiveness. The activation of PI systems in response to insect-pest invasions is of great importance as it allows for the monitoring of plant conditions and prompt actions to reduce pest-induced harm. Through the integration of PI systems with technologies for monitoring insect-pest activity, linseed industries can optimize their production procedures and reduce losses caused by pest infestations. In-silico expression, the analysis revealed significant expression of Tryp_amyl inhibitor after challenging with bud fly. Tryp_amyl inhibitor as the largest inhibitor in linseed and all six genes especially LuPI-49, LuPI-63 performed well under bud fly stress highlighting the crucial role in defense mechanisms. This study suggests that Tryp_amyl inhibitor are good candidates and worthy while breeding linseed for bud fly resistance. This comprehensive study establishes a foundation resource for the structural, functional, and evolutionary dimensions of LuPI genes.
