From: Intra-canopy LED lighting outperformed top LED lighting in improving tomato yield and expression of the genes responsible for lycopene, phytoene and vitamin C synthesis

Figure 7

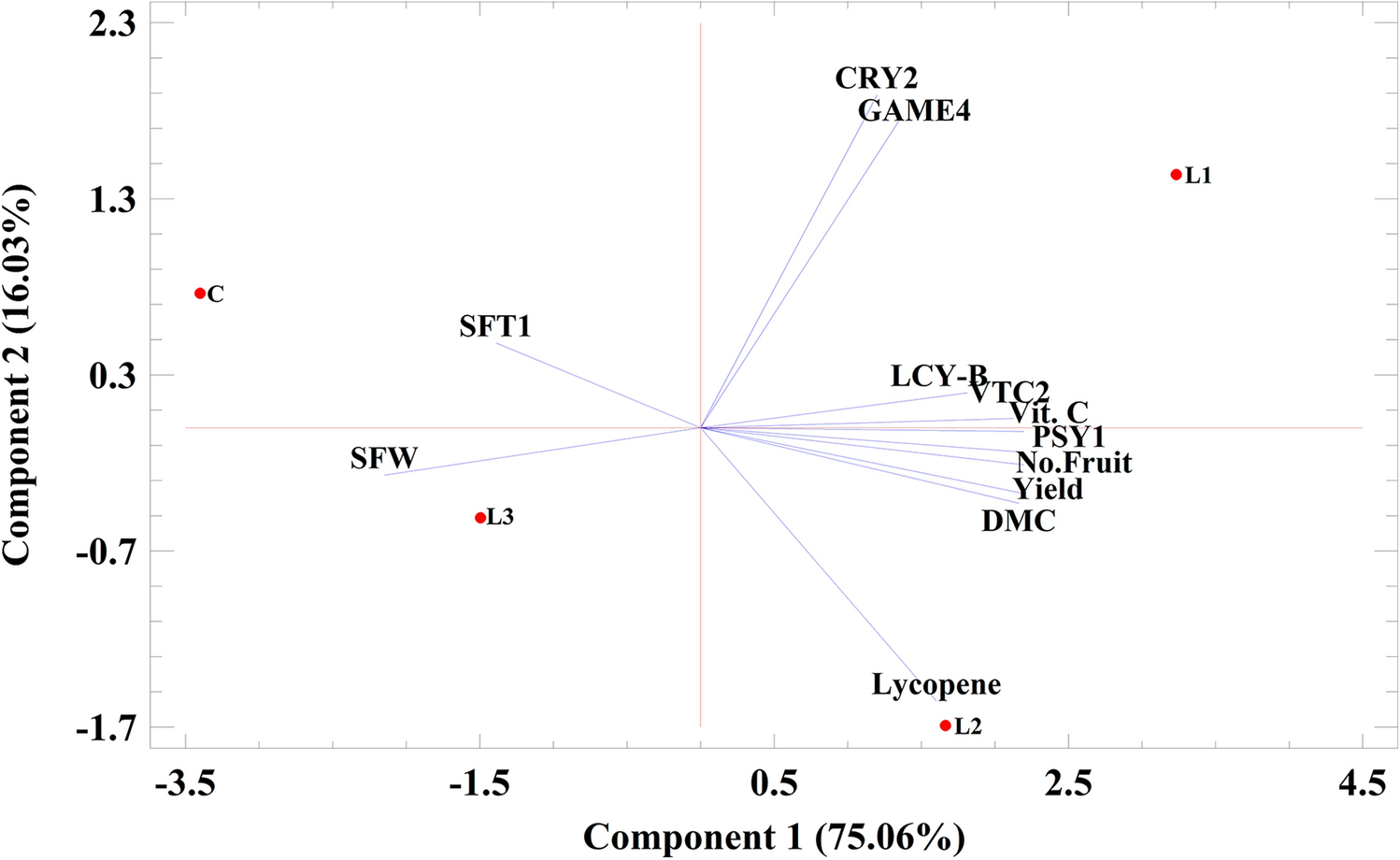

The biplot displaying the relationship among the number (No. Fruit) and single fruit weight (SFW) of tomato, Yield, dry matter content (DMC), vitamin C (Vit. C) and Lycopene contents and the expression of genes affecting metabolic cycles (LCY-B, VTC2, GAME4, CRY2, SFT1 and PSY1). L1: Top-Intra lighting, L2: Intra-canopy lighting, L3: Top-lighting and C: control condition without LED exposure.
