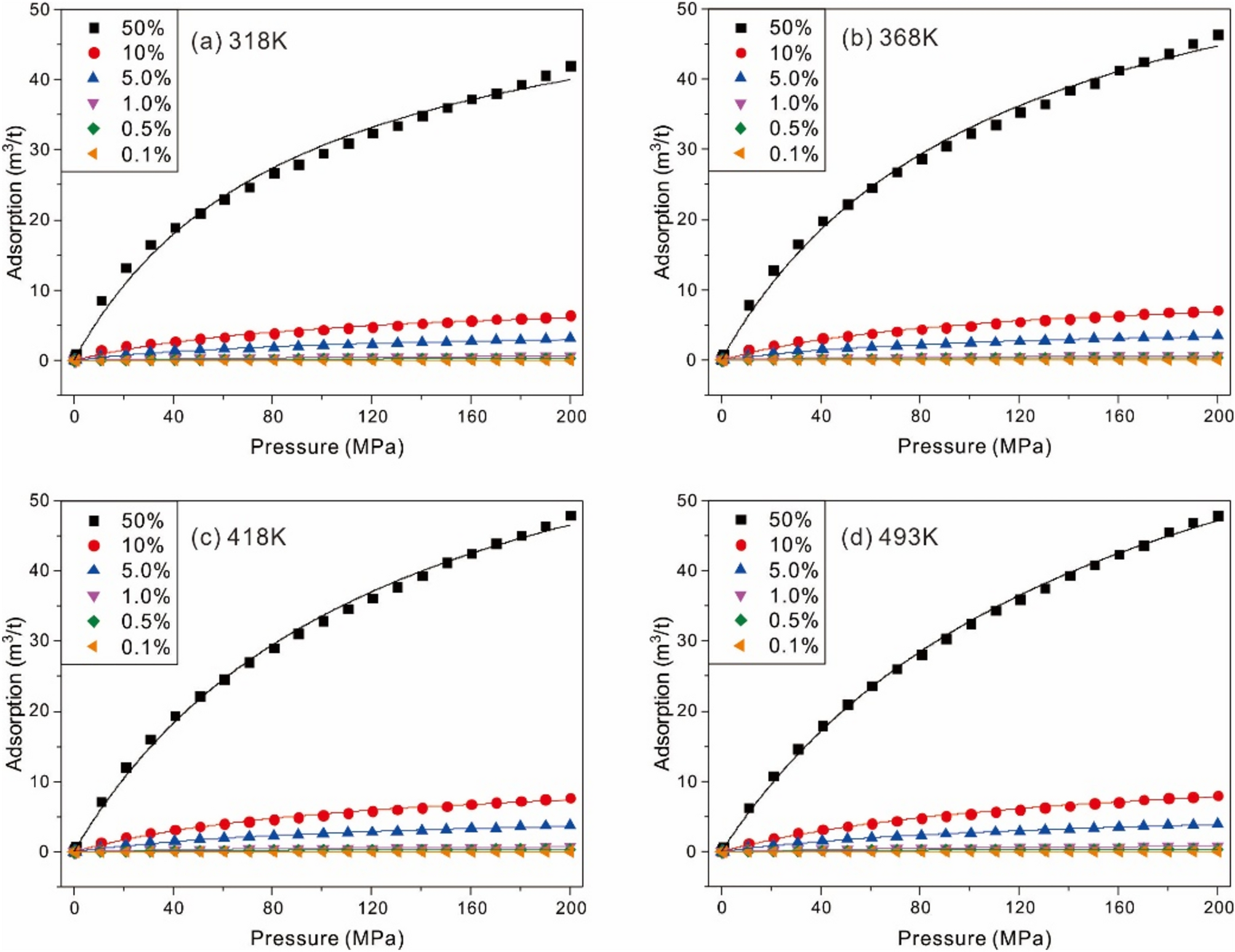

Figure 4
From: Adsorption behavior of helium in quartz slit by molecular simulation
Helium adsorption isotherms in binary mixtures with helium mole fractions of 0.1%, 0.5%, 1.0%, 5.0%, 10%, 50% in quartz slit at different temperatures. The lines refer to the Langmuir fitting.
