Figure 4

From: Comparative study of axial displacement in digital and conventional implant prosthetic components

Figure 4

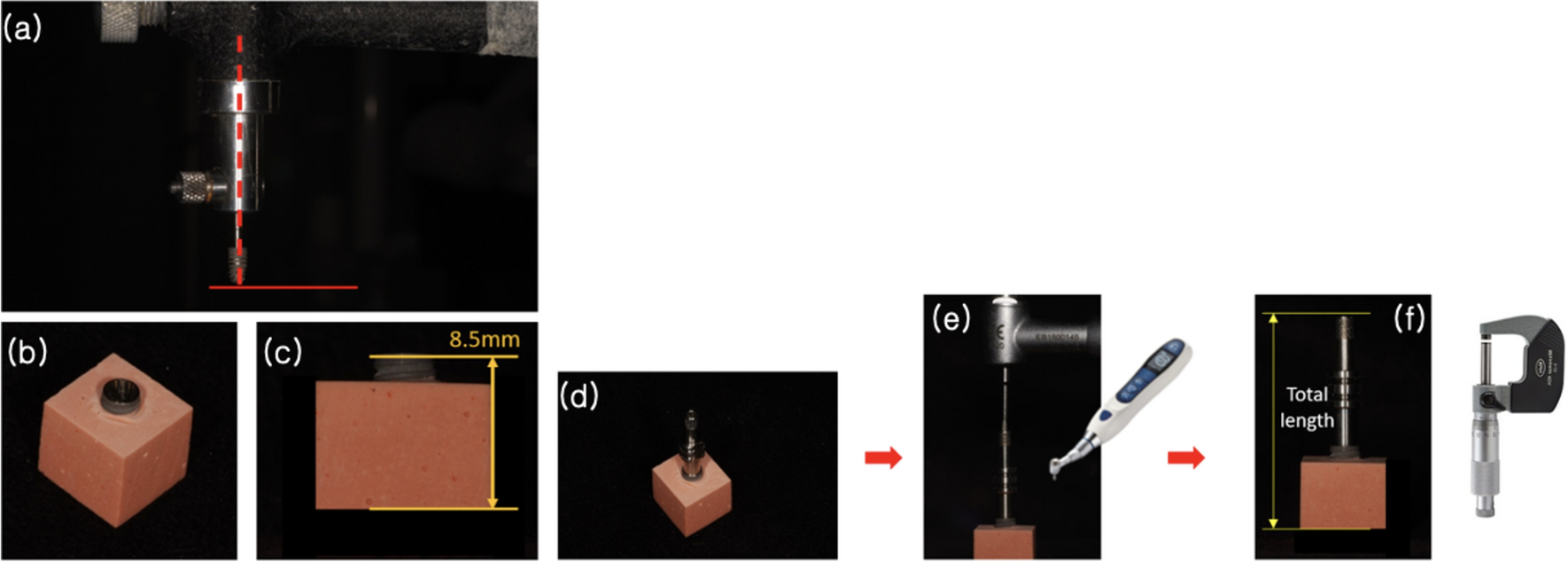

Measurement of axial displacement. (a) Surveyor used to ensure that the implant is perpendicular to the horizontal surface. (b) Implant embedded in a cubic gypsum model. (c) Distance from the bottom to the implant platform set at 8.5 mm. (d) Implant suprastructure connected by hand tightening. (e) Implant superstructures tightened using an auto torque driver. (f) Total length from the bottom to the top of the suprastructure measured using an electronic micrometer.
