From: LincRNA-p21/AIF-1/CMPK2/NLRP3 pathway promoted inflammation, autophagy and apoptosis of human tubular epithelial cell induced by urate via exosomes

Figure 7

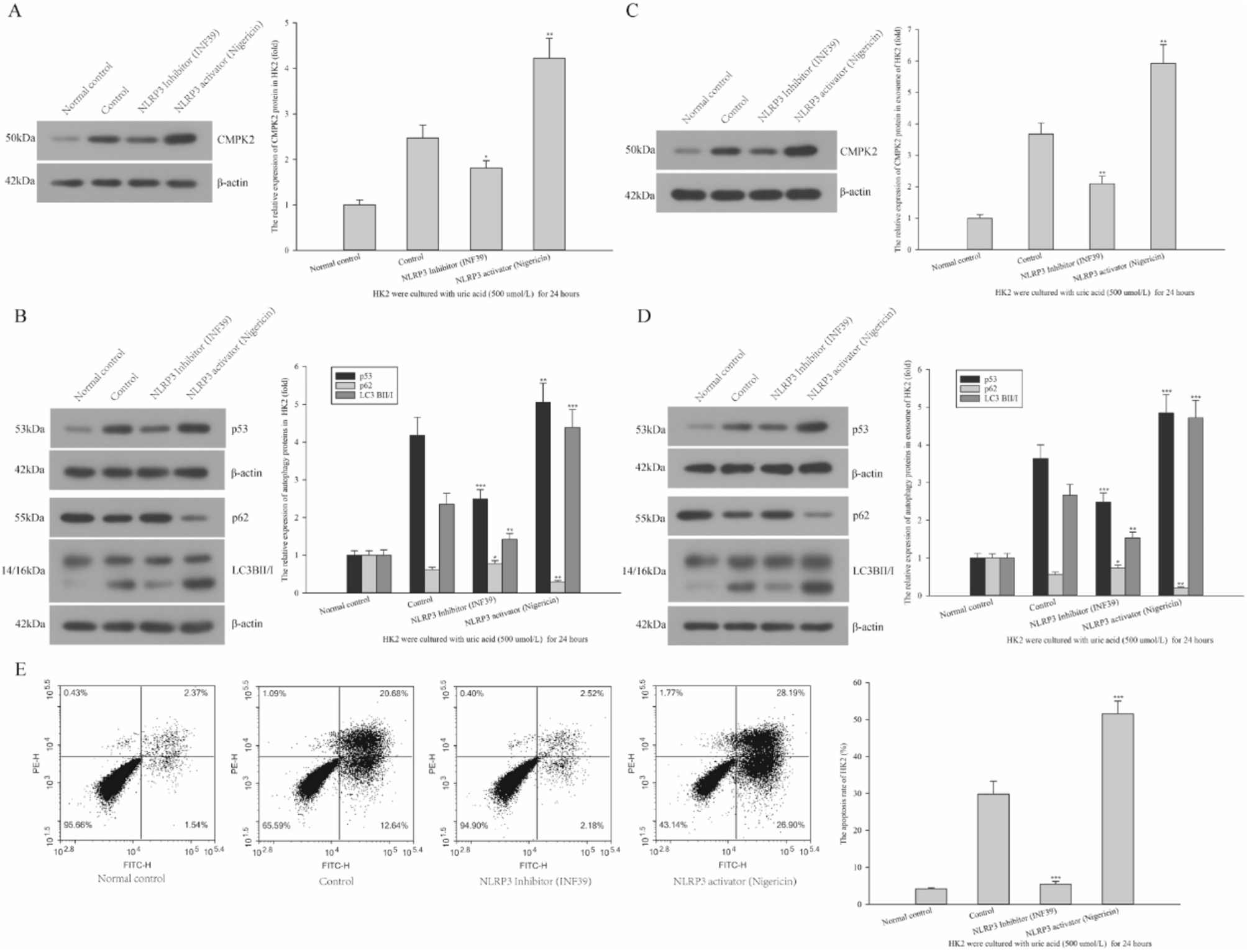

NLRP3 contributed to inflammation, autophagy and apoptosis of HK2 cells cultured with urate. (A and B) The expression of CMPK2, p53, p62, and LC3BII/I in HK2 cells was detected by western blot. (C and D) The expression of CMPK2, p53, p62, and LC3BII/I in exosome was detected by western blot. (E) The apoptosis of HK2 cells was detected by Annexin V-FITC/PI. Versus normal control group, *p < 0.05, **p < 0.01, ***p < 0.001.
