Figure 2
From: Host-specific effects of a generalist parasite of mosquitoes

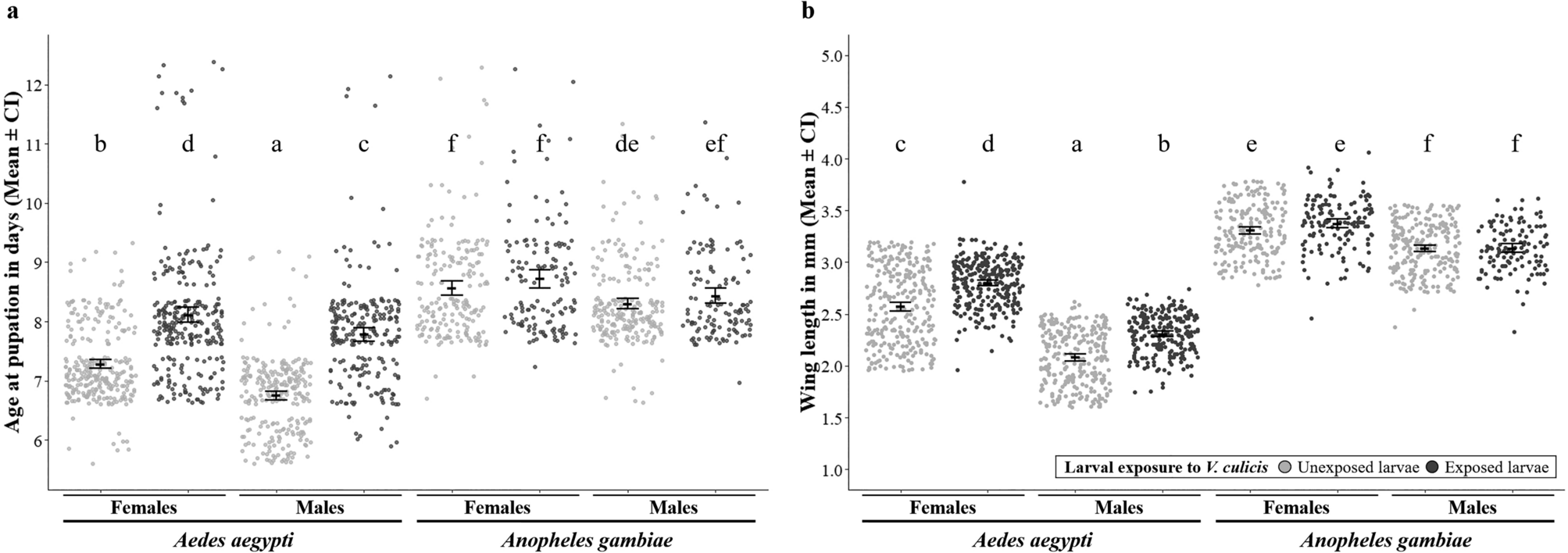

Age at pupation and wing length. (a) Age at pupation in days and (b) wing length in mm of males and females, exposed or not to V. culicis, for Ae. aegypti and An. gambiae. The sample sizes were 275, 269, 253, 228, 195, 137, 229, and 124. Error bars show the 95% confidence intervals of the means. Letters indicate statistically significant differences from multiple comparisons.
