Introduction

Microsporidians are obligate parasites1 of many animals, particularly insects and fish2, including humans3. Almost half of the species infecting insects use dipterans as hosts4 and more than 150 species have been found in 14 genera of mosquitoes5,6,7,8,9,10,11,12. While their life cycles vary from simple cycles in a single host to complex cycles involving several species11, they are all transmitted to larval mosquitoes and kill some larvae, letting others survive to cause, in adults, lower fertility, shorter lifespan and loss of vigour13,14.

A well-studied example is V. culicis, an intracellular parasite which infects several genera of mosquitoes15. Often studied in Aedes (the vectors of arboviruses like dengue or Zika) and Anopheles (the vector of malaria), it infects larvae when they ingest the spores along with their food. After several rounds of replication, that take about 10 days of development, the parasite starts to produce new infectious spores that spread to gut and fat body cells. In nature, transmission happens through the release of spores in the aquatic environment from infected larvae or adults, from mother to offspring through spores adhering to the surface of the eggs, or, less commonly, from spores released via faeces. However, since the parasite is mildly pathogenic and generally kills few larvae, larva-to-larva transmission is probably rare6.

The accumulation of spores is correlated with greater host mortality16. Because in addition to killing mosquitoes V. culicis impedes the development of malaria in mosquitoes15, it (and other microsporidians like microsporidia MB12,17,18) has long been suggested as a way to slow the transmission of malaria19. This is becoming particularly relevant in the face of increasing resistance against chemical insecticides, for V. culicis also restores, at least partially, the sensitivity to insecticides of genetically resistant mosquitoes20.

An important feature of using V. culicis to control malaria is that this microsporidian in Anopheles mosquitoes has little impact on the survival of young adults, but kills mostly old mosquitoes21, in particular when they are infected by malaria22. It has therefore been suggested that there is only little selection pressure for resistance and thus that it can be used in an evolutionarily more sustainable way than chemical insecticides.

The ability of V. culicis to control Aedes-borne viruses in an evolutionarily sustainable way is less clear. Indeed, since the impact of V. culicis on Aedes9,10,23 is greater than on Anopheles and, in particular, since infection increases the rate of mortality in all age classes24, selection pressure for resistance to Vavraia is expected to be higher for Aedes than that for Anopheles.

There are, however, many gaps in our knowledge about the biology of V. culicis, both in Anopheles and in other mosquitoes, in particular since traits other than mortality rates have only rarely been investigated. To get a complete picture of the potential use of V. culicis as an agent of biological control25, we compared the impact of the parasite on several life-history traits of Ae. aegypti and An. gambiae, we measured the infection dynamics and clearance rate for the two species, and we assessed sexual dimorphism in infection dynamics within each species.

Results

Larvae and pupae mortality

Ae. aegypti and An. gambiae larvae were reared individually in 12-well culture plates, each containing 3 ml of deionized water per well. Two-day-old larvae were either exposed to V. culicis or left unexposed. This experimental design allowed us to disentangle larvae and pupae mortality, which were assessed every 24 h.

Larval mortality was higher in An. gambiae than Ae. aegypti (0.36 vs 0.02, χ2 = 523.82, df = 1, p < 0.001, Fig. 1a) and exposure to V. culicis increased larval mortality (χ2 = 112.25, df = 1, p < 0.001, Fig. 1a) by a factor of about 2.3 in An. gambiae and 3.7 in Ae. aegypti.

Figure 1
figure 1

Larvae and pupae mortality. The proportion of Ae. aegypti and An. gambiae, exposed or unexposed to V. culicis, that died (a) as larvae or (b) as pupae throughout the aquatic stage. The sample sizes were 600, 590, 576 and 578 for larvae, and 594, 568, 449 and 287 for pupae. Error bars show the 95% confidence intervals of the means. Letters indicate statistically significant differences from multiple comparisons.

Full size image

Pupal mortality was higher in Ae. aegypti than An. gambiae (0.12 vs 0.07, χ2 = 11.34, df = 1, p < 0.001, Fig. 1b), but was not affected by exposure to V. culicis (χ2 = 2.47, df = 1, p = 0.115, Fig. 1b). For further details on the statistical analysis see Supplementary Table S1.

Age at pupation, wing length and sex ratio

Age at pupation was assessed every 24 h, and pupae were transferred individually to falcon tubes. Upon emergence, we measured wing length and determined the sex of each mosquito.

An. gambiae took about one day longer to pupate than Ae. aegypti (8.51 days vs 7.48 days, F1,1702 = 298.32, df = 1, p < 0.001), and females took longer than males (8.17 days vs 7.82 days, F1,1702 = 58.88, df = 1, p < 0.001). However, the effect of sex was only evident for Ae. aegypti (interaction sex * species: F1,1702 = 6.25, df = 1, p = 0.012, Fig. 2a). Exposed individuals pupated, on average, half a day later than unexposed ones (8.26 days vs 7.72 days, F1,1702 = 147.90, df = 1, p < 0.001), but the effect of exposure was only significant in Ae. aegypti (interaction species * exposure: F1,1702 = 36.56, df = 1, p < 0.001, Fig. 2a).

Figure 2
figure 2

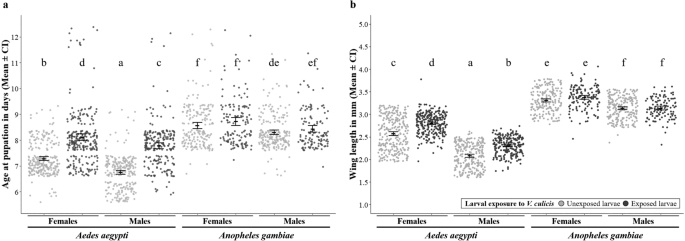

Age at pupation and wing length. (a) Age at pupation in days and (b) wing length in mm of males and females, exposed or not to V. culicis, for Ae. aegypti and An. gambiae. The sample sizes were 275, 269, 253, 228, 195, 137, 229, and 124. Error bars show the 95% confidence intervals of the means. Letters indicate statistically significant differences from multiple comparisons.

Full size image

An. gambiae had longer wings than Ae. aegypti (3.24 mm vs 2.44 mm, F1,1702 = 880.08, df = 1, p < 0.001), and females had longer wings than males (3.01 mm vs 2.67 mm, F1,1702 = 448.23, df = 1, p < 0.001). However, the effect of sex was stronger for Ae. aegypti (22% longer wings vs 6% longer wings, interaction sex * species: F1,1702 = 82.88, df = 1, p < 0.001, Fig. 2b). Exposed individuals had longer wings than unexposed ones (2.90 mm vs 2.77 mm, F1,1702 = 100.46, df = 1, p < 0.001), but the effect of exposure was only significant in Ae. aegypti (interaction species * exposure: F1,1702 = 18.62, df = 1, p < 0.001, Fig. 2b). For further details on the statistical analysis see Supplementary Table S2.

The proportion of females among the adults was higher for Ae. aegypti than for An. gambiae (0.53 vs 0.48, χ2 = 14.61, df = 1, p < 0.001), and higher for exposed individuals than for unexposed ones (0.53 vs 0.49, χ2 = 28.63, df = 1, p < 0.001). In addition, the proportion of females also increased with later pupation (from 0.08 at day 6 to 0.81 at day 12, χ2 = 97.00, df = 1, p < 0.001), and this effect was influenced by species and exposure (interaction age at pupation * species * exposure: χ2 = 15.10, df = 1, p < 0.001, Fig. 3). Thus, while in An. gambiae the sex ratio was only influenced by age at pupation, in Ae. aegypti the shift from producing more males to producing more females was delayed by 24 h in exposed mosquitoes. For further details on the statistical analysis see Supplementary Table S3.

Figure 3
figure 3

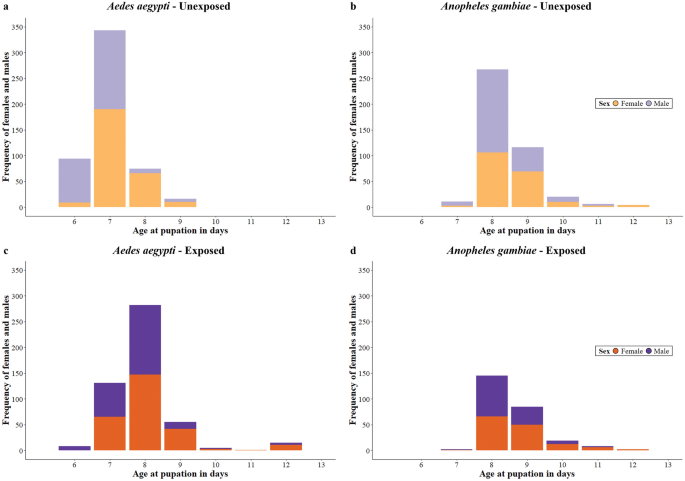

Sex ratio. Frequency of females and males of (a,c) Ae. aegypti and (b,d) An. gambiae, exposed or not to V. culicis, for each age at pupation. The sample sizes were 528, 497, 424 and 261 respectively.

Full size image

Presence of spores and spore density

We assessed infection dynamics by sampling 60 mosquitoes (30 males and 30 females) every other day, starting on the day of emergence. Mosquitoes were killed, and the number of spores was counted with a haemocytometer containing 0.1 µl of the sample.

In Ae. aegypti, the proportion of individuals harbouring spores increased for the first 10 days and then decreased with the age of the mosquitoes (χ2 = 3.99, df = 1, p = 0.046, Fig. 4a), showing an ability to clear the infection independently of sex (χ2 = 1.28, df = 1, p = 0.258). Spore density (on mosquitoes harbouring spores) increased with the age of the mosquitoes (χ2 = 19.68, df = 1, p < 0.001) up to a plateau of about 104 to 105 spores per mosquito. While spore density was similar for males and females (χ2 = 1.07, df = 1, p = 0.300), sex influenced the increase with age (interaction age * sex: χ2 = 6.07, df = 1, p = 0.014, Fig. 5a), so that by the end of their lives, males had a slightly higher parasite load than females.

Figure 4
figure 4

Presence of spores. The proportion of alive individuals that had detectable spores for each sex for (a) Ae. aegypti and (b) An. gambiae. The sample size was 30 individuals per time point per sex. Error bars show the 95% confidence intervals of the means. A smooth line, calculated with the “loess” method of ggplot2, was drawn through the means for ease of visualization.

Full size image
Figure 5
figure 5

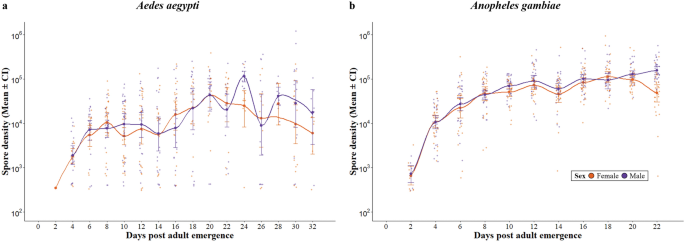

Spore density. Spore density for (a) Ae. aegypti and (b) An. gambiae. Mosquitoes without any spores are not shown. Error bars show the 95% confidence intervals of the means. A smooth line, calculated with the “loess” method of ggplot2, was drawn through the means for ease of visualization.

Full size image

In An. gambiae, the proportion of individuals harbouring spores increased with the age of the mosquitoes (χ2 = 501.28, df = 1, p < 0.001, Fig. 4b) until it reached 100% at day 8, and then remained constant. This pattern was the same for males and females (χ2 = 0.25, df = 1, p = 0.618). Spore density increased with the age of the mosquitoes (χ2 = 165.84, df = 1, p < 0.001) up to about 105 spores, and males harboured more spores than females (χ2 = 7.22, df = 1, p = 0.007). There was no interaction between age and sex (χ2 = 3.44, df = 1, p = 0.064, Fig. 5b). For further details on the statistical analysis see Supplementary Table S4.

Discussion

Although we had alternated the transmission of V. culicis through its two mosquito hosts for several years before this experiment, it affected Ae. aegypti more than An. gambiae but could be cleared only by the former.

Juvenile mortality was considerably higher for infected than for uninfected mosquitoes. While this result is not novel26, it is noteworthy in several respects. First, in line with our general observation, the impact of infection was about 60% greater for Ae. aegypti than for An. gambiae. Second, we distinguished between larval and pupal mortality (Fig. 1). Indeed, most of the parasite-induced pre-adult mortality occurred in larvae, while pupal mortality was not affected by infection, in contrast to suggestions that V. culicis is a pupicidal parasite24,27. These results are consistent with the idea that horizontal transmission among larvae is the main mode of transmission of V. culicis, even in situations where (like in this experiment) larvae are well-fed. This contrasts the suggestion that the virulence of V. culicis is low when mosquitoes are well-fed28,29,30. This difference may be because we reared mosquitoes individually, thus avoiding competition among individuals, which can increase mortality31 and could confound the impact of infection.

Time to pupation and wing length were also changed by infection, and again this change was apparent only in Ae. aegypti (Fig. 2). Infected mosquitoes pupated later than uninfected mosquitoes, corroborating several studies on the impact of microsporidians on mosquitoes15,24,32, although in at least one study infected mosquitoes pupated earlier than uninfected ones28. This result is what is expected for hosts that change their life history to weaken the impact of larval infection on reproductive success. More unexpected, both in terms of theory33,34 and in comparison with other studies15, is that infected adults were larger than uninfected ones. The mechanism underlying these differences among studies and species are not known.

In infected mosquitoes, the larval development can be expected to change according to the host’s or the parasite’s interest. On one hand, parasites could manipulate their host’s development to increase their transmission in at least two ways. They could increase horizontal transmission by delaying pupation, thus having more time to produce infectious spores. If infected larvae grow at the same rate as uninfected ones, manipulation for later pupation would bring with it larger adults. In this experiment, we observed both of these changes for Ae. aegypti. While this corroborates most studies on the impact of microsporidians on mosquitoes concerning age pupation15,24,32, infected individuals are smaller than uninfected ones in most studies15, as expected if infection slows growth. In addition, since males cannot transmit the parasite vertically, the parasite could also selectively kill male larvae to take advantage of their role in horizontal transmission. This would bias the sex ratio of adults towards females, as observed here for Ae. aegypti (Fig. 3). On the other hand, the host should evolve to decrease the impact of the parasite on its reproductive success. This would favour earlier pupation at a smaller size of infected individuals33,34, as observed for microsporidian-infected Culex-mosquitoes28. Finally, since females take longer to develop than males, the parasite has more time to kill females than males during larval development. This constraint would therefore lead to male-biased adults, as observed for Edhazardia-infected Ae. aegypti35. Overall, thus, the impact of the parasite on the host’s development is determined by a balance between the host’s interests, the parasite’s interests and developmental constraints. While in our experiment V. culicis appeared to overwhelm the interests of Ae. aegypti, in many cases the host’s interests dominate the interaction.

The proportion of individuals with detectable spores and the density of the spores were the traits most influenced by the species (Fig. 4,5). The proportion of individuals with detectable spores increased with their age for An. gambiae, while for Ae. aegypti, it reached a peak after 10 days and then decreased with age. This suggests that, Ae. aegypti (but not An. gambiae) was able to clear the infection, in particular as they became older. The ability of Ae. aegypti to clear the parasite was reflected in the low density of spores in many individuals. This led to greater variance and a lower average of the density of spores in Ae. aegypti than in An. gambiae, although the maximal densities in the two species were similar. We also found sexual dimorphism in infection dynamics, with males harbouring on average more spores than females, as is generally observed36,37,38,39,40,41,42.

Our results provide a more comprehensive understanding of the potential use of V. culicis as a biological control agent25. On one hand, it strengthens the argument of using V. culicis to slow19 or impede15 the transmission of malaria. A particular advantage is that, in our study, An. gambiae did not clear V. culicis, allowing it to impact malaria transmission throughout the mosquito’s life. On the other hand, the potential use for malaria control cannot be extrapolated to diseases such as dengue, which are transmitted by Ae. aegypti. Not only is the parasite more virulent in Ae. aegypti than in An. gambiae24, making it likely that resistance evolves rapidly, but it is also cleared by Ae. aegypti.

Our study also highlights the difficulty in predicting how a generalist parasite behaves in its different species of hosts. V. culicis is often considered to be a generalist, for it can complete its life cycle in many species of mosquitoes. Moreover, in our laboratory, it is selected to be a generalist, for it is forced to alternate its generations in Ae. aegypti and in An. gambiae. Nevertheless, its impact on the two mosquitoes differs strongly, with more damage but also more resistance in Ae. aegypti than in An. gambiae. Yet, it is difficult to know whether it is more specialized on one than on the other, without further experiments quantifying the total transmission through the two mosquitoes. The problem of knowing where on the spectrum of generalist to specialist makes it difficult to interpret studies making predictions about generalist and specialist parasites in epidemiological and ecological studies43,44.

Finally, laboratory tests have assessed the host ranges of many microsporidia species, primarily to ensure the safety of these pathogens for biological control programs45,46. However, in natural settings, host availability may be seasonal, and host abundance can vary throughout the year. Multiple or alternate hosts can act as reservoirs for these microsporidia, enabling their persistence during periods of low host population density47. Considering the distinct ecological preferences and limited distribution overlap of Ae. aegypti and An. gambiae, it would be intriguing to assess V. culicis’s potential to adapt and specialize by evolving it over several generations exclusively within each host. Rapid adaptation of V. culicis to its host could restore its disease control potential for diseases transmitted by Ae. aegypti.

Materials and methods

Experimental system

We used the UGAL strain of the mosquito Ae. aegypti (obtained from Patrick Guérin, University of Neuchâtel) and the Kisumu strain of An. gambiae s.s48. We maintained the two colonies at a density of about 600 individuals per cage and standard lab conditions (26 ± 1 ℃, 70 ± 5% relative humidity and 12 h light/dark) for several years before the experiments.

V. culicis floridensis was provided by J.J Becnel (USDA, Gainesville, FL, USA). It is an obligatory, intracellular parasite. Mosquitoes are exposed to V. culicis during the larval aquatic stage where they ingest the spores along with their food. After several rounds of replication, the parasite produces new infectious spores that spread to gut and fat body cells. In nature, transmission happens through the release of spores in the aquatic environment from infected larvae or adults, from mother to offspring through spores adhering to the surface of the eggs, or, less commonly, from spores released via faeces. However, since the parasite is mildly pathogenic and generally kills few larvae, larva-to-larva transmission is probably rare6.

The parasite was first found in Ae. albopictus, and was later found to parasitize several mosquito genera, including Aedes, Culex, Anopheles, Culiseta, Ochlerotatus and Orthopodomyia49,50. To ensure that it remains a generalist parasite, we maintained the colony by alternately infecting Ae. aegypti and An. gambiae. We started by infecting two-day-old larvae in groups of 50 individuals. Upon pupation, the individuals were moved to cages, where they emerged and were fed with cotton balls soaked in 6% sucrose solution, which were replaced daily. Dead individuals were collected every other day, placed into 2 ml Eppendorf tubes containing 1 ml of deionised water and a stainless-steel bead (Ø 5 mm), and stored at 4 ℃. These individuals (around 15 per tube) were later homogenised with a Qiagen TissueLyser LT at a frequency of 30 Hz for two minutes, and used to infect new larvae.

Mosquito rearing and maintenance

Freshly hatched (0-3 h old) Ae. aegypti and An. gambiae larvae were put individually into 12-well culture plates containing 3 ml of deionized water per well. The larvae were fed daily with Tetramin Baby® fish food according to their age (Ae. aegypti: 0.06, 0.08, 0.16, 0.32, 0.64 and 0.32 mg/larva respectively on days 0, 1, 2, 3, 4 and 5 or older51; An. gambiae: 0.04, 0.06, 0.08, 0.16, 0.32 and 0.6 mg/larva respectively on days 0, 1, 2, 3, 4 and 5 or older52).

We exposed two-day-old larvae to 0 or 20,000 (Ae. aegypti) or to 10,000 (An. gambiae) spores of V. culicis. Pupae were moved to individual 50 ml falcon tubes containing about 10 ml of deionized water53, and adults were moved to 150 ml cups (5 cm Ø × 10 cm) that were covered with a net and contained a 55 mm Ø petri dish (to keep the mosquitoes from drowning) on the surface of 50 ml deionized water and a 10 × 7 cm rectangular filter paper (to keep the air humid). They were fed with cotton balls soaked with 6% sucrose solution, which were replaced daily.

Life-history measurements

For each individual, we measured larval and pupal mortality and (for the mosquitoes that emerged) age at pupation, wing length and sex. Larval and pupal mortality and age at pupation were assessed every 24 h. The right wing of every mosquito was dissected and the distance from the axillary incision to the tip of the wing54,55 was measured using the software ImageJ v1.5456.

We assessed infection dynamics by killing 60 mosquitoes every other day, starting on the day of emergence, until there were no more living mosquitoes. We put each mosquito into a 2 ml Eppendorf tube containing 0.1 ml of deionised water, added a stainless-steel bead (Ø 5 mm) to each tube and homogenised the samples with a Qiagen TissueLyser LT at a frequency of 30 Hz for two minutes, and counted the number of spores in a haemocytometer containing 0.1 µl of the sample under a phase-contrast microscope (400 × magnification).

For the infection dynamics, we calculated the density of spores (that is, the spore count normalized for the size of the mosquito) by dividing the number of spores by the wing length (mm). This gives what we call spore density. Note that, since eight (Aedes) and ten (Anopheles) days after emergence all mosquitoes harboured spores, the absence of spores in older mosquitoes can also be considered to be the rate at which the mosquitoes can clear the parasite.

Statistical analysis

All analyses were done with the R software57 version 4.3.0, using the packages “DHARMa”58, “car”59, “lme4”60, “emmeans”61 and “multcomp”62. Significance was assessed with the “Anova” function of the “car” package59. We used a type III ANOVA in the case of a significant interaction and a type II ANOVA otherwise. When relevant, we performed post-hoc multiple comparisons with the package “emmeans”, using the default Tukey adjustment.

Larval and pupal mortality were analysed with a generalized linear model with a binomial distribution of errors, where the response variable was the proportion of dead individuals for each developmental stage and the explanatory variables were species and infection status.

Age at pupation and wing length were analysed with a linear model with a Gaussian distribution of errors, where the response variable was time to pupae or wing length and the explanatory variables were species, infection status and sex.

The sex ratio was analysed with a generalized linear model with a binomial distribution of errors, where the response variable was the sex of the mosquito and the explanatory variables were time to pupae and infection status.

The presence of spores was analysed with a generalized linear model with a binomial distribution of errors, where the response variable was the presence or absence of detectable spores and the explanatory variables were the individual’s age and sex. Because we counted the number of spores in a haemocytometer containing 0.1 µl of the sample (i.e. 1/1000 of the total volume), the detection threshold was estimated to be 1000 spores.

Spore density of the mosquitoes with positive spore counts was analysed with a generalized linear model with a quasi-Poisson distribution of errors, where the response variable was spore density and the explanatory variables were the individual’s age and sex.
