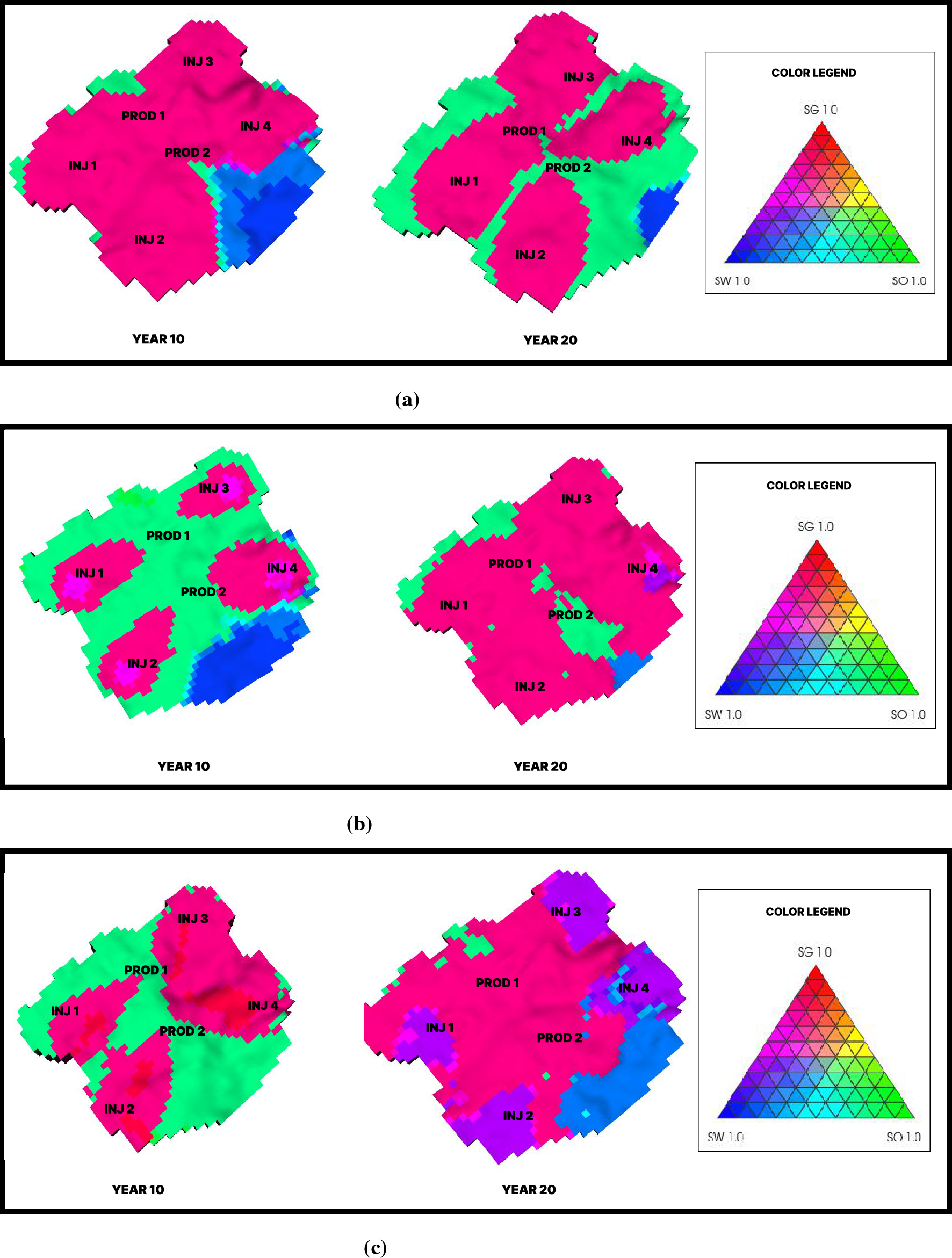

Figure 3

Ternary diagrams showing the saturations of fluid phases in the mid layer of the reservoir (Red color represents gas; Green color represents oil; and blue color represents water). (a) Gas injection. (b) Foam model - Simulator. (c) SAG Foam injection.
