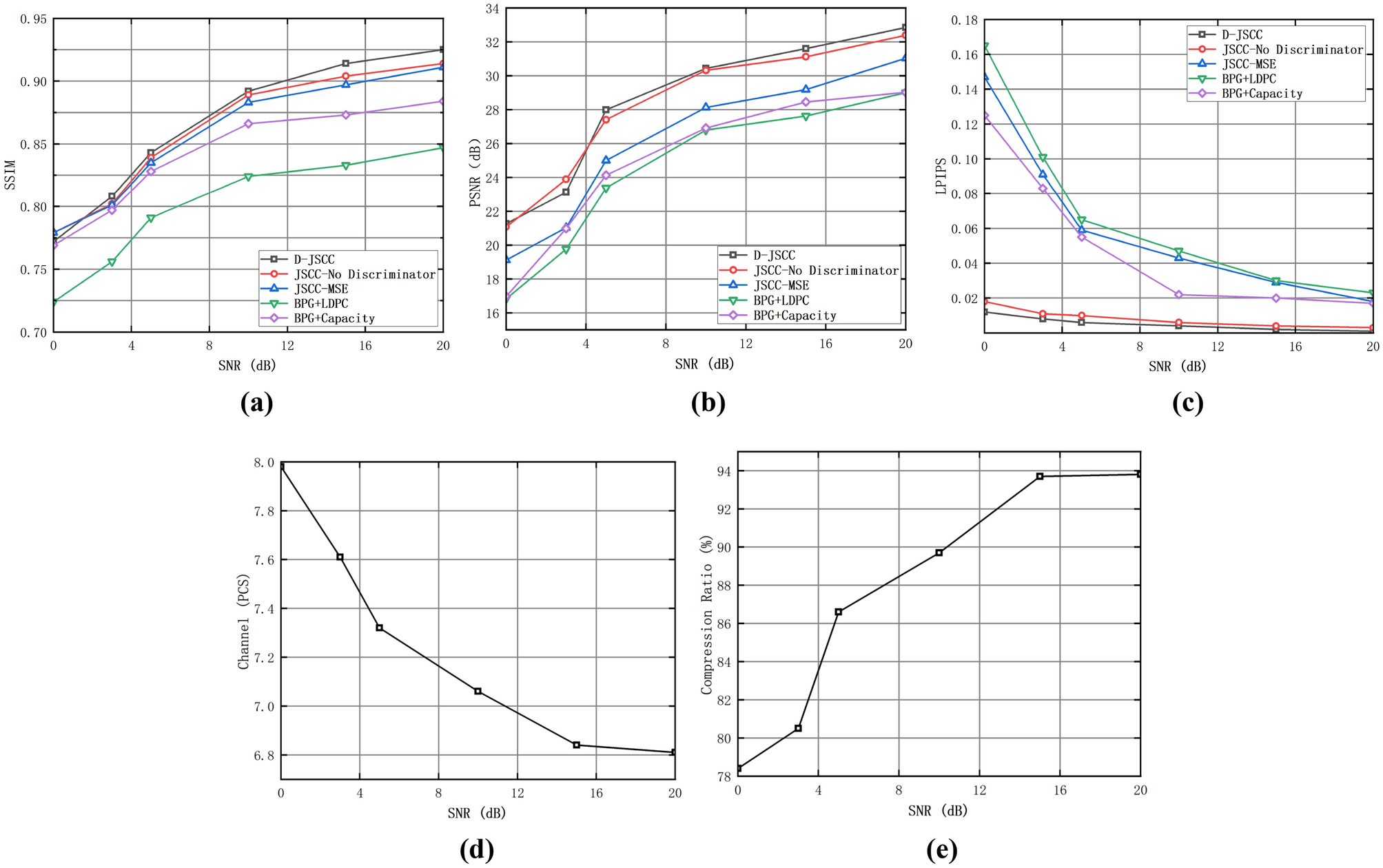

Fig. 6

Evaluation performance of SSIM, PSNR, and LPIPS performance metrics of D-JSCC on Rayleigh fading channel, and (d,e) respectively illustrate the average number of active channels (Channel) in all generated images by D-JSCC at various SNRs, and the Compression Ratio of channel transmission.
