Fig. 2
From: Stable carbon isotope evolution of formaldehyde on early Mars

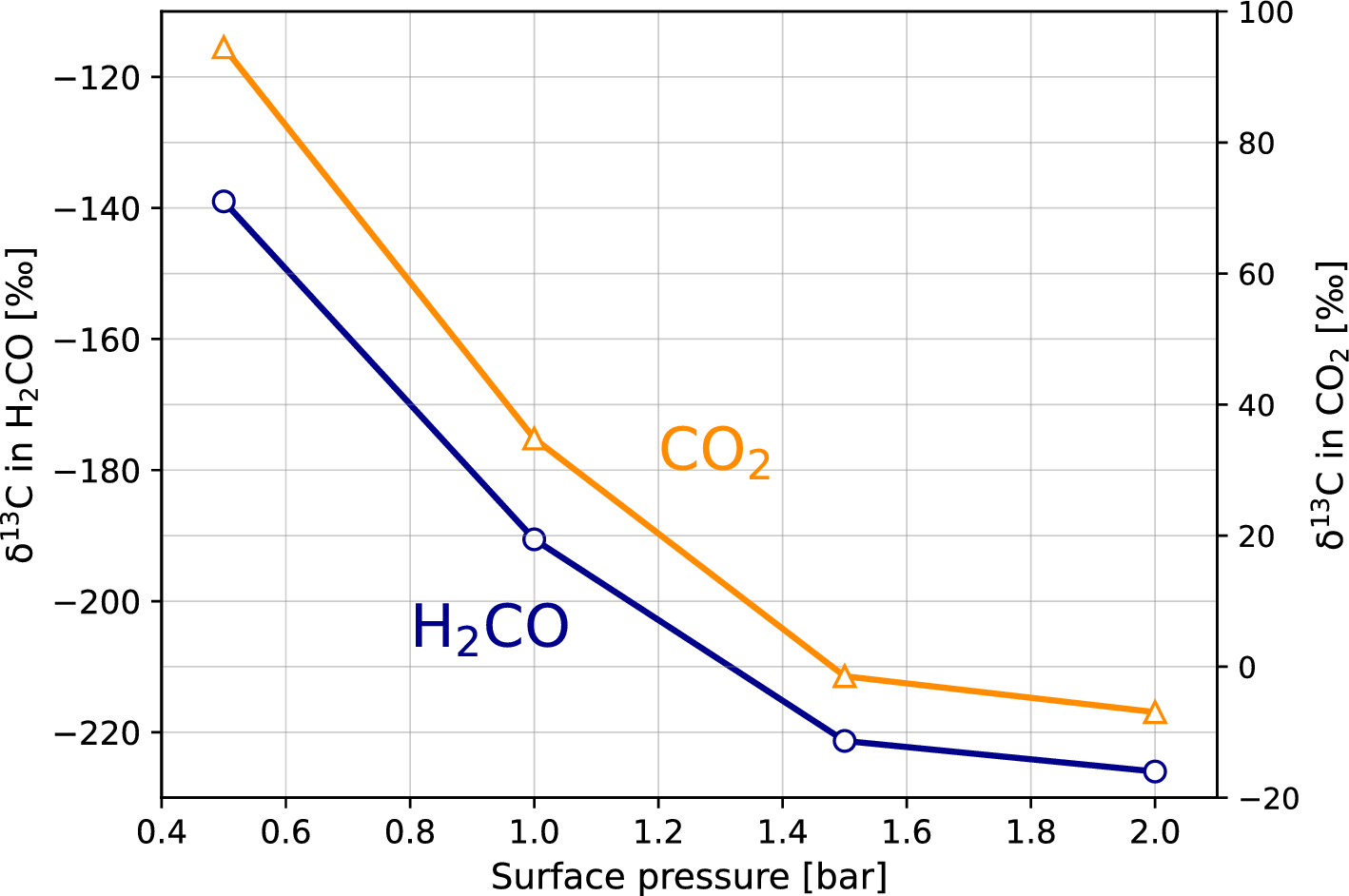

The effect of surface pressure on δ13C in H2CO and CO2. The plot shows δ13C in H2CO (blue) and CO2 (orange) after 600 Myr from the start of calculations under various surface pressure conditions. All other atmospheric conditions are the same as nominal conditions.
