Introduction

Recently, owing to the worldwide industrial development and the increase in the number of transportation vehicles, such as automobiles and ships, concerns of global warming caused by greenhouse gases have been steadily increasing. To resolve the issue of global warming, the European Union have adopted the Paris Agreement to curb the increasing temperature by limiting greenhouse gas emissions in 195 countries1. In the modern society, NO2, which is a greenhouse gas, is inevitably emitted in large quantities from automobile exhausts and industrial sites. NO2 gas has severe adverse effects on the environment and human health. NO2 exposure to the human body causes serious lung-related diseases, and a high degree of NO2 exposure increases the probability of Alzheimer’s disease2. Therefore, the development of a sensor capable of the precise detection of NO2 gas is required. Among the various types of NO2 sensors, metal oxide–based sensors are the most common3,4,5,6,7. However, their operation at room temperature is impractical because of their high-temperature operating characteristics. Therefore, a heater must be designed inside or installed outside the sensor for heating. This complicates the manufacturing process and increases the production cost and power consumption. Furthermore, the selectivity of these sensors is low owing to their high responsivity to other gases in addition to NO2. Moreover, a major disadvantage of the metal oxide–based sensors is their low stability in a high-humidity environment. In contrast, NO2 gas sensors based on PbS quantum dots (QDs) have the advantages of being operable at room temperature and easily manufacturable through a solution process rather than the complicated semiconductor process8,9,10,11. Additionally, QDs can be easily synthesized through the colloidal method, and their particle size can be facilely controlled by adjusting the precursor concentration and synthesis time. These characteristics are advantageous because the sensitivity can be improved through surface area optimization during thin-film formation. Poly(3-hexylthiophene) (P3HT) is a conductive polymer that possesses a high hole mobility and can improve the uniformity and quality during thin-film formation, which are advantageous. Therefore, it is widely used in optical devices, such as light-emitting diodes and solar cells12,13,14,15,16. In this study, a NO2 sensor was fabricated by doping P3HT with PbS QDs. P3HT improves the adhesion between the PbS QDs and substrate, forming a thin film with only one layer. Moreover, it increases the reaction speed and sensitivity of the sensor by improving the mobility of the holes inside the device when reacting with NO217,18,19. An analysis of the response of the fabricated sensor to NO2 gas revealed that PbS QDs doped with P3HT at a ratio of 1:1 could detect 100–0.4 ppm of NO2 with a resolution of 200 ppb at a wavelength of 905 nm.

Methods

Synthesis of colloidal PbS QDs

The wavelength band of QDs can be tuned by controlling the nanoparticle (NP) size based on quantum confinement, which is a physical phenomenon wherein the bandgap changes as a function of the NP size. Herein, we synthesized PbS QDs possessing wavelengths of 905, 1210, and 1392 nm using a colloidal method20,21,22,23. A colloid is a dispersion of particles that are larger than a molecule or ion and possess at least one dimension between approximately 1 and 10 nm in a gas or liquid. Figure 1 demonstrates the synthesis method of PbS QDs. Briefly, a mixture sulfur (0.36 mmol; 99.998%; Sigma-Aldrich) and oleylamine (OLA, 0.24 mL; 70%; Sigma-Aldrich) was stirred at room temperature for 30 min. Thereafter, a mixture PbCl2 (1–3 mmol; 99.999%; Sigma-Aldrich) and OLA (5 mL) was placed in a three-hole flask and stirred at room temperature under a N2 gas (99.999%; ocean) airflow (Heat gas Inc.) for 30 min. Subsequently, the PbCl2–OLA mixture was heated at 160 °C for 1 h, followed by vacuum degassing at 120 °C for 20 min. Afterward, the S storage solution and trioxythylphosphine (225 μL; 97%, Sigma-Aldrich) were rapidly injected into a three-neck flask under a N2 gas flow. After allowing the chemical reaction to proceed at 100 °C for 1–360 min, the three-neck flask was cooled to room temperature. The synthesized PbS QD mixture was cleaned by injecting it with ethanol (20 mL; 99%; Sigma-Aldrich) and centrifuging at 4000 rpm for 10 min (FLETA-5, Hanil Scientific Inc.). Finally, the purified PbS QDs were dispersed in toluene (99.8%; Sigma-Aldrich), which is a nonpolar solvent, at 20 mg/mL. To synthesize P3HT-doped PbS QDs, P3HT was injected into the PbS QD solution and dispersed at weight ratios of 1:1, 1:0.5, 1:0.25, and 1:224,25.

Fig. 1
figure 1

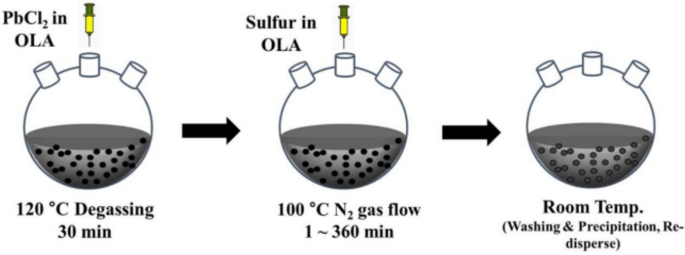

Schematic of the synthesis of PbS QDs.

Full size image

Device fabrication

To maximize the uniformity of the thin-film formation of QDs and their reactivity with gas, the ratio between P3HT and PbS QDs was optimized. For ratio optimization, devices were fabricated and evaluated with QDs possessing an absorption wavelength of 900 nm. The ratios between PbS QDs and P3HT were fixed at 1:1, 1:0.5, and 1:0.25. Notably, when the ratio was 1:2 or higher, thin-film formation was difficult owing to gelation. Additionally, to optimize the reactivity according to the particle size of the QDs, devices were fabricated using QDs with the absorption wavelengths of 905, 1210, and 1392 nm. The film was deposited via spin casting onto pre-cleaned gold interdigitated electrodes (IDEs) on an oxide-coated silicon substrate. Figure 2 presents a schematic of the deposition procedure. Briefly, PbS QDs–P3HT mixed solutions (100 µL) were coated onto the substrate through spin casting (LT–MS 200, LTS); thereafter, annealing was performed in a vacuum oven (OV–11, JEIO Tech) at 95 °C for 30 min. The fabrication process is summarized in Fig. 2. In this study, devices with different P3HT ratios were fabricated to investigate the effects of this parameter on the sensor response. Several devices (> 40) were fabricated to account for the statistical variations in the sensor performance.

Fig. 2
figure 2

Schematic illustrating the fabrication of a PbS QD–based NO2 gas sensor.

Full size image

Sensor measurement system

To characterize the fabricated device, its current characteristics were measured as a function of the gas concentration. The measurement was performed using a gas sensor measurement system comprising a gas chamber, mass flow controller (MFC), and source meter unit (Fig. 3). Using the MFC controller, the NO2 gas concentration was adjusted by combining 200 and 20 ppm of air-balanced NO2 gas with air at a flow rate of 1000 sccm. Gas reaction and recovery were repeatedly conducted or 10 min each, and air (N2: 78%; O2: 21%) was used as the recovery gas. All sensor measurements were conducted at room temperature (25 °C), except for the temperature-based experiments. The measured data were analyzed using origin 2023b (Origin lab, www.originlab.com).

Fig. 3
figure 3

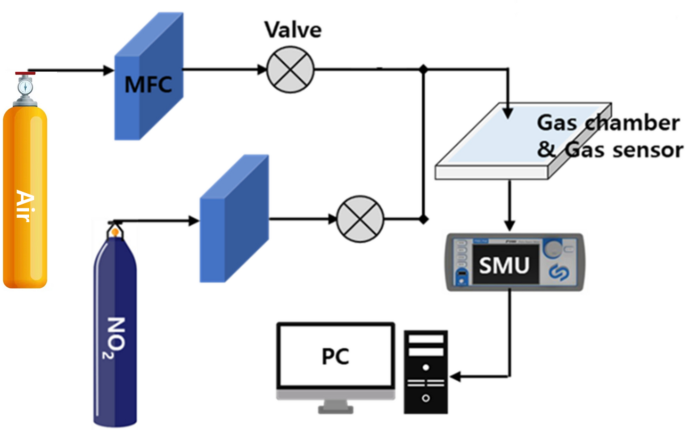

Schematic of the NO2 gas measurement system of the fabricated sensor.

Full size image

Results and discussion

Characteristics of the synthesized PbS QDs

Absorbance, X-ray diffraction (XRD), and transmission electron microscopy (TEM) analyses of the synthesized QDs were conducted to evaluate their characteristics and successful synthesis. The obtained results are presented in Fig. 4. The absorbance spectra of the synthesized QDs presented in Fig. 4a reveals peaks at 905, 1210, and 1392 nm, indicating a high absorbance in the infrared region. The wavelength band of QDs changes depending on the particle size owing to quantum confinement. Based on quantum confinement, when the size of a particle is smaller than the Bohr radius, the instability increases with decreasing particle size, whereas the bandgap of the particle increases. Based on Eq. (1), the bandgap and wavelength band are inversely proportional. Because the band gap and particle size are inversely proportional, the wavelength band and size of the QDs are directly proportional.

Fig. 4
figure 4

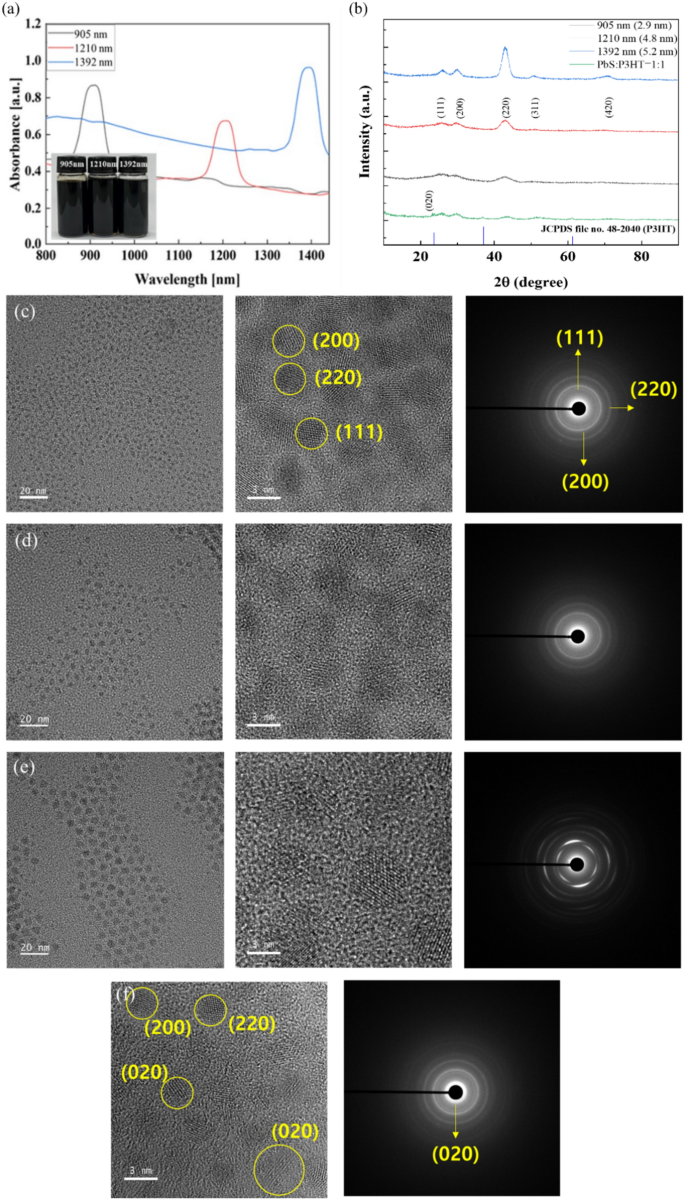

Measured results: (a) Absorbance properties; (b) XRD patterns; (c), (d), and (e) TEM images of the synthesized QDs.

Full size image
$$Eg \left(eV\right)=\frac{1240}{\lambda }$$
(1)

Furthermore, to determine the crystal structure and particle size of PbS QDs, XRD (D8-DISCOVER, Bruker AXS) analysis was performed, and the results are displayed in Fig. 4b. For XRD analysis, the PbS QD sample solutions (10 mg/mL) were spin-coated on a 10 × 10–mm2 glass substrate at 1000 rpm for 30 s, followed by annealing at 110 °C for 30 min. The lattice peaks in the patterns of all the synthesized PbS QDs were in conformance with those reported for PbS QDs in literature, and the peak intensity of (220) reflection increased with increasing particle size26. In addition, the peaks of P3HT were confirmed at approximately 23.6° and 37° only in P3HT-doped QDs (JCPDS File no-4S-2040)27. The crystallite size of PbS QDs (1210 nm) was calculated from the XRD results using the Scherrer equation28.

$$ D_{hkl} \left( {{\text{nm}}} \right) = ({\text{K}}*\lambda )/\beta \cos \theta . $$
(2)

Here, K is the Scherrer constant, λ is the wavelength of X-ray, b is the maximum half width in radians, and q is the half-value between the incident angle and scattered X-ray wavelength vector. Gaussian fitting was performed to measure the theta value and full width at half maximum (FWHM), and the peaks with a precise fit were selected. K is 0.94 for a spherical crystallite possessing cubic symmetry with q = 15.1, FWHM = 1.74, and λ = 0.15418 nm, which is the wavelength of Cu K-alpha X-rays. The size of PbS QDs calculated using the Scherrer equation was 4.94 nm. Additionally, the TEM images presented in Fig. 4c–e reveal that the particle sizes of the synthesized PbS QDs with the absorption wavelengths of 905, 1210, and 1392 nm are 2.9, 4.8, and 5.2 nm, respectively. The lattice space and selected area electron diffraction (SAED) of PbS QDs were analyzed through TEM image, and the lattice space and SAED of (111), (220), and (200) were confirmed. These results confirm the successful synthesis of QDs. In addition, the lattice space and SAED of (020) were confirmed only in P3HT-doped PbS QDs, which confirmed that they were P3HT doped.

Performance of the NO 2 gas sensor

To determine the optimal P3HT doping ratio, PbS QDs with an absorbance wavelength of 905 nm were used to evaluate the reactivity of various P3HT concentrations. Figure 5a–d illustrate the real-time responsivity of PbS QDs with the absorbance wavelength of 905 nm based on the P3HT doping ratio under the conditions of 100–20 ppm NO2 gas. Responsivity was calculated using Eq. (3).

Fig. 5
figure 5

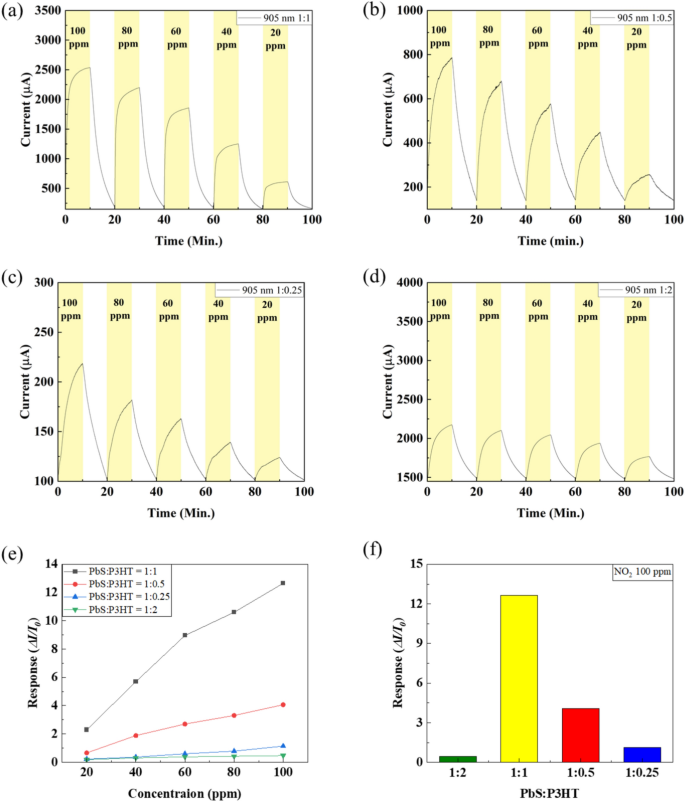

(a–d) Current, (e) response characteristics based on the P3HT ratio at a NO2 gas concentration of 100–20-ppm and (f) responses at 100-ppm NO2 gas.

Full size image
$$\text{Response}=\frac{{I}_{1} - {I}_{0}}{ {I}_{0}}=\frac{\Delta I}{ {I}_{0}}$$
(3)

Here, I0 is the initial current of the sensor measured in air and I1 is the current when the sensor is exposed to the target gas.

The highest and lowest response values were obtained when the ratio of PbS QDs to P3HT was 1:1 and 1:2, respectively. Figure 5e depicts the reactivity as a function of the NO2 gas concentration for different P3HT doping ratios, and Fig. 5f presents the reactivity according on the P3HT doping concentration under the condition of 100 ppm NO2 gas. The results confirm that the response at the ratio of 1:1 is approximately 40 times higher than that at the ratio of 1:2, and therefore, the former is adopted as the optimal P3HT doping ratio. When the ratio is 1:1, a thin film is stably formed; PbS QDs are uniformly deposited; sufficient reaction occurs upon gas contact. However, when the ratio is 1:2, P3HT is highly dominant. Consequently, the thin film is produced in a gel form, and the number of PbS QDs in contact with NO2 gas decreases. Therefore, the QD thin films with absorbance at 905, 1210, and 1392 nm were fabricated at an optimized ratio of 1:1 for the subsequent experiments.

Next, the reactivity was measured as a function of the NO2 gas concentration in real time for the QDs with various wavelengths, and the results are presented in Fig. 6a–d. The gas concentration was varied from 20 to 1 ppm in 5-ppm decrements, and both the reaction and recovery times were maintained at 10 min. The measurements at 20-ppm NO2 revealed that the device comprised 905-nm PbS QDs exhibited the highest response of 2.06, which is ~ 2.1 times higher than that obtained for 1210-nm PbS QDs possessing a responsivity of 0.98. The core size of PbS QDs with a wavelength of 905 nm is 2.9 nm, which is smaller than those of the QDs with the wavelengths of 1210 (core size = 4.8 nm) and 1392 nm (core size = 5.2 nm). Additionally, a repeatability test was conducted with the response and recovery times of 200 and 800 s, respectively, at the NO2 gas concentration of 20 ppm to confirm the reliability of the fabricated sensor (Fig. 6e). The error in the response measurements repeated for five times was within 1%. The size of the PbS QDs with a wavelength of 905 nm is 3.9 nm, and therefore, a uniform thin film with a large surface area can be obtained compared with that formed using large PbS QDs. The atomic force microscopy (AFM) results presented in Fig. 7 confirm that the thin film formed from 905 nm PbS QDs exhibits the smallest height deviation among the tested PbS QD thin films. Therefore, the area of reaction with gas is the largest for the 905-nm PbS QDs, and the quality of the thin film is high, resulting in stable electrical characteristics. Consequently, a higher reactivity is expected when the size of the synthesized QDs is smaller. However, the minimum limit of the wavelength range of PbS QDs is 905 nm, which renders the fabrication of small QDs impossible.

Fig. 6
figure 6

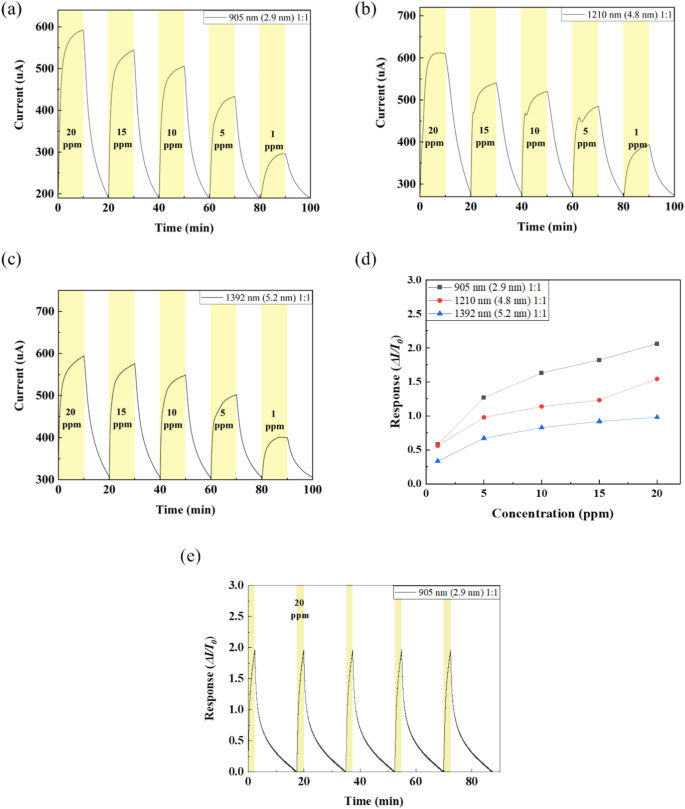

(a–d) Current characteristics based on the size of PbS QDs at a NO2 gas concentration of 20–1 ppm, and (e) repeatability graph of the 2.9-nm PbS QD–based sensor at 25 °C.

Full size image
Fig. 7
figure 7

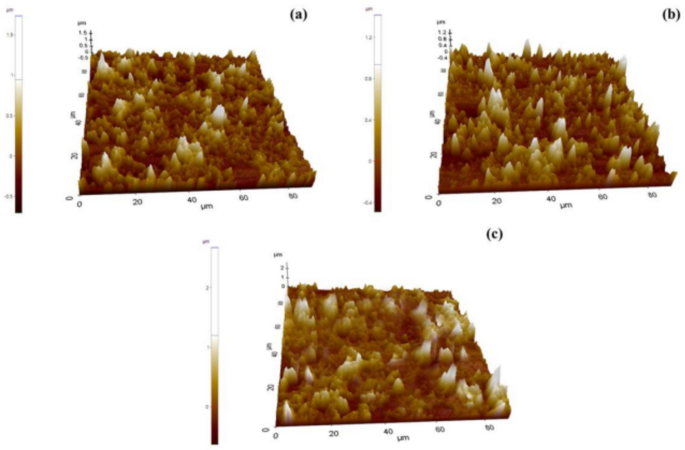

Surface AFM measurement results for the fabricated sensors based on the size of PbS QDs: (a) 2.9, (b) 4.8, and (c) 5.2 nm.

Full size image

To evaluate the low-concentration NO2 gas sensing characteristics, the fabricated devices were evaluated at NO2 gas concentrations of 1–400 ppb with a resolution of 200 ppb. Figure 8 reveals that the device fabricated using 905-nm QDs exhibits the highest reactivity. At a concentration of 400 ppb NO2, the response values of the device were 0.21, 0.19, and 0.13, respectively. Therefore, the NO2 gas detection limit of the fabricated device was confirmed as 400 ppb. Furthermore, the repeatability of low-concentration NO2 gas sensing was tested. From Fig. 8e at a concentration of 1 ppm, the error in the measurement of responsivity is within 1%, which is the same as that achieved at high concentrations. Metal oxide-based NO2 gas sensors have high sensitivity, but they operate at high temperatures and require high-temperature calcination processes or complicated semiconductor processes. The proposed sensor has the advantages of being easy to mass-produce through a solution process, not requiring a high-temperature calcination process or semiconductor process and being able to detect with good sensitivity at room temperature. As can be seen in Fig. 9, when heated to 100 °C, it has a four times higher response, which is higher than that of other studies. To compare the response with the reference sensors presented in the Table 1, the sensor response at 10 ppm in each paper was compared. Compared to not only the PbS QDs-based sensor but also the metal oxide-based sensor, the proposed sensor was confirmed to have the good response. In addition, the widest range of measured concentration characteristics was confirmed, and the LOD was also confirmed to be excellent at 70 ppb10,29,30,31,32,33,34,35,36. There are previous studies that show high sensitivity in a relatively small NO2 gas detection range of ppb level, and they are mainly studied for application in the atmospheric environment or respiratory/bio fields36. However, since the emission sources such as power plants, factories, and automobile exhaust gases emit more than several tens of ppm of NO2 gas due to fossil fuel combustion, such prior research has limitations in industrial use due to its small detection range. In addition, according to the regulations of the Occupational Safety and Health Administration (OSHA), if the workers at the industrial sites are exposed to NO2 gas above 5 ppm, it can be dangerous to the workers and requires warning and evacuation. Therefore, the sensor proposed in this study can not only secure the safety of the workers by detecting NO2 concentration in real time, but also improve air pollution problems through a direct monitoring system at NO2 emission sources such as power plants, factories, and automobile exhaust.

Fig. 8
figure 8

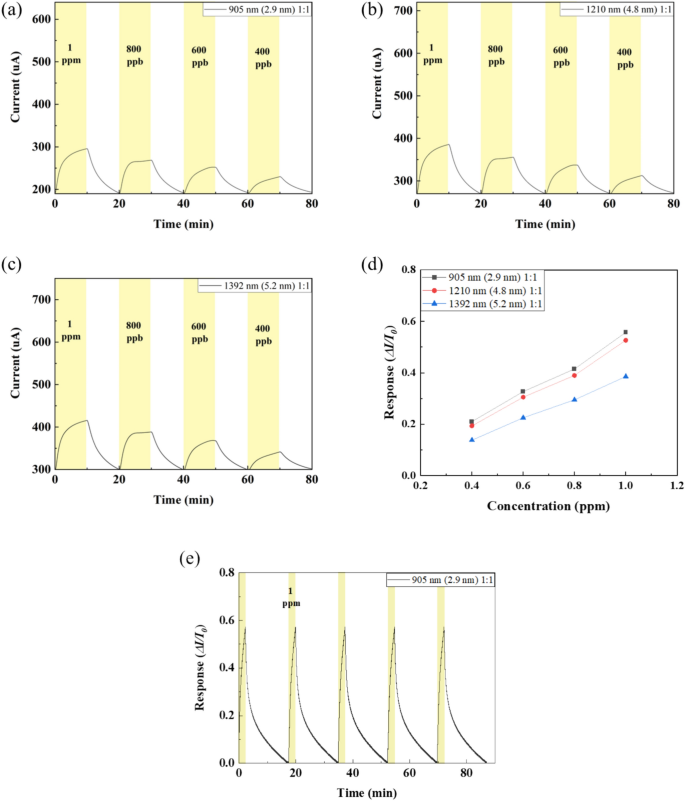

(a–d) Current characteristics depending on the size of PbS QDs at the NO2 gas concentrations of 1–0.2 ppm, and (e) repeatability characteristics of the 2.9-nm PbS QD–based sensor at 25 °C.

Full size image
Fig. 9
figure 9

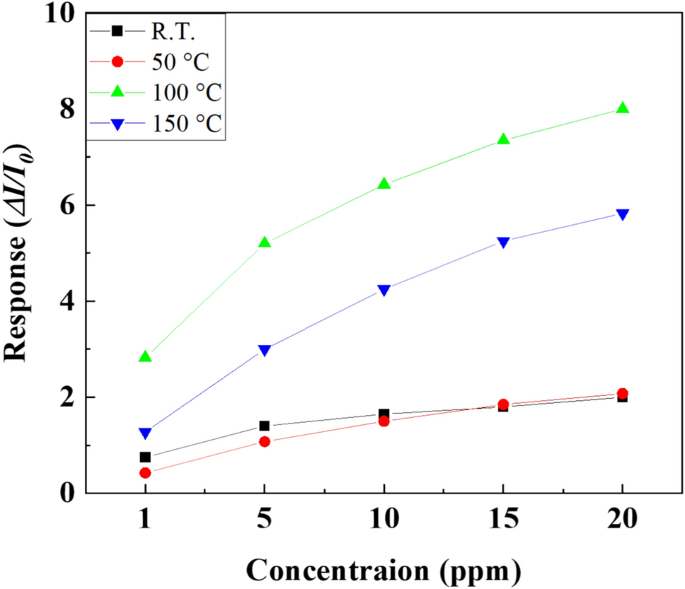

Response characteristics of the fabricated sensor according to temperature conditions (20–1 ppm of NO2 gas).

Full size image
Table 1 Recent reported researches of the NO2 gas sensor.
Full size table

Furthermore, to confirm the operation characteristics at high temperatures, the reactivity of the sensor toward 20–1-ppm NO2 gas was tested at 25 °C (room temperature), 50 °C, 100 °C, and 150 °C.

As demonstrated in Fig. 9, there is negligible difference in the responsivity values obtained at 50 °C and room temperature which is considered erroneous. The response at 100 °C is approximately 4 times higher than that obtained at room temperature, and the responsivity of NO2 gas and PbS QDs increases with increasing temperature. This is because H2O evaporates at 100 °C, the number of sites that can react on the sensor surface increases, and physical oxygen adsorption occurs more easily on the surface, and the responsivity increases accordingly.

Before NO2 exposure, oxygen molecules in the air attach to the surface of PbS QDs and capture electrons to form O2− below 100 °C, or O− between 100 and 150 °C creating a surface state similar to that of an acceptor33,37. The as-formed surface state causes the excitation of the electrons in the valence band and induces the formation of numerous holes in the p-type PbS QDs, creating an electron depletion layer near the surface.

$$ {\text{O}}_{{{2}({\text{gas}})}} \to {\text{O}}_{{{2}({\text{ads}})}} $$
(4)
$$ {\text{O}}_{{{2}({\text{ads}})}} + {\text{ e}}^{ - } \to {\text{O}}_{{2({\text{ads}})}}^{ - } $$
(5)
$$ {\text{O}}_{{2({\text{ads}})}}^{ - } + {\text{ e}}^{ - } \to {\text{2O}}_{{({\text{ads}})}}^{ - } $$
(6)

When exposed to NO2 gas, the oxidizing gas acts as an electron acceptor, and a reaction occurs on the PbS surface according to the following equations.

$$ {\text{NO}}_{{{2}({\text{gas}})}} + {\text{ e}}^{ - } \to {\text{NO}}_{{2({\text{ads}})}}^{ - } $$
(7)
$$ {\text{NO}}_{{{2}({\text{gas}})}} + {\text{ O}}_{{2({\text{ads}})}}^{ - } + {\text{ 2e}}^{ - } \to {\text{NO}}_{{2({\text{ads}})}}^{ - } + {\text{ 2O}}_{{({\text{ads}})}}^{ - } $$
(8)
$$ {\text{NO}}_{{2({\text{ads}})}}^{ - } + {\text{ 2O}}_{{({\text{ads}})}}^{ - } {\text{ + e}}^{ - } \to {\text{NO}}_{{{2}({\text{gas}})}} + {\text{ 2O}}_{{2({\text{ads}})}}^{ - } $$
(9)

NO2 molecules are directly adsorbed and acquire electrons from the PbS QD surface. Consequently, the hole concentration increases, whereas the depth of the electron depletion layer and height of the potential barrier decrease because of the oxidizing nature of NO2 and its substantially higher electron affinity than oxygen. Therefore, the sensor resistance decreases, and the current increases10,29,30,31,32,33,34,35,36,37,38. Additionally, owing to the high hole mobility of P3HT, the sensor response can be enhanced by improving the flow of charges18,19. The principle of NO2 gas detection is illustrated in Fig. 10.

Fig. 10
figure 10

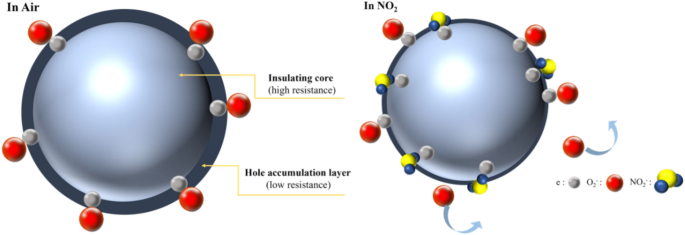

Mechanism of NO2 gas sensing by PbS QDs.

Full size image

At 150 °C, the response is reduced compared with that at 100 °C, which is considered to be because of the deterioration of the PbS QDs thin film. Therefore, the fabricated sensor can detect NO2 gas with high sensitivity even at temperatures up to 150 °C. Since most metal oxide-based gas sensors cannot react with oxygen in the air at low temperatures, they cannot form a site for reacting with the target gas in the material. Therefore, physical adsorption, which is a direct charge transfer between the sensing material and the target gas, is dominant. However, according to the reference, PbS QDs form a reaction site and have high reactivity due to relatively high binding energy to oxygen (0.5 eV) and NO2 (0.8 eV) even below 100 °C39. Because most metal oxide-based gas sensors require high temperatures above 300 °C for successful detection, PbS QDs-based gas sensors have the advantage of being able to operate at room temperature.

One issue with this sensor has observed that the properties of the sensing material deteriorated at high temperatures. In this manuscript, experimental measurements were not conducted at temperatures above 200 °C because the PbS QDs thin film was observed to be damaged by high temperature. This phenomenon is a major obstacle to commercialization. One possible way to resolve this issue is to form a polymer film on the surface of the sensing material which served as protective layer from the heat40,41. It was observed that the porosity of film can allow the gas to react with the sensing material, and greatly buffers the damage caused by high temperatures. The new findings will be reported shortly.

Additionally, to confirm the selectivity of the NO2 gas sensor fabricated using P3HT-doped PbS QDs, its reactivity to other gases was measured. The experiment was performed using 100 ppm of CO2, H2S, CO, CH4 and SO2 gases for 10 min, and the measured results were compared with those obtained with 100 ppm of NO2 gas. As demonstrated in Fig. 11, although certain reactivity toward other gases is observed, it is negligible at a level of up to 7% compared with that toward NO2 gas10,28,31. In addition, to confirm the long-term stability of the fabricated sensor, the responsivity to 100 ppm NO2 gas was measured at 30 cycles every 5 days for a month. As can be seen in Fig. 12, it was confirmed that stable characteristics were maintained within the 3% error range caused by the measurement system and the measurement environment. Furthermore, the response of the fabricated PbS QD–based NO2 gas sensor to humidity was measured at 25 °C. The relative humidity of the environment was set to 30%, 60%, and 90% with a stabilization time of 20 min, and thereafter, the measurement was performed using 20 ppm NO2. Humidity was controlled through the humidity generator of the MFC, and the humidity in the chamber was measured using a humidity sensor (RH-BTA, Vernier Software & technology). As the humidity increased, the resistance increased, whereas the initial current gradually decreased. Additionally, noise was generated owing to the presence of moisture. As presented in Fig. 13, the response values are 2.13, 1.89, and 1.79 at 30%, 60%, and 90% humidity, respectively, and the number of binding sites of NO2 decreased because of the presence of moisture. However, this difference can be mitigated through packaging, and the fabricated sensor can be stably operated irrespective of the changes in season and weather.

Fig. 11
figure 11

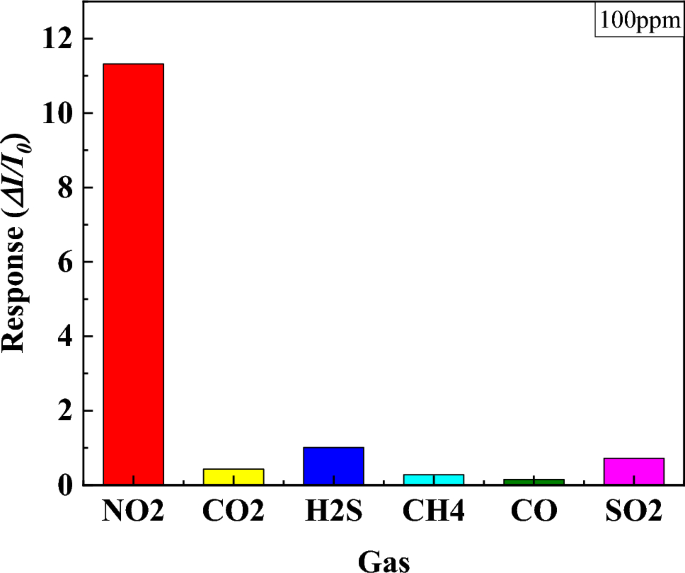

Selectivity characteristics of the fabricated sensor according to the gas type.

Full size image
Fig. 12
figure 12

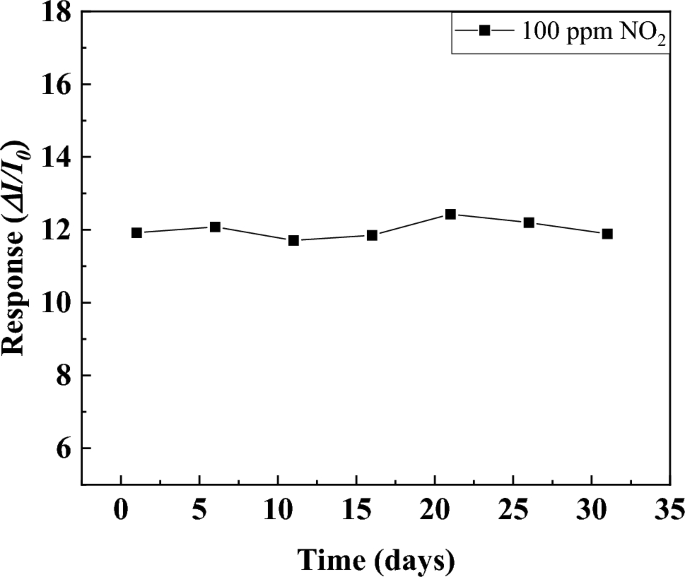

Long-term reliability test of the fabricated sensor.

Full size image
Fig. 13
figure 13

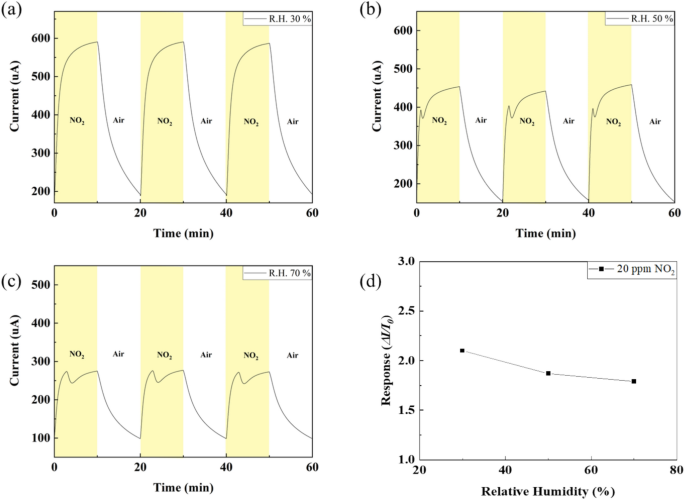

Changes in (a–c) current and (d) response of the fabricated NO2 gas sensor depending on humidity variations (20-ppm NO2; 25 °C).

Full size image

Conclusions

Herein, we developed a facile and high-sensitivity NO2 gas sensor based on PbS QDs for room-temperature detection. The synthesized PbS QDs were doped with P3HT to enhance the sensitivity and facile formation of the thin film for the NO2 gas sensor. Thereafter, the devices were fabricated by spin casting P3HT-doped PbS QDs onto IDE gold contacts on a SiO2/Si substrate. The developed sensor could selectively detect NO2 gas with high sensitivity owing to the high binding energy between PbS QDs and NO2 gas. Furthermore, because of P3HT doping, the quality and hole mobility of the thin film improved, resulting in high sensitivity. The device exhibits high sensitivity and selectivity toward NO2 gas and can exclusively detect NO2 among other air pollutants, such as CH4, CO, and CO2. Moreover, it can detect 20–0.4-ppm NO2 gas with a resolution of 200 ppb. Herein, the highest responsivity was obtained under the conditions of a PbS QDs:P3HT ratio of 1:1, PbS QD size of approximately 2.9 nm, and PbS QDs absorption wavelength of 905 nm owing to the large surface area of the thin film. Compared with the state-of-the-art NO2 sensors, the as-developed sensor can detect NO2 gas with high sensitivity through the facile formation of a single thin film.

The proposed NO2 gas sensor demonstrates significant research interest and practical application potential as a highly selective sensing device for gases with diverse chemical properties. Furthermore, the versatility of the sensor material allows for its application on various substrates, including flexible ones. This adaptability enables direct installation on personnel in fossil fuel-based power plants and industrial facilities, thereby enhancing worker safety. However, it is widely known that QDs was suffer from thermal stability42,43,44, and further research is being conducted to solve this problem. Improving the low thermal stability of PbS QDs is essential to secure stable operation characteristics of the sensor. Therefore, follow-up researches are continuously being conducted on improving thermal stability through passivation or ligand exchange of PbS QDs, and these studies will greatly contribute to the expansion of sensors into more harsh fields. The results will be submitted to the journal soon.
