Fig. 7
From: Construction simulation and scheme optimisation of complex underground cavities

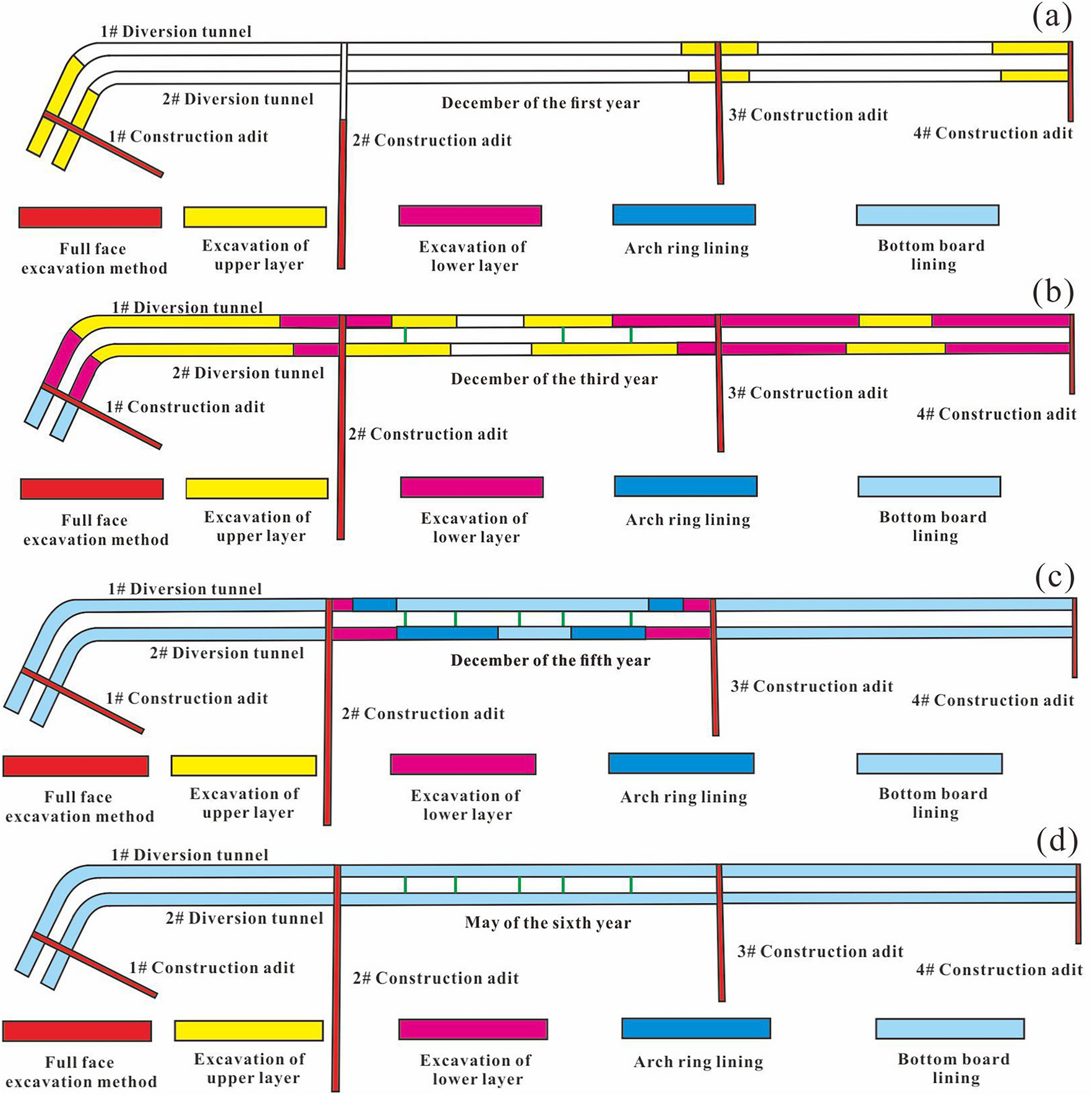

Construction simulation progress chart: (a) the construction node in December of the first year; (b) the construction node in December of the third year; (c) the construction node in December of the fifth year; (d) the construction node in May of the sixth year.
