Fig. 18
From: FPGA based implementation of a perturbed Chen oscillator for secure embedded cryptosystems

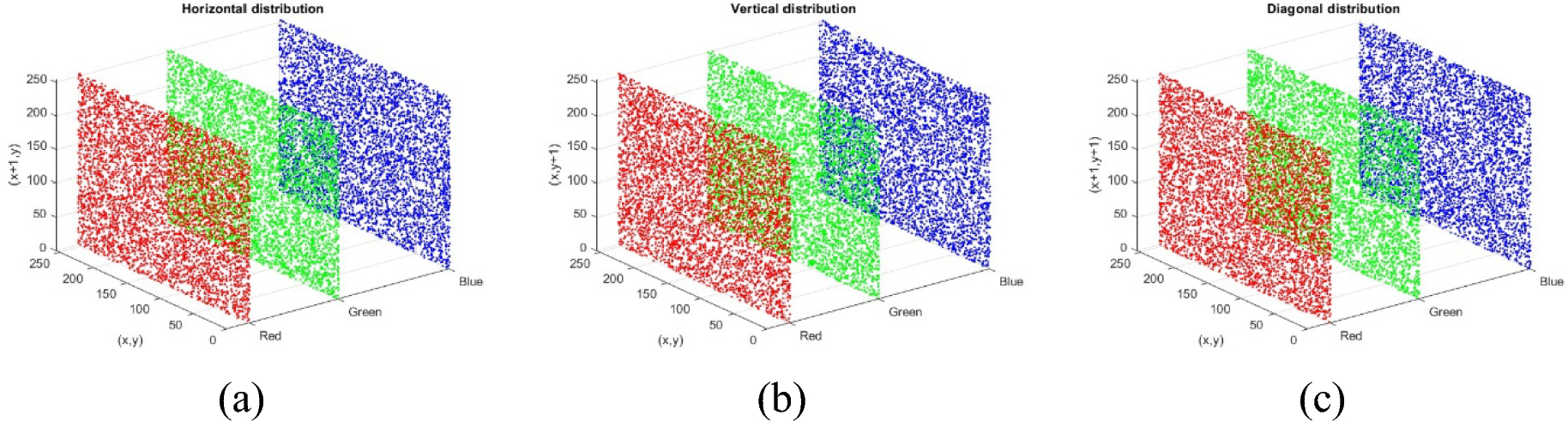

Distribution of 5000 pairs of randomly selected (a) Horizontal adjacent pixels, (b) Vertical adjacent pixels, (c) Diagonal adjacent pixels for the encrypted Baboon image with \(d=-5\) and initial values \((-1,-1,-1)\).
