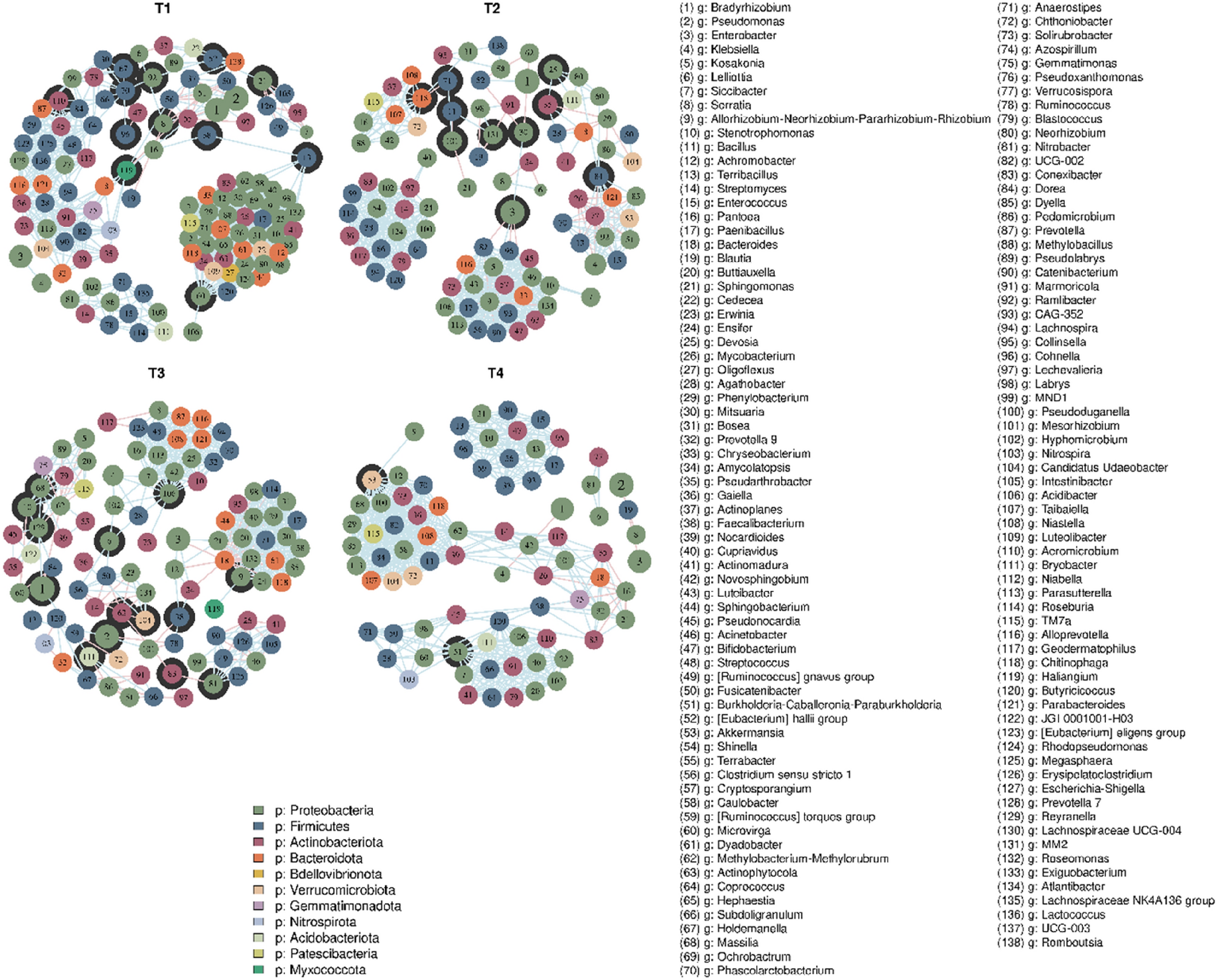

Bacterial genera co-occurrence networks by treatment. Cooccurrence networks of the identified genera, based on Pearson's correlation coefficients (r = ± 0.75) and a 95% confidence level (p value < 0.05). Positive connections are highlighted in blue, and negative connections are highlighted in red, while the filled colour of the nodes indicates the phylum to which the genus belongs. Critical nodes for the structure of the network (articulation points) are emphasized with an external contour, emphasizing their importance in the connectivity between submodules of the network. T1 = Control; T2 = T. harzianum; T3 = P. lilacinum; T4 = T. harzianum + P. lilacinum.
