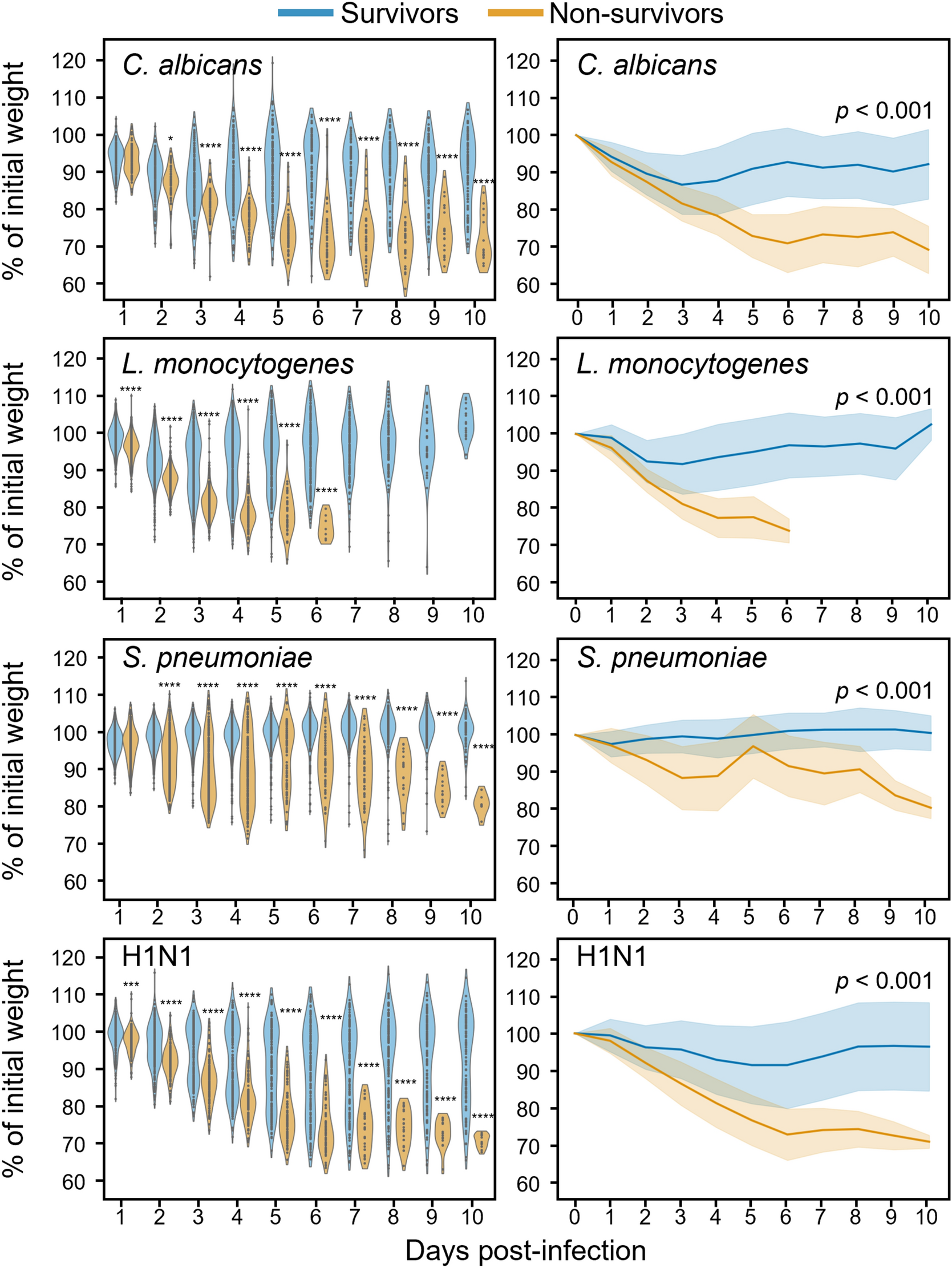

Fig. 2
From: Using weight loss to predict outcome and define a humane endpoint in preclinical sepsis studies
Percent of initial weight of mice infected with C. albicans, L. monocytogenes, S. pneumoniae and H1N1. (A) Day-by-day data were compared with the Kruskal–Wallis test. Each dot represents one mouse. *p < 0.05, ***p < 0.001; ****p < 0.0001 (survivors versus non-survivors at one specific day). (B) Median of percent weight loss with standard deviation as bandwidth. Blue: mice that survived; orange: mice that did not survive. Statistical significance of weight loss over time was computed by mixed effect model (p < 0.001).
