Abstract
The current study aimed at population genetic characterization of B. vogeli based on the cytochrome b (cyt b) gene sequences (≥ 685 bp) available in the GenBank. Phylogenetic trees placed all the sequences of B. vogeli in a single large monophyletic clade; however, it was further divided into two subclades (Bv1 and Bv2). Out of seven nucleotide variations observed between Bv1 and Bv2 subclades, four were synonymous (G92A, C170T, T488C and A659G), and three were non-synonymous (G324A, C438A and G465A) resulting in amino acid substitutions at three places (V108I, L146I and V155I). Within different B. vogeli populations, the nucleotide and haplotype diversities were low. The median-joining haplotype network revealed only two haplotypes (Hap_1 and Hap_2). A geographical sub-structuring was noticed in the B. vogeli populations, with moderate genetic differentiation (FST = 0.05000; P < 0.05) and a very high gene flow (Nm = 4.75) between Indian and Chinese populations. Neutrality tests and mismatch distributions for the Indian population and the overall dataset of B. vogeli indicated a constant population size. This study provides the first insight into the genetic characterization, population genetics and haplotype network of B. vogeli based on the cyt b gene.
Similar content being viewed by others
Introduction
Amid various tick-borne diseases, canine babesiosis (or piroplasmosis) is a clinically significant, emerging, and potentially life-threatening ailment of the dog population, prevailing throughout the world1. It is caused by intraerythrocytic apicomplexan protozoa of the genus Babesia (order ‒ Piroplasmida), which are transmitted by the bites of tick vectors2,3. On the basis of size of piroplasms during microscopic examination of blood smears, two discrete forms of Babesia are identified – large (2.5–5.0 μm) and small form (1.0–2.5 μm)4. Large canine piroplasms consist of three species, viz., B. canis, B. rossi and B. vogeli transmitted by Dermacentor reticulatus (in Europe), Haemaphysalis elliptica (in Africa), and Rhipicephalus sanguineus (in Asia, Africa, America and Australia), respectively2. A fourth genetically distinct ‘large’ unnamed Babesia sp. has been reported in a number of dogs with clinical signs from North Carolina, New Jersey and New York in the USA5,6. Similarly, B. gibsoni, B. conradae, B. negevi7,8 and B. vulpes (Syn. Theileria annae and B. microti-like piroplasm)9 are small forms of Babesia known to cause disease in dogs10. The geographical distribution of Babesia spp. depends on the existence of the competent tick vectors for dissemination.
In India, only two species, B. vogeli and B. gibsoni, have been reported to cause canine babesiosis till date11,12. Clinical signs of this disease are extremely variable and depend on various determinants, such as, the infecting Babesia species, signalment, host immunity, splenectomy and concomitant infections2. Severe clinical infections with B. vogeli typically occur in puppies. Additionally, adult dogs with concomitant infectious or non-infectious diseases can exhibit severe clinical manifestations. The disease is characterized by apathy, anemia (leading to pallor of the mucous membranes), tachypnea, tachycardia, thrombocytopenia, lymphadenomegaly, splenomegaly, inappetence to anorexia, debility, icterus, pigmenturia, and occasional death1. For precise diagnosis of B. vogeli, a holistic approach based on the history, clinical signs, blood smear examination by light microscopy, serological tests and molecular assays, is required. For better understanding of the epidemiology, pathogenesis, treatment and control of the disease, it is extremely important to confirm the species and/or sub-species/genotypes associated with canine babesiosis. The mitochondrial genes exhibit greater genetic diversity compared to the nuclear markers. The mitochondrial cytochrome b (cyt b) gene is a potential genetic marker which has been used for species level identification, strain differentiation, phylogenetic classification, drug resistance monitoring and the development of new diagnostic tests, leading to earlier diagnosis, treatment and better prognosis13. Apart from a few isolated reports based on the 18S rRNA gene14,15,16,17,18, there is paucity of scientific literature on the genetic characterization of B. vogeli in dogs, and till now, there is no report on the molecular characterization and phylogenetic analysis of B. vogeli infecting dogs on the basis of the cyt b gene. Therefore, systematic studies are required to understand the cladistics and genetic diversity of B. vogeli. In the present study, we report the sequence, phylogenetic and haplotype analyses of B. vogeli based on the cyt b gene, along with the genetic diversity, neutrality tests and population-genetic structure of the said parasite.
Materials and methods
Collection of blood samples and isolation of genomic deoxyribonucleic acid (DNA)
Approximately two mL peripheral blood sample was collected from dogs (n = 21) microscopically positive for large Babesia spp. and exhibiting clinical signs, viz., fever, lymphadenopathy, anemia (leading to pale mucous membranes), tachypnea, tachycardia, weakness, inappetence to anorexia, tick infestation and/or history of tick infestation, over a time period of one year during May, 2022–May, 2023. The collected blood samples were immediately transferred into ethylene diamine tetra-acetic acid (EDTA) coated tubes for DNA extraction. The details of the samples included in the present study are provided in the supplementary Table 1. Ethical permission for the collection of blood samples was obtained from the Institutional Animal Ethics Committee (IAEC) of Lala Lajpat Rai University of Veterinary and Animal Sciences (LUVAS), Hisar, Haryana, India (IAEC Permission No. VCC/IAEC/2022/1679-1705 dated 17-05-2022; Agenda No. 24). All experiments were performed in accordance with the relevant guidelines and regulations, and this study adheres to the ARRIVE guidelines (https://arriveguidelines.org).
By using 200 μL of whole anticoagulated blood, the genomic DNA was extracted using the QIAamp DNA mini kit (Qiagen, Germany) following the manufacturer’s procedure. The purity19,20, concentration, and quality (260/280 ratio) of extracted DNA were assessed as mentioned previously21,22 using optical spectrophotometry (Nanodrop, Thermo Scientific). The eluted DNA was stored at − 20 °C until further use. Additionally, the isolated genomic DNA from a known negative dog and nuclease-free water served as negative and no-template controls, respectively, while the DNA from an earlier confirmed B. vogeli-infected puppy served as a positive control in each Polymerase Chain Reaction (PCR).
Species level identification of the large Babesia spp. using single-step PCR assays
The genomic DNA isolated from blood samples (n = 21) was subjected to a PCR assay described by Duarte et al.23 for species level identification of large Babesia spp. The primers details are listed in supplementary Table 2. Amplification was performed using the reaction mixture and conditions described by the authors23. The amplified PCR product was visualized by electrophoresis in a 1.5% agarose gel stained with ethidium bromide under UV transillumination (Biorad, USA), as described previously24,25.
Optimization of the cyt b gene based PCR assay and sequencing of B. vogeli
A self-designed B. vogeli primer set (Bvogeli693F 5’-TGGACTTTTCGCTATTTTCAT-3’ and Bvogeli693R 5’-AGCTCTAGATTCGACAACAAGTAT-3’) was used to amplify the partial sequence of the mitochondrial cyt b gene (693 bp) in this study. The PCR was carried out in a 25 µL volume containing 10–50 ng of template DNA, 12.5 µL of Phusion High-Fidelity PCR Master Mix (Thermo Scientific, USA), 1.0 µL of each forward and reverse primers (10 pmol/µL), and the remaining amount of nuclease free water. Amplification reactions were performed in a T100 Thermal Cycler (Bio-Rad, USA) with an initial denaturation at 98 °C for 1 min, followed by 35 amplification cycles (98 °C for 10 s, 64 °C for 40 s, and 72 °C for 45 s), and a final extension step at 72 °C for 10 min. The amplified PCR products were checked by 1.2% Tris–acetate-EDTA agarose gel electrophoresis, as described previously19. To ascertain the size of amplified PCR products, StepUp 100 bp DNA ladder (Genei, India) was used.
Thereafter, the PCR amplified product of all the isolates (n = 21) was gel purified using the MinElute Gel Extraction Kit (Qiagen, Germany), and the concentration and purity of the purified products were estimated using a Nanodrop™ 2000 spectrophotometer (Thermo Scientific, USA). Amplicons of ~ 693 bp size were submitted for custom DNA sequencing to the AgriGenome Labs Pvt. Ltd., Cochin, Kerala (India). Bidirectional Sanger sequencing was performed using the Bvogeli693F and Bvogeli693R primers. Sequence of each isolate was generated three times to rule out the sequencing error. The raw nucleotide sequences obtained after custom sequencing were analyzed as described previously13 using BioEdit software version 7.0.5.326. Each sequence was subjected to pairwise alignment with reference sequences from the GenBank using the NCBI Basic Local Alignment Search Tool (BLASTn; https://blast.ncbi.nlm.nih.gov/Blast.cgi) for identification.
Multiple sequence alignment and phylogenetic analyses
The NCBI BLAST program was used to acquire homologous sequences (≥ 685 bp) of the cyt b gene of B. vogeli and other related Babesia species available in the GenBank using the default matrix corresponding to positions eight and 693 of the gene sequence of Meerut isolate (OR577229, Uttar Pradesh, India) of B. vogeli generated in the current study. Smaller and truncated sequences (< 685 bp), including 10 cyt b sequences (MZ603871-MZ603880, Brazil) of B. vogeli originating from dogs (Canis lupus familiaris), were excluded from the analysis. A total of 30 sequences of B. vogeli (n = 28), B. canis (n = 01) and B. ovata (n = 01), originating from different countries, were included in the dataset (Supplementary Table 1). Out of 28 B. vogeli sequences, 21 were newly generated in this study.
A multiple sequence alignment was constructed using 30 sequences with the ClustalW program within MEGA-X version 10.1.727, using the default settings described by Nehra et al.28. Evolutionary history was inferred using the Hasegawa-Kishino-Yano (HKY + G)29 and General Reversible Mitochondrial models30 of the maximum likelihood method with 1000 bootstrap replicates for nucleotide and amino acid sequences, respectively. A discrete Gamma distribution was used to model evolutionary rate differences among sites (3 categories; + G, parameter = 0.5803) for nucleotide sequences. Babesia ovata (LC146481, Japan) was used as an outgroup to root the tree. This analysis involved 30 nucleotide and amino acid sequences, with 686 and 228 aligned positions, respectively (Fig. 1a,b).

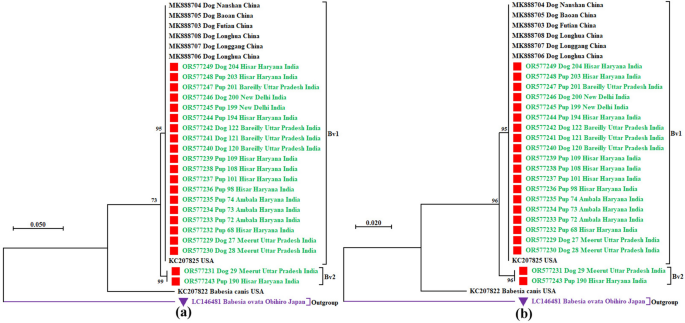

(a) Phylogenetic tree of B. vogeli based on nucleotide sequences of the cyt b gene constructed using the Hasegawa-Kishino-Yano model of the maximum likelihood method. A discrete Gamma distribution was used to model evolutionary rate differences among sites [3 categories (+ G, parameter = 0.5803)]. This analysis involved 30 nucleotide sequences with 686 aligned positions. (b) Phylogenetic tree of B. vogeli based on amino acid sequences of the cyt b gene constructed using the General Reversible Mitochondrial model of the maximum likelihood method. This analysis involved 30 amino acid sequences with 228 aligned positions. The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. The taxon name of each sequence is depicted by the accession number followed by the name of the host, the place of sampling, if any, and the country of origin. The colour coding of the different sequences is as below. The red filled square as a taxon marker with a green taxon name represented the newly generated Indian B. vogeli sequences. The default black taxon name represented foreign B. vogeli and B. canis sequences available in the GenBank. A purple filled inverted triangle as a taxon marker with a purple taxon name represented an outgroup species.
Analyses of sequences, haplotype network and genetic diversity
Identity, query coverage, and e-values were assessed using the BLASTn tool with default parameters and a non-redundant (nr) database available in the NCBI GenBank31. Comparative nucleotide (Supplementary File 1) and amino acid sequence analyses (Fig. 2) of the cyt b gene of B. vogeli isolates generated in this study were carried out with each other and with all other sequences available in the GenBank to analyze sequence variations. Percent nucleotide identity (Table 1) was computed using the MegAlign program32 of DNASTAR (Lasergene 6.0 package, USA). The details of cyt b gene sequences of Indian and foreign isolates/strains, along with their accession numbers, are tabulated in supplementary Table 1.
The relationship between B. vogeli haplotypes based on the country of origin was estimated using median joining haplotype network analysis in PopART33, as described by Nehra et al.13,34. In total, 28 cyt b sequences of B. vogeli from three countries were included (Fig. 3; Table 2).

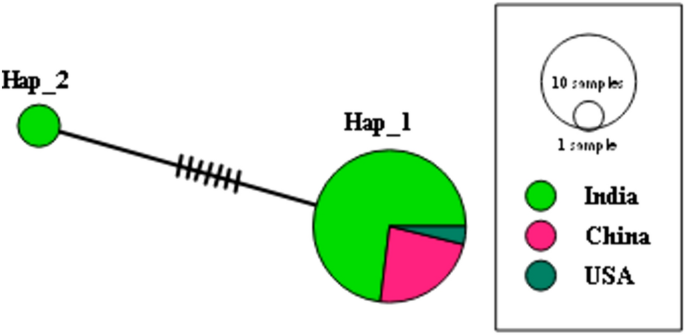

Median-joining haplotype network of the cyt b gene of B. vogeli constructed using PopArt. Each circle represents a unique haplotype and the size of the circle is proportional to the number of sequences included. Nucleotide variations are denoted by the hatch marks across the lines connecting the haplotypes with each bar representing a single nucleotide variation. A colour code to the country of origin is given.
The genetic diversity indices (Table 3) based on the cyt b gene of B. vogeli, viz., number of variable sites (S), total number of mutations (η), average number of nucleotide differences (k), number of haplotypes (h), nucleotide diversity (π) and haplotype diversity (Hd), were estimated for each country and the overall dataset using DnaSP ver. 6.12.0335.
Population-genetic structure and demographic history
Genetic differences were estimated using statistics based on haplotypes (Hs), nucleotide sequences (Ks), and other parameters which reflect gene flow (Nm), viz., average number of nucleotide differences in pairs (Kxy), genetic differentiation index based on the frequency of haplotypes (Gst), nucleotide-based statistics (Nst), nucleotide substitutions per site (Dxy) and net nucleotide substitutions per site (Da), using DnaSP ver. 6.12.0334,35. Gene flow (Nm) and the pairwise genetic distance (FST) between populations were computed to determine the genetic differentiation and population-genetic structure of B. vogeli using Arlequin 3.5.236. For AMOVA, the FST was computed using the Tajima-Nei substitution model with 1000 permutations to test its significance.
The neutrality tests (Tajima's D, Fu and Li's F, and Ramos-Onsins and Rozas’ R2), Harpending’s raggedness index (rg)37, mean absolute error (MAE), and the mismatch-distribution analysis were performed to ascertain the demographic history using DnaSP ver. 6.12.0335,38.
Secondary structure and homology modeling
Various protein prediction programs, viz., PSIPRED39, NetNGlyc40, NetOGlyc41, SignalP 5.142, and tools form ExPASy server (https://www.expasy.org/resources/swiss-model), were used to predict the secondary structure and homology modeling of the consensus amino acid sequence of the cyt b gene of the newly generated isolates of B. vogeli. An automated homology model of the cyt b was predicted using SWISS‐MODEL43,44 based on the structure of the cyt b protein of B. gibsoni (UniProt ID—A0A649UJK2).
Results
Species level identification of the large Babesia spp. using single-step PCR assays
All the samples (n = 21) included in the present study exhibited a PCR amplicon of ~ 600 bp size, as per the PCR assay described by Duarte et al.23, which indicated the presence of B. vogeli infection in all dogs (Supplementary Fig. 1). None of the dogs were found to be infected with B. canis and B. rossi.
PCR amplification and sequencing of the cyt b gene of B. vogeli
The standardized PCR assay based on the cyt b gene of B. vogeli produced amplicons of ~ 693 bp (Supplementary Fig. 2) with all the newly generated isolates (n = 21), which was further confirmed by sequencing. The analyzed sequences of all the isolates were submitted to the GenBank and the details of the accession numbers (OR577229–OR577249) obtained are listed in the supplementary Table 1.
Multiple sequence alignment and phylogenetic analysis of B. vogeli based on the cyt b gene
The best substitution models for construction of the maximum likelihood trees were found to be the Hasegawa-Kishino-Yano and General Reversible Mitochondrial models for nucleotide and amino acid datasets, respectively. Phylogenetic trees constructed using nucleotide and amino acid sequences of the cyt b gene of B. vogeli and other related Babesia species available in the GenBank are presented in Fig. 1a and b, respectively. Both phylograms placed all the sequences of B. vogeli in one large monophyletic clade; however, it was further divided into two small subclades with high bootstrap values (> 95%), hitherto designated as Bv1 and Bv2. Out of the total 28 sequences, subclades Bv1 and Bv2 encompassed 26 and two sequences, respectively. All the isolates from each country clustered together in close vicinity, indicating a geographical sub-structuring in the B. vogeli populations.
Analyses of sequences, haplotype network and genetic diversity
All the nucleotide and amino acid sequences of the cyt b gene of B. vogeli (n = 28) included in the present study exhibited 99.0–100% and 98.7–100% similarity among themselves, respectively. The Bv1 and Bv2 subclades revealed 99.0 and 100% nucleotide, and 98.7 and 100% amino acid similarity between and within them, respectively (Table 1). Furthermore, the newly generated Indian sequences (n = 21) originating from Delhi, Haryana, and Uttar Pradesh displayed 99.0–100% and 98.7–100% nucleotide and amino acid identity, respectively, between them. The nucleotide sequence alignment of the cyt b gene of B. vogeli revealed single nucleotide substitutions at seven places (G92A, C170T, G324A, C438A, G465A, T488C and A659G). No nucleotide variations were observed within the Bv1 and Bv2 subclades, but sequence variations were observed at seven places (G92A, C170T, G324A, C438A, G465A, T488C and A659G) between them (Supplementary File 1). Out of these mutations, four were synonymous (G92A, C170T, T488C and A659G), and three were non-synonymous (G324A, C438A and G465A), resulting in amino acid substitutions at three places (V108I, L146I and V155I; Fig. 2).
In total, 28 sequences of the mitochondrial cyt b gene were used to assess the relationship between B. vogeli haplotypes and their country of origin. The median-joining haplotype network of B. vogeli based on the cyt b gene revealed only two haplotypes (Hap_1 and Hap_2), both of which exhibited a difference of seven nucleotides from each other (Fig. 3). Hap_1 and Hap_2 consisted of twenty-six and two sequences, respectively (Table 2). India, and China and the United States of America (USA) exhibited two and one haplotypes, respectively (Table 3). The major haplotype, Hap_1, was recorded from India, China and the USA, while the minor haplotype (Hap_2), represented by the two newly generated sequences (OR577231 and OR577243), was documented from India only. Therefore, both haplotypes were present in India.
The summary of genetic diversity indices of different B. vogeli populations based on the cyt b gene is presented in Table 3. However, these parameters could not be determined for the B. vogeli population originating from the USA, as only one sequence of USA origin was included in the analyses. Along the 686 bp alignment, seven nucleotide mutations were detected at seven places. Within different B. vogeli populations, the nucleotide diversity (π; ranging from 0.00000 ± 0.00000 to 0.00185 ± 0.00107) and the haplotype diversity (Hd; ranging from 0.000 ± 0.000 to 0.181 ± 0.104) were low. The haplotype diversity of the Indian population and the combined dataset was less than 0.2, suggesting a low level of haplotype diversity. The average number of nucleotide differences between any two sequences in the Indian population (k = 1.267) and the overall dataset (k = 0.963) was very low, indicating extensive sequence conservation within the cyt b gene. Notably, the Chinese population exhibited complete sequence homogeneity, with no variations in the cyt b gene.
Population-genetic structure and demographic history
Gene flow and genetic differentiation indices between the Indian and Chinese B. vogeli populations based on the cyt b gene are tabulated in Table 4. The pairwise genetic distance between these two populations (FST = 0.05000), which was statistically significant (P < 0.05), indicated moderate genetic differentiation (0.05 to 0.15). Contrary to the FST index, the value of gene flow (Nm) between these two B. vogeli populations was very high (Nm = 4.75; Table 4). All sequence variations were found within B. vogeli populations upon AMOVA analysis and extensive sequence homogeneity was registered between populations (Supplementary Table 3).
The summary of neutrality tests, viz., Tajima’s D, Fu and Li’s F, and Ramos-Onsins and Rozas’ R2, of the B. vogeli populations originating from India and China and the overall dataset based on the cyt b gene is depicted in Table 3. The non-significant negative values of Tajima’s D, non-significant positive values of Fu and Li’s F, small positive values of Ramos-Onsins and Rozas’ R2 (Table 3), and the bimodal mismatch distributions (Fig. 4) for the Indian population and overall dataset of B. vogeli implied a constant population size.
Secondary structure and homology modeling
The partial cytochrome b protein characterized in this study is a 26.04 kDa protein containing 228 amino acids with 8.158 isoelectric point (pI). Analysis of secondary structure predicted the presence of nine alpha helices and no beta sheet. Schematic diagram of the secondary structure and homology model of the consensus sequence of cytochrome b protein of the Indian isolates is illustrated in Fig. 5. The protein features three extracellular domains (1R-A5, 51G-I97, and 164I-L207,), five transmembrane domains (6Q-W24, 33S-L50, 98L-L117, 141 V-G163 and 208A-V224) and three cytoplasmic domains (25Y-W32, 118H-V140 and 225E-A228; Fig. 5a,c). Notably, it neither contained a disulphide bond nor glycosylation sites and a signal peptide. The clefts envisaged to be present on the surface of the cytochrome b protein are reproduced as solid-coloured regions in Fig. 5b with their size varying according to volume. The largest cleft, displayed in red, represents the binding site. The 3‐D structure demonstrating the ribbon representation of the homology model of the 228 amino acid residues of the partial cytochrome b protein of B. vogeli, using the cytochrome b protein of B. gibsoni (UniProt ID—A0A649UJK2) as template, is depicted in Fig. 5d.
Protein characteristics and homology modeling of the partial cyt b protein of B. vogeli. (a) Secondary structure of 228 amino acids cyt b protein contained nine alpha helices (red; numbered in green) as predicted by PSIPRED. (b) Surface clefts are depicted as solid-coloured regions according to volume, with the largest shown in red, and it represents the protein's binding site. (c) It is composed of three extracellular domains (1R-A5, 51G-I97, and 164I-L207,), five transmembrane domains (6Q-W24, 33S-L50, 98L-L117, 141 V-G163 and 208A-V224) and three cytoplasmic domains (25Y-W32, 118H-V140 and 225E-A228). (d) Ribbon representation of homology model of the cyt b protein produced using automated homology prediction by SWISS-MODEL server by utilizing the cytochrome b protein of B. gibsoni (UniProt ID—A0A649UJK2) as template. Alpha helices and loops/coils are represented in red and green colors, respectively. The abbreviations used are as follows: α, alpha helix; N – N-terminus; C – C-terminus.
Discussion
Favourable environmental conditions existing in different agro-climatic zones of tropical India facilitate the perpetuation of the ectoparasitic life cycle and transmission of various vector-borne diseases47. As B. vogeli is transmitted by Rhipicephalus sanguineus, which is ubiquitous in distribution, transmission of infection can occur easily to susceptible hosts11. There is no report on population genetic characterization of B. vogeli infecting dogs in India. In the current study, we conducted the sequence and phylogenetic analyses, population genetic diversity, genetic structure, and haplotype network analyses of B. vogeli, based on the cyt b gene sequences in the GenBank for the first time.
Mitochondrial markers are becoming the preferred choice for studying genetic diversity and phylogenetic relationships due to their higher sequence variability compared to the nuclear markers48. Recently, this genetic marker has been used for characterization49, taxonomic classification50, identification of new species51, and phylogenetic analysis of apicomplexan parasites49. That is why, the mitochondrial cyt b gene of B. vogeli was targeted in the present study.
The maximum likelihood trees constructed using the nucleotide and amino acid sequences of the cyt b gene grouped all the true B. vogeli sequences into a single major clade, and the sequences originating from one country were almost located close to each other. This signified the presence of geographical sub-structuring in the B. vogeli population. Similar results have recently been reported with the cyt b gene of T. annulata13.
Sequence analysis displayed an extensive sequence conservation among the cyt b sequences of B. vogeli. It reinforced the previous findings that the cyt b gene sequences of apicomplexan parasites are highly conserved13,21,51. Due to the degeneracy of codons, the Bv1 and Bv2 subclades of B. vogeli based on the cyt b gene differing by seven nucleotides exhibited a variation of only three amino acids.
Haplotype network analysis is often a more effective and informative method for studying genetic variations within a species than phylogenetic trees, which are better suited for revealing evolutionary relationships between distantly related organisms. Haplotype networks focus on subtle genetic variations, such as single nucleotide polymorphisms, between closely related individuals. This makes haplotype networks a powerful tool for studying genetic diversity even in closely related groups52. Analysis of the cyt b gene of B. vogeli revealed a geographically widespread ancestral haplotype. Haplotype network analysis identified only two haplotypes. This was consistent with the findings of sequence and phylogenetic analyses. Interestingly, only one haplotype (Hap_1) was found in several countries, while the other (Hap_2) was unique to India. This finding suggested that Hap_1 may be the ancestral haplotype due to its wider presence in the dog population13,53. The haplotype diversity of B. vogeli indicates genetic changes, and the transmission of Babesia by ticks suggests that some variations may be more easily transmitted than others, potentially influencing the regional haplotype distribution54.
A very low haplotype and nucleotide diversities of the overall and Indian datasets of B. vogeli indicated a very low level of genetic diversity among different populations of B. vogeli, which was due to sequence conservation observed between populations. Similar results have recently been reported for B. gibsoni on the basis of the 18S rRNA gene53. It signified the presence of only negligible differences (seven nucleotides) between haplotypes, which was also evident in the haplotype network. The limited haplotype diversity of B. vogeli may be due to the small population size in this study, as the cyt b sequences currently available in the GenBank database are very limited, and the population size is a key factor affecting genetic diversity. However, the authors believe that it can possibly increase over time with the addition of more cyt b sequences of B. vogeli from different geographical regions. The underlying reasons for spontaneous generation of mutations in the cytochrome b gene could be due to the less efficient proofreading by the mitochondrial DNA polymerase55, multi-copy number56 and the increased mitochondrial DNA mutagenesis due to the generation of hydroxyl radicals in the mitochondrial respiration chain57.
The B. vogeli populations between India and China exhibited moderate genetic differentiation (FST = 0.05000; P < 0.05) with a very high gene flow (Nm = 4.75) between them, meaning the populations exhibit some genetic differences but still share a significant amount of genetic material due to frequent exchange of genes. These results were consistent with a previous study of T. annulata13. High gene flow between India and China may be attributed to a surge in the international movement of humans with asymptomatic pet dogs as companions and/ or for commercial purposes58. In addition, the environmental changes promoting extension of the tick vectors have tremendously contributed to their pervasive dissemination and fast expansion, with the extension of Rhipicephalus sanguineus to new regions. Migratory birds can also carry ticks and tick-borne diseases between breeding and wintering areas59. In addition, the horizontal gene transfer in B. vogeli can be ascribed due to iatrogenic transmission, and migration of infected dogs and ticks2. Excessive gene flow between populations can decline, delay or arrest the process of genetic differentiation34,60. Collectively, there are many factors, viz., transmission intensity, parasite-host coevolution, geographic and ecological segregation, and selective pressure, which can affect the genetic structure of an organism53.
The existing neutral theory has limitations in explaining the mechanisms and patterns of genetic diversity, as it underestimates the impact of selection, ignores non-neutral mutations, fails to explain high genetic diversity, neglects genomic context (including linkage and epistasis), and overlooks epigenetic factors61. The level of polymorphism within a population is influenced by the effective population size and neutral mutation rate62. However, polymorphism levels vary across genes and regions due to: (a) different functional constraints, leading to varying neutral mutation rates; (b) background selection, which reduces effective population size and alters neutral polymorphism levels; and (c) regional differences in recombination intensity and deleterious mutation production, causing drastic changes in neutral polymorphism63. This highlights the need for a more comprehensive understanding of genetic diversity, considering factors beyond the neutral theory.

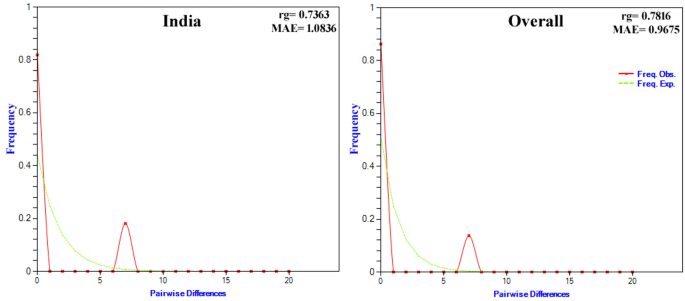

The neutrality indices and mismatch distribution for the Indian population and overall dataset suggest a constant population size. To detect the population growth for small and large sample sizes, Ramos-Onsins and Rozas’ R2, and Fu’s Fs, respectively, are the best statistical tests64. Since these tests analyze different aspects of mutations in the populations under investigation, it is important to use multiple neutrality tests together, as each one has its own advantages and disadvantages.
Genetic characterization of the cyt b gene established it as a valuable genetic marker for studying the genetic diversity, evolution, and relationship among isolates. As the dataset created included sequences of sufficient length from only three countries (India, China, and the USA) due to lack of their availability from other countries in the nucleotide databases, it represents a limitation of the present study. Further studies are necessary for a better understanding of the genetic diversity of B. vogeli prevalent in other regions of India as well as from other countries of different continents. Additionally, the impact of human activities and/or migration of birds on the spread of B. vogeli needs to be explored.
Conclusions
This study provides the first insight into the genetic characterization, population genetics and haplotype network of B. vogeli based on the cyt b gene. Notably, the phylogenetic analysis identified two distinct sub-clades within B. vogeli. Consistent with this finding, the haplotype network revealed only two predominant haplotypes. A very low level of genetic diversity was recorded among B. vogeli populations from different geographic locations. Furthermore, demographic analyses suggest that B. vogeli has maintained a stable population size over time, with no significant fluctuations.
Data availability
Nucleotide and amino acid sequence data reported in this paper are available in the GenBank database. Additional data is provided within the supplementary files.
References
Solano-Gallego, L. & Baneth, G. Babesiosis in dogs and cats – expanding parasitological and clinical spectra. Vet. Parasitol. 181, 48–60 (2011).
Irwin, P. J. Canine babesiosis: From molecular taxonomy to control. Parasit. Vectors 2(Suppl. 1), 1–9 (2009).
Schnittger, L., Rodriguez, A. E., Florin-Christensen, M. & Morrison, D. A. Babesia: A world emerging. Infect. Genet. Evol. 12(8), 1788–1809 (2012).
Boozer, A. L. & Macintire, D. K. Canine babesiosis. Vet. Clin. North Am. Small Anim. Pract. 33, 885–904 (2003).
Birkenheuer, A. J., Neel, J., Ruslander, D., Levy, M. G. & Breitschwerdt, E. B. Detection and molecular characterization of a novel large Babesia species in a dog. Vet. Parasitol. 124, 151–160 (2004).
Lehtinen, L. E., Birkenheuer, A. J., Drolesky, R. E. & Holman, P. J. In vitro cultivation of a newly recognised Babesia sp. in dogs in North Carolina. Vet. Parasitol. 151, 150–157 (2008).
Baneth, G. et al. A new piroplasmid species infecting dogs: Morphological and molecular characterization and pathogeny of Babesia negevi n. sp. Parasit. Vectors 13(1), 1–13 (2020).
Salant, H., Nachum-Biala, Y., Zivotofsky, D., Tzur, T. E. & Baneth, G. Babesia negevi infection in dogs and response to treatment. Ticks Tick-borne Dis. 15(1), 102282 (2024).
Baneth, G., Florin-Christensen, M., Cardoso, L. & Schnittger, L. Reclassification of Theileria annae as Babesia vulpes sp. nov. Parasit. Vectors 8(1), 1–7 (2015).
Kjemtrup, A. M. & Conrad, P. A. A review of the small canine piroplasms from California: Babesia conradae in the literature. Vet. Parasitol. 138, 112–117 (2006).
Kundu, K. et al. PCR based identification of Babesia canis vogeli in clinically affected dogs. Rev. Bras. Parasitol. Vet. 26, 167–169 (2012).
Mandal, M. et al. Genetic characterization and phylogenetic relationships based on 18S rRNA and ITS1 region of small form of canine Babesia spp. from India. Infect. Genet. Evol. 27, 325–331 (2014).
Nehra, A. K., Moudgil, A. D., Kumari, A., Kumar, V. & Vohra, S. Population genetic characterization of Theileria annulata based on the cytochrome b gene, with genetic insights into buparvaquone susceptibility in Haryana (India). Acta Trop. 250, 107103 (2024).
Das, M. K. et al. Incidence of canine babesiosis in and around Kolkata, West Bengal India. Explor. Anim. Med. Res. 5(1), 102–107 (2015).
Singla, L. D., Sumbria, D., Mandhotra, A., Bal, M. S. & Kaur, P. Critical analysis of vector-borne infections in dogs: Babesia vogeli, Babesia gibsoni, Ehrlichia canis and Hepatozoon canis in Punjab India. Acta Parasit. 61(4), 697–706 (2016).
Augustine, S., Sabu, L. & Lakshmanan, B. Molecular identification of Babesia spp. in naturally infected dogs of Kerala, South India. J. Parasit. Dis. 41(2), 459–462 (2017).
Jain, J., Lakshmanan, B., Nagaraj, H. V., Praveena, J. E., Syamala, K. & Aravindakshan, T. Detection of Babesia canis vogeli, Babesia gibsoni and Ehrlichia canis by multiplex PCR in naturally infected dogs in South India. Vet. Arh. 88(2), 215–224 (2018).
Sarma, K., Nachum-Biala, Y., Kumar, M. & Baneth, G. Molecular investigation of vector-borne parasitic infections in dogs in Northeast India. Parasit. Vectors 12, 122 (2019).
Nehra, A. K. et al. Molecular identification and characterization of Trichinella spiralis from a leopard in India. Indian J. Anim. Res. 54(2), 239–243 (2020).
Kumari, A. et al. Assessment of haematological and biochemical alterations in recumbent buffaloes. Biol. Rhythm Res. 53(11), 1670–1691 (2022).
Kundave, V. R. et al. Genetic characterization of Theileria species infecting bovines in India. Infect. Genet. Evol. 75, 103962 (2019).
Venkatesan, T. et al. Genetic and population diversity of Toxocara cati (Schrank, 1788) Brumpt, 1927, on the basis of the internal transcribed spacer (ITS) region. Parasitol. Res. 121(12), 3477–3493 (2022).
Duarte, S. C., Linhares, G. F. C., Romanowsky, T. N., da Silveira Neto, O. J. & Borges, L. M. F. Assessment of primers designed for the subspecies-specific discrimination among Babesia canis canis, Babesia canis vogeli and Babesia canis rossi by PCR assay. Vet. Parasitol. 152(1–2), 16–20 (2008).
Chauhan, R. P. et al. Genetic characterization and phylogenetic analysis of Sarcocystis suihominis infecting domestic pigs (Sus scrofa) in India. Parasitol. Res. 119, 3347–3357 (2020).
Kundave, V. R. et al. Genetic diversity in the Tams1 gene of Theileria annulata (Duschunkowsky and Luhs, 1904) infecting cattle. Acta Trop. 224, 106121 (2021).
Hall, T. A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp. Ser. 41, 95–98 (1999).
Kumar, S., Stecher, G., Li, M., Knyaz, C. & Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 35, 1547–1549 (2018).
Nehra, A. K., Kumari, A., Moudgil, A. D. & Vohra, S. Phylogenetic analysis, genetic diversity and geographical distribution of Babesia caballi based on 18S rRNA gene. Ticks Tick Borne Dis. 12(5), 101776 (2021).
Hasegawa, M., Kishino, H. & Yano, T. Dating the human-ape split by a molecular clock of mitochondrial DNA. J. Mol. Evol. 22, 160–174 (1985).
Adachi, J. & Hasegawa, M. Model of amino acid substitution in proteins encoded by mitochondrial DNA. J. Mol. Evol. 42, 459–468 (1996).
Altschul, S. F., Gish, W., Miller, W., Myers, E. W. & Lipman, D. J. Basic local alignment search tool. J. Mol. Biol. 215(3), 403–410 (1990).
Thompson, J. D., Higgins, D. G. & Gibson, T. J. CLUSTAL W: Improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position specific gap penalties and weight matrix choice. Nucleic Acids Res. 22, 4673–4680 (1994).
Leigh, J. W. & Bryant, D. POPART: Full-feature software for haplotype network construction. Methods Ecol. Evol. 6, 1110–1116 (2015).
Nehra, A. K., Kumari, A., Kundave, V. R., Vohra, S. & Ram, H. Molecular insights into the population structure and haplotype network of Theileria annulata based on the small-subunit ribosomal RNA (18S rRNA) gene. Infect. Genet. Evol. 99, 105252 (2022).
Rozas, J. et al. DnaSP 6: DNA sequence polymorphism analysis of large data sets. Mol. Biol. Evol. 34, 3299–3302 (2017).
Excoffier, L. & Lischer, H. E. Arlequin suite ver 3.5: A new series of programs to perform population genetics analyses under Linux and windows. Mol. Ecol. Resour. 10, 564–567 (2010).
Rogers, A. R. & Harpending, H. Population growth makes waves in the distribution of pairwise genetic differences. Mol. Biol. Evol. 9, 552–569 (1992).
Moudgil, A. D., Nehra, A. K., Vohra, S., Thakur, S. D. & Sharma, D. Prevalence and phylogeography of Taenia hydatigena metacestodes from goats of India. Parasitology 149(9), 1193–1198 (2022).
Jones, D. T. Protein secondary structure prediction based on position-specific scoring matrices. J. Mol. Biol. 292, 195–202 (1999).
Gupta, R. & Brunak, S. Prediction of glycosylation across the human proteome and the correlation to protein function. Pac Symp. Biocomput. 2002, 310–322 (2002).
Steentoft, C. et al. Precision mapping of the human O-GalNAc glycoproteome through simple cell technology. EMBO J. 32, 1478–1488 (2013).
Armenteros, J. J. A. et al. SignalP 5.0 improves signal peptide predictions using deep neural networks. Nat. Biotechnol. 37, 420–423 (2019).
Biasini, M. et al. SWISS-MODEL: Modeling protein tertiary and quaternary structure using evolutionary information. Nucleic Acids Res. 42(W1), W252-258 (2014).
Schwede, T., Kopp, J., Guex, N. & Peitsch, M. C. SWISS-MODEL: An automated protein homology-modeling server. Nucleic Acids Res. 31, 3381–3385 (2003).
Hudson, R. R., Slatkin, M. & Maddison, W. P. Estimation of levels of gene flow from DNA sequence data. Genetics 132, 583–589 (1992).
Lynch, M. & Crease, T. J. The analysis of population survey data on DNA sequence variation. Mol. Biol. Evol. 7(4), 377–394 (1990).
Moudgil, A. D., Nehra, A. K. & Vohra, S. Phylogeography and demographic dynamics of Rhipicephalus microplus from North India. Infect. Genet. Evol. 112, 105464 (2023).
Castresana, J. Cytochrome b phylogeny and the taxonomy of great apes and mammals. Mol. Biol. Evol. 18(4), 465–471 (2001).
Mhadhbi, M., Chaouch, M., Ajroud, K., Darghouth, M. A. & BenAbderrazak, S. Sequence polymorphism of cytochrome b gene in Theileria annulata Tunisian isolates and its association with buparvaquone treatment failure. PloS One 10(6), e0129678 (2015).
Bilgic, H. B. et al. Evaluation of cytochrome b as a sensitive target for PCR based detection of T. annulata carrier animals. Vet. Parasitol. 174(3–4), 341–347 (2010).
Sivakumar, T. et al. Discovery of a new Theileria sp. closely related to Theileria annulata in cattle from Sri Lanka. Sci. Rep. 9(1), 16132 (2019).
Dumaidi, K. et al. Genetic diversity, haplotype analysis, and risk factor assessment of hepatitis A virus isolates from the West Bank, Palestine during the period between 2014 and 2016. PLoS One 15, e0240339 (2020).
Yin, F. et al. Analysis of genetic diversity and population structure of Babesia gibsoni. Front. Vet. Sci. 10, 1147958 (2023).
Chaudhry, U. et al. Contrasting population genetics of co-endemic cattle-and buffalo-derived Theileria annulata. Ticks Tick-borne Dis. 12(1), 101595 (2021).
Walker, D. J. et al. Sequence polymorphisms in the Pneumocystis carinii cytochrome b gene and their association with atovaquone prophylaxis failure. J. Infect. Dis. 178(6), 1767–1775 (1998).
Feagin, J. E. The 6-kb element of Plasmodium falciparum encodes mitochondrial cytochrome genes. Mol. Biochem. Parasitol. 52(1), 145–148 (1992).
Raha, S. & Robinson, B. H. Mitochondria, oxygen free radicals, disease and ageing. Trends Biochem. Sci. 25(10), 502–508 (2000).
Panda, R. et al. Phylogenetic analysis and haplotype networking of Hepatozoon felis infecting wild animals in Gir National Park, Gujarat. India. Parasitol. Res. 123(1), 92 (2024).
Rollins, R. E. et al. Ticks (Acari: Ixodidae) on birds migrating to the island of Ponza, Italy, and the tick-borne pathogens they carry. Ticks Tick Borne Dis. 12(1), 101590 (2021).
Choy, S. H., Mahdy, M. A., Al-Mekhlafi, H. M., Low, V. L. & Surin, J. Population expansion and gene flow in Giardia duodenalis as revealed by triosephosphate isomerase gene. Parasit. Vectors 8, 1–10 (2015).
Kimura, M. The neutral theory of molecular evolution. Sci. Am. 241(5), 98–129 (1979).
Kimura, M. Population genetics, molecular evolution, and the neutral theory: Selected papers (University of Chicago Press, 1994).
Nauta, M. Population genetics, molecular evolution, and the neutral theory. Selected papers. Acta Biotheor. 44, 86–88. https://doi.org/10.1007/BF00046438 (1996).
Ramos-Onsins, S. E. & Rozas, J. Statistical properties of new neutrality tests against population growth. Mol. Biol. Evol. 19, 2092–2100 (2002).
