Fig. 6

From: Multitargeted docking approach reveals droxidopa against DNA replication and repair-related protein of cervical cancer

Fig. 6

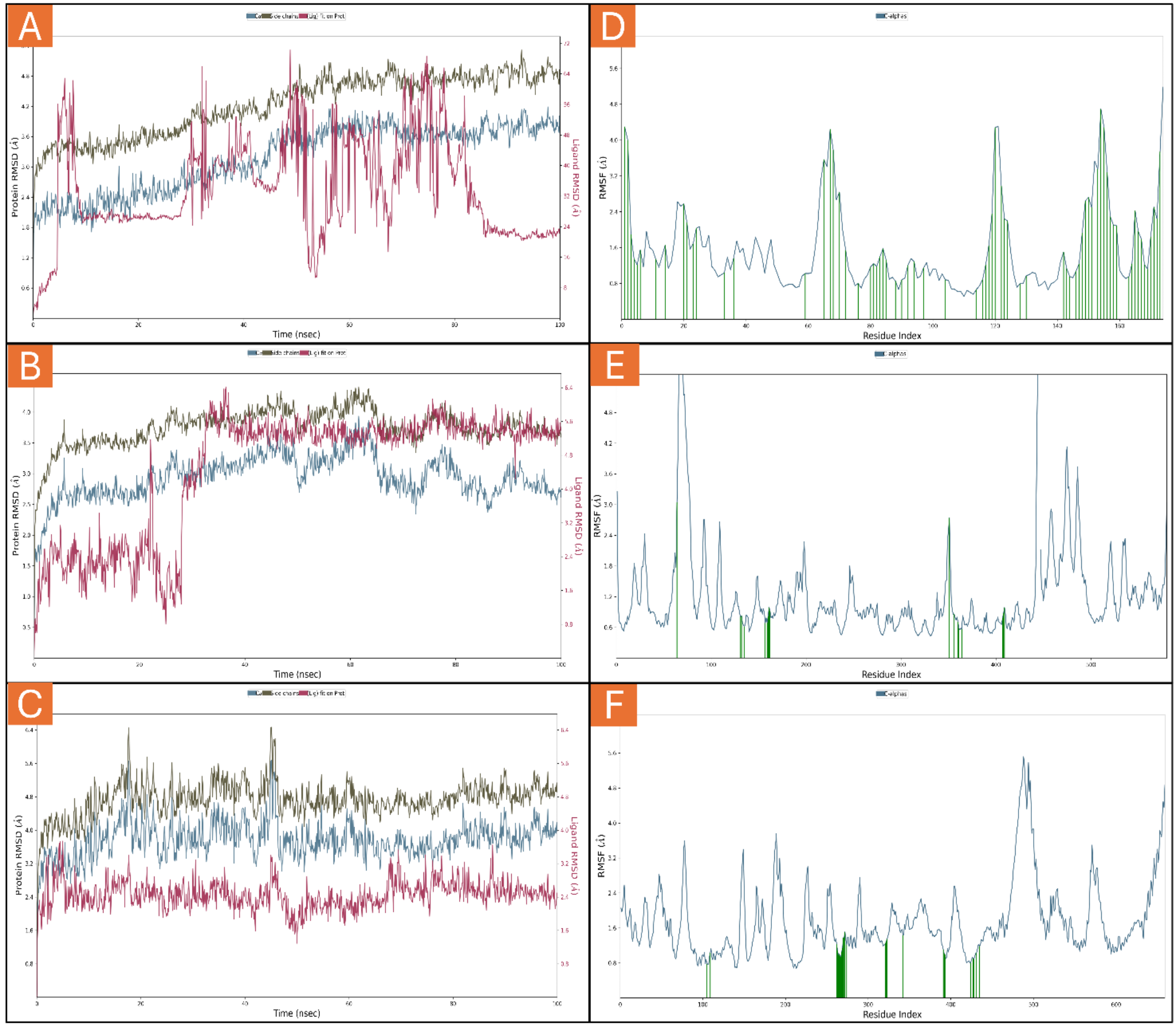

Showing the root mean square deviation (RMSD) of droxidopa in complex with (A) PDBID: 3H16, (B) PDBID: 5VBN, (C) and PDBID: 6NT9 where red shows the ligand deviations, blue shows the Cα deviations and side chains are also shown. Also, the root mean square fluctuations (RMSF) of droxidopa in complex with (D) PDBID: 3H16, (E) PDBID: 5VBN, (F) and PDBID: 6NT9, where blue shows the fluctuation in Cα, and green lines shows the residues interacting the ligand.
