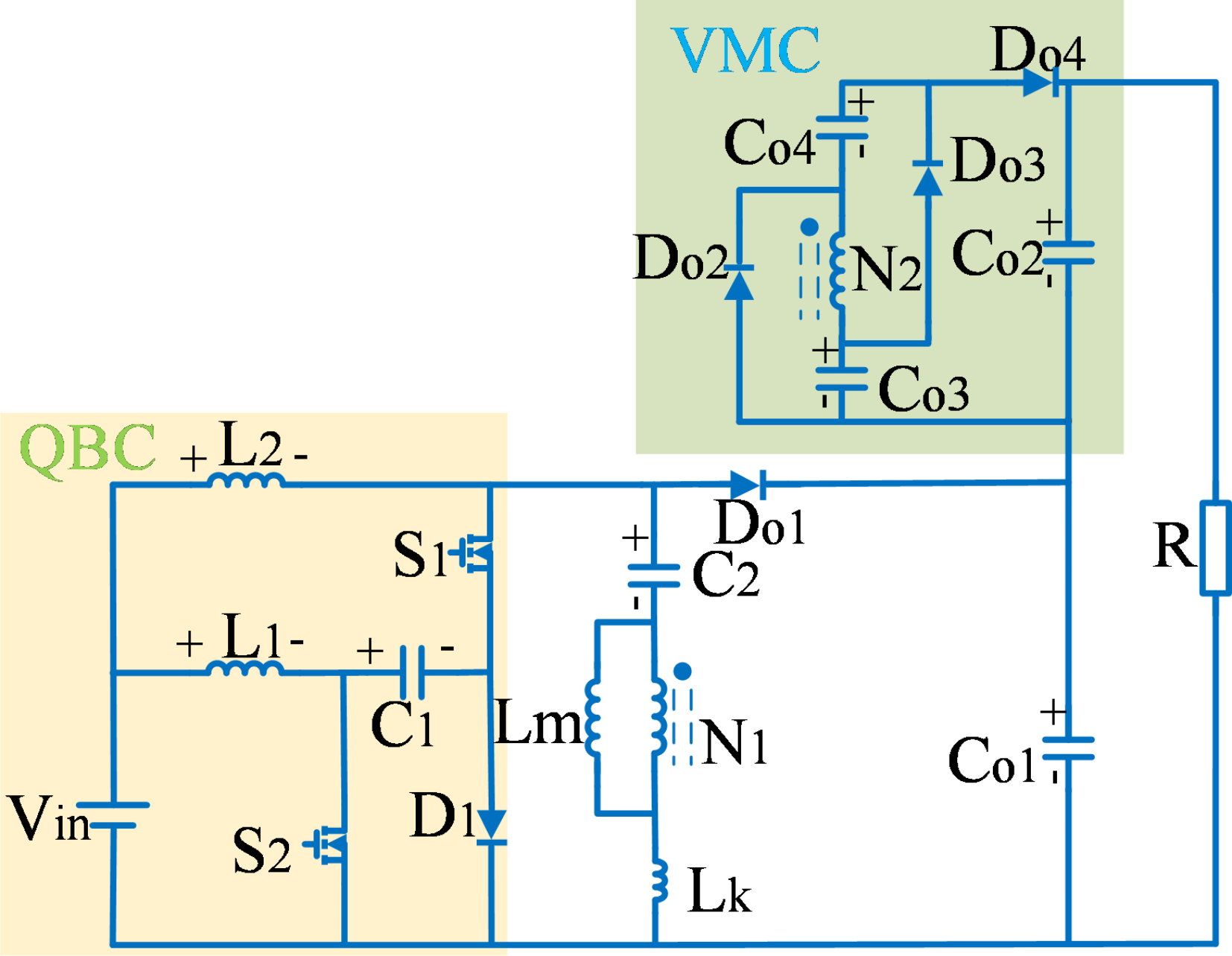

Fig. 2

Structure of the proposed converter. Structure of the proposed converter. (The proposed converter consists of a quadratic boost unit in the front stage and a VMC in the back stage. There are two inductors, six capacitors, five diodes, and two switches).
