From: Quantum annealing for nearest neighbour compliance problem

Fig. 2

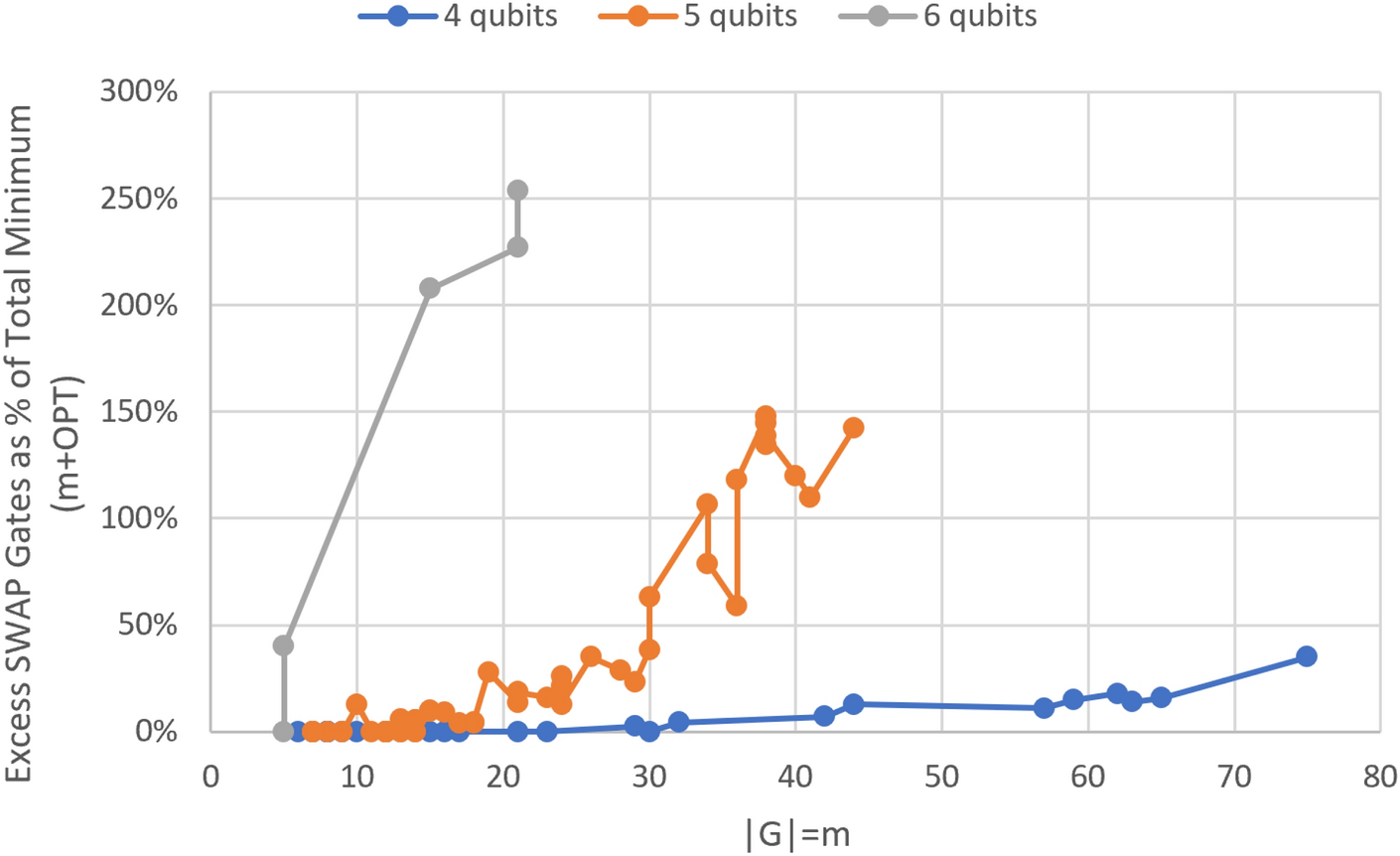

For circuit instances with 4,5, and 6 qubits respectively, the y-axis plots the difference between the solution’s objective value obtained by our method and the optimal objective value (\(SWAPSQ-OPT\)), as a percentage of the minimum number of gates to implement a given circuit instance (\(m+OPT\)), against the number of gates m in the non-compliant circuit instance on the x-axis.
