Fig. 6
From: Floods modeling and analysis for Dubai using HEC-HMS model and remote sensing using GIS

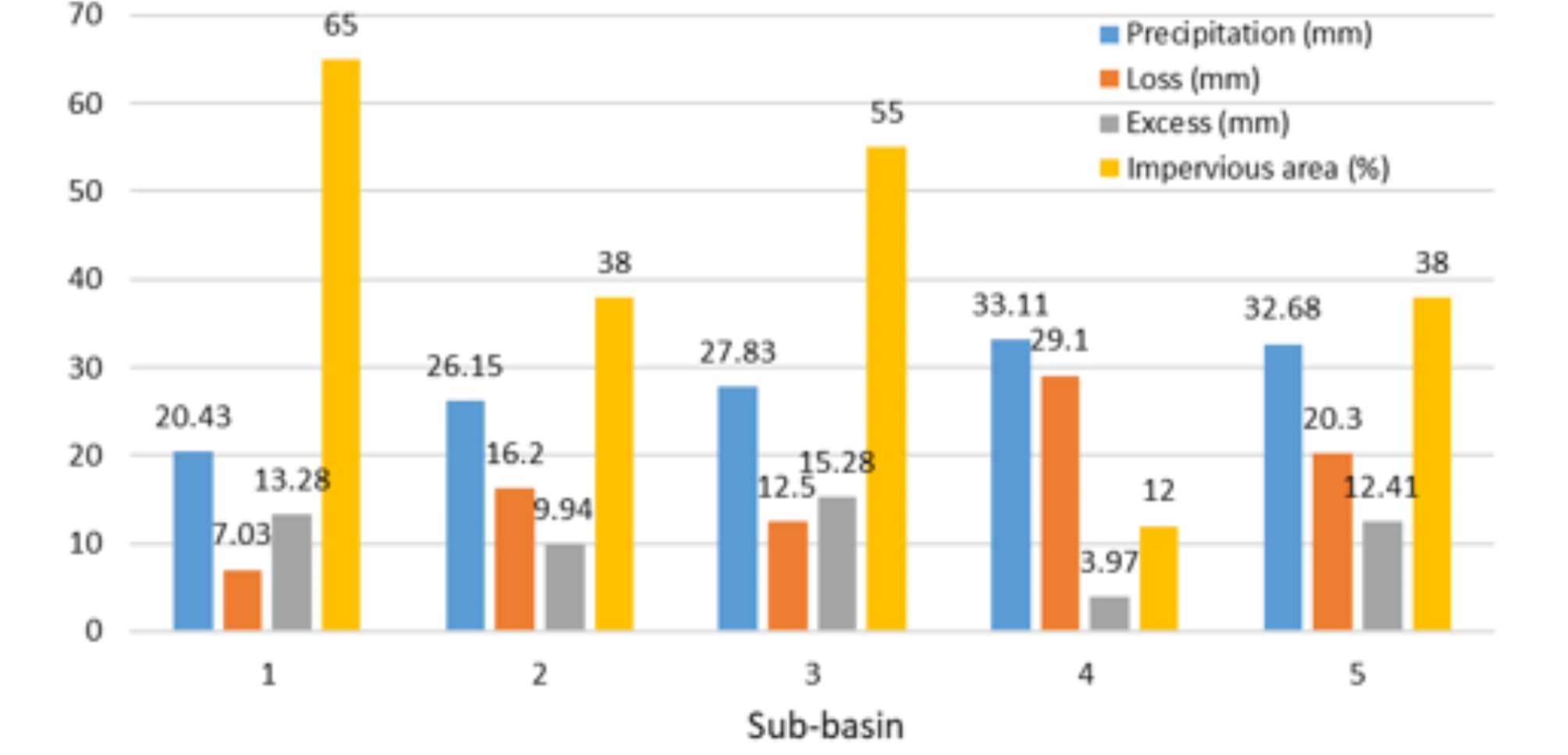

Graphs represent the values of precipitation, loss (evaporation, percolation and interception), and excess. These values were calculated using the HEC-HMS model for each subbasin of the Emirate of Dubai during March 2016 flood event.
