Fig. 6 | Scientific Reports

Fig. 6

From: Subterranean fauna associated with mesovoid shallow substratum in canga formations from southeastern Brazil: invertebrate biodiversity of a highly threatened ecosystem

Fig. 6

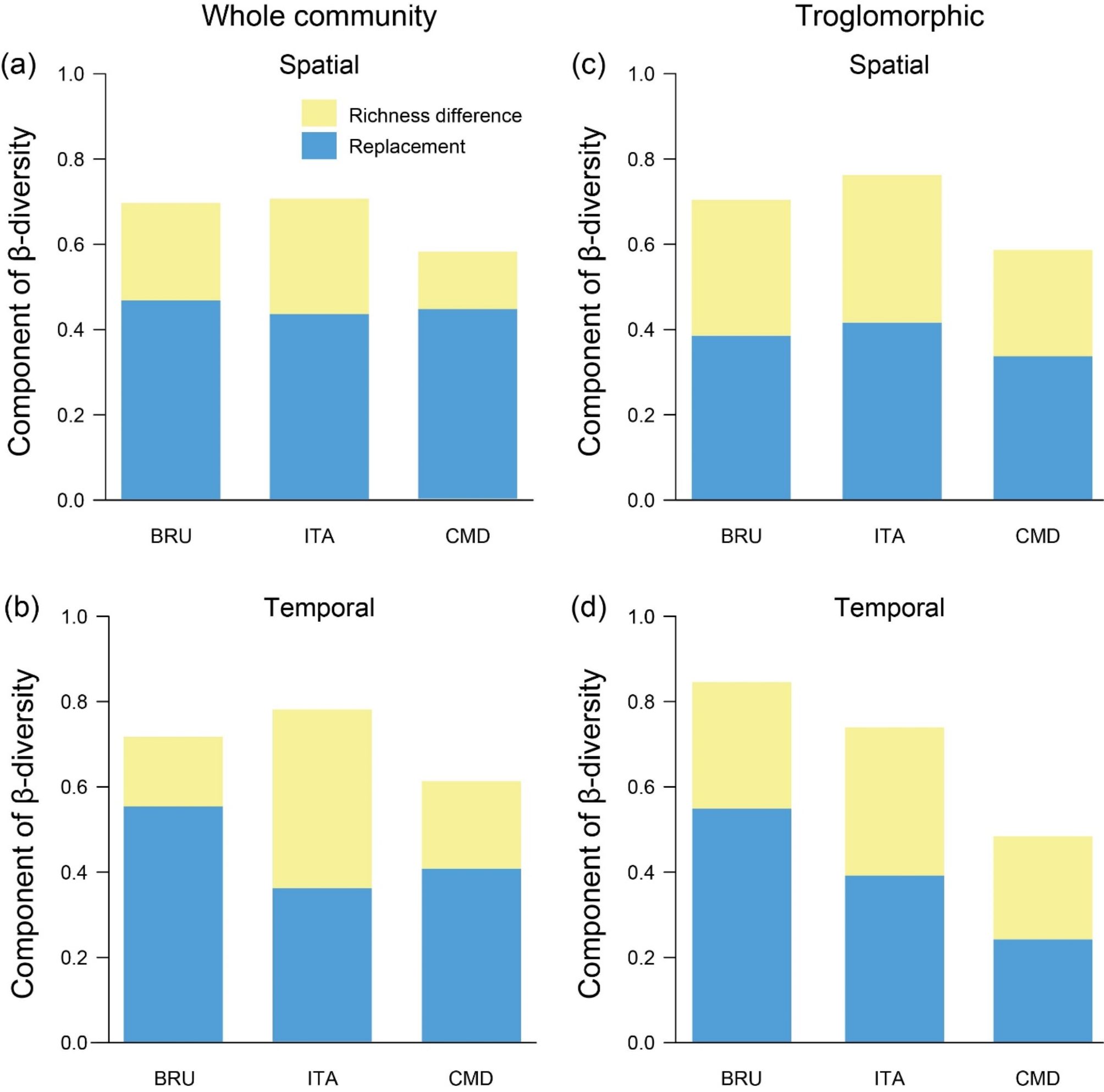

Partition of β-diversity (Sorensen dissimilarity) of whole community (left panels) and troglobiotic organisms (right panels) sampled in the canga MSS into their replacement and richness difference components for Brumadinho (BRU), Itabirito (ITA), and Conceição do Mato Dentro (CMD). Upper panels: spatial β-diversity (between sampling sites); lower panels: temporal β-diversity (between sampling campaigns).
