Fig. 3
From: Integrating holotomography and deep learning for rapid detection of NPM1 mutations in AML

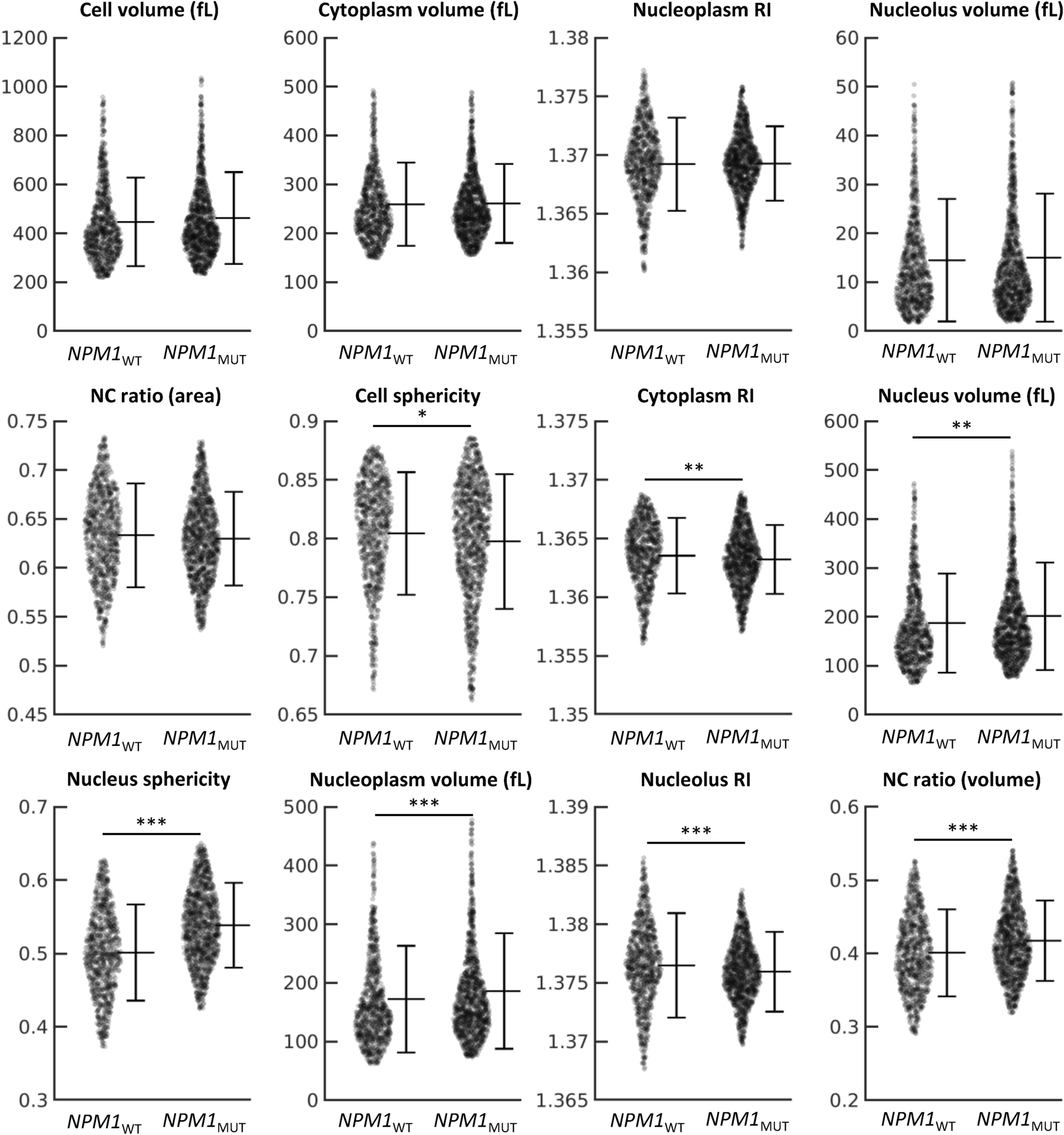

Statistical comparison of myeloblast properties obtained from holotomography (HT) of individual myeloblasts. Each data point represents an individual myeloblast HT image. The average ± standard deviation is displayed on the right of each swarm chart. Data points beyond the 95% confidence interval are not shown to visualize the typical value range better. *, **, and *** denote P < 0.01, P < 0.001, and P < 0.0001 in the Mann–Whitney U test. The absence of any asterisk indicates no significance.
