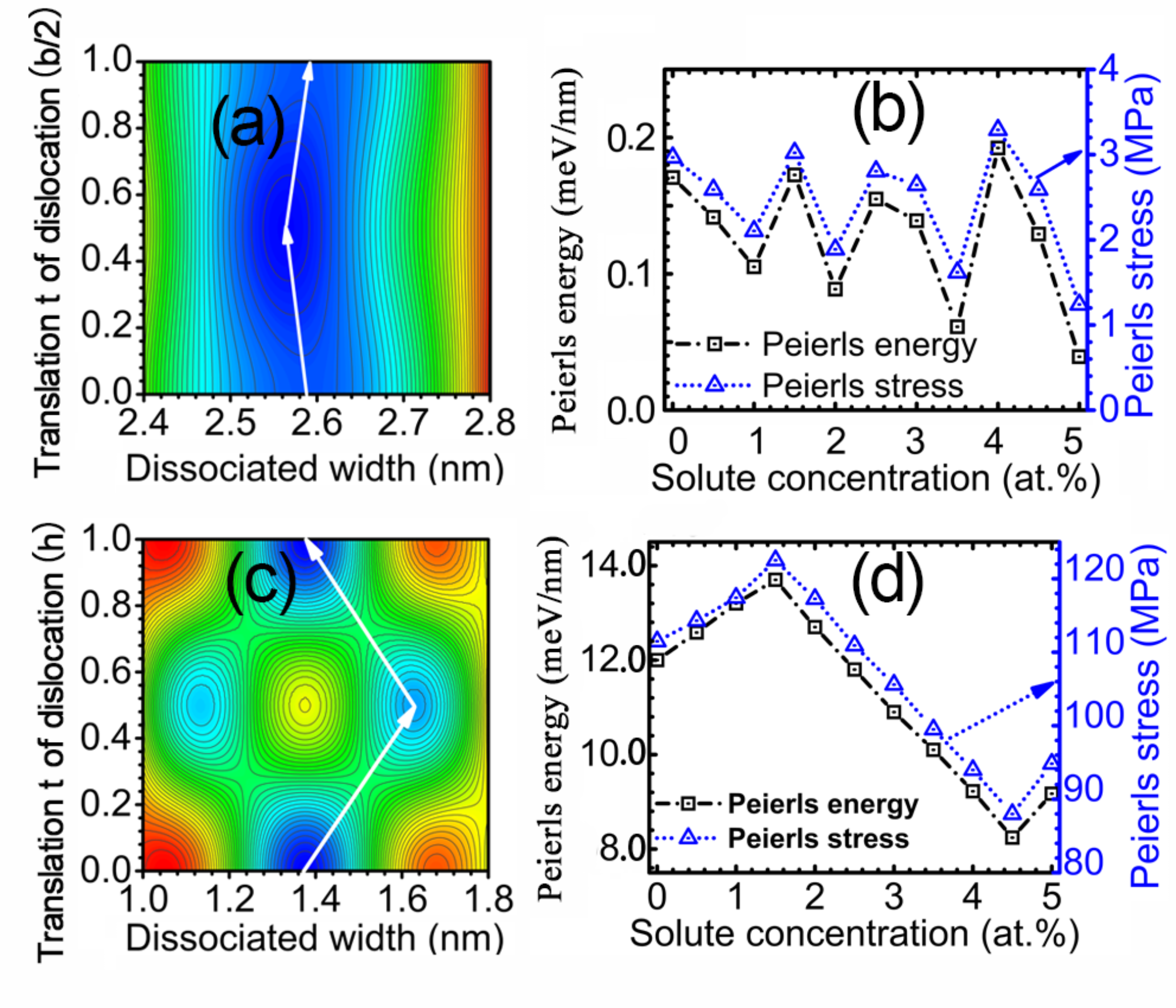

Fig. 8

The 2D contour of DLE in Mg–1.5 at% Y alloy and Peierls energy and stress as a function of solute concentration for edge (a, b) and screw (c, d) dislocations under uniform distributed solute atoms of Y. The reaction paths of dislocations are indicated by white arrows.
