Introduction

Photodynamic therapy (PDT) is an innovative medical treatment that integrates the use of light with a photosensitizing agent to selectively target and destroy cancer cells or other abnormal tissues. The process entails the administration of a photosensitizer, which selectively accumulates in the target area. Upon activation by specific wavelengths of light, the photosensitizer generates reactive oxygen species, leading to cellular damage and subsequent destruction of the target tissue1,2. PDT has gained significant attention due to its minimally invasive nature and potential for localized treatment. It has shown promising results in various cancer types, such as skin, lung, and esophageal cancers, as well as in treating certain non-cancerous conditions. This therapeutic approach offers several advantages, including reduced side effects and the ability to repeat treatments. PDT continues to evolve as a valuable treatment modality, offering a unique option in the oncology field2,3,4,5.

Nanotechnology has revolutionized the field of cancer treatment, particularly in photodynamic therapy (PDT), by enhancing the effectiveness and specificity of the treatment. More effective and selective treatment is obtained by tailoring the optical and antibacterial properties of nanostructures, leading to the use of nanotechnology in new ways in optoelectronics and medicine6,7,8. The application of nanotechnology in PDT offers several advantages over conventional cancer therapies. Firstly, nanoparticles can be engineered to target cancer cells specifically, minimizing damage to healthy tissues. The functionalization of nanoparticles with targeting ligands enables their selective accumulation in tumor tissues, improving treatment efficacy and reducing off-target effects9. Additionally, nanoparticles can efficiently encapsulate and deliver photosensitizing agents to the tumor site, enhancing their stability and solubility. The modification and immobilization of metal oxides serve as efficient carriers for a variety of applications due to their distinctive characteristics, such as biological activity, lack of toxicity, compatibility with living organisms, stability, and absence of carcinogenic tendencies10,11,12. This targeted and controlled delivery of photosensitizers improves the therapeutic outcome of PDT13. In contrast, conventional cancer therapies often lack such targeting capabilities, leading to systemic toxicity and damage to healthy cells. The utilization of nanotechnology in PDT has demonstrated significant potential in advancing cancer treatment strategies14.

Titanium-based nanotubes (TNTs) have exhibited a prominent role in advanced photodynamic therapy (PDT). These nanomaterials possess unique properties, including high surface area, customizable dimensions, and excellent biocompatibility, making them well-suited for drug delivery and therapeutic applications2. In PDT, TNTs can serve as photosensitizers alone or as carriers for photosensitizing agents (nanoparticles loaded with photosensitizers). The high surface area of TNTs enables a larger loading capacity, facilitating the efficient delivery of photosensitizers to the tumor site. Furthermore, TNTs can be functionalized with targeting ligands, enhancing their selective uptake by cancer cells, thereby improving treatment specificity and minimizing damage to healthy tissues15,16.

H2Ti3O7 nanotubes (NTs) typically have a higher surface area compared to TiO2 nanotubes, which can lead to improved catalytic activity and reactivity. also, it leads to enhanced photocatalytic properties and superior photocatalytic properties of H2Ti3O7 NTs compared to TiO2 NTs, which makes them more effective in processes like cancer treatment, water purification, and pollutant degradation. H2Ti3O7 NTs can facilitate better charge separation and migration of photoinduced charge carriers, leading to enhanced electron-hole pair utilization in photocatalytic reactions. Also, H2Ti3O7 NTs offer the possibility of tuning their properties through doping, surface modifications, or varying synthesis conditions, providing flexibility for specific applications and all the mentioned advantages of H2Ti3O7 nanotubes over TiO2 nanotubes make them promising candidates for various applications in areas like non-invasive cancer treatment, environmental remediation, energy conversion, and sensor technology. Jiménez et al. have synthesized and engineered novel and cost-effective photo-responsive folate-conjugated titania and alumina nanotubes, showcasing responsiveness in the visible light spectrum17. Their results demonstrated that the nanocomposites exhibit photodynamic activity under visible light irradiation, whereas the folate-free nanotubes show a negligible photo-response under identical conditions. Furthermore, utilizing the same formulation, the photodynamic efficacy of folate-conjugated materials as inhibitors of cell proliferation has been demonstrated after 1 h of visible light irradiation (at 450 nm, 100 Wm− 2) in 4 mg/mL solid suspensions. Zhang et al. have produced four different types of titanium oxide nanofibers (NFs) to treat Hela cells using UV light, and the NFs especially mixed-phased NFs have shown significant lethal for killing HeLa cells and high PDT efficiencies achieved using the photosensitizers18. The enhanced photodynamic therapy (PDT) efficiency of the mixed-phase nanofibers in treating Hela cells can be attributed to the alignment of bandgap edges and the stable interface between TiO2(B) and anatase phases within a single nanofiber. This configuration inhibits the recombination of photogenerated electrons and holes, leading to facilitating charge separation and increasing the production of reactive oxygen species (ROS). Moreover, Moosavi et al. have prepared N-doped titania nanoparticles and used them to treat Leukemia K562 cells under visible light19. They demonstrated the direct dependence of treatment efficiency on nanoparticle concentration and visible light doses. Maher et al. has reported that the interaction of laser light with H2Ti3O7 NTs (with a mean crystallite size of 16.0 nm) in the vicinity of lung and prostate cancer and the effects of various concentrations of bare H2Ti3O7 NTs at different incubation times, laser fluence, and laser wavelength to estimate the effectiveness of the photodynamic therapy by the NTs5. Treating lung and prostate cancers (A549 cells and LNCap cells) was the main goal of the paper and their results indicated that H2Ti3O7 NTs can be a promising candidate for treating lung and prostate cancers.

Gold nanoparticles (Au NPs) coated on metal oxide nanoparticles like titania nanotubes (TiO2 NTs) have emerged as a promising combination to obtain synergic effects of photodynamic (PDT) and photothermal (PTT) therapy in cancer treatment. The integration of Au NPs with TiO2 nanotubes offers synergistic benefits for enhanced PDT. Au NPs possess unique plasmonic properties, such as localized surface plasmon resonance (LSPR), which can enhance the generation of reactive oxygen species (ROS) during PDT20. The coating of Au NPs onto TiO2 NTs provides dual functionality, TiO2 acting as a carrier for photosensitizers and Au NPs acting as enhancers for ROS generation and light absorption leading to PTT. Additionally, the surface plasmon resonance of Au NPs enables improved light absorption and energy transfer to the surrounding photosensitizers, resulting in enhanced therapeutic effects. Au NPs can absorb incident light and turn into powerful sources of heat and ablation of tumors21,22. Therefore, adding Au NPs to H2Ti3O7 NTs can be an excellent choice to achieve better results in non-invasive treatments. For instance, Zhu et al. found that gold nanoparticles decorated titania nanotubes exhibit enhanced antibacterial activity and a preferable effect in stopping the growth of Escherichia coli and Staphylococcus aureus even in dark conditions which was attributed to the photocatalytic memory effect23. Yang et al. have synthesized carbon-nanodot coated on TiO2 nanotubes and used them for photodynamic therapy under a laser beam at 650 nm in vitro and in vivo assays24. They found that the nanocomposite was an excellent therapeutic agent and the reason for its success was explained by them.

According to the mentioned advantages, in the paper, a novel and facile photodynamic and photothermal agent based on gold and H2Ti3O7 nanotubes (Au-H2Ti3O7 NTs) is proposed to treat prostate and lung cancers through dark and laser irradiation conditions. According to the authors’ best knowledge, no reports can be found in the scientific literature on the investigation of the nanostructure in non-invasive cancer treatment until now. The results declare the success of these nanoparticles in non-invasive cancer treatment, especially prostate cancer (LNCap cells), and introduce it as a worthy candidate for the treatment.

Material and method

Synthesis and characterization of Au-H2Ti3O7 NTs

In the first step, H2Ti3O7 NTs were synthesized using the method reported in2 and then the co-precipitation method was employed to add Au nanoparticles and provide Au-H2Ti3O7 NTs25. The characterization of Au-H2Ti3O7 NTs was conducted through the Takram N1-541 Raman spectrometer and Shimadzu 8400 S Fourier transform infrared (FTIR) spectrometer to explore the structure and vibration modes of Au- H2Ti3O7 NTs. The crystalline structure of Au-H2Ti3O7 NTs was investigated by X-ray diffraction (XRD), ADVANCE-D8 model, with Cuka radiation source (λ = 1.5406 Å) using silicon as a standard reference material. Also, morphology and elemental compositions of the nanostructure were determined by Field emission scanning electron microscopy (FESEM), and dispersive X-ray analysis (EDX) using the TESCAN model MIRA3 microscope. Transmission electron microscopy (TEM) was done by transmission electron microscope of PHILIPS EM 208. Optical properties of Au-H2Ti3O7 NTs were investigated using an ultraviolet-visible-infrared (UV-Vis-IR) spectrometer, Shimadzu UV-165 PC double-beam spectrophotometer, and diffuse reflectance spectroscopy (DRS), Avaspec-2048-TEC device. The zeta potential, hydrodynamic particle size, and suspension stability were measured using Malvern Zetasizer Nano ZS (London, UK). Differential scanning calorimetry (DSC), thermogravimetric analysis (TGA), and differential thermal analysis (DTA) were done on the Au-H2Ti3O7 NTs using LINSEIS 70/2171 device to investigate the thermal stability of the sample.

Cell culture of prostate cancer (LNCap) and lung cancer (A549)

The frozen vials contained prostate, lung, and Vero cell lines acquired from the tissue culture laboratory at the College of Medicine, University of Babylon, and the growth was maintained in a 25 ml culture flask with a complete growth medium containing 10% FBS and antibiotics, and incubated at 37˚C. Crystal violet assay as a useful method was applied to measure the cytotoxic effect of photo biomodulation using Au-H2Ti3O7 NTs on different cell lines in dark conditions and under laser irradiation. The three types of cell lines including normal (Vero) cells, lung (A549), and prostate (LNCap) cancer cells were seeded in 96-well plates with 5 × 105 cells/well of density and incubated at 37 °C for 24 h. Then, cells including normal and cancer cells (lung and prostate cells) were treated with different concentrations of Au-H2Ti3O7 NTs (15.6–500 µg/ml). After each experiment, the medium was discarded and the cells were washed with 100 µL of cold PBS, then 100 µL of 0.5% crystal violet staining solution was added to each well. After an incubation time of 20 min at room temperature, the plate was washed three times with tap water. Afterward, the cytotoxicity was measured according to reference2,26,27 for each well with a microtiter plate reader at the optical wavelength of 570 nm.

Laser irradiation of cells incubated with Au-H2Ti3O7 NTs

Laser irradiation was applied to incubated Au-H2Ti3O7 NTs to investigate the cytotoxic effect of photo-biomodulation on different cells. The three types of cell lines including normal (Vero) cells, lung (A549), and prostate (LNCap) cancer cells were seeded in 96-well plates with 5 × 105 cells/well of density and incubated at 37 °C for 24 h. Cells were treated with different concentrations of Au- H2Ti3O7 NTs (15.6–500 µg/ml) on normal and cancer cells (lung and prostate cells) under laser irradiations at different fluence and wavelengths (near IR at λ = 808 nm, red laser at λ = 635 nm, and green laser at λ = 532 nm). The laser was positioned vertically above each well at a distance of 10 cm from the bottom of the plate28. The energy density (fluence) (J/cm2) was calculated by multiplying the exposure time (s) by the laser power density W/cm2. After each experiment, the medium was discarded and cells were washed with 100 µL of cold PBS and then 100 µL of 0.5% crystal violet staining solution was added to each well. After an incubation time of 20 min at room temperature, the plate was washed three times with tap water. Afterward, the cytotoxicity was measured according to reference26,27 for each well with a microtiter plate reader at the optical wavelength of 570 nm.

Results and discussion

Chemical structure and vibration modes

To inform about the chemical structure and vibration modes of the nanostructures, Fourier-transform infrared (FTIR) spectroscopy was carried out and the spectrum of the sample is displayed in Fig. 1a in the range of 400–4000 cm-1. Five absorption peaks located at wavenumbers 445, 690, 912, 1637, and 3454 cm-1 can be seen in the spectrum. The absorption peak centered at 445 and 690 cm− 1 are attributed to the stretching vibrations of Ti–O–Ti bonds29 and the peak at 960 cm-1 is due to the presence of Ti–O bond in the sample30 which demonstrates the formation of titanium oxide molecules in the sample. The sharp and intense peak at 1636 cm− 1 and broad absorption peak in the range of 2900–3700 cm− 1 are related to the molecular water bending mode of water Ti-OH and stretching vibration of –OH from absorbed water, respectively31,32. This FTIR absorption peak related to Ti-OH vibration declares the formation of hydrated titanium oxides in the sample.

To find more information about the bonds created in the hydrated titanium oxide sample and confirm the FTIR results, Raman spectroscopy was applied to the sample, and the Raman spectrum is shown in Fig. 1b. Several peaks can be observed in the Raman spectrum of the sample. To obtain precise information about the chemical bonds of the sample, the Raman spectrum can be deconvoluted into individual Gaussian peaks using Origin software and fitting multi-Gaussian functions to the Raman spectrum. The constitutive Gaussian functions (green solid lines) are also plotted in Fig. 1b, and the center of each Gaussian peak is mentioned at the top of the peak. The Raman spectrum of the sample has several major (175.6, 442.8, and 733.0 cm-1) and minor (109.4, 513.7, 559.0, 827.8, and 827.8 cm-1) peaks related to 2Eg (276), Eg (443 cm-1), A1g (559), 2B1g(733 cm-1), and 2B1g + Eg (912 cm-1) of site symmetries of the Ti and O which interpreted by using the group theory33,34.

The conjugating gold to H2Ti3O7 NTs changes the bond energy, leading to a difference in the Raman shift of the peaks in Fig. 1b compared to H2Ti3O7 NTs in reference2. However, there is no evidence of gold in the FTIR or Raman spectra which is due to no molecular bond related to gold atoms. So, FTIR and Raman spectroscopies cannot confirm the existence of gold in the samples and other analyses should prove it. In addition, the intensity and full width at half maximum (FWHM) of the constituent Gaussian components are a measure of the crystalline properties, and higher crystallinity causes higher intensity and lower FWHM of the peaks. Therefore, a comparison of the Raman spectra of the samples with the H2Ti3O7 NTs in reference2 reveals the formation of partly the same structure. Furthermore, the obtained intensity of the Raman peaks for the current sample is lower than the structure in2 due to the existence of gold atoms in the structure, and less crystalline order of hydrated titanium oxides in the current structure. In addition, the pertly small difference between the Raman peak shift of the constituent components obtained for the current sample compared to the H2Ti3O7 NTs occurs due to the different chemical bond lengths of these two types of molecules which can happen due to various reasons such as the existence of gold molecules in the structures, different nanoparticle size, crystalline phase and size of the nanoparticles.

Fig. 1
figure 1

(a) Fourier-transform infrared (FTIR) and (b) Raman spectra of the Au-hydrated titanium oxides.

Full size image

Crystallinity

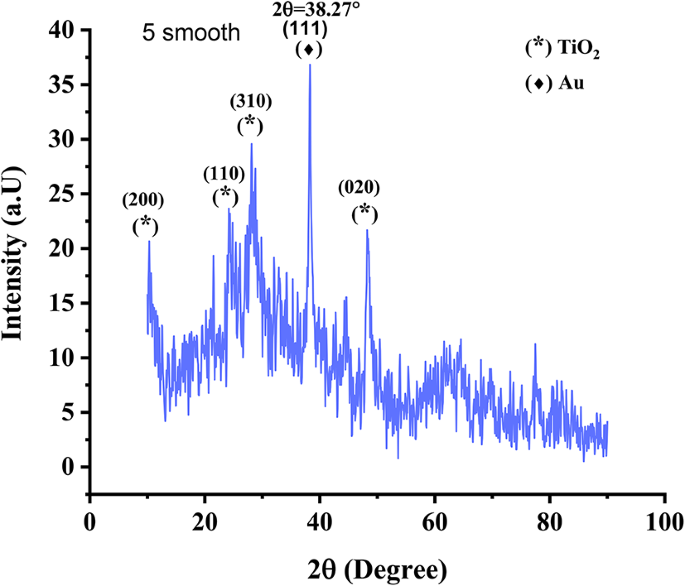

The XRD pattern of the sample is depicted in Fig. 2. The pattern was analyzed by X’Pert High Score Plus software and it was compatible with the standard card 00-041-0192. It is demonstrated that the diffraction peaks labeled by stars, *, are associated with monoclinic hydrogen titanium oxide, H2Ti3O7, with the lattice parameters of a = 15.990 Å, b = 3.738 Å, c = 9.172 Å which is consistent with the results of previous analysis (chemical structure and vibration modes studies). Also, according to the standard card 96-901-1613, a sharp peak labeled by diamond at 2θ = 38.27° is related to the cubic phase of Au with the lattice parameters of a = b = c = 4.0650 Å and space group of F m -3 m which verify the existence of Au and its crystalline nature in the sample.

Fig. 2
figure 2

X-ray diffraction pattern of Au-H2Ti3O7.

Full size image

Furthermore, to estimate the mean crystallite size of the sample, the XRD pattern of the Au-H2Ti3O7 sample is considered using the Scherrer equation (\({d_{sh}}=k\lambda /(\beta \cos \theta )\)), where, K and λ are shape factor and X-ray radiation’s wavelength (1.5418 Å); and d, θ, and β are the mean crystallite size, the Bragg angle, and the FWHM (full width at half maximum) of the main diffraction peak, respectively35,36. The mean crystallite size of hydrogen titanium oxide ((310) plane) and Au ((111) plane) are 44.2 Å and 329.4 Å, respectively.

Also, the specific surface area (SSA) of the Au-H2Ti3O7 sample can be calculated in dense and monodispersed nanoparticles approximation by \(SSA=6/(\rho \times d)\), whereρ is the particle density of hydrogen titanium oxide and Au which are 3.19 and 19.97 gr/cm3 according to standard card 00-041-0192 and 96-901-1613 of X’Pert high score software. The calculated SSA values of hydrogen titanium oxide and Au are 42.5 m2/g and 0.92 m2/g, respectively.

Morphology

Field emission scanning electron microscopy (FESEM) images of Au-H2Ti3O7 sample with two different magnifications are shown in Fig. 3a to study the morphology of the nanostructure. The results confirm the growth of rod-like or maybe nanotube nanostructures. Furthermore, the low magnification FESEM image of the sample in the inset of Fig. 3a indicates the uniformity of the formed nanostructure. Furthermore, the average diameter of the Au-H2Ti3O7 sample, <d>, and data dispersion,\({\sigma _D}\), may be calculated using Digimizer software by fitting the following log-normal function in Origin software37,38,39:

$$y(x)={y_0}+\frac{A}{{\sqrt {2\pi } wx}}\exp \left( {\frac{{\ln {{(\frac{x}{{{x_0}}})}^2}}}{{2{w^2}}}} \right)$$
(1)
$$<d>={x_0}\exp (\frac{{{w^2}}}{2})$$
(2)
$${\sigma _D}=<d>{\left( {\exp {w^2} - 1} \right)^{\frac{1}{2}}}$$
(3)

where x denotes the diameter or other dimensional quantities of nanostructure that are desirable to measure. y is the frequency count of every size, and x0, y0, and w are also fitting parameters obtained by fitting the log-normal function to the distribution histogram of the desirable dimension of the nanostructures as mentioned in Fig. 3b. The average diameter of nanorods is 21.75± 0.28 nm, which indicates the uniformity of Au-H2Ti3O7 nanostructure.

Fig. 3
figure 3

(a) Field emission scanning electron microscopy (FESEM) images with two different magnifications, (b) The distribution histogram of nanorods diameters, and (c) energy dispersive X-ray plot (EDX) including the atomic percentages of the elements detected in the Au-H2Ti3O7 nanostructure. The fitting log-normal function to the distribution histogram of nanostructure diameters is shown with a solid red line in the histogram plot.

Full size image

For further investigation, transmission electron microscopy (TEM) analysis was done on the sample, and high and low magnifications TEM images are shown in Fig. 4a,b. The results declare that Au-H2Ti3O7 NTs were grown. The distribution histogram of shell thickness and the outer diameter of the Au-H2Ti3O7NTs and log-normal functions fitted to data are presented in Fig. 4c,d. The calculated average shell thickness and the outer diameter of the nanotubes are equal to 2.24±0.03 nm and 7.10±0.12 nm, respectively. Furthermore, data dispersion percentages of nanotube shell thickness and the outer diameter are 1.25% and 1.72%, respectively, which confirm the good quality of the nanostructure used in the research. As you can observe, the estimated average of outer diameters obtained using FESEM and TEM images are different, which is due to the lower accuracy of FESEM analysis compared to TEM analysis and the inability of FESEM in identifying and distinguishing the Au-H2Ti3O7 nanotubes.

Fig. 4
figure 4

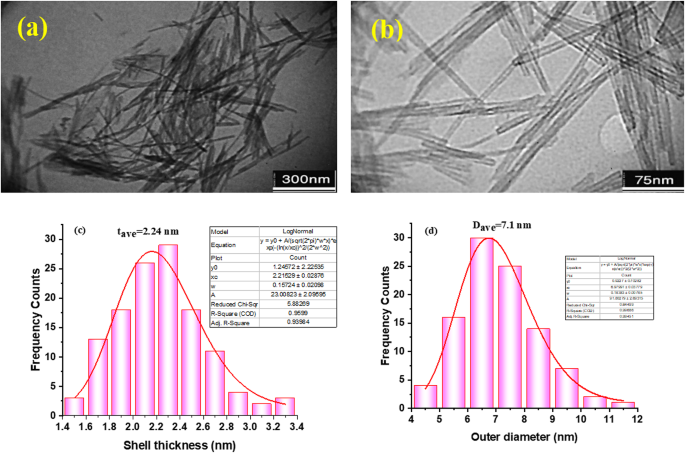

(a and b) Transmission electron microscopy (TEM) plots of Au- H2Ti3O7 nanotubes in two different magnifications, the distribution histogram of (c) shell thickness and (d) outer diameter of Au- H2Ti3O7 nanotubes with fitted log-normal functions.

Full size image

EDX analysis was done on Au-H2Ti3O7 nanotubes to investigate its chemical elements and the result is shown in Fig. 3c. The result confirms the existence of Ti, O, and Au in the sample with atomic percentages of 20.87%, 79.12%, and 0.01%, respectively, with no undesirable elements in the sample meaning the purity of the Au-H2Ti3O7 nanotubes.

Optical properties

The absorption and reflection spectra of Au-H2Ti3O7 nanotubes are the most important optical quantities, especially in phenomena related to the interactions of light with nanostructure, such as cancer treatment with photothermal and/or photodynamic therapies or even wastewater treatment by photodegradation of dyes or else40. Diffuse reflectance spectroscopy (DRS) and UV-Vis-NIR spectroscopy are also two common methods for studying the optical properties of nanostructures that were carried out to investigate the optical properties of Au-H2Ti3O7 NTs and the results are depicted in Fig. 5a,b, respectively. According to Fig. 5a, the absorption of Au-H2Ti3O7 NTs contains two peaks centered at 249 and 435 nm, and the first one is more intense. The first absorption peak is related to the absorption of H2Ti3O7 nanotubes and the second is due to the LSPR phenomenon occurring in gold nanoparticles. The lower absorption peak at 435 nm compared to 249 nm can be understood by the lower value of gold in the Au-H2Ti3O7 NTs compared to H2Ti3O7 which was demonstrated by the EDX analysis results (0.01% of Au and 79.12% of Ti in the sample).

Also, the sample reflectance in Fig. 5b shows that the reflectance of the Au-H2Ti3O7 NTs in the visible region is about 80%. In addition, significant low reflections are observed around the wavelengths of 200 nm (R∼40%) and 1.02 microns (R∼65%) which are mentioned in the inset of Fig. 5b. The Kubelka-Munk function, \(F(R)\), is proportional to the absorption coefficient, α, and the function can be calculated using equation \(F(R)=(1 - {R^2})/(2R)\)41,42, where R is the reflection coefficient of the Au-H2Ti3O7 NTs. The Kubelka-Munk function versus photon energy is plotted in the inset of Fig. 5b and it reveals that most absorptions occur at high energies and in the ultraviolet region.

Fig. 5
figure 5

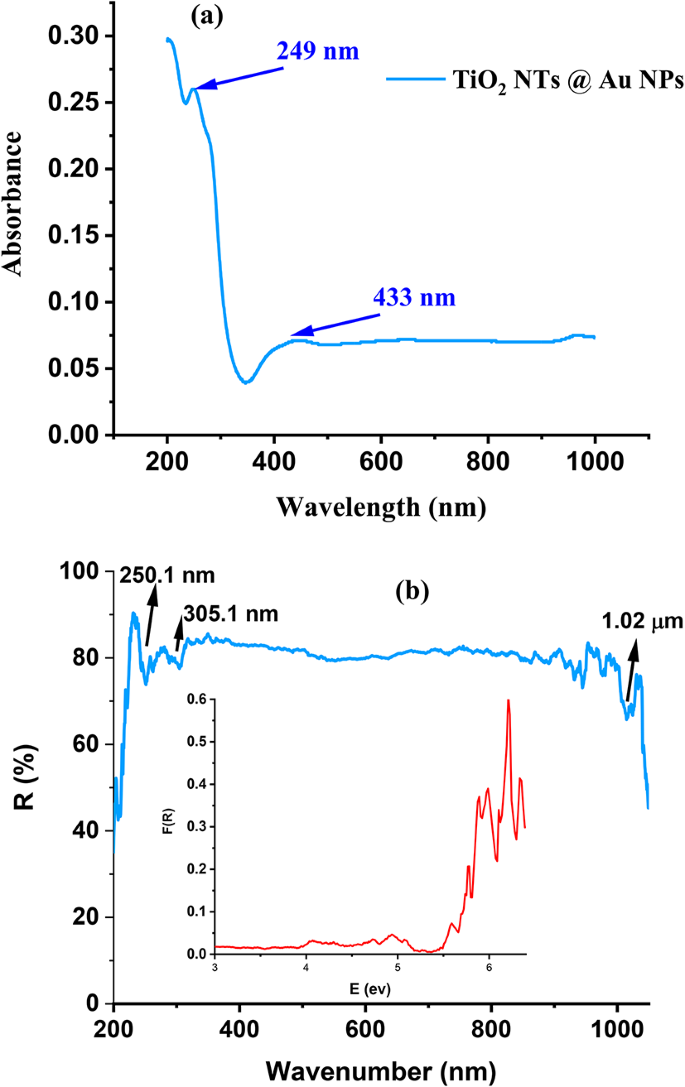

(a) Absorption and (b) reflection spectra of the Au-H2Ti3O7 NTs using UV-Vis-NIR and DRS spectroscopy data, respectively. The Kubelka-Munk function versus photon energy is plotted in the inset of (b) with a solid red line.

Full size image

Also, the Tauc method using the equation (\({(\alpha E)^m}=B(E - {E_g})\)) is usually used to calculate the bandgap energy35,43 of the nanopowders and it can be applied to DRS or UV-Vis-NIR spectroscopy data to obtain the direct and indirect energy gap of the Au-H2Ti3O7 NTs. Here, E and Eg are photon energy and bandgap energy of the Au-H2Ti3O7 NTs, respectively, B is a constant, m is 2 and ½ for calculating the direct and indirect energy bandgaps, respectively, and α is the absorption of the Au-H2Ti3O7 NTs. Also, the calculated Kubelka-Munk function using DRS data can be used instead of absorption in the mentioned equation. The (αhυ)2 and (αhυ)1/2 versus photon energy are plotted in Fig. 6a,b using UV-Vis-NIR and DRS data and then the straight lines are fitted to each Tuac plot to determine the direct and indirect bandgap energies of Au-H2Ti3O7 NTs. According to the obtained results from both methods, the Au-H2Ti3O7 NTs is an indirect semiconductor with a bandgap energy in the range of 3.37 eV (Fig. 6a) to 3.75 eV (Fig. 6b). The calculated direct and indirect energy gaps using these two spectroscopies’ data are slightly different due to different measurement methods, and also experimental and computational errors.

Fig. 6
figure 6

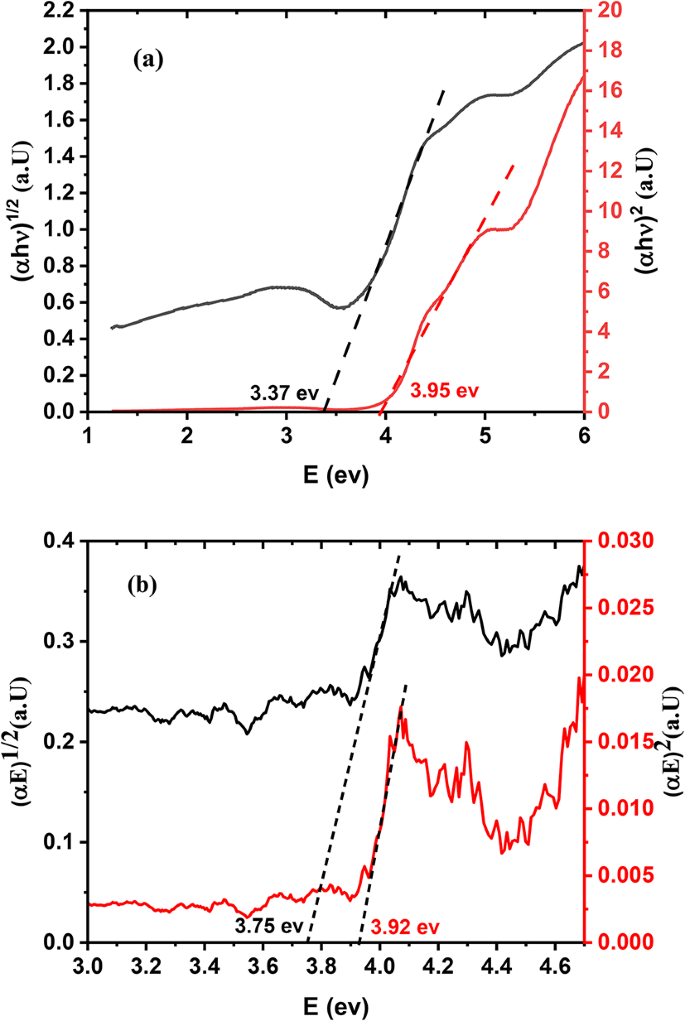

Tauc plot of Au-H2Ti3O7 NTs by using (a) UV-Vis NIR transmittance spectroscopy data and (b) diffuse reflectance spectroscopy (DRS) data to calculate direct and indirect energy gaps. The linear solid lines are fitted to the linear parts of the Tauc plots.

Full size image

Stability of nanoparticles in suspension

Zeta potential analysis, which investigates electrokinetic potential in colloidal systems or colloid-electrolyte interactions, is a significant characterization technique used to estimate the surface charge of nanoparticles. It can provide some vital information about the physical stability of nanosuspensions. Zeta potential values are typically in the range of − 100 mV to + 100 mV44 and a large positive (more than + 30 mV) or negative (less than − 30 mV) value of nanoparticles zeta potential meaning good physical stability of nanosuspensions due to sufficient electrostatic repulsion of individual particles45. Furthermore, particle aggregation, flocculation, and physical colloidal instability can occur due to insufficient repulsive electrokinetic force (in the range of − 30 mV to 30 mV) to overcome Van der Waals as an attractive force at zeta potentials. It should be noted that the potential zeta interval − 30 to + 30 is not a definite interval for the instability of nanoparticles and in many scientific literatures the potential zeta less than − 25 mV or more than + 25 mV was declared as a high degree of stability44,46.

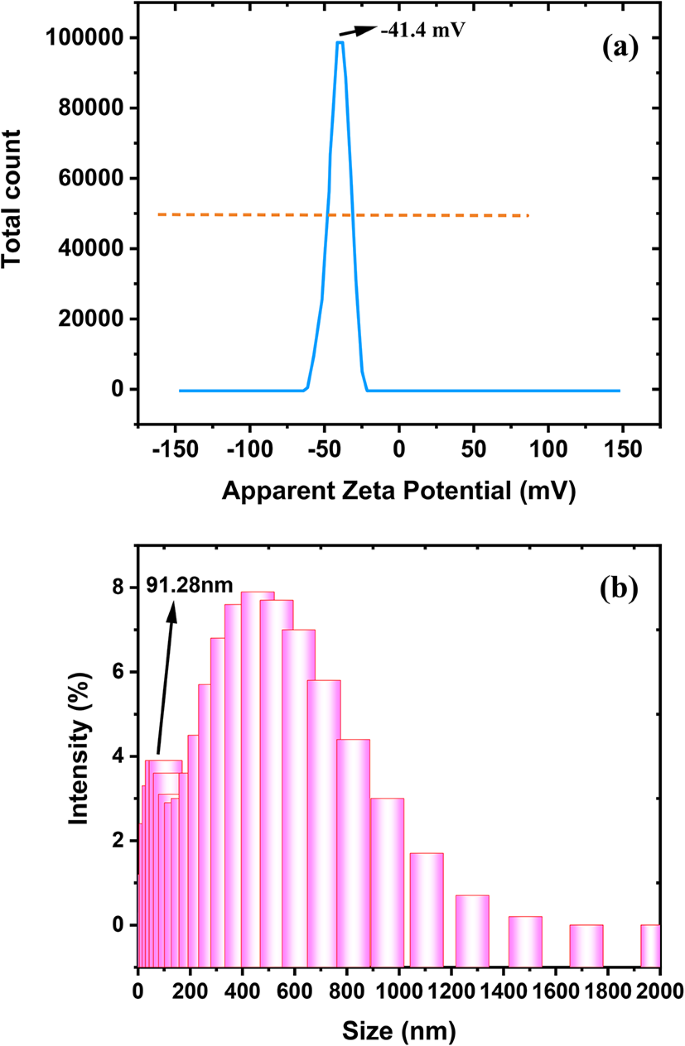

Zeta potential analysis was done on the Au-H2Ti3O7 NTs, and the result is presented in Fig. 7a. As you can observe, the zeta potential of the Au-H2Ti3O7 NTs is in the range of − 64 mV to − 22 mV with a maximum total count at -41.4 mV. To further investigate, the full width at half maximum (FWHM) of the zeta potential diagram obtained for the NTs is plotted in Fig. 7a and the result declares that most nanoparticles have a zeta potential in the range of -49 mV to -32 mV. Therefore, such high values of zeta potential guarantee high colloidal stability of nanoparticle suspension and strong electrostatic repulsive forces between Au-H2Ti3O7 NTs.

Fig. 7
figure 7

(a) Zeta potential and (b) the size distribution diagram of Au-H2Ti3O7 NTs dispersed in deionized water and measured by dynamic light scattering (DLS).

Full size image

Dynamic light scattering (DLS) is a commonly used method to determine the particle size of dispersed nanoparticles in liquid that has some advantages over other methods like microscopy including the possibility of in situ size determination of secondary nanoparticles in the suspension47. So, the DLS method was used to investigate the size of dispersed Au-H2Ti3O7 NTs in deionized water at room temperature, and the result is presented in Fig. 7b. The size distribution diagram of Au-H2Ti3O7 NTs has two peaks located at size values of 91.28 nm and 459.0 nm related to the passage of light in a direction close to the diameter and height of Au-H2Ti3O7 NTs, respectively.

The differences between the average sizes of nanostructures obtained using SEM and the DLS analyses are attributed to their related concepts, principles, and inherent limitations and characteristics. DLS measures the hydrodynamic diameters of nanoparticles in solution which undergo random Brownian motion, and measures the fluctuations in scattered light due to this motion to determine the size distribution. Also, it measures the size of nanoparticles along with the thickness of the solvent or hydration layer around the nanoparticles which causes increasing the measured size compared to the SEM size of the nanoparticles. Furthermore, aggregation of nanoparticles can affect the DLS size leading to larger apparent sizes compared to SEM size of nanoparticles. On the other hand, SEM analysis provides high-resolution imaging of nanoparticles on a solid substrate, meaning measures a direct visualization of the physical size and morphology of individual nanoparticles and provides the physical dimensions of the nanoparticles on the substrate, without considering any solvent or hydration layer around the particles or aggregation. Therefore, the hydrodynamic size of nanoparticles measured by DLS is usually different from SEM sizes of nanoparticles, and it is related to the stability of nanoparticles in liquid, providing valuable information for the nanostructure applications in liquid. Therefore, the mentioned hydrodynamic size of nanoparticles is important for cancer treatment and drug delivery.

The results of zeta potential and DLS analyses suggest that Au-H2Ti3O7 NTs can be a suitable candidate for further investigation in cancer treatment. However, the thermal stability of these nanoparticles should also be investigated, which will be discussed in the next subsection.

Thermal stability

Thermogravimetric analysis (TGA) is a less expensive, fast, and easy analysis to investigate the change in the physical and chemical properties of the nanostructures or to determine the thermal stability. So, the analysis was performed on Au-H2Ti3O7 NTs in an air atmosphere with a heating rate of 10.4 ºC/min, and the results are presented in Fig. 8 with a black solid line. Also, differential thermal analysis (DTA) and differential scanning calorimetry (DSC) are two pertly similar thermoanalytical techniques that measure the difference between sample and reference temperatures and record them to achieve some information about either exothermic or endothermic processes such as glass transitions, crystallization, melting and sublimation in the nanomaterial. Therefore, DTA and DSC analyses were performed on Au-H2Ti3O7 NTs and the results are shown in Fig. 8 with a red short dash line and a blue dash line, respectively. These three curves can be used together to obtain comprehensive information about the thermal behavior of Au-H2Ti3O7 NTs.

Typically, a reduction in mass is discernible across all segments of the thermogravimetric analysis (TGA) plot but the slope of the curve varies in different parts. Initially, an endothermic reaction occurs with increasing the temperature that involves the liberation of unbound water into the pores or surface of the Au-H2Ti3O7 NTs. The mass loss percentage during this process (up to 148.1 ºC) reaches − 4.7%. After that, some reactions occur and the water inside the bond is removed. This result is consistent with FTIR spectroscopy, which demonstrates the presence of free water and hydrated structure. The crystallization processes of the structure occur at temperatures of 283.1, 364.5, 541.8, 664, 768, 796, and 851 °C as exothermic processes. The exothermic peaks around 283.1, 364.5, and 541.8 °C are probably related to phase changes and the formation of anatase phases of titanium oxide nanostructures48,49,50,51. Furthermore, a distinct exothermic peak at 664 ºC is attributed to the phase transition of titanium oxide nanostructures from anatase to rutile phases52. Finally, the total mass loss present of Au-H2Ti3O7 NTs is about 14.6%, which declares that the sample has good thermal stability. Also, the thermal analysis diagram of these nanotubes is different from the H2Ti3O7 nanotubes2 and some fluctuations can be observed in the DTA signal and heat flux curves, which can be attributed to the presence of a small amount of gold in the recent Au-H2Ti3O7 NTs.

Fig. 8
figure 8

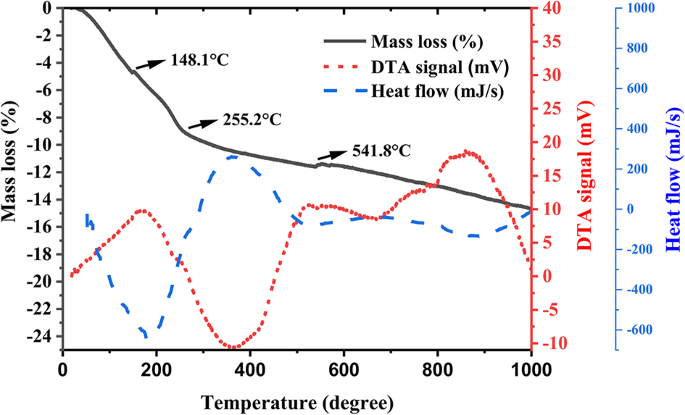

Thermogravimetric analysis (black solid line), differential thermal analysis (red short dash line), and differential scanning calorimetry (blue dash line) of Au-H2Ti3O7 NTs in an air atmosphere with a heating rate of 10.4 ºC / min.

Full size image

Cell viability

In this section, different concentrations of Au-H2Ti3O7 NTs are applied on different normal and cancer cells to investigate their side effect on normal cells and their treatment effects on lung and prostate cancer cells. Studies are divided into two main parts: the first explores the impact of Au-H2Ti3O7 nanotubes independently under dark conditions, and the second explores the combined effect of the nanotubes and the interaction of laser radiation with the nanotubes, focusing on photodynamic and photothermal therapies. Tests are also performed on Vero, A549, and LNCap upon different incubation times (24 and 48 h) at 37 °C with different lasers including NIR (808 nm), red (635 nm), and green (532 nm) lasers and the results are presented in this section.

The effect of Au-H2Ti3O7 NTs on the normal cells, lung, and prostate cancer cells (dark conditions)

The cultured Vero cells were incubated with different concentrations of Au-H2Ti3O7 NTs at 37 °C for 24 h and then the cell viability% and cytotoxicity%, which are just labeled with viability% and cytotoxicity% for simplicity, were estimated using crystal violet as follows27 and the results are presented in Fig. 9a:

$$Viability\% =\frac{{OD\mathop {}\limits^{{}} of\mathop {}\limits^{{}} test}}{{OD\mathop {}\limits^{{}} of\mathop {}\limits^{{}} control}} \times 100$$
(6)
$$Cytotoxicity\% =100\% - Viability\%$$
(7)

where \(\begin{array}{*{20}{c}} {OD}&{of}&{test} \end{array}\) and \(\begin{array}{*{20}{c}} {OD}&{of}&{control} \end{array}\)are the optical densities of the test (or treated cells) and control (untreated cells) samples, respectively.

According to the results of Fig. 9a, incubation of normal (Vero) cells with Au-H2Ti3O7 NTs has no significant effect on viability%, and viability% is about 100% even up to high concentrations of these nanotubes meaning that the threshold limit or the border concentration of NTs for significant cell death and side effects on normal cells is more than 400 µg/mL.

The same tests were done on A549, and LNCap cells using different concentrations of the Au-H2Ti3O7 NTs upon different incubation times of 24 (for A549 and LNCap cells) and 48 (for LNCap cells) hours and the results are depicted in Fig. 9b, c, respectively. Results of Fig. 9b demonstrate that low concentrations of Au-H2Ti3O7 NTs (15.6 and 32.25 µg/mL) exhibit negligible impacts on the viability of A549 cells. However, higher concentrations lead to a reduction in viability percentage, with levels reaching approximately 80% and 70% for incubations with 62.5 and 500 µg/mL of the proposed Au-H2Ti3O7 NTs at a temperature of 37 °C for 24 h. Also, results of Fig. 9c indicate that Au-H2Ti3O7 NTs have more effect on LNCap cells in dark conditions compared to A549 cells, and viability% decrease significantly even with the lowest NTs concentration (15.6 µg/mL) and incubation time of 24 h and it reaches ∼80% which previously obtained with the higher concentration of NTs (4 times larger) in the A549 cells. Also, the viability% of LNCap cells with the highest concentration of Au-H2Ti3O7 NTs (500 µg/mL) and incubation time of 24 h is 59.1%. It means that almost half of the prostate cancer cells died with the Au-H2Ti3O7 NTs without any external sources like LED light or laser light during a short incubation time (24 h). Moreover, increasing the incubation time to 48 h leads to a severe drop in viability% at all concentrations, so the viability% of the cells using the lowest and higher concentrations of NTs are 42% and less than 22%, respectively, meaning the NTs presented an IC50 value of less than 15.6 µg/mL in LNCap cells for this treatment conditions.

value of about 500 µg/mL. The viability % of LNCap cells reaches 16% for the highest concentration of NTs (500 µg/mL), which means the death of almost all prostate cancer cells in dark conditions using Au-H2Ti3O7 NTs and incubation time of 48 h. These interesting results were not obtained with the previously proposed NTs (bare H2Ti3O7 NTs) on these two cancer cells2.

Fig. 9
figure 9

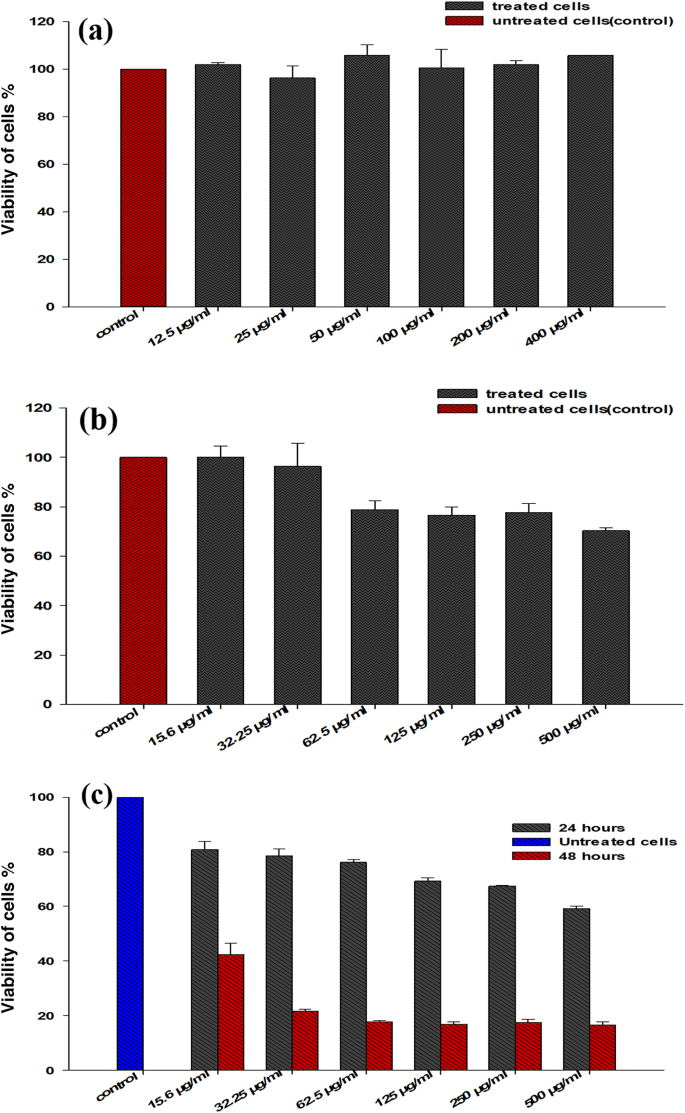

Effect of Au-H2Ti3O7 NTs on (a) normal cells (Vero cells) with incubation time of 24 h, (b) lung cancer cells (A549 cells) with incubation time of 24 h, and (c) prostate cancer cells (LNCap cells) upon incubation with different times of 24 and 48 h at 37 °C (dark condition).

Full size image

The reasons for these phenomena can be described as follows: tumor blood vessels in cancer cells often have a defective cellular lining composed of disorganized, loosely connected, branched, overlapping, or sprouting endothelial cells which makes tumor endothelium very leaky. In addition, tumors with poorly developed lymphatic drainage allow accumulation of nano-sized materials in cancer cells compared to normal cells such as accumulation of nanomaterials with long time called enhanced permeability and retention effect (EPR), and photosensitizers can also be covalently bonded to several biomolecules including antibodies, proteins, carbohydrates, and others, that the biomolecules have an affinity to tumors. Antitumor effects of NTs affected by NPs size, aggregation tendency, and accumulation, which are key factors that determine cell viability and genetic alteration in tumor cells53, and even the type of disease may substantially change the biological identity of NPs and their biological fates, including their cellular uptake and toxicity54.

Hence, the findings are particularly encouraging as the Au-H2Ti3O7 nanotubes demonstrate no impact on healthy cells, yet exhibit a substantial effect on cancer cells. In other words, these nanoparticles have a selective effect on cancer cells and greatly reduce the viability % during incubation times 24 and 48 h and it can be an excellent candidate for more research on non-invasive lung and prostate cancer treatments through the interaction of laser beams with the Au-H2Ti3O7 NTs in the vicinity of cancer cells to use the synergistic enhancement of the phototherapeutic efficiency.

The effect of laser beam on Au-H2Ti3O7 NTs in vicinity of cancer cells

In this section, the effects of different laser irradiations including NIR (808 nm), green (532 nm), and red (635 nm) lasers on Au-H2Ti3O7 NTs embedded in the lung (A549 cells) and prostate cancer cells (LNCap cells) are investigated to study the abilities of using the interactions of laser beams with Au-H2Ti3O7 NTs for cancer treatment.

Lung cancer (A549 cells)

First, the synergistic photodynamic and photothermal effects of irradiated Au-H2Ti3O7 NTs (with a red diode laser at 635 nm) on lung cancer cells are investigated and optical inverted microscope images of lung cancer (A549 cells) embedded with the different concentrations of NTs (62.5 and 500 µg/ml) and irradiated with different red laser fluence (72.5 J/cm2 and 365 J/cm2) are presented in Fig. 10 at the incubation time of 24 h. For comparison, an optical inverted microscope image of the control group cells is also presented in Fig. 10e. The results of Fig. 10 declare that increasing the concentration of Au-H2Ti3O7 NTs and laser fluence has reduced the cell viability, significantly. The cell viability% of A549 cells after treatment with irradiated 500 µg/ml of Au-H2Ti3O7 NTs with a red laser beam with a fluence of 365 J/cm2 (Fig. 10d) is very small compared to the control group (Fig. 10e). Therefore, this treatment can be effective on lung cancer cells.

Furthermore, for quantitative analysis, cytotoxicity histograms of A549 cells treated with different concentrations of irradiated Au-H2Ti3O7 NTs by a diode laser at 635 nm with different laser fluence (72.5 and 365 J/cm2) are presented in Fig. 11. For the study, crystal violet assay was performed on A549 cells just 24 h after laser irradiation, and the cytotoxicity% was calculated according to Eq. 7. The results reveal that increasing the concentration of Au-H2Ti3O7 NTs in both laser fluences does not have a notable impact on the cytotoxicity of A549 cells and increasing the concentration of NTs from 62.5 to 250 μg/ml in laser fluorescence 72.72 J/cm2 and 365 J/cm2 resulted in a change in cytotoxicity% from 21.1 to 28.3% and 37.6 to 41.3%, respectively.

Fig. 10
figure 10

Optical inverted microscope images of lung cancer (A549 cells) embedded with Au-H2Ti3O7 NTs with concentrations of (a and c) 62.5 µg/ml, and (b and d) 500 µg/ml irradiated by a diode laser at a wavelength of 635 nm and fluence of (a and b) 72.5 J/cm2 and (c and d) 365 J/cm2 and incubated at 37 °C for 24 h. For comparison, an optical inverted microscope image of the control group cells is also plotted in (e).

Full size image

In the studied concentrations range, the highest cytotoxicity% is related to using 500 mg/ml of Au-H2Ti3O7 NTs that are equal to 39.0% and 55.9% for laser fluence of 72.72 J/cm2 and 365 J/cm2, respectively. In addition, increasing the laser fluence causes an increase in cytotoxicity of the Au-H2Ti3O7 NTs, and the NTs presented an IC50 value of 375 mg/ml in A549 cells using a laser fluence of 365 J/cm2.

Fig. 11
figure 11

Dependence of Au-H2Ti3O7 NTs cytotoxicity% on the concentration of NTs and laser fluence provided by a red diode laser at 635 nm during the treatment of A549 cells.

Full size image
3.7.2.2 Prostate cancer (LNCap cells)

In this section, the effects of different lasers including NIR (808 nm) and green (532 nm) lasers are investigated on embedded Au-H2Ti3O7 NTs in prostate cancer cells (LNCap cells), and the efficiencies of the proposed prostate cancer treatment are studied.

NIR laser

NIR laser at a wavelength of 808 nm, power of 2 W, and fluence of 214.2 J/cm2 was applied on Au-H2Ti3O7 NTs -embedded LNCap cells, and the cells incubated at 37 °C for 24 h. Then, the cell viability assay using crystal violet was recorded, and the results are shown in Fig. 12a. Initial observations suggest that exposing a high-power NIR laser on Au-H2Ti3O7 NTs surrounded by LNCap cells has no significant effects on the cancer cells, as evidenced by the nearly unchanged cell viability percentages. This phenomenon can be explained by the high diffuse reflection (80.9%) and low light absorbance (0.07) of the NTs at 808 nm. However, taking a closer look and comparing the results with Fig. 9b reveals that the cell viability% of LNCap cells by irradiated Au-H2Ti3O7 NTs-embedded LNCap cells (95.8%, 93.1%, 89.4%, and 74.9% for NTs concentration of 62.5, 125, 250, and 500 µg/mL) is even higher than the viability% of Au-H2Ti3O7 NTs-embedded LNCap cells in the dark condition (76.1%, 69.3%, 67.5%, and 59.2% for NTs concentration of 62.5, 125, 250, and 500 µg/mL), where cancer cells are just incubated with Au-H2Ti3O7 NTs without applying any light. Therefore, in this process, two competing phenomena emerge, one leading to a decline in the viability of LNCap cells while the other contributes to its enhancement.

For a better and more comprehensive understanding of the phenomena, a parallel experiment was conducted using the H2Ti3O7 nanotubes previously introduced in reference2, and the results are depicted in Fig. 12a. Cell viability% of LNCap cells in the vicinity of irradiated Au-H2Ti3O7 NTs-embedded (85.2%, 86.0%, 86.8%, and 82.9% for H2Ti3O7 NTs concentration of 62.5, 125, 250, and 500 µg/mL) is higher than its viability% in the vicinity H2Ti3O7 NTs in dark condition in reference2, too. Therefore, for more clarity, the quantity Vr=VNIR Laser-Vdark, is defined, where VNIR Laser and Vdark are viability% of LNCap cells in the vicinity of irradiated and dark NTs-embedded, respectively. \({V_r}\) of LNCap cells versus NTs concentration and well-fitted parabola functions is depicted in Fig. 12b. It can be observed that Vr is positive for the treatment of prostate cancers with two studied NTs and all NTs concentrations, which means that the viability% of LNCap cells treated by irradiated NTs is usually more than the viability% of LNCap cells embedded by both H2Ti3O7 NTs and Au-H2Ti3O7 NTs in dark conditions. This may be due to the reason that the NIR laser radiation makes LNCap cells more aggressive and it means the NIR irradiation may be an unsuitable candidate for LNCap cell treatment which should be more investigated.

Fig. 12
figure 12

(a) Dependence of prostate LNCap cells viability% to irradiated H2Ti3O7 NTs and Au-H2Ti3O7 NTs concentrations by a NIR laser at a wavelength of 808 nm, laser power of 2 W, and laser fluence of 214.2 J/cm2 and (b) Vr of LNCap cells versus NTs concentrations.

Full size image
Green laser

The optical penetration depth of NIR laser beams is more than visible laser beams. However, the results indicate that exposing the NIR laser beam to H2Ti3O7 NTs and Au-H2Ti3O7 NTs-embedded LNCap cells does not cause successful treatment, and even dark conditions cause better results compared to NIR irradiation conditions. Therefore, in the next step, the effects of Nd: YAG laser irradiation at 532 nm with a fluence of 450 J/cm2 are investigated in vitro on Au-H2Ti3O7 NTs-embedded LNCap cells to achieve better treatment conditions for prostate cancer cells. The research was based on varying concentrations of Au-H2Ti3O7 nanotubes integrated into LNCap cells and exposure to green laser beams in 24- and 48-hour incubation at 37 °C. The treatment results were recorded with two different concentrations of NTs (62.5 µg/ml and 500 µg/ml) and two different incubation times (24 and 48 h) and optical inverted microscope images of prostate cancer (LNCap cells) including irradiated Au-H2Ti3O7 NTs by green laser are shown in Fig. 13. Also, an optical inverted microscope image of the control group cells is presented in Fig. 13e to compare. The results demonstrate that prostate cancer (LNCap cells) treatments by exposing a laser beam at 532 nm to Au-H2Ti3O7 NTs are significantly successful and can meaningfully reduce the viability% of prostate cancer cells so that the treatment with this laser and the NTs concentration of 500 µg/mL almost results in complete cell death (Fig. 13d). Also, a comparison of the results in Fig. 13a with b and 13c with d shows that increasing the concentration of Au-H2Ti3O7 NTs from 62.5 g/mL to 500 g/mL leads to a significant decrease in cell viability of LNCap cells. Furthermore, the comparison of the results of 13a with c and also 13b with d shows that increasing the incubation time has a great effect on reducing the cell viability.

Fig. 13
figure 13

Optical inverted microscope images of cancer prostate (LNCap cells) embedded by Au-H2Ti3O7 NTs with concentrations of (a and c) 62.5 µg/ml, and (b and d) 500 µg/ml irradiated by a laser at a wavelength of 532 nm and fluence of 450 J/cm2. The LNCap cells were incubated for (a and b) 24 h and (c and d) 48 h at 37 °C. For comparison, optical inverted microscope images of the control group cells are also plotted in Fig. 10e.

Full size image

For a more qualitative and detailed investigation, cytotoxicity% of prostate cancer (LNCap cells) cells under treatment by the interaction of a green laser beam with a fluence of 450 J/cm2 with different concentrations of Au-H2Ti3O7 NTs were obtained and the results are depicted in Fig. 14. The results declare that cell viabilities% of (67.0%, 64.7%, 60.3%, and 43.8) and (12.5%, 12.1%, 9.4%, and 8.1%) are provided in the case of the treatment of prostate cancer cells by exposing the green laser irradiating to Au-H2Ti3O7 NTs with the concentration of (62.5, 125, 250, and 500 µg/mL) at incubation times of 24 and 48 h, respectively. Therefore, increasing the concentrations of the proposed NTs and incubation times improves the outcome of the prostate cancer treatment. However, the effect of increasing the incubation time on the treatment is much greater, so that increasing the incubation time from 24 to 48 h (two times) at lower concentrations even causes an increase in cytotoxicity% up to three times and it increases up to two times at highest concentrations of 500 µg/m. Also, the NTs presented IC50 values of 375 µg/mL and much smaller than 62.5 µg/mL in LNCap cells for the laser fluence of 450 J/cm2 at 24 and 48 h incubation times, respectively.

Finally, the results confirm that near-complete destruction of prostate cancer cells is provided by exposing a green laser light with a fluence of 450 J/cm2 to 500 µg/mL Au-H2Ti3O7 NTs embedded in LNCap cells and an incubation time of 48 h. Therefore, Au-H2Ti3O7 NTs and these treatment conditions can be applied in non-invasive prostate cancer treatment.

Fig. 14
figure 14

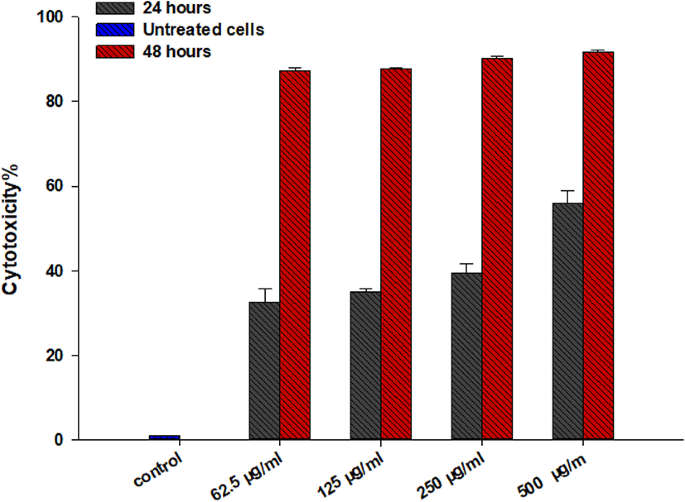

Dependence of irradiated Au-H2Ti3O7 NTs cytotoxicity in prostate LNCap on the concentrations of NTs irradiated by a green laser at a wavelength of 532 nm and fluence of 450 J/cm2. The cells were incubated at 37 °C at two incubation times of 24 and 48 h.

Full size image

Conclusion

Cancer treatment and water treatment are two important global challenges that can be addressed through the interaction of light with nanoparticles including metal oxide nanoparticles, plasmonic nanoparticles, or both. Significant efficiencies of bare H2Ti3O7 NTs in the treatment of prostate and lung cancers were previously reported by exposing the red and green laser beams2. In the paper, Au-H2Ti3O7 NTs were proposed to treat prostate and lung cancers in dark and irradiated conditions. The reasons behind selecting the nanoparticles and studying the interaction of lasers with the NTs embedded in the special cancer cells are to use the synergic effects of H2Ti3O7 NTs and Au. Au NPs and H2Ti3O7 NTs as powerful plasmonic nanoparticles and metal oxide can provide the PTT and PDT, respectively. It can be observed that the interaction of laser light wavelength with cancer cells and also inorganic Au-H2Ti3O7 NTs can affect the treatment efficiency, and choosing the laser wavelength is very important in the success of prostate cancer treatment. conventional laser therapy using a NIR laser at 808 nm led to cancer cell invasion and the failure of prostate cancer treatment while using the 532 nm laser produced astonishing treatment results. A comparison of the current treatment results with H2Ti3O7 NTs in reference2 for prostate cancer (LNCap cells) in the same condition declares that increasing gold to H2Ti3O7 NTs improves the efficiency of prostate cancer treatment significantly, while exposing a red laser beam to H2Ti3O7 NTs-embedded lung cancer leads a more efficient cancer treatment compare to treatment using Au-H2Ti3O7 NTs.

Furthermore, it was found that a laser wavelength of 532 nm is close to the LSPR wavelength of gold nanoparticles in Au-H2Ti3O7 NTs. Therefore, green light-induced ROS production of the Au-H2Ti3O7 NTs increases due to LSPR-induced hot electrons and heat generation. The combination of PDT and PTT treatments with Au-H2Ti3O7 NTs has great potential to be applied to cancer treatment and to improve the treatment efficiency, especially for LNCap prostate cells. The results are motivating because Au-H2Ti3O7 does not impact healthy cells, while significantly influencing cancer cells. In other words, these nanoparticles have a selective effect on cancer cells and greatly reduce the viability % during incubation times 24 and 48 h and it can be an excellent candidate for non-invasive lung and prostate cancer treatments.
