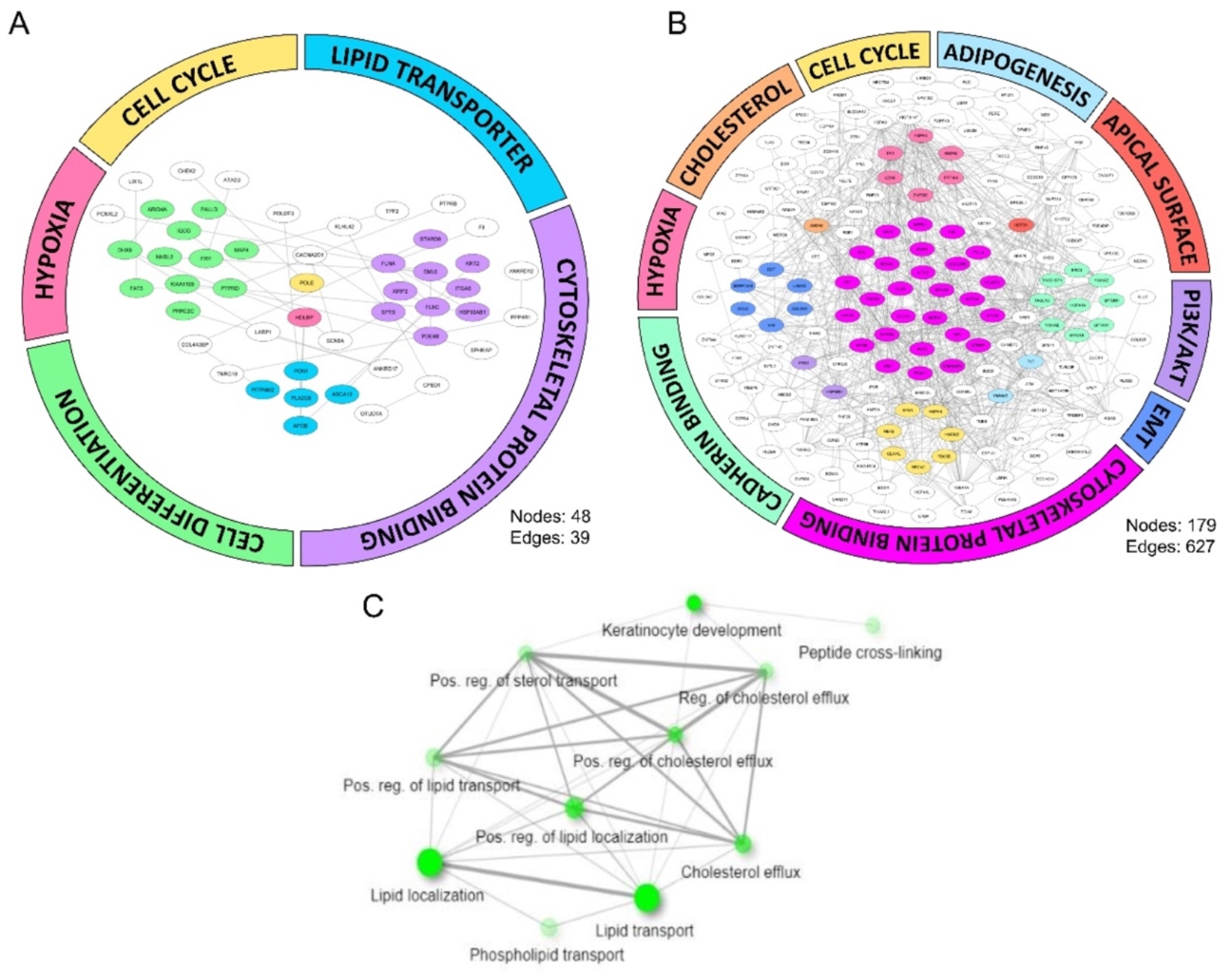

PPI network analysis of regulated proteins in 3D cultures of Hs578t cells in coculture with 3T3-L1 adipocytes. (A) The PPI network of upregulated proteins contains 48 nodes and 39 edges (B) The PPI network of downregulated proteins contains 179 nodes and 627 edges. By STRING visualized in Cytoscape, the color code represents the biological processes in which they are involved. (C) KEGG pathway analysis for upregulated hub proteins.
