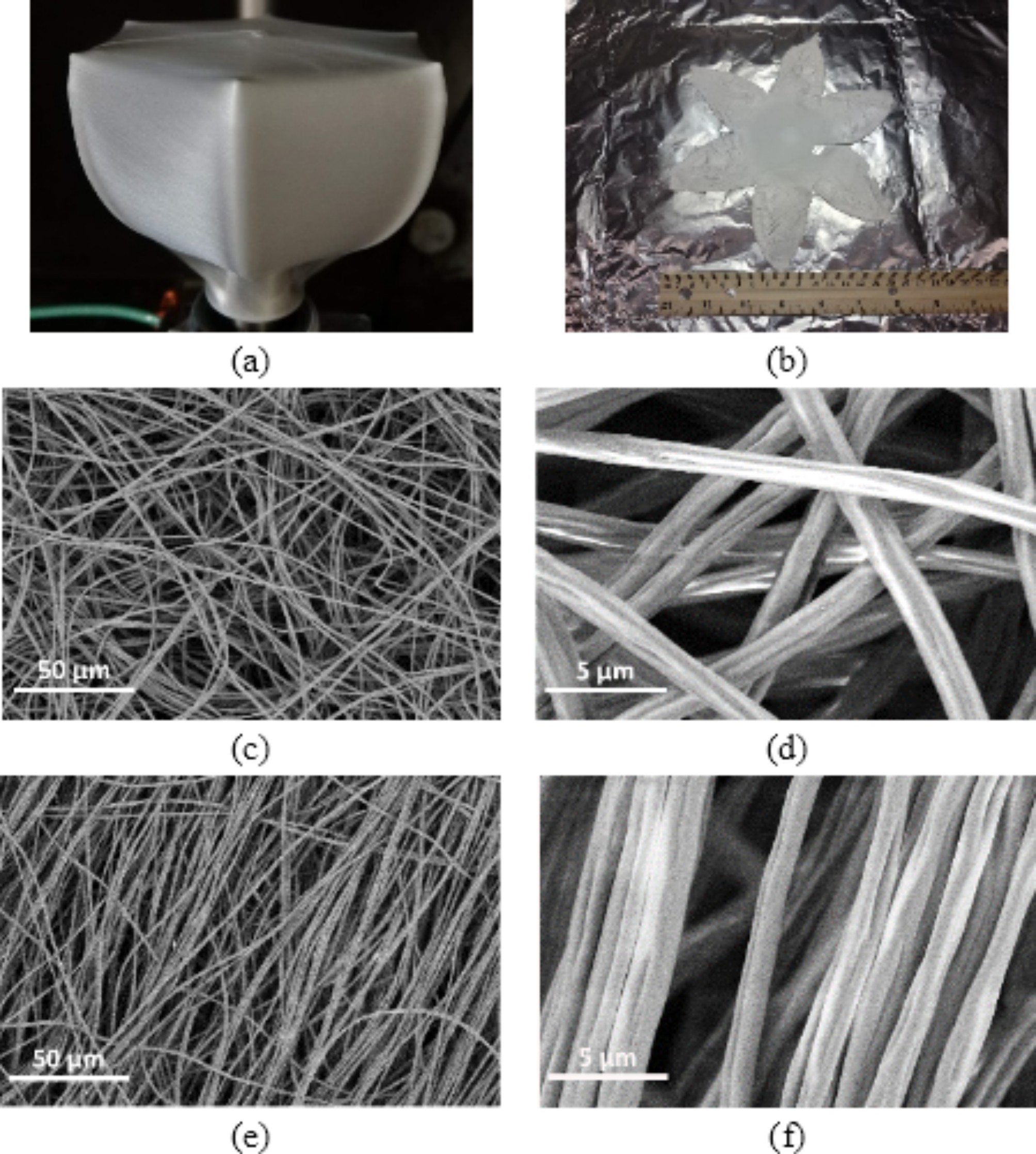

Fig. 4
From: Scalable electrospinning using a desktop, high throughput, self-contained system
(a) Sample on rotating collector. (b) Sample removed from rotating collector. (c) SEM image from top of collector taken with the Apreo SEM at 1000x magnification. (d) 11000x magnification. (e) SEM image from side of collector taken with the Apreo SEM. (f) 11000x magnification.
