Fig. 2

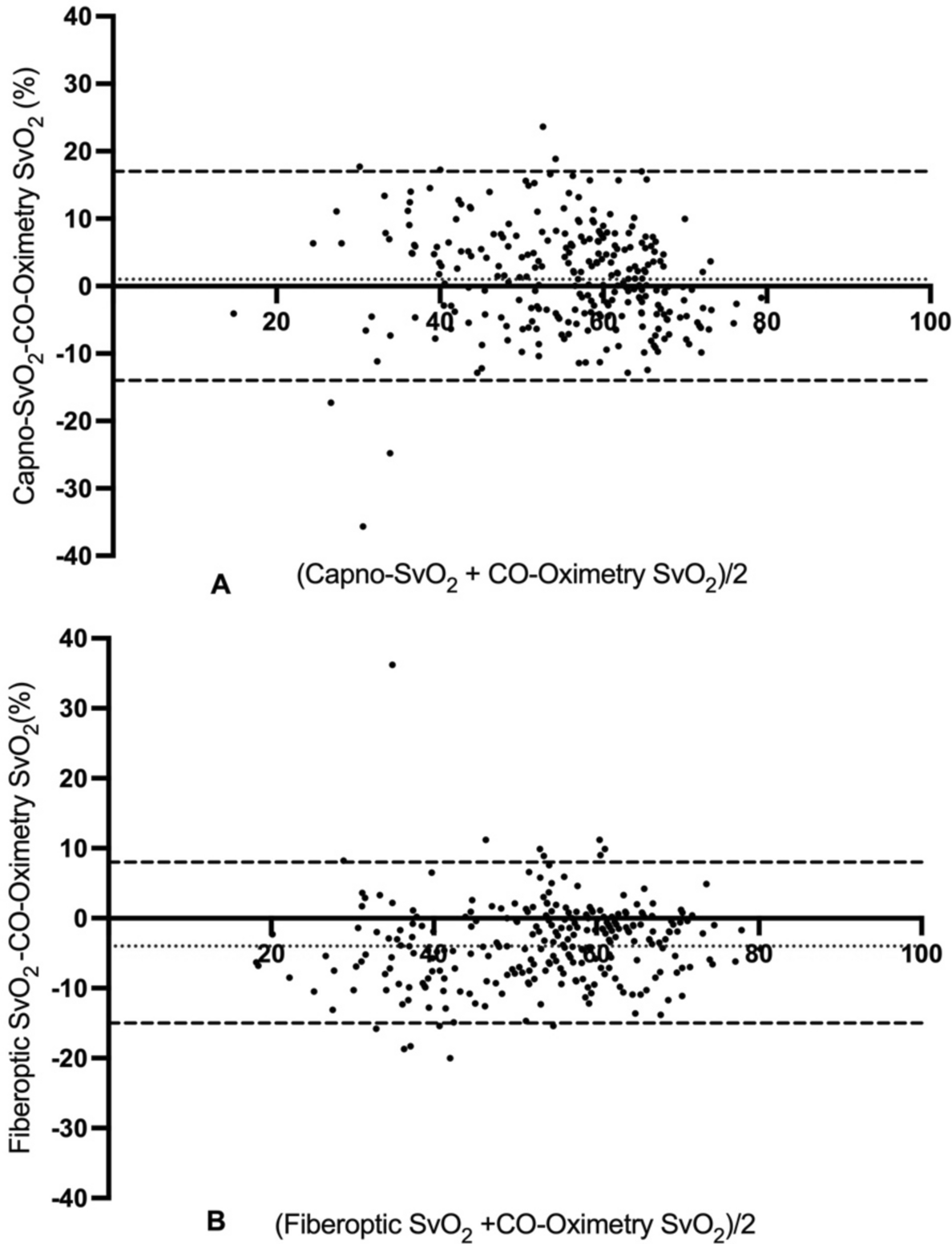

Bland–Altman plots for pooled recordings for Capno-SvO₂ vs. CO-oximetry (A) and fiberoptic SvO₂ vs. CO-oximetry (B). Dotted black line represents bias and black broken lines represent upper and lower limits of agreement. N = 10. A: 275 paired data points, B: 275 paired data points.
