From: Transcriptome analysis to identify genes related to programmed cell death resulted from manipulating of BnaFAH ortholog by CRISPR/Cas9 in Brassica napus

Fig. 5

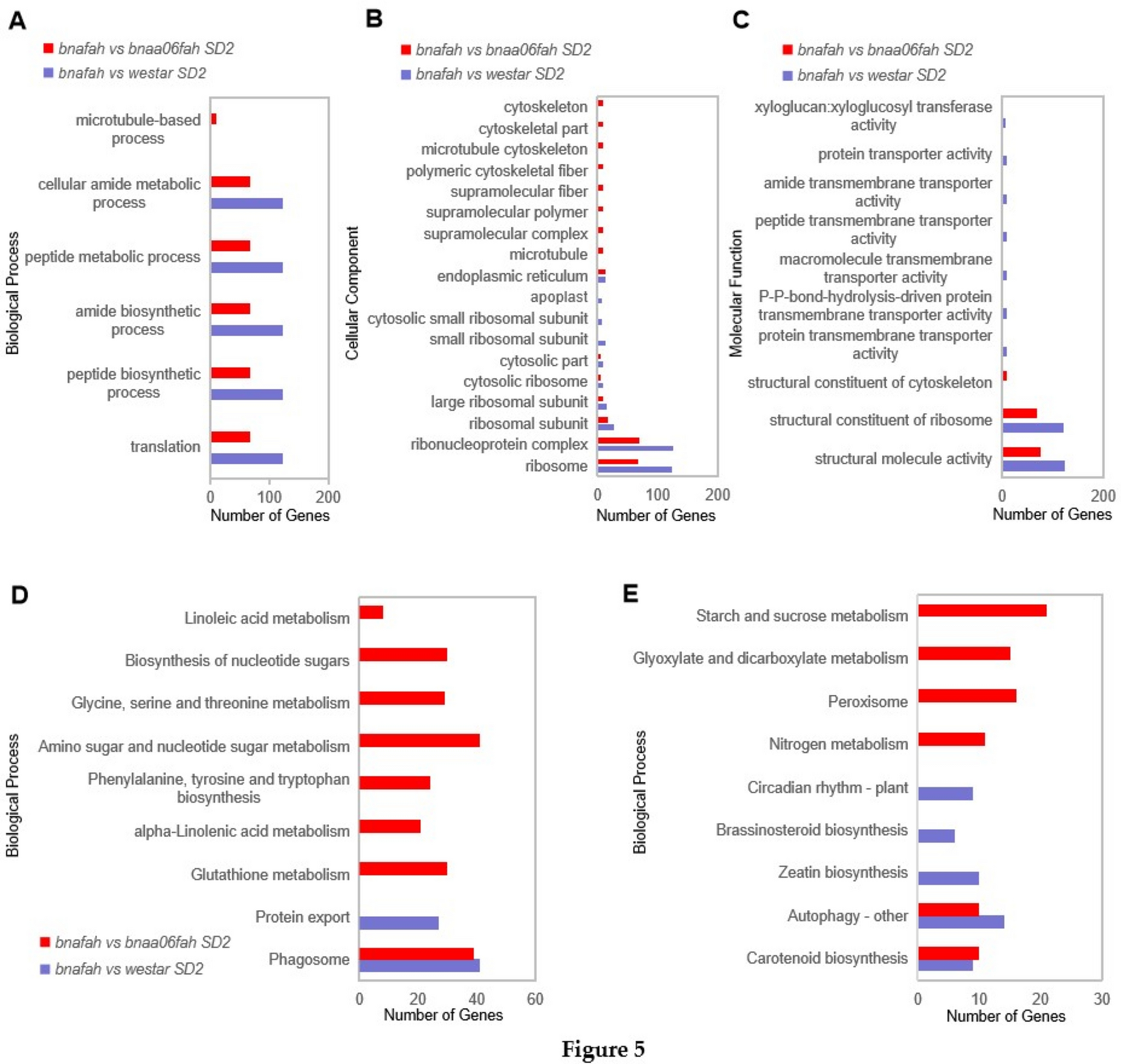

Pathway analysis of DEGs in B. napus based on the gene ontology (GO) and Kyoto Encyclopedia of Genes and Genome (KEGG) databases. Gene ontology enrichment analysis of the DEGs. DEGs were sorted into three categories according to gene function: biological process (A), cellular components (B) and molecular functions (C) of the set of DEGs in bnafah compared with westar or bnaa06fah under two short day (SD). The y-axis indicated the GO terms, and x-axis indicated the numbers of annotated genes. (D, E) The KEGG enrichment analysis of DEGs up (D) and down (E) regulated in bnafah compared with westar or bnaa06fah under two short day (SD). The x-axis indicated the number of enriched gene, and the y-axis indicated different enriched terms.
