Fig. 12
From: New effectual configuration of bistable nonlinear energy sink

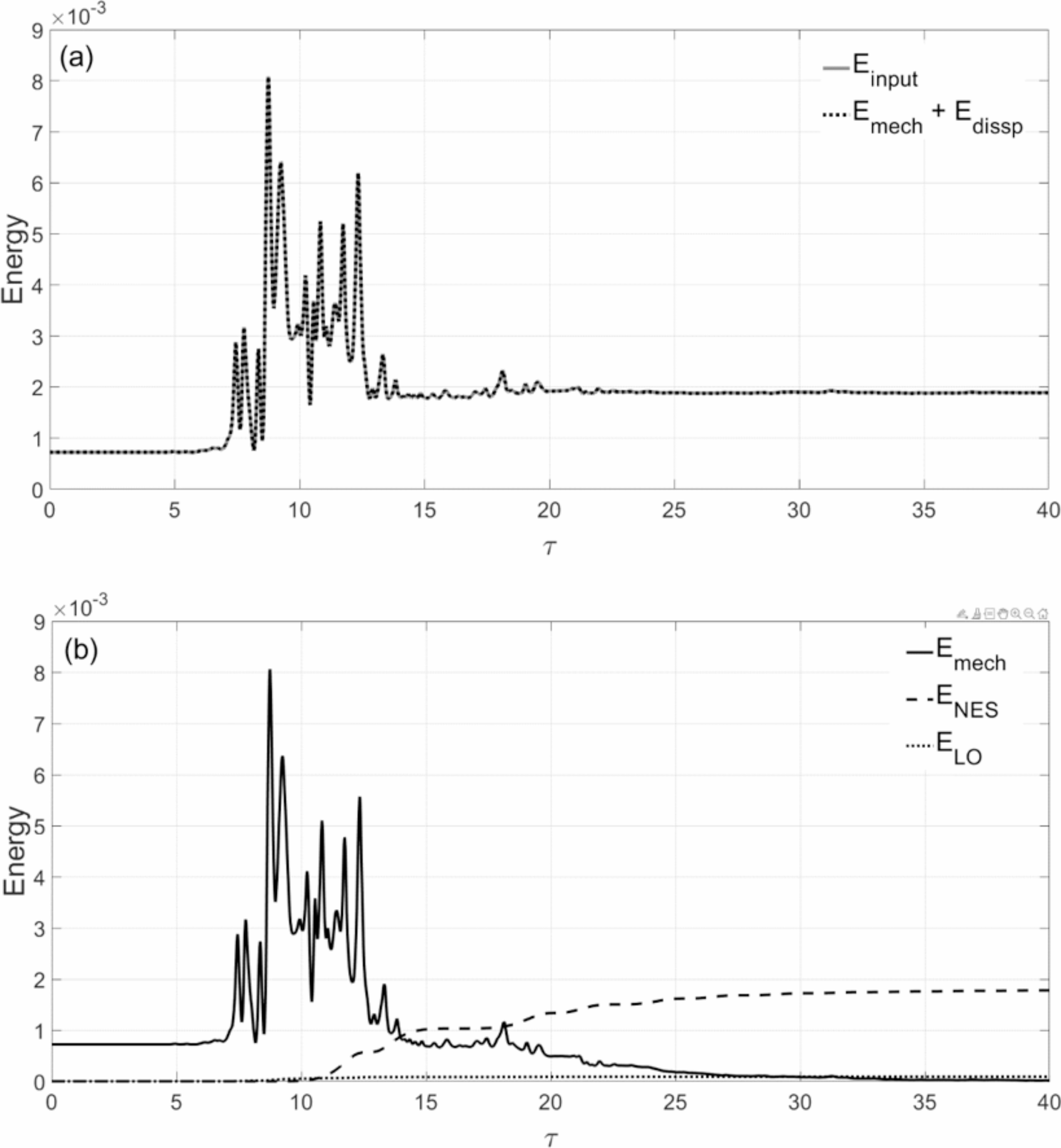

Energy plots in (a) for the balance between \(E_{input}\) and \(E_{Mech} + E_{dissp}\), and in (b) for mechanical energy \(E_{Mech}\) and energy dissipation by the LO \(\left( {E_{LO} } \right)\) and by the B-SLIP NES \(\left( {E_{NES} } \right)\).
