From: Exploration of common pathogenesis and candidate hub genes between HIV and monkeypox co-infection using bioinformatics and machine learning

Fig. 3

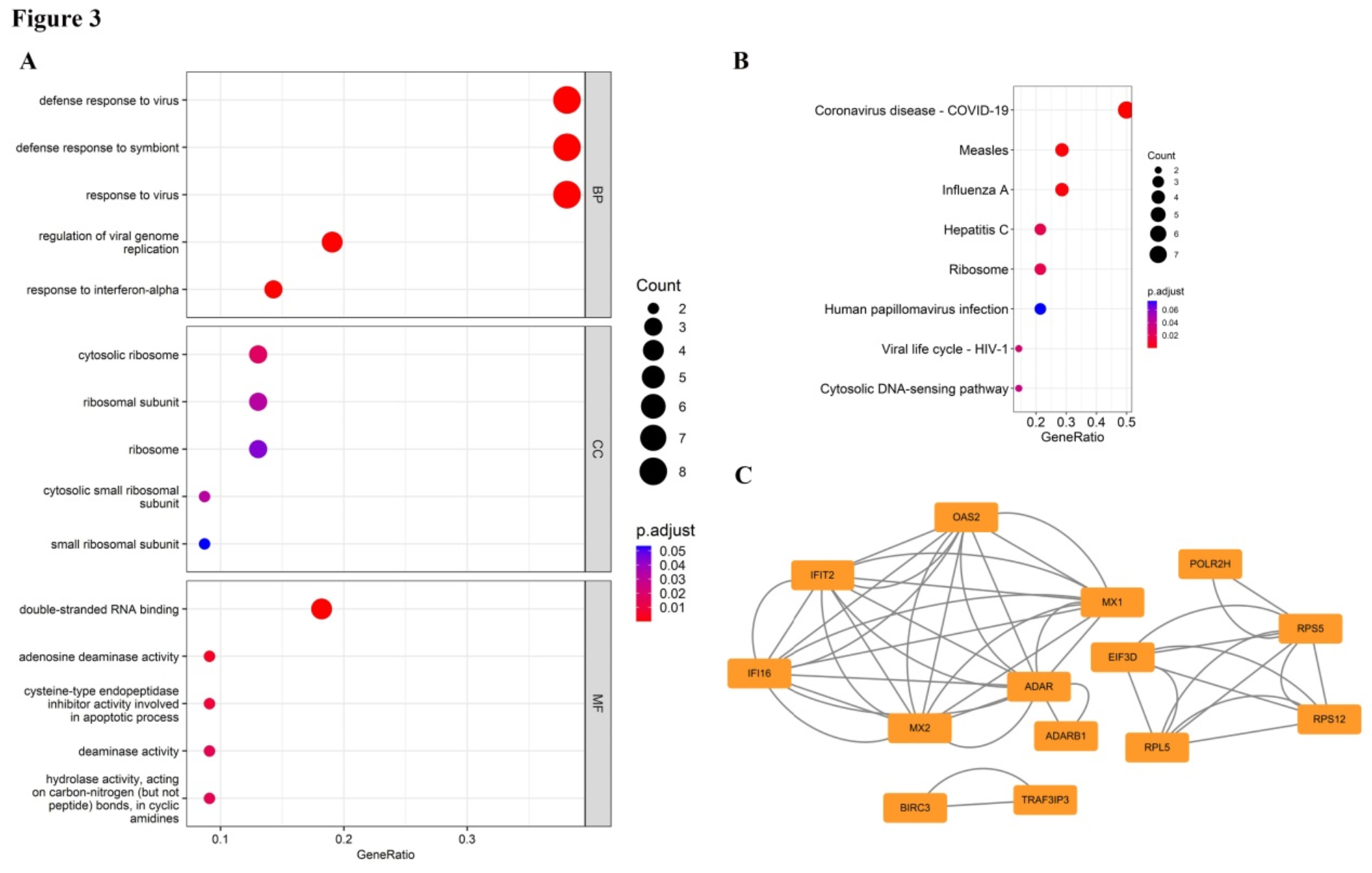

Enrichment analysis of common genes for HIV and monkeypox co-infection. (A) GO analysis (BP, CC, and MF) of 25 common genes in HIV and monkeypox co-infection; (B) KEGG analysis of 25 common genes in HIV and monkeypox co-infection (https://www.kegg.jp). (C) PPI network showing the interaction of 14 genes, visualized using the CytoNCA plug-in.
