Introduction

Dyes are essential chemicals that give color to paints, textiles, photographs, leather, biological stains, cosmetics and pharmaceutical products, and food. Synthetic dyes broke into the commercial market at the end of the nineteenth century1. Azo dyes are one class of synthetic dyes that have one (monoazo) or several intramolecular N = N bonds2. Azo dyes are commonly used in printing, textile and paper manufacturing, etc3. These chemicals consist of a backbone, the chromophoric groups, the auxochrome groups and the water-soluble groups3,4. Their color depends on the azo bonds, chromophore and auxochrome groups5. Despite their widespread use, most azo dyes have become a threat for human beings due to their non-biodegradable features that lead to skin irritation, allergies, mutagenic, liver, brain, kidney, and central nervous system complications6. The LD50 value for aromatic azo dyes ranges between 100 and 2000 mg/kg b.w7. Some azo dyes are also associated with malignant tumors due to their ability to damage DNA8. Water ecology is also affected by azo dye pollution because of the role they play in inefficient light penetration when present. Additionally, azo dyes can be taken by aquatic organisms and fishes that are in turn consumed by human beings7,9. For these reasons, azo dyes should be accurately and precisely detected in water samples using sensitive analytical methods in order to complement studies regarding their removal from water bodies.

Several analytical instruments such as high-performance liquid chromatography with diode array detection (HPLC-DAD)10, gas-chromatography-mass spectrometry (GC-MS)11, liquid chromatography-mass spectrometry (LC-MS)12, and gel permeation chromatography (GPC)–liquid chromatography–tandem mass spectrometry13 have been used for the quantitation of azo dyes in different samples. GC-MS is a powerful hyphenated technique due to the separation of complex mixtures by GC and molecular identification by MS spectrum14. It is a superior method than LC systems in terms of peak capacity and resolution power15. Hence, the high separation efficiency of GC-MS was used to separate and detect the selected azo dyes.

In the literature, there are several preconcentration methods that are applied before instrumental measurements. These can be classical extraction methods like solid phase extraction (SPE)16 and liquid-liquid extraction (LLE)17, or microextraction methods like liquid-phase microextraction (LPME)18 and solid phase microextraction (SPME)19. Among them, the classical SPE method requires long extraction periods and includes operational difficulties like cartridge clogging20. Another problem with the SPE method is the need for high sample volumes to reach trace level detection limits. In addition, simultaneous extraction of analytes is not easy in the classical SPE method. For these reasons, dispersive solid phase extraction (DSPE) was proposed to the literature to overcome the problems related to SPE application and outcomes. In this extraction method, the adsorbent is dispersed to come into contact with the aqueous solution containing the analyte(s) of interest20. In recent years, several adsorbents have been synthesized and used to separate and preconcentrate analytes in DSPE applications. Fe3O4 nanoparticle21, graphene oxide-SiO2 nanocomposite22, molecular imprinted polymers23, layered double hydroxides24 and metal organic framework25 are some examples of the adsorbents used to extract organic and inorganic species.

Covalent organic frameworks (COFs), firstly produced by Yaghi et al. in 2005, are covalent porous crystalline polymers. These materials have permanent porosity, low mass density and good thermal stability26. COFs can provide π-π interaction and hydrophobic effects when used as adsorbent in SPE methods27. Magnetic nanomaterials can be combined with COFs to provide superparamagnetism, rapid separation and stability28. Fe3O4 is generally used to give magnetic properties to several materials. However, it can be affected by the presence of oxygen in air, which suppresses its magnetism and dispersion in aqueous solutions. For this reason, it is frequently covered with a polymer, metallic or non-metallic substances29,30. Fe3O4@COF adsorbents have been reported in literature for the preconcentration of endocrine-disrupting phenols31, flavonoid glycosides27, peptides32 and copper33.

In this study, a sensitive and selective analytical method for the quantitation of nineteen azo dyes at trace levels in stream water samples was established. The GC-MS system was used to separate and detect the analytes after their preconcentration by the DSPE method. Fe3O4 magnetic nanoparticle was combined with COF to attain magnetic COF nanomaterial for the extraction of the selected azo dyes. To the best of our knowledge, the Fe3O4@COF adsorbent was synthesized and utilized as adsorbent for the first time in this study. Significant experimental parameters such as adsorbent dosage, pH, buffer solution volume, eluent type and volume, vortex period were individually optimized to enhance the signal-to-noise ratio for each analyte. After the optimization experiments, system analytical performance was evaluated in terms of limit of detection, limit of quantitation, and linear range. Accuracy and applicability were checked by spiking experiments carried out on stream water samples.

Materials and methods

Chemicals and reagents

Analytical grade chemicals and reagents were used in all experimental studies. Azo dye mixture (300 μg/mL in acetonitrile) was obtained from Chem Service Inc. (West Chester, USA). Acetonitrile (≥ 99.9%), ethanol (≥ 99.9%), methanol (≥ 99.9%), dimethylsulfoxide (≥ 99.9%), tetrahydrofuran (≥ 99.5%), acetic acid (≥ 99.8%), ammonia (25.0–30.0%), FeCl3.6H2O (99.0-102.0%) and Fe(NH4)2(SO4)2.6H2O (99.0-101.5%) were purchased from Merck (Darmstadt, Germany). Terephthalaldehyde (99%) and tris(4-aminophenyl)amine (97%) were obtained from Sigma Aldrich (Darmstadt, Germany). Ultrapure water was obtained from an Elga Pure Flex 3 Ultrapure Water Treatment System (High Wycombe, United Kingdom).

Instrumentation

Chromatographic separation of the selected analytes was performed with a 6890 model Agilent Gas Chromatograph, and mass spectra of the analytes was obtained by an Agilent Mass Spectrometer. Helium at a flow rate of 1.8 mL/min with a constant linear velocity was used as carrier gas and (5%-phenyl)-methylpolysiloxane phase capillary column (30 m; 250 μm; 0.25 μm) was used as stationary phase. Sample injection volume, injection port temperature and injection mode were 1.0 μL, 280 °C and splitless, respectively. The oven temperature program employed consisted of an initial ramp from 70 to 130 °C (held for 1.0 min) at a rate of 17 °C/min, and the second ramp from 130 to 290 °C (held for 2.27 min) at a rate of 50 °C/min. MS transfer line, MS source and MS quad temperatures were 280 °C, 230 °C and 150 °C, respectively, with an ionization voltage of 70 eV and a full scan mass range of m/z 40–600.

Characterization of the Fe3O4@COF was performed using Fourier Transform infrared spectrometer (Thermo Scientific Nicolet IS10 model, Massachusetts, USA), scanning electron microscope (Zeiss EVO LS10 model, Oberkochen, Germany) and X-ray diffractometer (PANalytical X′Pert Pro model, Malvern, UK).

Fe3O4@COF synthesis

Fe3O4 was synthesized according to a study reported in the literature34. Firstly, Fe3O4 nanoparticle was synthesized using 8.1 g of FeCl3.6H2O and 5.9 g of Fe(NH4)2(SO4)2.6H2O dissolved in 200 mL ultrapure water. The iron-containing mixture was heated to 80 °C with vigorous stirring. Next, 20 mL of concentrated NH4OH (%25, w/v) was added into the iron-containing solution in a dropwise manner. The reaction was kept at 80 °C for 2.0 h under nitrogen gas atmosphere. After the completion of the reaction, the mixture was allowed to cool to room temperature and the obtained black product was separated with the help of a neodymium magnet. Ultrapure water and ethanol were used to wash the black product before drying at 50 °C in a laboratory oven.

In the second part of the synthesis procedure, modified from a study in literature32, 61.2 mg terephthalaldehyde, 86.7 mg tris(4-aminophenyl)amine and 157.7 mg Fe3O4 nanoparticle were weighed and put into an Erlenmeyer flask. Approximately 60 mL of dry dimethylsulfoxide was pipetted into the flask. After the solution was sonicated for 20 min, 2.0 mL of concentrated acetic acid solution was added to the solution. The reaction was completed after an additional sonication process for 40 min. The dark red product was washed with 60 mL dry tetrahydrofuran, 60 mL dry methanol and 60 mL dry acetonitrile. The product was dried at 50 °C for 48 h. The synthesis procedure for Fe3O4@COF is given in Fig. 1. In addition, COF without Fe3O4 was also synthesized according to the above procedure without the addition of Fe3O4.

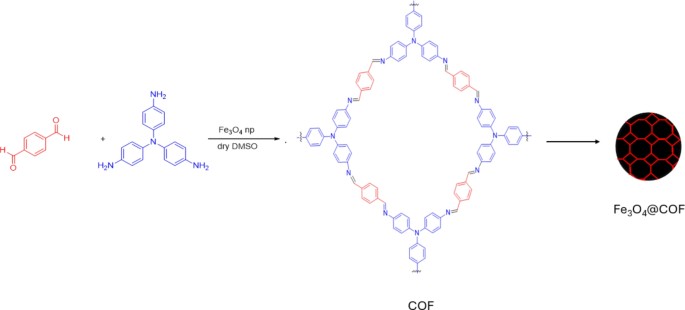

Fig. 1
Fig. 1The alternative text for this image may have been generated using AI.
Full size image

Synthesis of COF using terephthalaldehyde and tris(4-aminophenyl)amine.

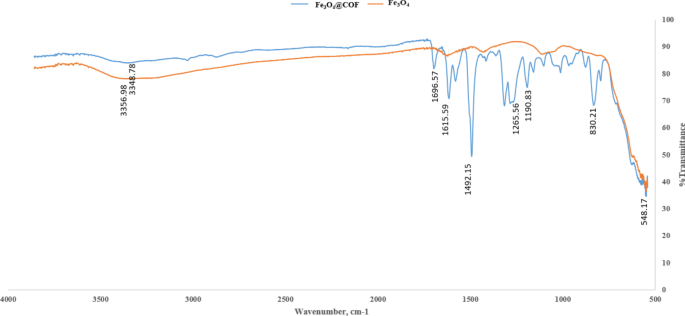

Fourier transform infrared spectrometry (FTIR) was used to characterize the synthesized Fe3O4@COF composite. According to Fig. 2, the absorption band at 548.17 cm− 1 can be attributed to Fe-O-Fe vibration. The absorption band at 1696.57 cm− 1 is ascribed to C = N vibration, which proved the successful synthesis of the Fe3O4@COF composite. The other peaks at 1615.59, 1492.15, 1190.83 and 830.21 cm− 1 are assigned as C = C stretching, C-C stretching in an aromatic ring, C-N stretching and 1,4-disubstituted aromatic C-H bending.

Fig. 2
Fig. 2The alternative text for this image may have been generated using AI.
Full size image

FTIR spectrum for Fe3O4 and Fe3O4@COF nanocomposite.

The shape, size and surface morphology of the synthesized Fe3O4@COF material were checked using SEM. According to Fig. 3 (A, B), COF showed uniform, solid and spherical morphology. Figure 3 (C, D) indicated that the Fe3O4@COF material had nano-sized structures and a homogenous size distribution with a texture composed of unevenly spherical particles. It had a rough surface after the combination of Fe3O4 and COF. The SEM images proved the modification of Fe3O4 with COF. In addition, one experiment was also performed to check the success of the Fe3O4@COF synthesis. Magnetic field was applied to the liquid filtrate obtained after the washing step of the product. There were no solid particles left in the filtrate. This experiment proved that Fe3O4 was successfully modified with COF to generate the magnetic COF adsorbent.

Fig. 3
Fig. 3The alternative text for this image may have been generated using AI.
Full size image

SEM images for the synthesized COF at 200 nm scale (A) and 1.0 μm scale (B) and Fe3O4@COF at 200 nm scale (C) and 1.0 μm scale (D).

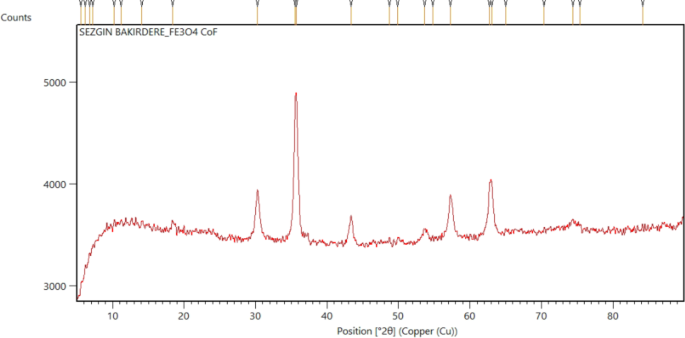

The XRD pattern of the prepared Fe3O4@COF nanocomposite is given in Fig. 4. The XRD spectrum had the prominent peaks at 30.26°, 35.55°, 35.73°, 43.35°, 53.69°, 57.24°, 62.70° and 63.10° 2θ angles for the synthesized Fe3O4@COF nanocomposite. These peaks were in agreement with literature findings31,32,35. The size of the Fe3O4@COF nanocomposite was calculated with the aid of Debye-Scherrer equation36. According to the calculations, the nanocomposite had an average particle size of 43.6 ± 2.5 nm in terms of the three most intensive peaks (35.55o, 35.73o and 63.10o).

Fig. 4
Fig. 4The alternative text for this image may have been generated using AI.
Full size image

XRD spectrum for the synthesized Fe3O4@COF nanocomposite.

Fe3O4@COF-DSPE procedure

Approximately 8.0 mL of aqueous standard or sample solution and 1.50 mL of pH 7.0 buffer solution were added to a clean 15 mL centrifuge tube containing pre-weighed 10 mg Fe3O4@COF adsorbent. Mixing by vortex was applied to the mixture for 30 s followed by centrifugation for 2.0 min to ease the decantation process. A neodymium magnet was used to collect the adsorbent at the bottom of the tube during the decantation process. In the final step, 75 μL acetonitrile was added to desorb the analytes from the adsorbent. The analyte rich phase was injected into the GC-MS system.

Samples

Three stream water samples were collected from different regions of Türkiye. All stream water samples were filtrated using 0.45 μm syringe filters to remove the solid particles from the samples. In recovery experiments, 1.40 g stream water sample was diluted to 35 g with ultrapure water after the sample was spiked to five different concentration levels. Acetonitrile concentration in all spiked solutions was fixed to %1.0 (w/w) in order to abstain from different organic solvent content in the solutions that may affect the adsorption of the analytes onto the adsorbent. The developed Fe3O4@COF-DSPE method was applied to the spiked stream water samples.

Results and discussion

The Fe3O4@COF based DSPE method was developed for the simultaneous preconcentration of nineteen azo dyes in stream water samples. Parameters including pH, buffer solution volume, desorption solvent volume, mixing period and dosage of adsorbent affecting the extraction efficiency were individually examined to optimize the DSPE process. The peak areas of the nineteen azo dyes were used to assess the parameters and define optimum conditions. Each set of experiments was repeated three times in order to calculate standard deviation and percent relative standard deviation (%RSD).

Effect of type and volume of buffer solution

Due to its ability to change the ionic state of analytes and the functional groups on adsorbents, pH is a crucial determinant in both adsorption and desorption procedures37. Additionally, the extraction efficiency of the selected analytes on the adsorbent could be enhanced using an appropriate pH value38. Therefore, the effect of pH on the extraction of the selected azo dyes was evaluated in the range of pH 3.0–8.0, using 1.0 mL of a suitable buffer solution. As shown in Fig. 5, it was observed that the azo dyes did not record sufficient extraction efficiency in the acidic medium due to weak protonation. This may cause a decrease in the hydrophobic and π-π interactions between Fe3O4@COF and azo dyes39. pH 7.0 was recorded as the most effective value for ten analytes. In addition, analytes with low signal-to-noise ratios had the highest peak area values at pH 7.0. For this reason, the pH of the initial sample solution was selected as 7.0, which exhibits high extraction outcomes for most of the analytes studied.

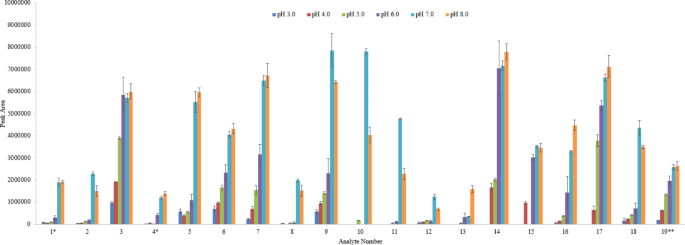

Fig. 5
Fig. 5The alternative text for this image may have been generated using AI.
Full size image

Optimization of pH value. (1: 4-aminobiphenyl, 2: Benzidine, 3: 4-chloro-2-methylaniline, 4: 2-naphthylamine, 5: o-aminoazotoluene, 6: 2-amino-4-nitrotoluene, 7: 4-chloroaniline, 8: 4,4’-methylenedianiline, 9: 3.3’-dichlorobenzidine, 10: 3,3’-dimethylbenzidine, 11: 4,4’-diamino-3,3’-dimethyldiphenylmethane, 12: 4,4’-oxydianiline, 13: 4,4’-thiodianaline, 14: 2,4,5-trimethylaniline, 15: o-anisidine, 16: 3,3’-dimethoxybenzidine, 17: p-cresidine, 18: 4,4’-dimethylene bis (2-chloroaniline), 19: 2,4-dimethylaniline).

Subsequently, four different volumes of the pH 7.0 buffer solution (0.50, 1.0, 1.5, and 2.0 mL) were tested to find the optimum value. According to the result, most analytes (14 out of 19 analytes) showed higher extraction efficiencies for the 1.5 mL volume of buffer solution. Hence, 1.5 mL of pH 7.0 was selected as optimum value for further optimization steps.

Effect of desorption solvent volume

The volume of desorption solvent is one of the essential parameters to achieve accurate and repeatable results for analytes38. The desorption of analytes was carried out using acetonitrile, which is an appropriate solvent for the analytes. For this purpose, the effect of acetonitrile volume was studied using different volumes (75, 100, 150, and 200 μL) to ascertain the desorption capability. The experimental results showed that peak areas gradually increased with the decrement of acetonitrile volume due to less dilution of the analytes. The highest peak area for seventeen out of nineteen analytes was recorded as 75 μL of acetonitrile. The increase in the first/last sample volume ratio is important for the acceptable preconcentration factor and extraction efficiency. As a result, 75 μL of acetonitrile was chosen as the optimum desorption solvent volume for the next optimization study.

Effect of vortex period

In this study, vortex was used to mix the analyte solution containing the adsorbent. Its period should be optimized in order to reach high extraction outputs and adsorption equilibrium40. Extraction trials for vortex period were performed at intervals of 0.0, 15, 30, and 60 s to examine the impact of the vortex period on extraction efficiency. For most of the analytes, low peak areas were obtained for the experiments performed without mixing. It demonstrates that the analyte and adsorbent did not have sufficient interaction in the absence of the mixing step. For most of the analytes (seventeen out of nineteen analytes), peak area values increased with the increment of the vortex period. Further, there was no notable change in both peak areas and standard deviation between 30 and 60 s. Therefore, 30 s was determined as the optimum vortex period to achieve quick and efficient extraction of the analytes.

Effect of adsorbent dosage

Fe3O4@COF adsorbent has advantages such as highly efficient adsorption capacity with fast separation performance owing to its magnetic core28. For this reason, the optimization of Fe3O4@COF dosage is one of the key parameters in the separation/extraction step of the analytes. The effects of adsorbent dosage on the extraction efficiency of the selected analytes were tested by trying 0, 5.0, 10, 15, and 20 mg of Fe3O4@COF adsorbent. As seen in Fig. 6, the highest and repeatable results for 11 analytes were obtained for 10 mg. In addition, 5.0 mg was not sufficient to collect the analytes. Hence, 10 mg of Fe3O4@COF adsorbent was adopted as the optimum adsorbent dosage.

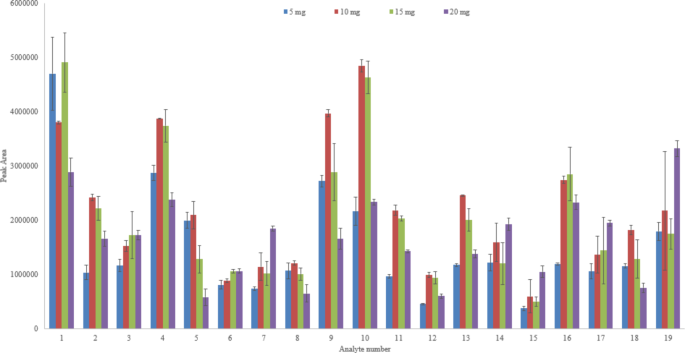

Fig. 6
Fig. 6The alternative text for this image may have been generated using AI.
Full size image

Optimization of adsorbent dosage. (1: 4-aminobiphenyl, 2: Benzidine, 3: 4-chloro-2-methylaniline, 4: 2-naphthylamine, 5: o-aminoazotoluene, 6: 2-amino-4-nitrotoluene, 7: 4-chloroaniline, 8: 4,4’-methylenedianiline, 9: 3.3’-dichlorobenzidine, 10: 3,3’-dimethylbenzidine, 11: 4,4’-diamino-3,3’-dimethyldiphenylmethane, 12: 4,4’-oxydianiline, 13: 4,4’-thiodianaline, 14: 2,4,5-trimethylaniline, 15: o-anisidine, 16: 3,3’-dimethoxybenzidine, 17: p-cresidine, 18: 4,4’-dimethylene bis (2-chloroaniline), 19: 2,4-dimethylaniline).

System analytical performance of Fe3O4@COF-DSPE-GC-MS system

The developed method was investigated in terms of system analytical performance parameters including limit of detection, limit of quantitation, linear range and coefficient of determination. A series of standard solutions prepared between 6.5 and 3965.7 μg/kg were gravimetrically prepared using three different stock solutions in acetonitrile. Acetonitrile concentration was fixed to 1.0% in all standard solutions. External calibration plots were drawn for each azo dye compound and the LOD, LOQ, LR, and R2 values recorded are given in Table 1. The LOD values for the analytes ranged from 2.8 to 70.7 μg/kg (mass based). Based on the information given by Magnusson B. in the literature41, precision is assessed by repetitive measurements of the lowest concentration in the calibration plot of each analyte. %RSD values for the lowest concentrations in calibration plots were calculated between 6.2 and 12.8%.

Table 1 System analytical performance parameters for the developed method.
Full size table

Ion-pairing high performance liquid chromatography tandem mass spectrometry (LC-MS/MS)42, microextraction by packed sorbent-gas chromatography-mass spectrometry (MEPS-GC-MS)43, salting-out assisted liquid–liquid extraction gas chromatography-mass spectrometry (SALLE-GC-MS)43, solid phase microextraction- gas chromatography-mass spectrometry (SPME-GC-MS)44 are some analytical methods used for the preconcentration and determination of several azo dyes. According to analytical performance parameters given in Table 2, the developed Fe3O4@COF-DSPE-GC-MS method had wider LR values than the other methods. LOD and LOQ ranges of the developed methods were higher or similar to the other preconcentration methods. However, other methods consisted of experimental procedures with multiple extraction steps and additional chemicals. The analytical method developed by Tölgyesi et al.42 needed an ion-pairing reagent (heptafluorobutyric acid) and LC-MS/MS system that has high operational cost and organic solvent usage. The other study used a special automated system for the MEPS method, drying process of the sorbent and washing process of the cartridge, which can be time-consuming for an analytical procedure. In the same study, the SALLE method needed 750 μL ethyl acetate and chemical reduction including sodium dithionite, which is toxic and hazardous for health and the environment. Cioni et al.44 presented an analytical method including chemical reduction with sodium dithionite and SPME fiber. It is known that SPME fibers are more fragile45 and chemical reduction includes complex procedures and pH adjustments46. It can be concluded that the developed Fe3O4@COF-DSPE-GC-MS can be used to obtain trace levels of the selected analytes with short extraction periods and less chemical usage. When the developed method was compared to other solid phase-based extraction/microextraction methods, the magnetic property of the Fe3O4@COF adsorbent facilitated easier adsorbent separation and faster extraction procedure for the preconcentration of azo dyes.

Table 2 Comparison of the developed Fe3O4@COF-DSPE-GC-MS system with other analytical methods.
Full size table

Recovery experiments

The developed Fe3O4@COF-DSPE-GC-MS method was examined in terms of accuracy and applicability. For this purpose, three different stream water samples were spiked at five concentration levels in the range of 100 and 600 μg/kg. The spiking procedure is detailed in the “Samples” section. Each sample was preconcentrated by the developed Fe3O4@COF-DSPE method and calibration plots for analytes were obtained. Matrix matching calibration method has been commonly used in literature to minimize positive and negative effects on analyte signals caused by sample matrices. The standard solutions used to draw the calibration plot are adjusted to match the sample matrix47. Matrix matching calibration strategy was carried out to take into account the sample matrix effect. Percent recovery results for Sample Z and B were found using the linear equations obtained for Sample K. Tables 3 and 4 summarize all percent recovery results with their %RSD values for Sample Z and B. Percent recoveries for the spiked Sample Z ranged from 83.9 to 110.8%, while that for the spiked Sample B varied between 83.1 and 122.4%. According to the calibration plots obtained by external and matrix matching calibrations, the slope of the plots were significantly different from each other, meaning that there was matrix effects for each analyte. For example, 4-aminobiphenyl had a slope of 9707.1 for the external calibration plot and 42225.08 for the matrix matching calibration of Sample K.

Table 3 Percent recovery results for the spiked Sample Z.
Full size table
Table 4 Percent recovery results for the spiked Sample B.
Full size table

Greenness and practicality of the developed method

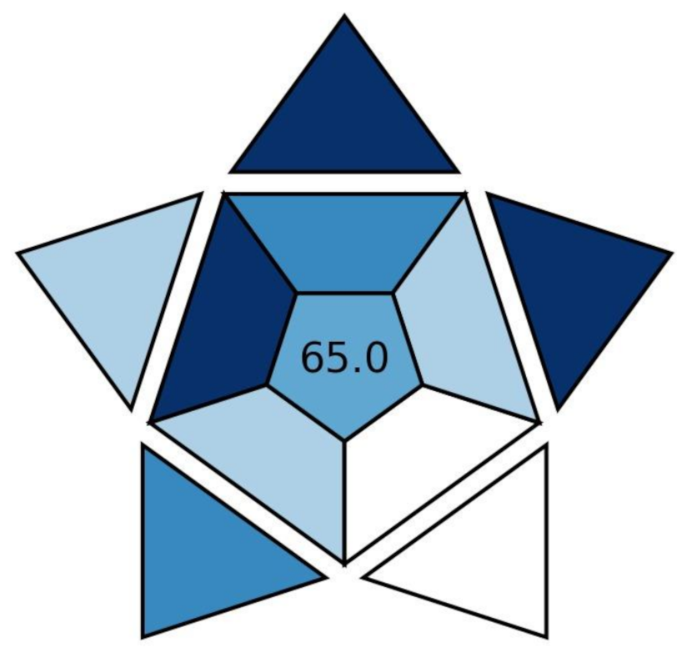

Anastas and Warner identified twelve principles of green chemistry that enhance experimental procedures for the protection of human health and the environment48. In 2012, an eco-scale analytical tool was proposed to evaluate the greenness of the procedures by giving penalty points to chemicals, reagents and instruments used in the procedures. In this tool, a procedure has 100 points in the beginning and all penalty points are subtracted from 100 points49,50. According to the greenness evaluation proposed by Gałuszka et al.49, the developed method can be categorized as acceptable green due to the analytical eco scale point of 69, which was calculated by subtracting all penalty points for the synthesis and extraction. In addition, the practicality of the method was checked by blue applicability grade index (BAGI) software. As can be seen in Figs. 7 and 65 points were attained for the developed method, and it can be concluded that the method was practical based on the BAGI software, indicating that an analytical method is practical if it has at least 60 points51.

Fig. 7
Fig. 7The alternative text for this image may have been generated using AI.
Full size image

Pictograms obtained by BAGI software.

Conclusion

In the presented work, a sensitive, simple and fast analytical method was established for the determination of nineteen azo dyes at trace levels in stream water samples. The DSPE method was used in the preconcentration step and the GC-MS system was operated as the instrumental separation and detection method. The novelties of this study are the adsorbent, which was synthesized and reported for the first time in literature, and the application of the adsorbent for the preconcentration of the selected azo dyes from water samples. The Fe3O4@COF adsorbent was synthesized using Fe3O4 nanoparticles as the magnetic core and terephthalaldehyde and tris(4-aminophenyl)amine as the organic ligand. Under the optimum DSPE conditions, system analytical performance parameters were determined for each azo dye. Trace level LOD and LOQ values were attained thanks to the developed preconcentration method. Spiking experiments were carried out on stream water samples to validate the accuracy and applicability of the developed method. The proposed preconcentration method prior to GC-MS analysis exhibited wide linear range, good sensitivity and easy operation. It can be concluded that the proposed method is suitable and applicable to other azo dye compounds in similar sample matrices.
