Mineralization and metallogenic model of the Laurani high-sulfidation epithermal deposit in northeastern Bolivian Altiplano

Abstract

The Laurani high-sulfidation epithermal deposit, located in the northeastern Altiplano of Bolivia, is a representative gold-polymetallic deposit linked to the late Miocene volcanic rocks that were formed approximately at about 7.5 Ma. At Laurani, four mineralization stages are defined. Stage I primarily consists of ore-barren vuggy quartz that free with metal sulfides. Stage II and stage III generate four predominant styles of mineralization of explosive breccia-style Au–Cu, contact-style Cu–Au–Ag, hydrothermal vein-style Au–Ag–Cu–Pb–Zn and porphyry-style Au–Cu that with a diversity of occurrences, reflecting the strong lithological and structural controls. Stage IV is formed by supergene oxidation of earlier metalliferous minerals postdated the main mineralization. Hydrothermal alteration is characterized by significant intensity and zoning, with phyllic alteration at the center, surrounded by propylitic alteration, and further overlapped by extensive argillic alteration. Additionally, the well-developed quartz–alunite–barite tends to be found along or in close proximity to the hydrothermal vein-style orebodies. Fluid inclusions hosted in the stage I ore-barren quartz indicate that the ore-forming fluids predating predominant metal deposition are low- to moderate-salinity (0.2–23.1 wt.% NaCleq), high-temperature (90% of homogenization temperature > 300 ℃) and CO₂-bearing fluids. Subsequently, through processes of boiling (~ 250 to 360 ℃), cooling and mixing with meteoric water, these fluids transform to low-salinity (4.2–6.9 wt.% NaCleq) and low-temperature (90% of homogenization temperature < 220 ℃) fluids. H–O isotopic compositions obtained from the stage I ore-barren quartz and the stage II quartz vein and barite vein have δD =  − 101.50 to − 41.31‰ and δ¹⁸O_H2O = 5.66 to 12.27‰, demonstrating a trend extending from magmatic composition to meteoric water, which suggest that the ore-forming fluids are mostly magmatic water, mixing with a little meteoric water. δ³⁴S values of sulfides from the stage II and stage III are 1.57–5.55‰, while barites from the stage II in textural equilibrium with sulfides own δ³⁴S values of 24.01–25.90‰, reflecting a magmatic origin and H₂S is the dominant species of sulfur. Pb isotope signatures of Laurani ores (²⁰⁶Pb/²⁰⁴Pb = 18.2869–18.3568, ²⁰⁷Pb/²⁰⁴Pb = 15.6082–15.6337 and ²⁰⁸Pb/²⁰⁴Pb = 38.6937–38.7719) are consistent with those of the Arequipa Massif basement located beneath the Altiplano, indicating that Pb originates initially from the old, thickened lower crust of the Arequipa Massif. The study on mineralization at Laurani, along with the similar epithermal deposits that formed in the late Miocene in the Central Andes, suggests that the thickened lower crust could play a crucial role as a metal source for forming porphyry–epithermal deposits. Currently, the hydrothermal vein-style Au–Ag–Cu–Pb–Zn is the most important and economic mineralization that developed in the shallow part at Laurani. Moreover, the first discovery of porphyry-style Au–Cu within dacitic porphyry suggests a significant potential for the formation of a porphyry deposit at greater depths in the Laurani mine.

Introduction

Epithermal deposits, proposed initially by Lindgren¹ to describe those formed at low temperatures in the shallow part, are important sources of metals of gold, silver, copper, zinc, lead and selenium, among others. Despite numerous classifications of epithermal deposit have been proposed^{2,3,4,5,6,7,8,9}, two predominant types of high- and low-sulfidation epithermal deposit are defined attributing to the significant differences of mineral assemblages, hydrothermal alteration features, ore-forming materials and metallogenic environments. The former is related to acid magmatic-hydrothermal systems^6,9, containing the typical high-sulfidation state sulfides and gangue minerals such as tennantite, tetrahedrite, covellite, alunite, kaolinite, and residual vuggy quartz⁸, which are rare or absent in the low-sulfidation epithermal deposits. In contrast, the ore-forming fluids in the latter are mainly meteoric water⁶, resulting in mineral assemblages with a low-sulfidation state that consist of sphalerite, arsenopyrite, adularia, illite and calcite^6,8. In many high-sulfidation epithermal deposits, the existence of porphyry deposits had been discovered at depth^10,11, whereas the genetic relationships between porphyry deposits and low-sulfidation epithermal deposits is difficult to demonstrate¹¹.

The Altiplano is an important polymetallic metallogenic belt within the Central Andes, it primarily contains the sedimentary rock-hosted copper deposits and the epithermal deposits^12,13,14,15. The Laurani deposit is one of the typical high-sulfidation examples that located in the northeastern Altiplano in Bolivia¹⁶, with a long history of exploration and exploitation. At Laurani, a complex gold polymetallic mineralization formed mainly in veins comprised of native gold, pyrite, tennantite, enargite, sphalerite, galena, covellite, etc.^12,16. Four mineralization styles and significant zonation of metal elements and hydrothermal alteration have been proposed^16,17. Structural deformation and intermediate-acid magmatism are the dominant ore-controlling factors at Laurani^16,18, and the zircon U–Pb ages demonstrate that the volcanic activity occurred at about 7.5 Ma¹⁹. Although the Laurani deposit has been of interest for a long time, and the geological features, ore-controlling factors, geochronology and petrogenesis of volcanic rocks has been recently discussed in detail^16,19, the sources of the ore-forming fluids and materials, and the ore-forming processes are still unclear, which restricts the deepened understanding of mineralization at Laurani.

In this paper, new fluid inclusions, H–O, S and Pb isotopes analyses are mainly presented to constrain the characterization and evolution of the ore-forming fluids and the source of the metals. Additionally, the features and processes involved in mineralization are discussed. This contribution may provide a new information of the Laurani high-sulfidation deposit, to understand the ore genesis as well as exploration guides for the similar epithermal deposits in the Central Andes.

Regional geology

The Altiplano, one of six physiographic provinces in Bolivia, located between the Western and Eastern Cordillera (Fig. 1a), which are characterized by a magmatic arc and a fold-and-thrust belt²⁰, respectively. It is initially an extensive depression and grows with the two-stage uplift of the Central Andes^21,22,23,24. The Altiplano is filled with the Cenozoic continental sediments^25,26,27, and develops with multiple stages and episodes of structural deformations and magmatic activities^13,25 (Fig. 1b). Numerous epithermal deposits have been formed in the Altiplano and its adjacent regions¹⁵, and they are genetically associated with the middle to late Neogene volcanism and shallow magmatism¹³. These deposits exhibit intense structural control and occur in various mineralization styles¹⁵ (Fig. 1b), and the Laurani deposit is one of the typical representative deposits among them.

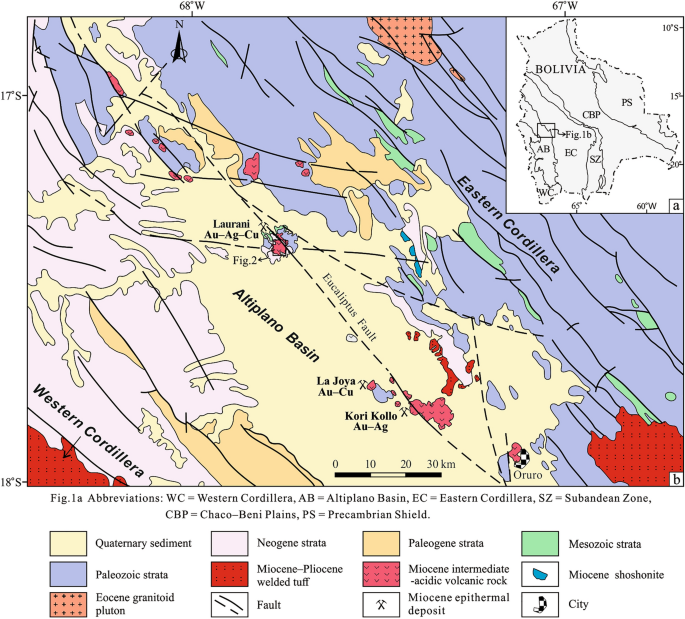

Fig. 1

(a) General Location of Fig. 1b (modified after Arce-Burgoa and Goldfarb¹⁵); (b) Geological and structural map with the location of the Laurani deposit and other epithermal and porphyry deposits (modified after Redwood and Rice¹⁸; SERGEOMIN-YPFB⁸¹).

Geology of the Laurani deposit

In the Laurani deposit, the strata consist mainly of Miocene conglomerates, sandstones, and siltstones (red beds) and Quaternary sediments (Fig. 2), Silurian and Cretaceous strata distribute in the periphery¹⁶ (Fig. 1b). Ring faults, along with an amount of various trending secondary faults, intrusive contacts and explosive breccia pipes are well developed. The latter three types of structures show an intense control on the shape and spatial distribution of ore (Figs. 2, 3). Four types volcanic rocks of tuff, dacite, dacitic porphyry and monzogranite porphyry that formed contemporaneously at about 7.5 Ma are recognized (Fig. 2), which have a genetic contribution to the gold and polymetallic mineralization¹⁹.

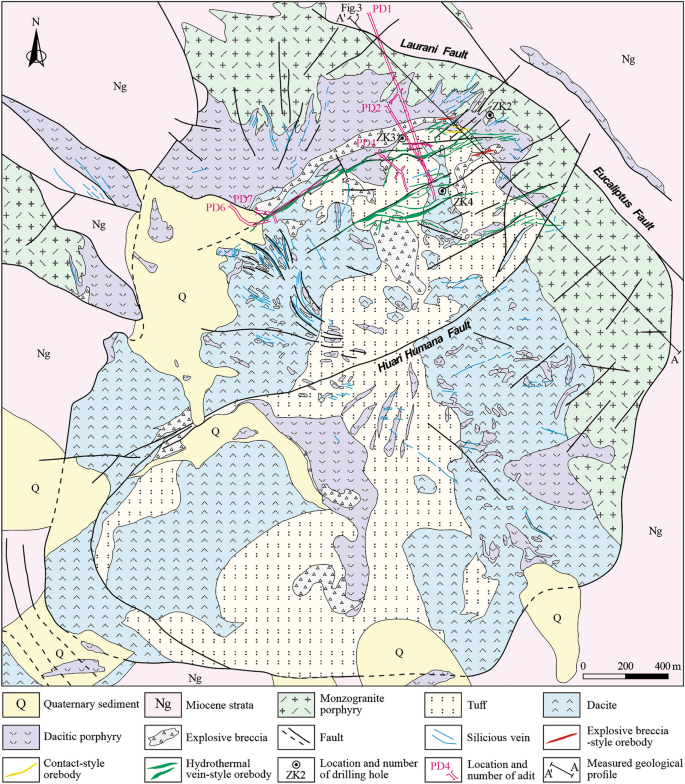

Fig. 2

The geological map of the Laurani deposit (modified after Liu et al.¹⁹).

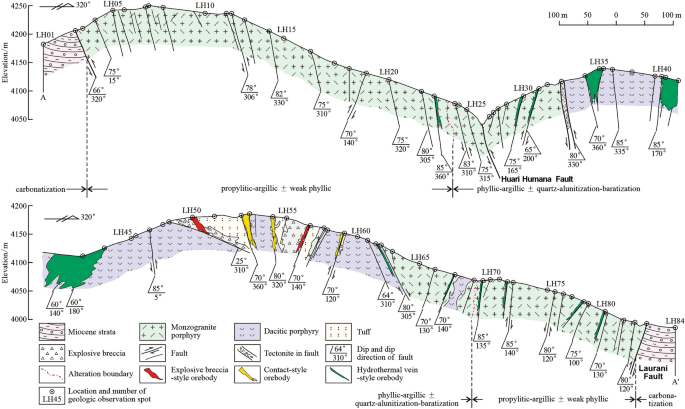

Fig. 3

The A–A′ comprehensive geological profile in the Laurani deposit (modified after Liu et al.¹⁹). The position is shown in Fig. 2. The upper part is the SE segment, and the lower part is the NW segment.

Four styles of mineralization with a diversity of occurrence develop at Laurani, including explosive breccia-style Au–Cu, contact-style Cu–Au–Ag, hydrothermal vein-style Au–Ag–Cu–Pb–Zn, and porphyry-style Au–Cu (Fig. 4). The explosive breccia-style mineralization occurs in stockwork veins (Fig. 4a) and distributes in the explosive breccia pipe (Fig. 3), commonly with a relatively low-grade gold (approximately 0.1–1 g/t) and copper (approximately 0.01–1%). The contact-style mineralization forms mainly in veins, and distributes primarily in the lithologic interface between dacitic porphyry and tuff¹⁶ (Fig. 3). Meanwhile, this type of mineralization can also be observed where volcanic rocks interact with the Miocene red beds¹⁶. The hydrothermal vein-style mineralization presents in stockwork, vein and veinlet orebodies, and forms usually within tuff, monzogranite porphyry and dacitic porphyry in the shallow part (Fig. 4b–e). Nevertheless, in tuff and monzogranite porphyry, it’s characterized by stockwork and veinlet orebodies (Fig. 4b–d), while the large and high-grade orebodies, commonly with massive accumulation of sulfides, tend to occur in dacitic porphyry (Fig. 4e). The hydrothermal vein-style orebodies are the most important and the most economically valuable in the Laurani deposit at present, which comprises mostly of N50°E veins system and N20°E veins system that controlled predominantly by secondary faults (Figs. 2, 3). Dissemination, vein and veinlet orebodies demonstrate in the porphyry-style mineralization that only occurs within dacitic porphyry in the depth (Fig. 4f–g). The metallogenic element assemblages exhibit zoning: vertically, Au–Cu is mainly found at greater depths, whereas Au–Ag–Cu–Pb–Zn is more prevalent at shallower levels; horizontally, Au–Ag–Cu–Pb–Zn and Ag–Pb–Zn are primarily distributed in the northern and southern part, respectively, which are separated by the Huari Humana fault¹⁶.

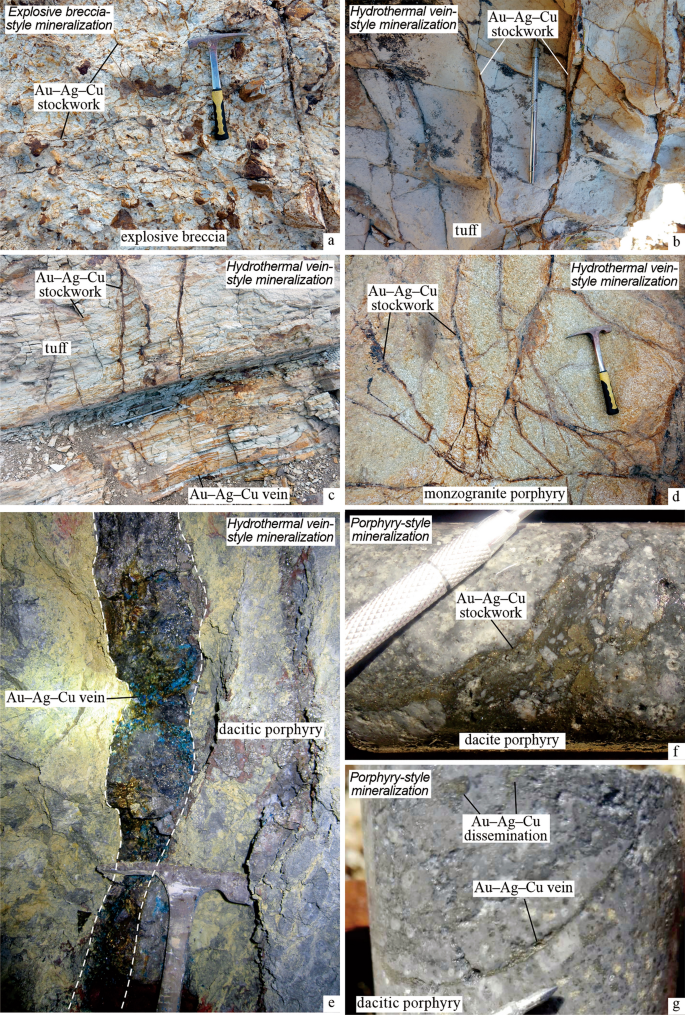

Fig. 4

Characteristics of mineralization style in the Laurani deposit. (a) shows explosive breccia-style Au–Cu orebodies, (b–e) show hydrothermal vein-style Au–Ag–Cu–Pb–Zn orebodies and (f,g) show porphyry-style Au–Cu orebodies.

Hydrothermal alterations are intense and exhibit significant zonation^16,17 (Fig. 3). Horizontal zonation varies from phyllic alteration (pyrite + sericite + quartz) to propylitic alteration (chlorite + epidote ± minor carbonate ± minor quartz) and carbonatization (mainly calcite) from the central portion of dacitic porphyries outward. Widespread argillic alteration (kaolinite + dickite + hydromuscovite ± montmorillonite) overlaps on the phyllic and propylitic alteration in the shallow. Quartz–alunitization–baratization (quartz + alunite + barite) is mainly distributed along the hydrothermal vein-style orebodies. Vertically, zonation varies from phyllic to propylitic (not always existed) and argillic alteration, ranging from deeper to shallower areas.

Four mineralization stages are distinguished based on crosscutting relationships, mineral and alteration assemblages (Fig. 5). The stage I consists of ore-barren quartz veins that commonly display a vuggy texture (Fig. 5a).

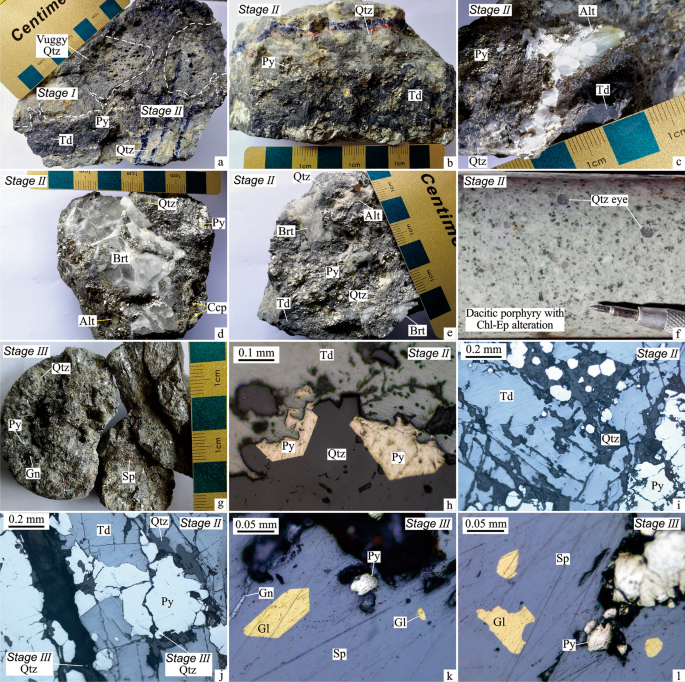

Fig. 5

Characteristic of ores from different mineralization (hydrothermal) stages in the Laurani deposit. (a) The stage I ore-barren vuggy quartz vein is cut by the stage II quartz + tetrahedrite + pyrite vein; (b) The stage II pyrite + tetrahedrite + quartz vein; (c) The stage II pyrite + tetrahedrite + quartz + alunite vein; (d) The stage II pyrite + quartz + alunite + barite vein, containing a few of disseminated chalcopyrite; (e) The stage II pyrite + tetrahedrite + quartz + alunite + barite vein; (f) Quartz eyes develop in the dacitic porphyry with chlorite + epidote + (quartz) alteration halo, these quartz eyes are mainly observed with or nearly with the porphyry-style mineralization from the stage II in the depth; (g) The stage III galena + sphalerite + pyrite vein, with scarce quartz; (h) Microphotography of the stage II pyrite + tetrahedrite + quartz vein; pyrite exists idiomorphic-hypautomorphic granular texture, tetrahedrite exists xenomorphic granular texture, quartz contains and replaces pyrite and tetrahedrite, showing a dominant paragenetic relationship; (i) Microphotography of the stage II pyrite + tetrahedrite + quartz vein; pyrite exists idiomorphic-hypautomorphic granular texture, pyrite is intergrowth with tetrahedrite and quartz to form common edge texture, showing a paragenetic relationship; (j) Microphotography of the stage II pyrite + tetrahedrite + quartz vein is cut by the stage III quartz vein; (k) Microphotography of the stage III galena + sphalerite + pyrite vein; gold exists idiomorphic-hypautomorphic granular texture, sphalerite contains pyrite and gold to form poikilitic texture; (l) Microphotography of the stage III sphalerite + pyrite vein, sphalerite contains pyrite and gold to form poikilitic texture. Qtz = quartz, Alt = alunite, Brt = barite, Chl = chlorite, Ep = epidote, Py = pyrite, Td = tetrahedrite, Ccp = chalcopyrite, Gn = galena, Sp = sphalerite, Gl = gold.

The stage II tetrahedrite + pyrite + quartz ± barite ± alunite veins represent the main ore-forming stage (Fig. 5b–e). Tetrahedrite is generally coarse-grained crystals in aggregates, a few is disseminated. Pyrite is mainly medium- to coarse-grained, a few is fine-grained in aggregates. Small amount of chalcopyrite and bornite also can be observed in this stage of vein. Quartz is the primary gangue mineral and has always existed with sulfide, but barite and alunite can either form composite veins together or appear as separate, distinct veins. The crosscutting and mineral metasomatic relationships indicate that the tetrahedrite + pyrite + quartz ± barite ± alunite veins postdate the stage I vuggy quartz (Fig. 5a) and precede the latter sphalerite + galena ± calcite ± quartz veins (Fig. 5j).

The stage III sphalerite + galena ± calcite ± quartz veins (Fig. 5g), contain small amounts of pyrite and quartz. With a few of Au and Ag-bearing minerals occur as fine-grains in sphalerite or galena (Fig. 5k–l). Calcite is the main gangue mineral, with occasional occurrences of quartz in micro-fine grains. These veins are mainly distributed in the propylitic zone.

The stage IV chalcanthite ± limonite mineralization is formed through supergene oxidation on the basis of the pre-existing stage II and stage III veins. Keller et al.²⁸ and Paar et al.²⁹ have proposed two new minerals, Lammerit and Braithwaiteite, respectively, which are secondary copper minerals discovered at Laurani.

Sampling and analytical methods

Sampling

The 14 analyzed samples were selected for fluid inclusion and isotope study from two drilling holes (ZK2 and ZK4; Fig. 3), four adits (PD2, PD4, PD6 and PD7; Figs. 3 and 6) and the surface of mine. The samples are systematically sorted, described and identified; some pictures of selected samples are shown in Fig. 5. They are ground into inclusion sheets with a thickness of 0.2 mm. The stage I ore-barren quartz, the stage II quartz eye (described below), quartz vein and barite vein, and the stage III sphalerite are selected for fluid inclusion microthermometry and gas- and solid-phase composition analysis. The stage I ore-barren quartz, the stage II quartz vein and barite vein are selected for H‒O isotope analysis. Pyrite, tetrahedrite, sphalerite, galena and barite are utilized for the analysis of sulfur and lead isotopes (excluding barite). Microthermometry and gas- and solid-phase composition analysis are carried out at the Institute of Geochemistry, Chinese Academy of Sciences, Guiyang, P. R. China. All the isotope analysis samples undergo crushing, separating and purifying before measuring, and are conducted at the Beijing Createch Testing Technology Co., Ltd., P. R. China.

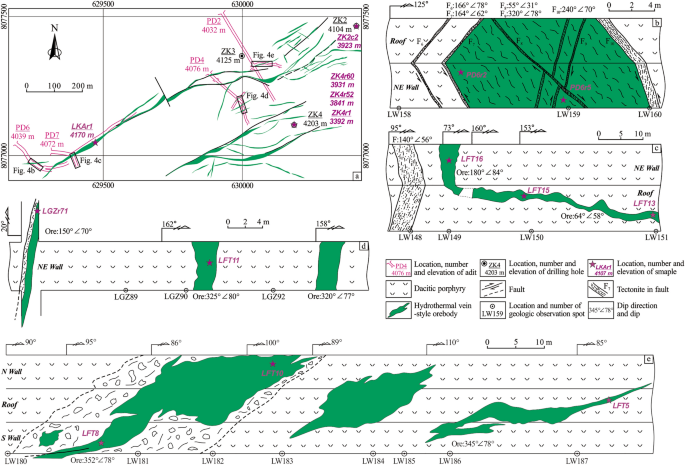

Fig. 6

The specific locations of analyzed samples.

Fluid inclusion microthermometry

Petrography of fluid inclusions are studied using optical microscopy, the classification and recognition criteria of primary fluid inclusions by Roedder³⁰ and Lu et al.³¹ are applied. Linkam‒THMSG 600 cooling-heating stage with an operating temperature range of − 195 to 600 ºC is used for microthermometry, and is calibrated by international synthetic fluid inclusion standard. The temperature stabilities are ± 0.1 ºC, ± 1 ºC and ± 2 ºC between − 195 to 30 ºC, 30 to 300 ºC and 300 to 600 ºC, respectively. The salinities of H₂O‒NaCl fluid inclusions are calculated based on the freezing point‒salinity equation³². The salinities of halite daughter mineral-bearing fluid inclusions are calculated using the halite final melting temperature-salinity equation^31,33. The salinities of CO₂-bearing fluid inclusions are calculated using the melting temperatures of clathrate³⁴. Gas- and solid-phase composition analysis of individual fluid inclusions is performed by using a Renishaw inVia reflex Laser Raman spectrometer, the laser power is 20 MW, the wavelength of the argon ion laser is 514 nm and the laser spot size is 1 μm, the scanning range is 120 to 4200 cm⁻¹, the scanning time is 30 to 60 s, and the experimental temperature is controlled at 23 ºC.

Hydrogen and oxygen isotope analysis

All the samples are cleaned and remove the absorbed water. Oxygen isotope analysis of pure quartz is performed by the BrF₅ method to produce O that reacted with BrF₅ at 550–630 °C, and then converted to CO₂ on a platinum-coated carbon rod at 700 °C³⁵. Oxygen isotope analysis of barite is performed using the pyrolysis method, CO is produced by combustion pyrolysis in a graphite furnace at 1450 °C, and helium gas is used as a carrier gas and different gases are separated by a chromatographic column, then is measured in a continuous flow mode. Hydrogen isotope analysis is also performed by the pyrolysis method, the inclusion water in quartz and barite grains is released by pyrolysis and is reacted with vitreous carbon instantaneously at 1380 °C to generate H₂ and CO, helium gas is used as a carrier gas, and different gases are separated by a chromatographic column. The H‒O isotope analysis is conducted on a MAT 253 plus mass spectrometer, with analytical precisions are better than ± 0.2‰ and ± 1‰ for O and H isotopes, respectively. The resulting values are given in δ¹⁸O and δD values relative to the V-SMOW.

Sulfur and lead isotope analysis

The sulfur isotope analysis utilizes the processed product of SO₂ that through a reaction with Cu powder³⁶, after collecting and purifying, the sulfur isotope of SO₂ is measured by using a MAT 253 plus mass spectrometer. The results are reported as δ³⁴S_VCDT with a precision better than ± 0.2‰.

For the lead isotope analysis, processed samples are fully dissolved in an ultrapure concentrated acid mixture of HF and HNO₃ (2:1), separation and purification of the Pb isotope is performed using strontium selective specific resin. The Pb isotopic values are analyzed by Neptune plus type MC‒ICP‒MS. The concentration of Pb in the solution is verified, and a standard solution of Tl is added to make Pb:Tl = 1:1. The fractionation correction of the isotope instrument use an exponential equation subjected to ²⁰³Tl/²⁰⁵Tl = 0.418922.

Results

Fluid inclusion

Fluid inclusion petrography

Fluid inclusions develop well in the selected minerals (Fig. 7), while melt inclusions, secondary inclusions, and pseudosecondary inclusions can be observed. Most fluid inclusions present randomly clustered or isolated, indicating they belong to primary inclusions in origin³¹, which are focused on in this study. Based on the composition and the phase relations observed at room temperature^30,31, four types of fluid inclusions have been identified at Laurani: pure liquid aqueous inclusions (type I), vapor–liquid two-phase aqueous inclusions (type II), CO₂-bearing three-phase inclusions (type III) and daughter mineral-bearing inclusions (type IV). The type I inclusions only involve a single liquid phase, are mainly formed in the stage II quartz veins and barite veins (Fig. 7h), and occur occasionally in the stage II quartz eyes (Fig. 7n). They usually distribute in clusters or as isolated forms, with many exhibiting elongated axial, oval, and regular polygonal shapes. Their sizes range from 1 to 26 μm, and they frequently coexist with the type II and IV inclusions (Fig. 7h,n). The type II inclusions contain both liquid and vapor phases and develop in all selected minerals (Fig. 7). They usually appear in clusters or as isolated forms, exhibiting various shapes of oval, negative-crystal and irregular polygonal forms, with sizes ranging from 1 to 40 μm. Based on phase state and filling degrees, the type II inclusions are further divided in two subtypes: type II-a (liquid-rich aqueous inclusions) and type II-b (vapor-rich aqueous inclusions). The former is well developed in the stage II quartz veins, barite veins and quartz eyes, and the stage III sphalerite, they are homogenized to the liquid phase. The latter is less developed than the type II-a inclusions, occurs mainly in the stage II quartz veins and barite veins, and commonly coexists with the type I and II-a inclusions. These inclusions are homogenized to the vapor phase. The type III inclusions are rarely and mainly observed in the stage II quartz veins and the stage III sphalerite (Fig. 7f,l). They comprise an aqueous phase and two carbon dioxide phases of liquid and vapor, ranging in size from 2 to 30 μm. These inclusions typically coexist with the type I and II-a inclusions. The type IV inclusions are commonly found in the stage II quartz veins, barite veins and quartz eyes (Fig. 7), with vapor, liquid and solid phases coexisted and range in size from 2 up to 60 μm, generally occurring with the type I and II-a inclusions.

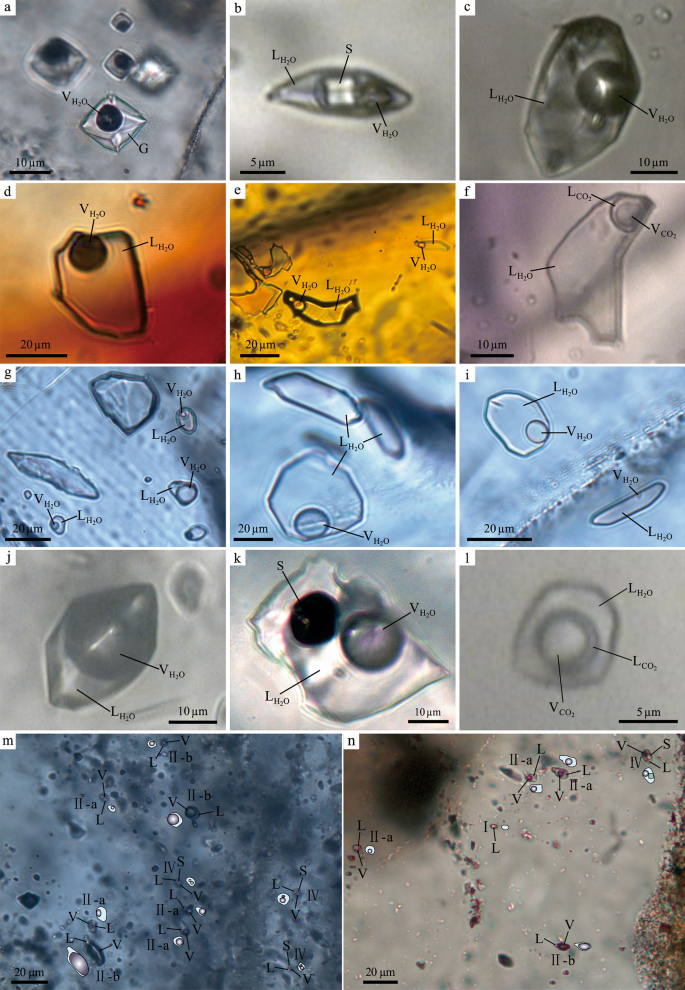

Fig. 7

Characteristics of fluid inclusion within quartz, barite and sphalerite in the Laurani deposit. (a) Melt inclusions in the stage II quartz eye (sample ZK4r52); (b) Daughter mineral-bearing inclusion in the stage II quartz eye (sample ZK4r1); (c) Liquid-rich aqueous inclusion in the stage II quartz eye (sample ZK4r1); (d,e) Liquid-rich aqueous inclusion in the stage III sphalerite (sample ZK2c2); (f) CO₂-bearing three-phase inclusion in the stage III sphalerite (sample ZK2c2); (g–i) Pure liquid aqueous, vapor-rich and liquid-rich aqueous inclusion in the stage II barite vein (sample ZK4r60 and LET15); (j) Vapor-rich aqueous inclusion in the stage II quartz vein (sample LET11); (k) Daughter mineral-bearing inclusion in the stage II quartz vein (sample PD6r2); (l) CO₂-bearing three-phase inclusion in the stage I ore-barren quartz (sample LET16); (m,n) Vapor-rich, liquid-rich, and daughter mineral-bearing inclusions in the same viewshed in the stage I ore-barren quartz (sample LET16) and of the stage II quartz eyes (sample ZK4r1). All images are observed in plane polarized light. G-glass, V-vapor, L-liquid, S-solid.

Microthermometric results

The microthermometric results are summarized in Table 1 and Fig. 8, the raw data of microthermometry can been found in supplementary Table A.

Table 1 The summary of microthermometric data of fluid inclusions in the Laurani deposit.

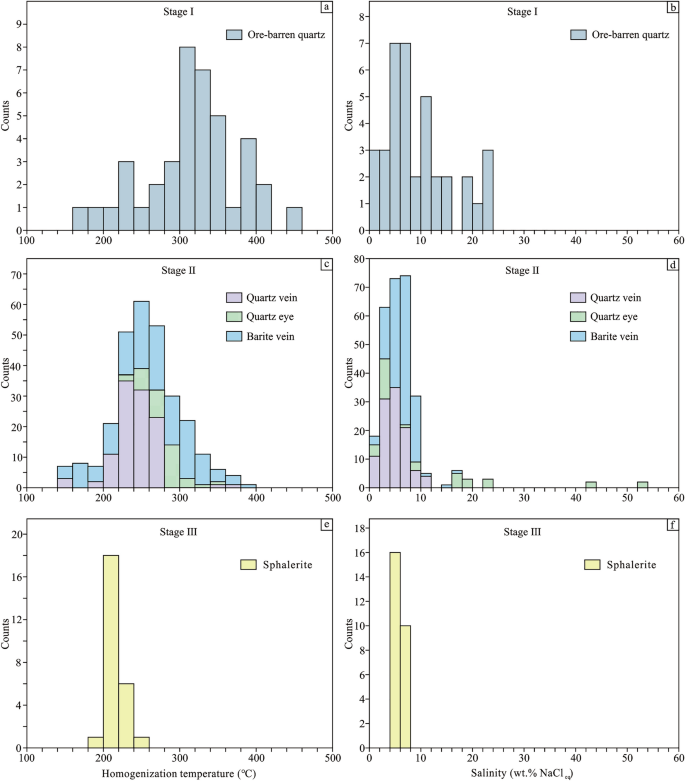

Fig. 8

Homogenization temperature and salinity of fluid inclusions from different mineralization stages in the Laurani deposit.

In the stage I ore-barren quartz, the type II-a inclusions yield ice-melting and homogenization temperatures from − 19.8 to − 0.1 °C and 164 to 397 °C, respectively, with salinities of 0.2–22.2 wt.% NaCl_eq (Table 1). Ice-melting and homogenization temperatures from two type II-b inclusions are − 7.2 to − 1.4 °C and 411 to 451 °C, respectively, with salinities of 2.4–10.7 wt.% NaCl_eq (Table 1). For the type III inclusions, the carbonic phase melt at − 64.9 to − 59.4 °C (T_{m, CO2}), the melting temperature of CO₂ clathrate (T_{m, cla}) and partial homogenization temperature (T_{h, CO2}) are 7.0–8.8 °C and 24.3–28.4 °C, respectively, with salinities of 2.4–5.7 wt.% NaCl_eq, and the total homogenization temperature occur at 317–404 °C (Table 1). Two type IV inclusions (daughter minerals are calcite) yield ice-melting and homogenization temperatures of − 21.0 to − 20.5 °C and 277 to 304 °C, respectively, with salinities from 22.7 to 23.1 wt.% NaCl_eq (Table 1).

In the stage II tetrahedrite + pyrite + quartz ± barite ± alunite ores, the type II-a inclusions from quartz eyes, quartz veins and barite veins are homogenized at 146–397 °C, with ice-melting temperatures from − 20.3 to − 0.2 °C and salinities of 0.4–22.4 wt.% NaCl_eq (Table 1). One type II-b inclusion from barite vein yields an ice-melting temperature of − 11.2 °C and homogenization temperature of 313 °C, with a salinity of 15.2 wt.% NaCl_eq (Table 1). The type IV inclusions (daughter minerals are calcite or sulfide) from quartz vein yield ice-melting and homogenization temperatures ranging from − 5.2 to − 1.6 °C and 215 to 262 °C, respectively, with salinities from 2.7 to 8.1 wt.% NaCl_eq (Table 1). In addition, the homogenization temperatures of type IV inclusions from quartz eyes give values between 241 to 261 °C, with halite final melt temperatures variable from 346 to 450 °C and salinities from 42.1 to 53.3 wt.% NaCl_eq (Table 1).

The type II-a inclusions of sphalerite from the stage III yield ice-melting temperatures of − 4.3 to − 2.5 °C, with salinities of 4.2–6.9 wt.% NaCl_eq and homogenization temperatures of 193–249 °C (Table 1).

Raman spectroscopy

The type II, type III, and type IV fluid inclusions from the stage I vuggy quartz, the stage II quartz veins and barite veins, and the stage III sphalerite are analyzed for Raman spectroscopy. It reveals that the vapor phases in the Laurani deposit are dominantly H₂O, with a little CO₂, and traces N₂ and CH₄ (Fig. 9). In addition to halite, daughter minerals (solid phases) include some calcites and pyrites as well (Fig. 9).

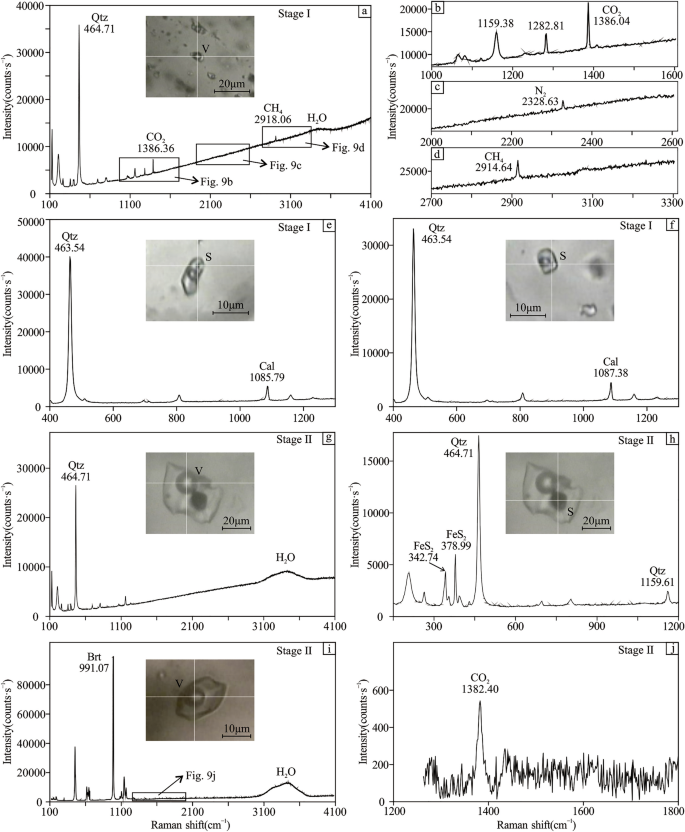

Fig. 9

Laser raman spectra of fluid in the Laurani deposit. Qtz = quartz, Cal = calcite, Brt = barite, V-vapor, S-solid.

Hydrogen and oxygen isotope

The measured hydrogen and oxygen isotopic values at Laurani and those collected for plotting Fig. 10 are listed in supplementary Table B. O isotopes of hydrothermal solutions are calculated by utilizing the equation of the measured δ¹⁸O values and the corresponding experimented fluid inclusion homogenization temperatures in the hosted minerals of quartz and barite from Clayton et al.³⁷ and Kusakabe and Robinson³⁸, respectively. The early stage I ore-barren quartz exhibits relatively high δ¹⁸O_H2O values of 9.52 to 12.27‰ and moderate δD values of − 72.70 to − 71.57‰ (Table 2). Quartz vein and barite vein from the stage II show lower δ¹⁸O_H2O values from 5.66 to 10.99‰ and various δD values from − 101.50 to − 41.31‰ (Table 2).

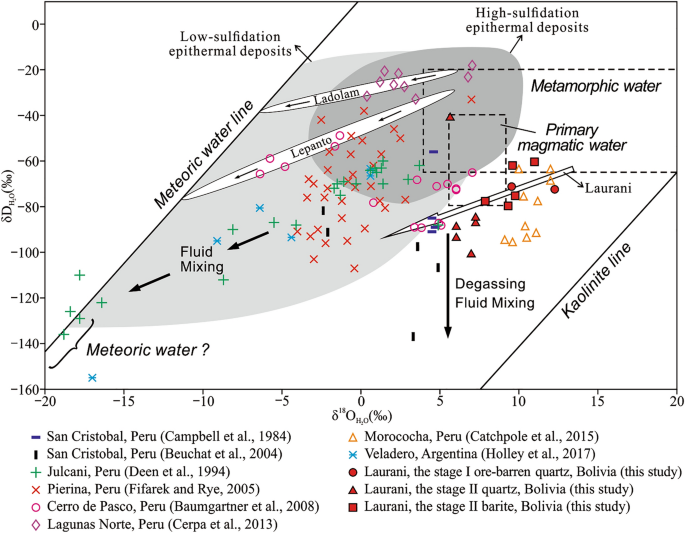

Fig. 10

Hydrogen and oxygen isotopic compositions of late Miocene epithermal deposits in the central Andes. Hydrogen and oxygen isotope data are taken from Campbell et al⁸², Deen et al.⁴⁸, Beuchat et al.⁴⁹, Fifarek and Rye⁵¹, Baumgartner et al.⁵², Cerpa et al.⁵³, Catchpole et al.⁵⁴, Holley et al.⁵⁵ and this study (for Laurani deposit). Isotopic compositions of high- and low-sulfidation epithermal deposit, and trend for Lepanto and Ladolam are modified after Simmons et al⁸. Meteoric water line, and metamorphic and primary magmatic water are based on Taylor⁴⁴. Kaolinite line is based on Savin and Epstein⁸³.

Table 2 Hydrogen and oxygen isotopic compositions in the Laurani deposit.

Sulfur and lead isotope

The sulfur isotopes at Laurani and those collected for plotting Fig. 11 are listed in supplementary Table C. The S isotopic data at Laurani are summarized in Table 3. Pyrites and tetrahedrites from the stage II have δ³⁴S values of 1.57–3.66‰, while the paragenetic barites have relatively high δ³⁴S values of 24.01 to 25.90‰ (Table 3). Galena and sphalerite from the stage III have δ³⁴S values of 3.26–5.55‰ (Table 3).

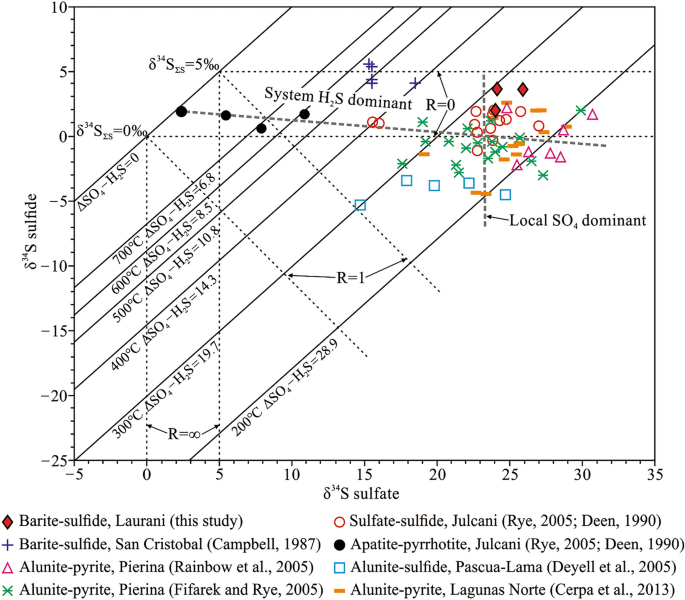

Fig. 11

Sulfur isotopic compositions of the late Miocene epithermal deposits in the central Andes. Sulfur isotope data are taken from Campbell⁸⁴, Deen⁶⁶, Deyell et al.⁵⁰, Fifarek and Rye⁵¹, Rainbow et al.⁸⁵, Rye⁶¹, Cerpa et al.⁵³ and this study (for Laurani deposit; the three stage II barite-sulfide pairs from the samples ZK4R60, LFT5 with LFT10, and LFT13 with LFT15 in Table 3, the last two sample pairs are taken from the two same orebodies, respectively). The original diagram is modified after Rye⁶¹. The nearly horizontal line through the hydrothermal and igneous data reflects a combination of disequilibrium in the igneous system and late hydrothermal systems and the average equilibrium values for magmatic-hydrothermal alunite in an overall H₂S-dominant system⁶¹; the near-vertical line represents the local shift to a SO²⁻₄-dominant system during acid sulfate alteration⁶¹. R is defined in terms of SO²⁻₄/H₂S⁶¹.

Table 3 Sulfur isotopic compositions of sulfides and sulfates in the Laurani deposit.

The lead isotopes from the Laurani ores and those collected for plotting Fig. 12 are listed in supplementary Table D. The Pb isotopic compositions at Laurani are summarized in Table 4. It shows a concentrated Pb isotopes, with ²⁰⁶Pb/²⁰⁴Pb = 18.2869–18.3568, ²⁰⁷Pb/²⁰⁴Pb = 15.6082–15.6337, and ²⁰⁸Pb/²⁰⁴Pb = 38.6937–38.7719 (Table 4). The Pb model ages (T), and two parameters of μ (²³⁸U/²⁰⁴Pb) and κ (²³²Th/²³⁸U) are calculated based on Faure³⁹, showing the Pb model ages between 231 and 280 Ma, μ = 9.49‒9.54 and κ = 3.88‒3.91 (Table 4).

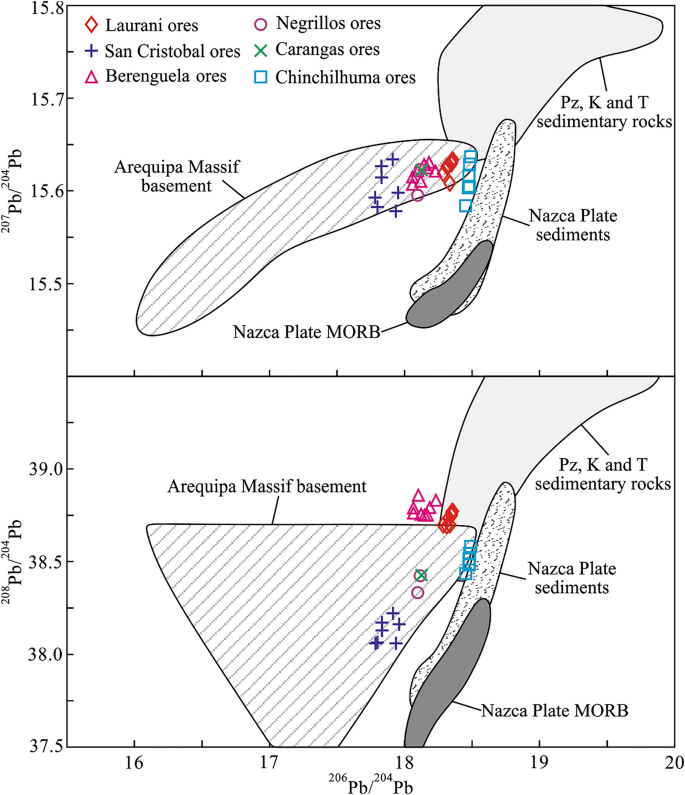

Fig. 12

Lead isotopic compositions of ores from the late Miocene epithermal deposits in the central Andes (between about 16°‒21°S), compared with potential metal sources. Lead isotope data of ores are taken from Kamenov et al.⁶⁰, Macfarlane and Lechtman⁷¹ and this study (for Laurani deposit). Lead isotopic compositions of Nazca Plate MORB, Nazca Plate sediments and Pz, K and T sedimentary rocks are drawn from Kamenov et al.⁶⁰; Lead isotopic compositions of Arequipa Massif basement are based on Mamani et al.⁶⁷ and Ramos⁶⁸, in the plot of ²⁰⁷Pb/²⁰⁴Pb vs. ²⁰⁶Pb/²⁰⁴Pb modified from Ramos⁶⁸, in the plot of ²⁰⁸Pb/²⁰⁴Pb vs. ²⁰⁶Pb/²⁰⁴Pb modified from Macfarlane and Lechtman⁷¹, whose ²⁰⁸Pb/²⁰⁴Pb ratios are higher than those of Mamani et al.⁶⁷ and Ramos⁶⁸.

Table 4 Lead isotopic compositions of sulfides in the Laurani deposit.

Discussion

Mineralization and alteration characteristics

The high-sulfidation epithermal deposits vary in forms of disseminations or replacements to veins, stockworks, and hydrothermal breccia bodies³. Similarly, four styles of explosive breccia Au–Cu, contact Cu–Au–Ag, hydrothermal vein Au–Ag–Cu–Pb–Zn, and porphyry Au–Cu mineralization are developed in the Laurani high-sulfidation epithermal deposits (Fig. 4). As previously mentioned, these individual mineralization styles at Laurani are controlled predominantly by lithologies and structures, which is similar to the most high-sulfidation epithermal deposits in the world⁸.

At Laurani, hydrothermal alterations are well developed and exhibit significant zonation¹⁶ (Fig. 3). Vuggy and/or massive quartz is common, in combination with alunite, kaolinite and/or dickite, indicating that the initial fluids causing alteration and rock dissolution are extremely acid^7,8. Vuggy quartz predates metal deposition, illustrating the importance of paleo-permeability in preparation for metal deposition^8,40. Quartz, alunite and barite commonly accompany high-sulfidation sulfide orebodies, the presence of magmatic hydrothermal alunite reflects the fluids are relatively oxidized⁸, and barite is an insoluble gangue mineral that remains even after complete oxidation of sulfides³. Besides, quartz eyes⁴¹ can be widely observed in the Laurani deposit (Fig. 5f), containing the single-phase pure liquid aqueous inclusions, vapor–liquid two-phase aqueous inclusions, and daughter mineral-bearing inclusions (Fig. 7b,c,n) as well as melt inclusions (Fig. 7a), which are similar to the studies by Vasyukova et al.⁴¹ in porphyry deposits. And the abundant occurrence of quartz eyes may be significant evidence of large-scale fluid exsolution⁴². However, potassic zone is absent in the Laurani deposit, which may be owing to its possible existence in deep and has not been revealed¹⁶. In conclusion, the characteristics of hydrothermal alterations and alteration zonation at Laurani are consistent with those polymetallic veins and high-sulfidation epithermal systems related to porphyry system at depth^8,9,10,11,40.

Sources of ore-forming fluids

H–O isotopes of ore-forming fluids from the high-sulfidation epithermal deposits typically show trends that extend from magmatic compositions to the meteoric water line, with many values closer to the magmatic end^7,8,43. At Laurani, the ore-forming fluids from both the stage I ore-barren quartz and the stage II quartz vein and barite vein have a relatively concentrated values of δD (− 101.50 to − 60.80‰) and δ¹⁸O_H2O (6.00 to 12.27‰), except for one outlier value of δD =  − 41.31‰ and δ¹⁸O_H2O = 5.66‰ of quartz vein from the stage II (Table 2; Fig. 10). The H–O isotopic values in the Laurani deposit coincide with those of primary magmatic water⁴⁴, and also show remarkable trend that extend from primary magmatic water to the meteoric water line and with a lot distribute in the magmatic end (Fig. 10), indicating the ore-forming fluids are mainly a magmatic source. Most of δD and δ¹⁸O_H2O values from the stage II quartz vein and barite vein are lower than those from the stage I ore-barren quartz and are closer to meteoric water line (Table 2; Fig. 10), reflecting meteoric water may mainly enter into the ore-forming system in the stage II. This is consistent with the similar source of the ore-forming fluids that a majority of magmatic water mixing with meteoric water, which is typically for the high-sulfidation epithermal deposits^8,43, as well as for many porphyry-type copper deposits (PCDs) worldwide^45,46,47. Therefore, we suggest that the ore-forming fluids of the Laurani high-sulfidation epithermal deposit are primarily derived from magmatic water, mixing with a little meteoric water.

Furthermore, similar to the Laurani deposit, the H–O isotopic compositions of some Miocene high-sulfidation epithermal deposits from the Central Andes also indicate a predominantly magmatic component with a minor meteoric water presence in the ore-forming fluids^{48,49,50,51,52,53,54,55} (Fig. 10).

Evolution of ore-forming fluids

At Laurani, the fluid inclusion microthermometric results from the stage I ore-barren quartz indicate the existence of low- to moderate-salinity (primarily 0.2–13.0 wt.% NaCl_eq), high-temperature (mostly higher than 300 ℃) and CO₂-bearing fluids (Table 1; Fig. 8). They dovetail with the early leaching fluids that condensed from magmatic vapor⁷ and the silica-alunite stage fluids summarized by Henley and Berger⁵⁶ that with a high temperature (> 500 ℃) and wide range of temperatures, which reflect the properties of the initial ore-forming fluids that derived from magmatic water in the porphyry–epithermal metallogenic system^{43,45,57,58,59}. In the stage I ore-barren quartz, the daughter mineral-bearing inclusions, liquid- and vapor-rich aqueous inclusions can be observed in the same viewshed (Fig. 7m), and these fluid inclusions yield homogenization temperatures of 265–357 ℃ with salinity varied from ~ 2 to 23 wt.% NaCl_eq, suggesting fluid boiling occurs from about 260 to 360 ℃. The variations of salinity without temperature change caused by fluid boiling, which is one of the important mechanisms promoting mineral precipitation and occurs commonly in many porphyry–epithermal deposits, such as Shizitou porphyry Mo deposit⁴⁵, Morococha district⁵⁴ and Cerro de Pasco epithermal polymetallic deposit⁵².

In the stage II tetrahedrite + pyrite + quartz ± barite ± alunite veins, the microthermometric results obtained from the stage II quartz eyes are characterized by three distinctive salinities of 0.5–9.9 wt.%, 17.3–22.4 wt.% and 42.1–53.3 wt.% NaCl_eq (Table 1; Fig. 8). The variations in salinity are mainly owing to the boiling of fluids, which can be confirmed by the boiling inclusion group that the pure liquid aqueous inclusions, the liquid- and vapor-rich aqueous inclusions and the daughter mineral-bearing inclusions generated together in the same place (Fig. 7n). These inclusions yield the temperatures of 247–352 ℃, indicating fluid boiling takes place at ~ 250 to 350 ℃, which like those occur in the stage I ore-barren quartz. The homogenization temperatures obtained from the stage II quartz veins are relatively narrow, most of them are 200 to 280 ℃, with low- to moderate-salinity of 0.4–11.2 wt.% NaCl_eq. Compared to quartz veins, the homogenization temperatures of the stage II barite veins show a wide range and decreasing trend from 397 to 146 ℃, while the salinities have a narrow range from 0.7 to 10.7 wt.% NaCl_eq except for two greater than 15 wt.% NaCl_eq and show a decreasing trend as well (Fig. 13). These features coincide with low salinities that less than 5 wt.% NaCl_eq and a wide range of homogenization temperatures of 150–300 °C of ore-forming fluids in sulfide stage⁵⁶. The decrease in temperatures and salinities is reasonably interpreted as decompression caused by structural activity, and/or as cooling resulted from mixing with meteoric water that also confirmed by the H–O isotopic results (Fig. 10). Furthermore, the homogenization temperatures and salinities obtained from sphalerite in the stage III veins are relatively low (Table 1; Fig. 8), representing the properties of the late-stage evolved ore-forming fluids.

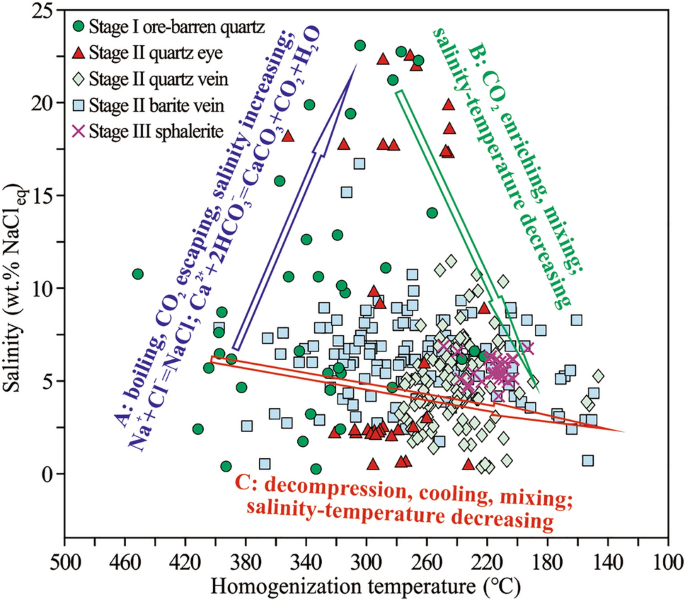

Fig. 13

Evolution processes of ore-forming fluids in the Laurani deposit. Four data with high salinities of 42.1‒53.3 wt.% NaCl_eq and homogenization temperatures 241 to 261 °C from type IV daughter mineral-bearing inclusions in the stage II quartz eyes are not involved.

In summary, the evolution of ore-forming fluids at Laurani mainly involves three processes (Fig. 13): (1) boiling, which occurs at about 250 to 360 ℃, causing the loss of CO₂ and an increase in salinity, then inducing the formation of some daughter mineral-bearing inclusions of halite and/or calcite, which generate mainly in shallower parts relative to halite because of boiling and loss of CO₂ not only increase pH but also lead to the deposition of calcite (Fig. 13A); (2) CO₂ enrichment and mixing, the lost CO₂ enriching in the shallow part together with mixing between magmatic and meteoric waters result in salinity and temperature decreasing (Fig. 13B); (3) decompression, cooling and mixing, the pressure, salinity and temperature decrease continuously resulting from mixing with meteoric water and/or injecting into fractures following the ore-forming fluids migrating to the shallow part (Fig. 13C).

Sources of ore-forming materials

S and Pb isotopes effectively constrain the sources of these elements^60,61,62. The δ³⁴S values of sulfides and barites obtained at Laurani are 1.57–5.55‰ and 24.01–25.90‰ (Table 3), respectively, which are consistent with a magmatic source of sulfur⁶³. In Fig. 11, the δ³⁴S values of hydrothermal sulfate–sulfide pairs from the Laurani deposit and some other Miocene high-sulfidation deposits in the Central Andes show an extension of the trend through the data for igneous apatite–pyrrhotite pairs from Julcani⁶¹, suggesting that the hydrothermal fluids are primarily H₂S-dominant fluids^53,61, which is typical for Andean high-sulfidation systems^53,61,64 and is almost always the case for high-sulfidation magmatic–hydrothermal systems^40,61,65. At Laurani, temperatures of the fractionations between barite and sulfide range from 260 to 300 °C (Fig. 11), coinciding well with the homogenization temperatures of fluid inclusions measured in the related quartz and barite from the stage II. Considering the H₂S-dominant fluids and three limited δ³⁴S data of barite-sulfide pairs (Fig. 11), we estimate that the bulk δ³⁴S value (δ³⁴S_ΣS) for the hydrothermal fluids may be about 2 to 5‰ in the Laurani deposit. This estimate is consistent with the δ³⁴S_ΣS observed in hydrothermal fluids from other high-sulfidation epithermal deposits, such as Julcani^61,66 and Pascua⁵⁰.

The Pb isotope ratios from various sulfide minerals at Laurani are fairly uniform (Table 4; Fig. 12), indicating that the same Pb source contributes to the Laurani ores. Although no Pb isotope of the Laurani volcanic rocks have been conducted, based on the geological features of deposit¹⁶ and the H, O and S isotope sources discussed above, we infer that these volcanic rocks are the proximal source of lead for mineralization. The Laurani volcanic rocks are generated primarily from the partial melting of the thickened Paleoproterozoic lower crust that related to the Arequipa Massif¹⁹. The Pb isotope ratios of the Laurani ores (Table 4), are coincident well with the Pb isotopic values of the Arequipa Massif that with ²⁰⁶Pb/²⁰⁴Pb = 16.083–18.551, ²⁰⁷Pb/²⁰⁴Pb = 15.435–15.650 and ²⁰⁸Pb/²⁰⁴Pb = 36.712–38.655^67,68, except for slightly higher ²⁰⁸Pb/²⁰⁴Pb ratios. In Fig. 12, the Pb isotope ratios of ores at Laurani lie above those of Nazca plate basalts and Nazca plate metalliferous and pelagic sediments⁶⁰, and do not overlap with the Paleozoic and Cretaceous-Tertiary sedimentary rocks⁶⁰. Instead, they lie within or near the Pb isotope ratios of the Arequipa Massif basement, indicating Pb isotopes at Laurani originate primarily from the ancient, high-grade metamorphic basement of the Arequipa Massif. The Pb model ages (T) calculated from the Laurani ores are 231–280 Ma (Table 4), which are older than the Laurani volcanic activity (~ 7.5 Ma) at the time when the Altiplano uplifted rapidly (~ 10–6 Ma), indicating a significant “delay” in radiogenic Pb ingrowth and an ancient basement beneath the Altiplano. Furthermore, the two characteristic geochemical parameters of metal sources μ (²³⁸U/²⁰⁴Pb) and κ (²³²Th/²³⁸U) calculated from the Laurani ores with a mean value of 9.5 and 3.9 (Table 4), respectively, are both slightly lower than the μ values (9.6–9.7) and the κ values (4.0–4.2) of the Altiplano estimated by Albarède et al.⁶⁹, which also reflect the Pb isotope source of Laurani ores is from an ancient basement, where the continental crust is particularly thick and U has been preferentially removed during orogenic events⁶⁹.

Some late Miocene epithermal deposits in the Central Andes have a similar Pb isotope source signature (Fig. 12). For instance, the San Cristobal ores contain about 75% Pb from the metamorphic basement estimated by Kamenov et al.⁶⁰, and the Pb isotope ratios of ores at Berenguela, Negrillos, Carangas and Chinchilhuma also reflect the incorporation of Pb from the Proterozoic metamorphic basement underlying the area^60,70,71. These late Miocene epithermal deposits, including Laurani, are located in Pb isotope Province IV proposed by Kamenov et al.⁶⁰ and Macfarlane and Lechtman⁷¹, which have low ²⁰⁶Pb/²⁰⁴Pb and ²⁰⁷Pb/²⁰⁴Pb values compared to ²⁰⁸Pb/²⁰⁴Pb ratios, representing a predominant Pb source from the Arequipa Massif metamorphic basement beneath the Central Andes^67,68.

Implications for the mineralization and deposit model of Laurani

High-sulfidation epithermal deposits typically form contemporaneously and co-spatially with volcanism and associated intrusions^7,8. Recently, Liu et al.¹⁹ demonstrated that the volcanic activity occurred at ~ 7.5 Ma at Laurani, indicating that the Laurani high-sulfidation epithermal deposit also form in the late Miocene, which is coincident with the episode of major and rapid uplift of the Altiplano^{20,21,24,72,73,74,75,76}. Numerous epithermal deposits with comparable metallogenic ages were formed in and around the Altiplano, such as San Cristobal⁶⁰, La Española^15,77, Choquelimpie⁷⁸, Santa Rosa⁷⁹, Veladero⁵⁵, among others, which reflect a crucial high-sulfidation magmatic–hydrothermal metallogenic event related to rapid uplift of the Altiplano in the late Miocene.

As above-discussed, various mineralization and hydrothermal alterations observed at Laurani are similar to those in typical polymetallic veins associated to porphyry–high-sulfidation metallogenic system^3,8,80. Four styles of orebodies occur in diverse shapes, have a close spatial connection with the volcanic rocks, reflecting an intense influence of structural and lithological controls. Additionally, the porphyry-style mineralization within the dacitic porphyry that we first proposed^16,17 indicates there is a great potential to prospect porphyry deposits in the depth of the Laurani mine.

Fluid inclusions in the stage I ore-barren quartz show the fluids predated predominant metal deposition are low- to moderate-salinity, high-temperature and CO₂-bearing fluids, which may be the evolved fluids from phase separation of high temperature (> 500 ℃) magmatic fluids that exsolved from magma chamber at depth (Fig. 14), where may present possibly a high-salinity fluids and cause potassic alteration in the porphyry environment (Fig. 14). The early evolved low- to moderate-salinity fluids then rise and undergo processes of boiling, cooling and mixing to precipitate metal, generating four styles of mineralization and associated alterations (Fig. 14). The origin of the ore-forming fluids that separated from the evolved magmatic fluids and exchanged later with meteoric water is also well documented by the H–O isotopes (Fig. 10).

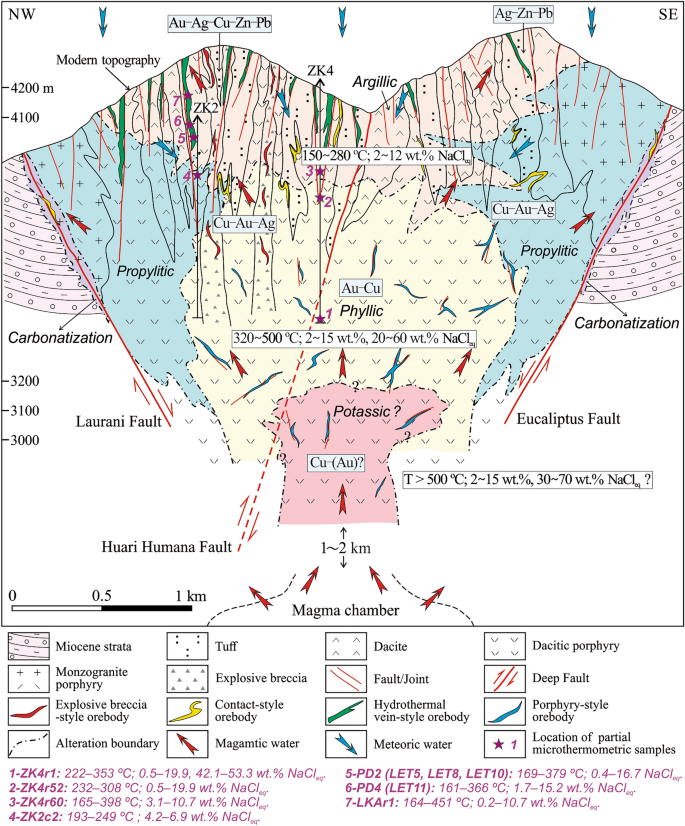

Fig. 14

Metallogenic model of the Laurani deposit.

S–Pb isotopes also constrain that the source of ore-forming materials is a magmatic origin. Furthermore, the Pb isotopic values of Laurani ores indicate that the lead is primarily and initially derived from the Arequipa Massif basement. Combined with the similar epithermal deposits that formed in the late Miocene from the Central Andes, such as those mentioned above, we conclude that during the rapid uplift of the orogenic belt, the partial melting of the thickened lower crust is not only an essential magma formation mechanism¹⁹, but also is a significant source of metal for forming porphyry–epithermal deposits.

Conclusions

The Laurani deposit is a typical high-sulfidation epithermal deposit that related to the contemporaneous volcanic rocks formed at about 7.5 Ma in the late Miocene, which is coeval with the period of major and rapid uplift of the Altiplano plateau. At Laurani, four hydrothermal stages are recognized, with most of the metal precipitated during the stage II and stage III, generating four styles of mineralization with different occurrences that controlled by structures and lithologies. Currently, the hydrothermal vein-style Au–Ag–Cu–Pb–Zn is the most important and economically significant mineralization, developing mainly in the shallow part, while the porphyry-style Au–Cu observed in dacitic porphyry indicates the potential to form porphyry deposits at depth. The intense hydrothermal alterations, particularly the residual vuggy quartz, alunite, barite and alteration zonation of phyllic to propylitic and argillic at Laurani, also reflect it’s a typical high-sulfidation epithermal metallogenic systems.

The early ore-forming fluids obtained from the stage I ore-barren quartz demonstrate low- to moderate-salinity and high-temperature (90% of homogenization temperatures > 300 ℃) fluids, then boiling occur about between 250 and 360 ℃, and they transform into low-salinity and low-temperature (90% of homogenization temperatures < 220 ℃) fluids in the late. H–O–S–Pb isotopes are consistent with the predominant magmatic sources of the ore-forming fluids and materials, with a little meteoric water mixing later. S isotopic values of barite–sulfides from the stage II and stage III, combined with alteration minerals such as vuggy quartz, barite and alunite, suggesting that the ore-forming fluids are acidic, oxidized and H₂S dominant. Pb isotopic values reflect the Pb is initially derived from the Arequipa Massif basement, indicating that the thickened lower crust may be an important metal source for the formation of epithermal deposits.
