Fig. 28

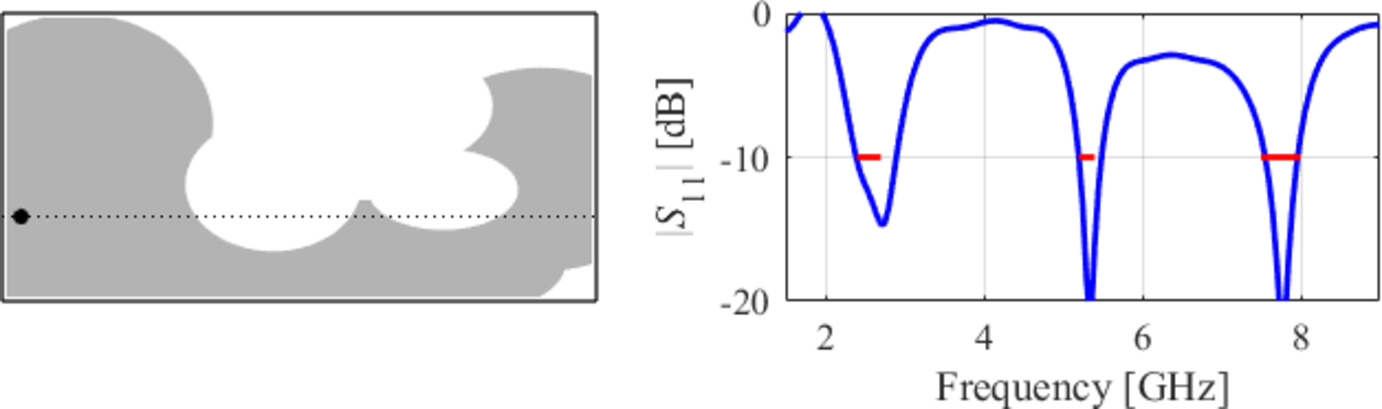

Case VIII: a triple-band antenna working in the 2.4Â GHz to 2.5Â GHz, 5.2Â GHz to 5.4Â GHz, and 7.5Â GHz to 8.0Â GHz range. Final geometry (ground plane marked using the dotted line) and the reflection response.
Fig. 28 | Scientific Reports
Case VIII: a triple-band antenna working in the 2.4Â GHz to 2.5Â GHz, 5.2Â GHz to 5.4Â GHz, and 7.5Â GHz to 8.0Â GHz range. Final geometry (ground plane marked using the dotted line) and the reflection response.
