Fig. 31

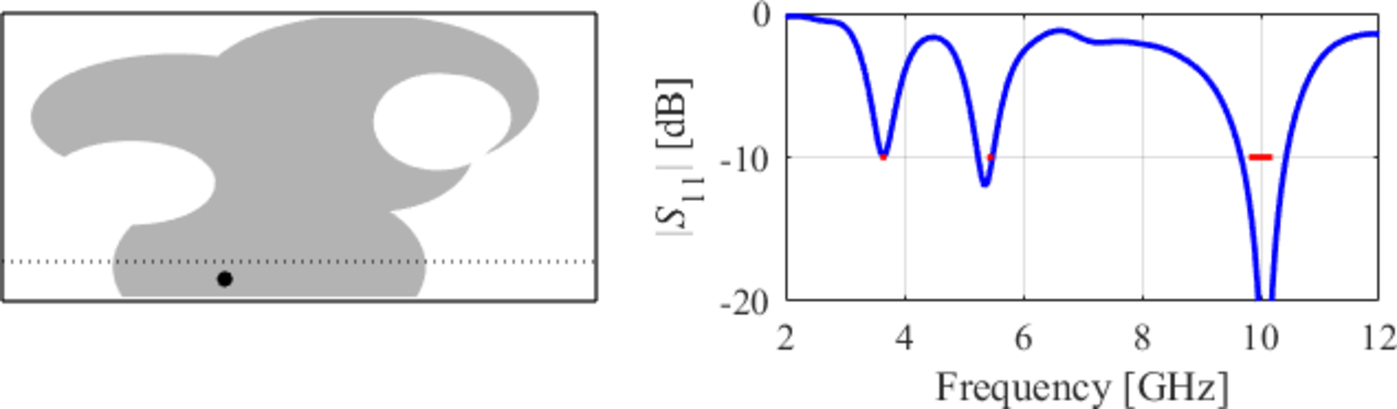

Case IX: a triple-band antenna working in the 3.6Â GHz to 3.7Â GHz, 5.4Â GHz to 5.5Â GHz, and 9.8Â GHz to 10.2Â GHz range. Final geometry (ground plane marked using the dotted line) and the reflection response.
Fig. 31 | Scientific Reports
Case IX: a triple-band antenna working in the 3.6Â GHz to 3.7Â GHz, 5.4Â GHz to 5.5Â GHz, and 9.8Â GHz to 10.2Â GHz range. Final geometry (ground plane marked using the dotted line) and the reflection response.
