Fig. 5
From: Numerical simulation of fracture patterns in roof strata with different thicknesses

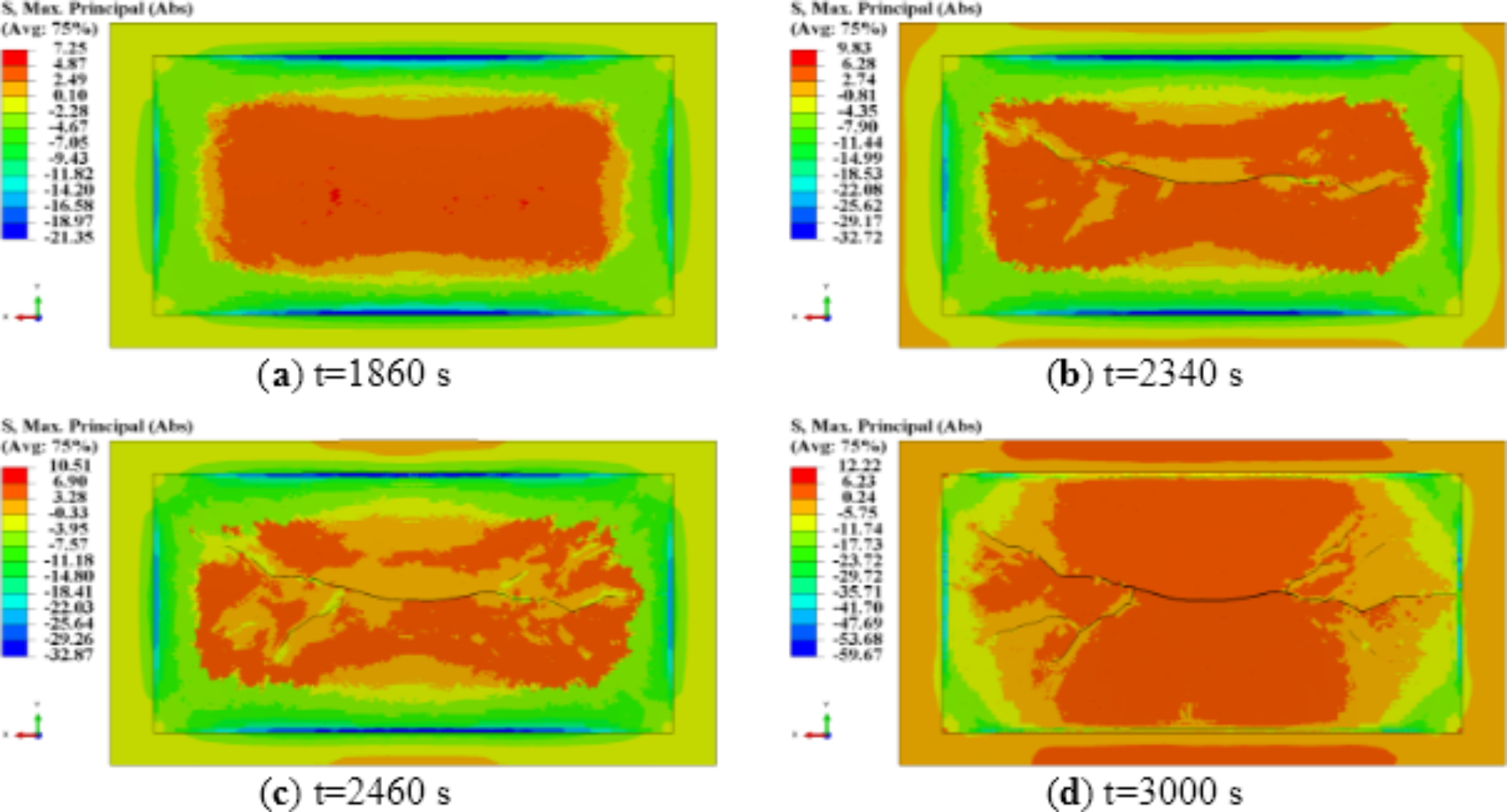

Evolution laws of the maximum principal stress of 20 mm concrete plate at different time. These legends were generated by numerical calculations in the FEM software ABAQUS 2022.
