Fig. 2

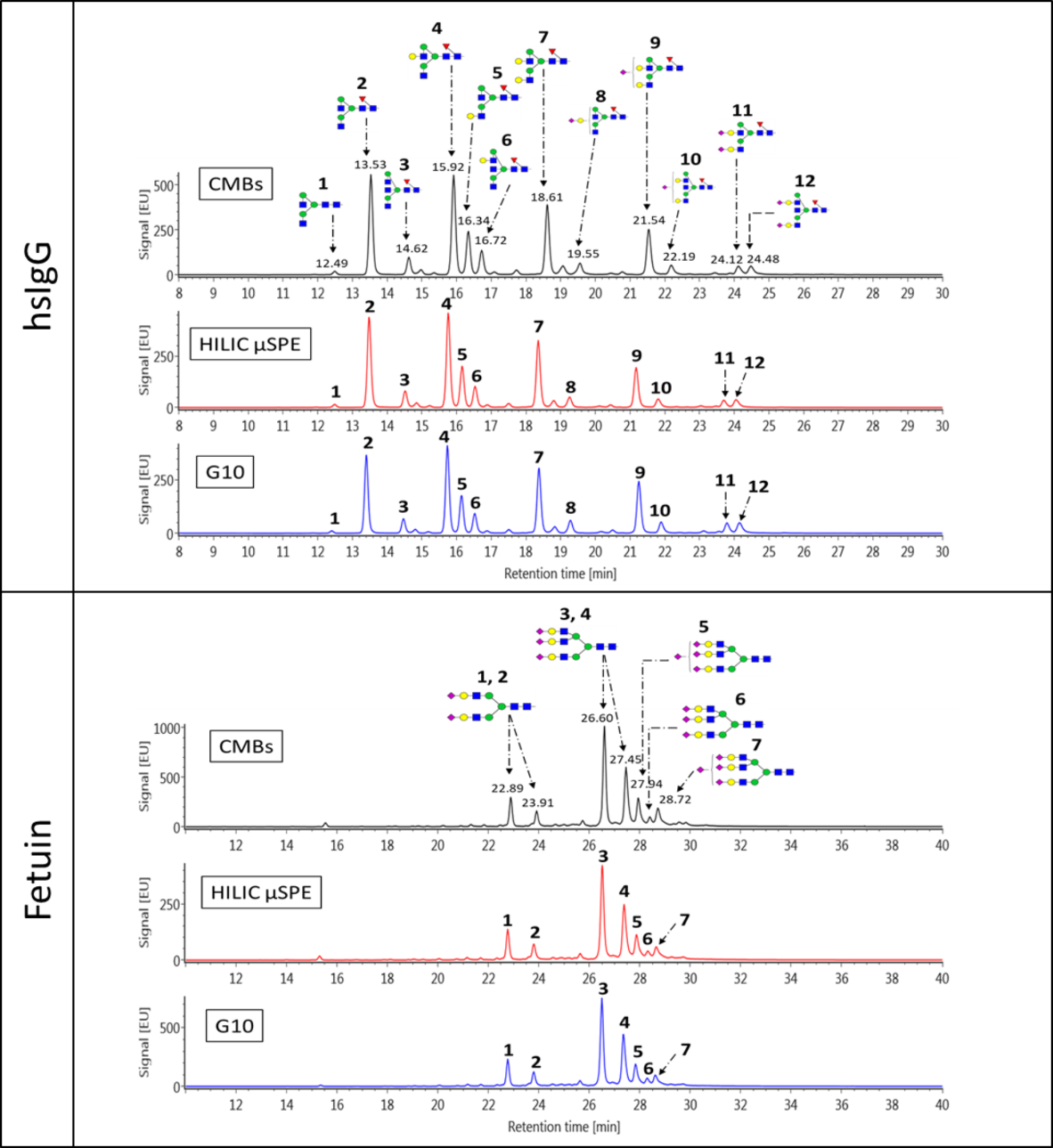

Comparison of N-glycan profiles of hsIgG and bovine fetuin purified with three different methods. hsIgG and bovine fetuin were derivatized with the fluorescent label RFMS and purified using CMBs, HILIC 96-well µSPE and PD MiniTrap G10. The profiles generated from the three methods were highly similar for both proteins. Red triangle represents fucose, green circle represents mannose, blue square represents N-acetylglucosamine, yellow circle represents galactose and pink diamond represents sialic acid.
