Fig. 4 | Scientific Reports

Fig. 4

From: Macrophage tracking with USPIO imaging and T2 mapping predicts immune rejection of transplanted stem cells

Fig. 4

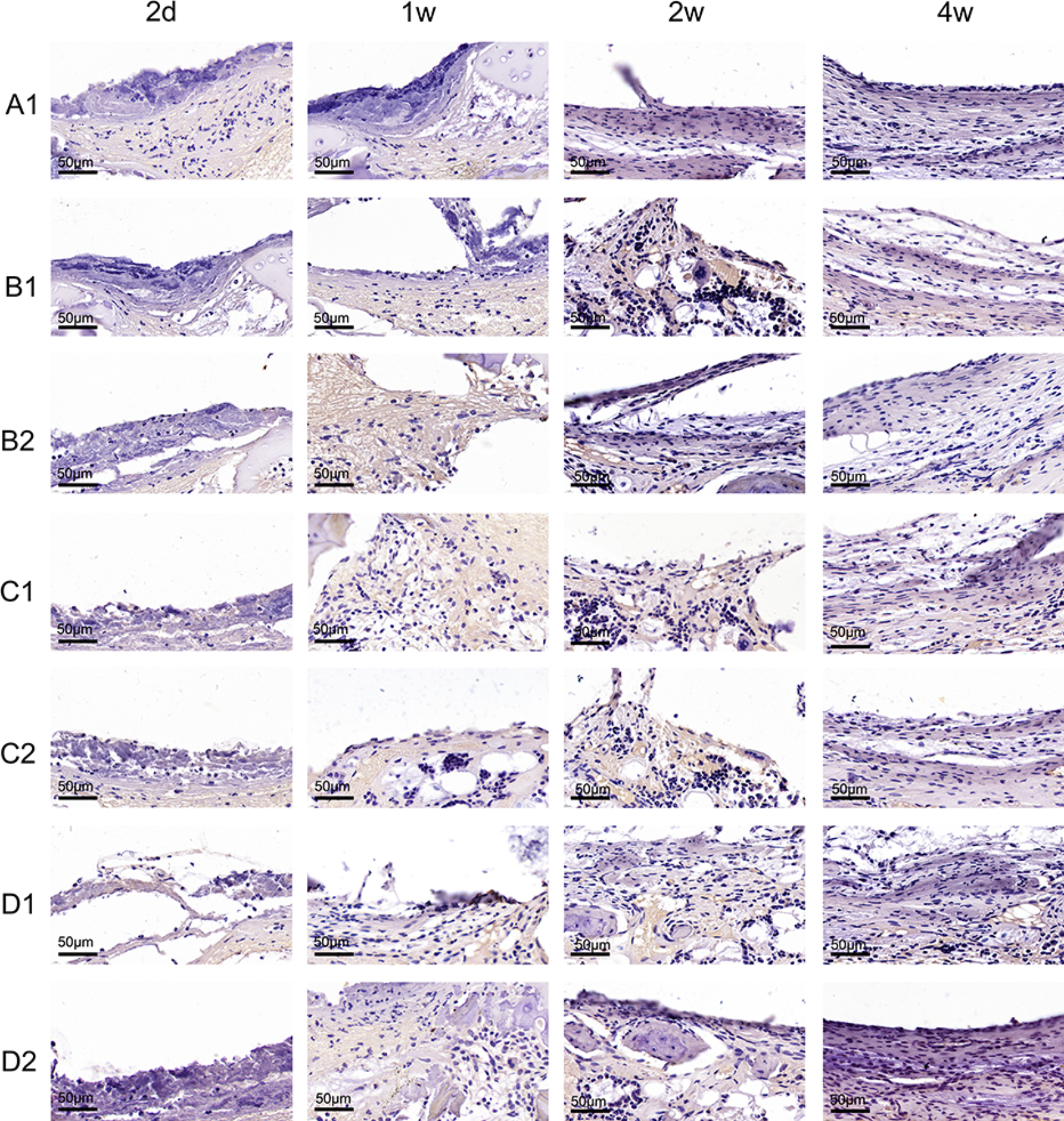

CD68 immunohistochemical staining results for osteochondral defect areas in seven different subgroups at various time points following MASI implantation. The specific groups are as follows: A1, B1, B2, C2, and D2 are subgroups subjected to rabbit bone marrow mesenchymal stem cell transplantation; C1 is a subgroup subjected to rabbit ADSC transplantation; and D1 is a subgroup subjected to rat BMSC transplantation. The figure shows the distribution of CD68-positive cells in the osteochondral defect areas. These CD68-positive cells appear brown after DAB staining, which contrasts sharply with the blue colour of haematoxylin-stained nuclei.
