From: Impact of post-traumatic stress disorder on epileptogenic networks: a functional connectivity study

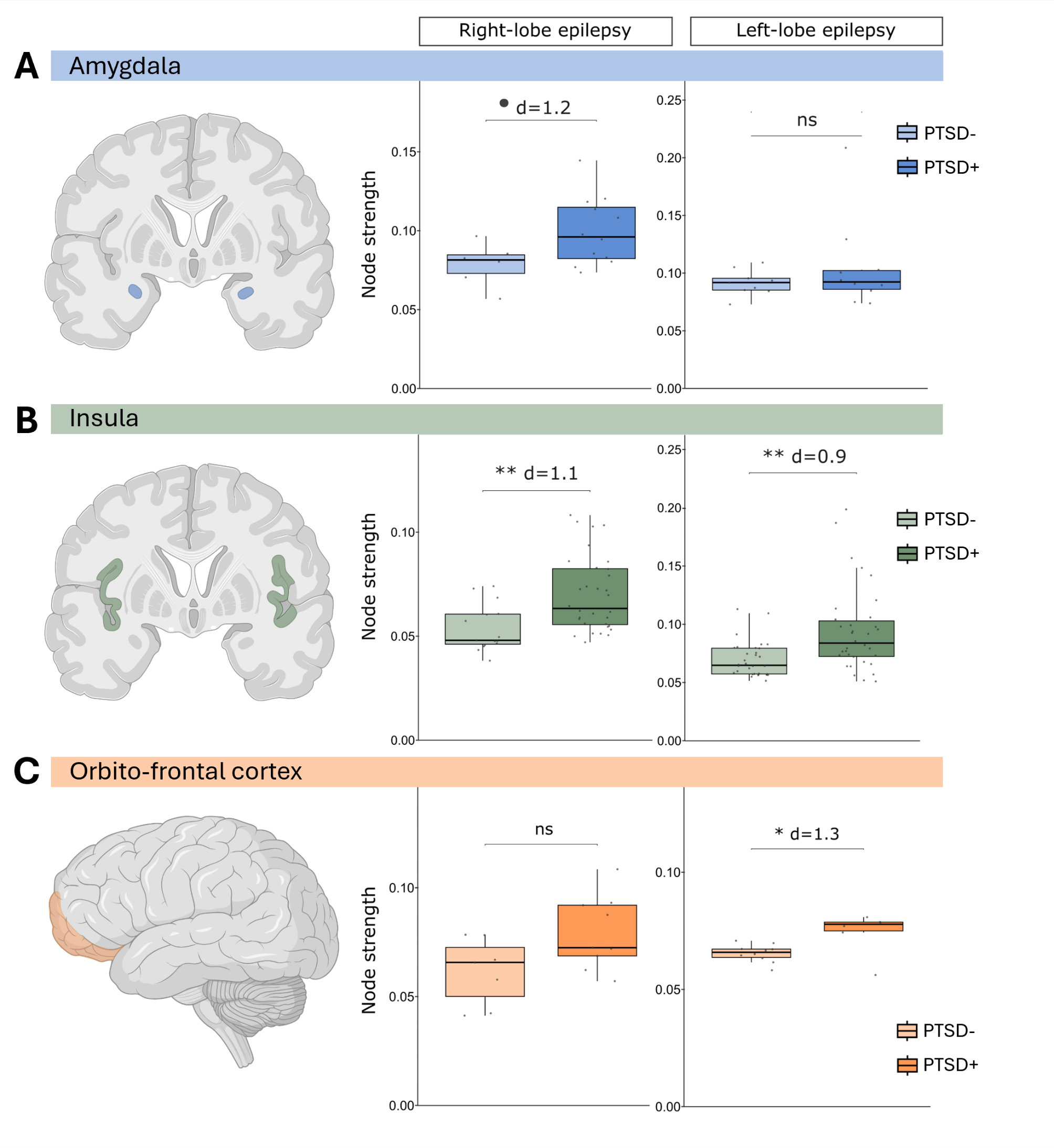

Node strength in PTSD + vs. PTSD- patients, specific structures. (A Resting state total node strength of amygdala contacts only in PTSD- subject (light blue) compared against PTSD + subjects (dark blue) in broadband (1–45 Hz) for all contacts against each other in right-lobe seizure onset patients (p = 0.053, d = 1.2) and left-lobe seizure onset patients (ns). (B) Broadband total node strength of insula contacts only in PTSD- subject (light green) compared against PTSD + subjects (dark green) for all insula contacts in right-lobe seizure onset patients (p = 0.001, d = 1.1) and left-lobe seizure onset patients (p = 0.001, d = 0.9). (C) Broadband total node strength of orbito-frontal cortex contacts only in PTSD- subject (light orange) compared against PTSD + subjects (dark orange) in right-lobe seizure onset patients (ns) and left-lobe seizure onset patients (p = 0.031, d = 1.3).
