Fig. 12 | Scientific Reports

Fig. 12

From: Application of clay minerals in the synthesis of cretaceous mudstones and microstructural analysis of their deterioration mechanism

Fig. 12

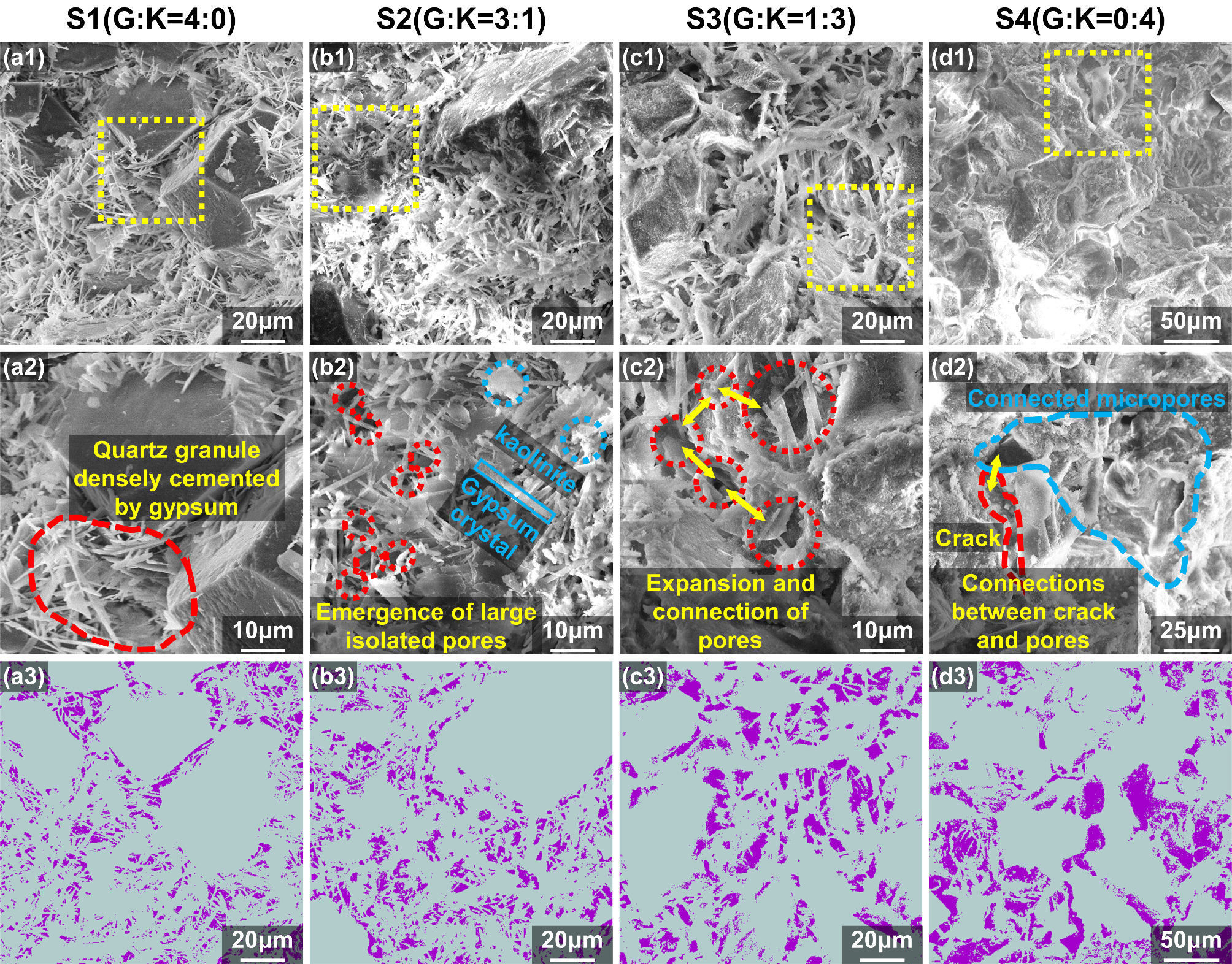

SEM images and the corresponding pore segmentation results of the 4 samples (S1, S2, S3 and S4): (a1) -(d1) are the SEM images of the S1-S4 specimens respectively; (a2) -(d2) depict the magnified views of the ROI marked with golden dashed-line boxes in (a1) -(d1); (a3) -(d3) present the corresponding pore segmentation results of (a1) -(d1).
